House Connection Box (APL) for FTTX - Applications - Model S
Prices only visible for logged in users

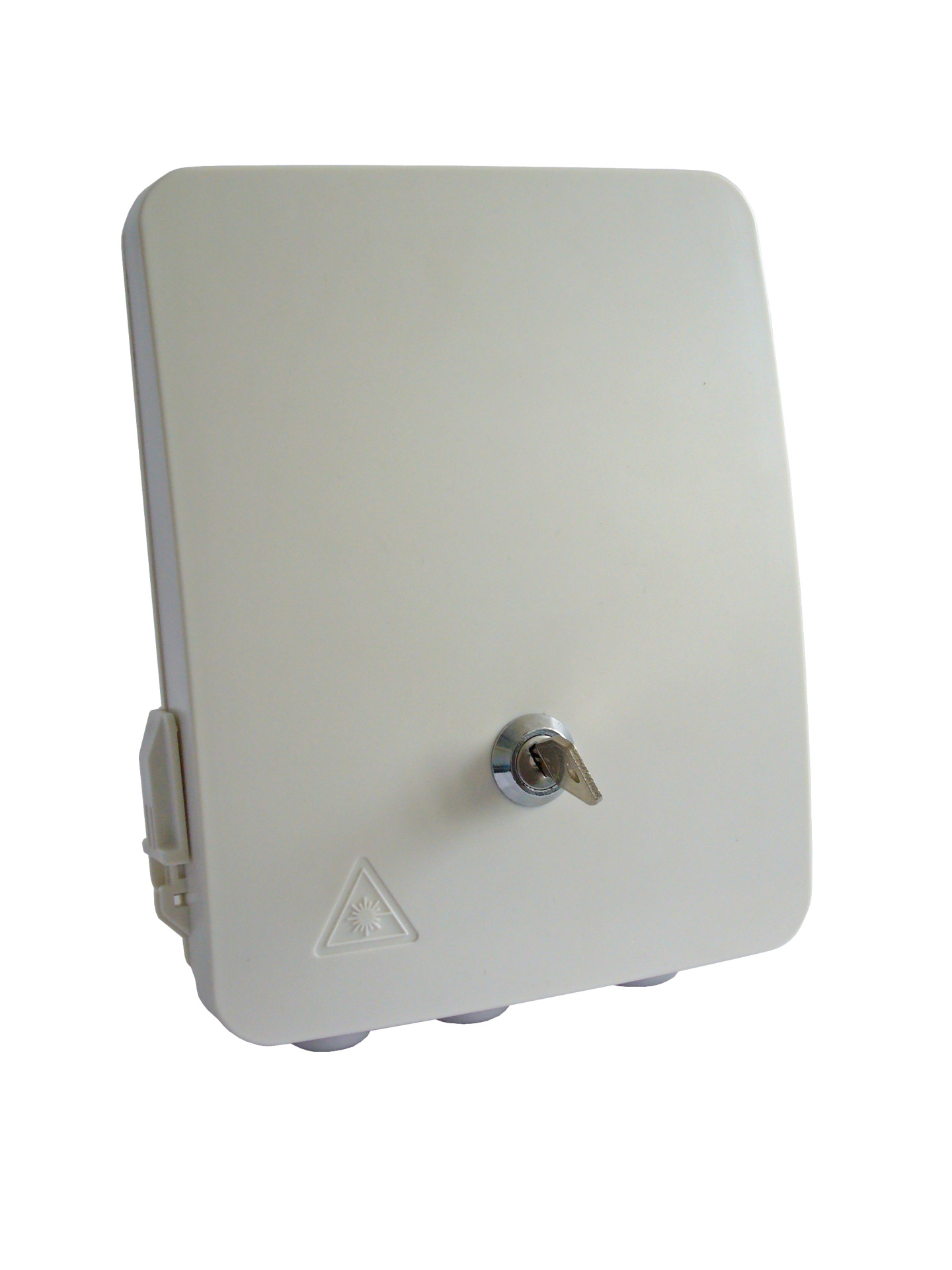

House connection box IP54 unassembled, max 8x SC-S/LC-D, w/o lock
Item number:
53706.2
EAN no.:
4049759137533
Product information for House connection box IP54 unassembled, max 8x SC-S/LC-D, w/o lock
Characteristics
IP54 plastic housing for wall mounting
compact design
cable jacket fixing
hinged splice cassette with integrated splice holder for up to 12 splices
overlength management
installation for 8 adapters LC duplex, E2000® or SC simplex
cablefixing and holder for gas blocker (micro-ducts)
suitable for house connection, building connection and as distribution box
easy entry or outlet of patchcords
Access security with lead seal or lock (53706.1)
grounding
3 cable entries inclusive PG16 glands
delivery unassembled
Technical specifications
cable entries: 1
cable outlets: 2
capacity: up to 12 fibers
dimensions (W x H x D): 210 x 175 x 45 mm
temperature range: -25°C .. +70°C
material: plastic, white
protection class: IP54
IP54 plastic housing for wall mounting
compact design
cable jacket fixing
hinged splice cassette with integrated splice holder for up to 12 splices
overlength management
installation for 8 adapters LC duplex, E2000® or SC simplex
cablefixing and holder for gas blocker (micro-ducts)
suitable for house connection, building connection and as distribution box
easy entry or outlet of patchcords
Access security with lead seal or lock (53706.1)
grounding
3 cable entries inclusive PG16 glands
delivery unassembled
Technical specifications
cable entries: 1
cable outlets: 2
capacity: up to 12 fibers
dimensions (W x H x D): 210 x 175 x 45 mm
temperature range: -25°C .. +70°C
material: plastic, white
protection class: IP54
Technical properties
| Cable entry with cable gland: | 3 |
|---|---|
| Cable sheath support: | True |
| Colour: | white |
| Dimension: | 210 x 175 x 45 mm |
| Foreign body and contact protection: | Protection against ingrees of dust |
| Hinged splice cassette: | True |
| IP Protection: | IP54 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 8 x LC-dpx/SC-spx/E2000 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 12 |
| Possibility of mast mounting: | False |
| Scope of application: | Outdoor |
| Temperature range: | -25 – 70 °C |
| Type of Splice protection: | Crimp |
| Water protection: | Protection against splashing water |
| With Fiber overlength cassette: | True |
