Wall mounting for XON1300 & APL
Prices only visible for logged in users
Wall mounting for XON1300 & APL with integrated fiber management
Item number:
XON30
EAN no.:
4049759205454
Product information for Wall mounting for XON1300 & APL with integrated fiber management
FTTx CPE: XON1300
Modularity Saves Investment and Service Costs
No matter if it concerns the housing industry, a city carrier or a utility company, easy planning and scaling of the FTTH network is a key point in the deployment process. Terminating the network with the XON1300 provides the ideal solution.
Flexibility:

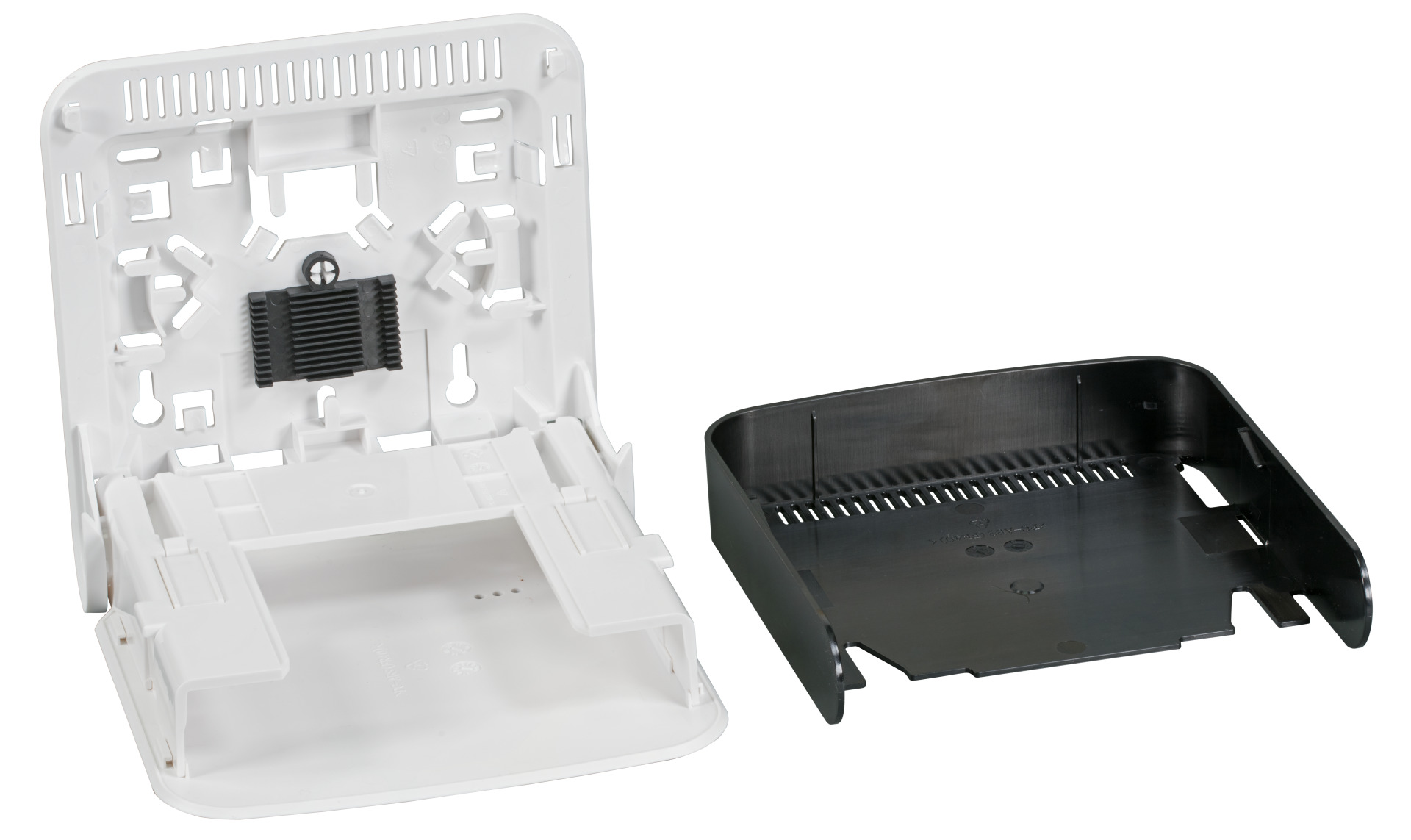

The XON30.W wallmount unit acts as a passive network termination and can be installed independently from the active XON1300 unit.
Reduction of Operational Costs:
Simple insertion of the XON1300 into the wallmount unit and placing into operation is carried out by the end user. Modification in services requires only an exchange of the active equipment.
Durable & Robust Technology:
Excellent quality and robustness guarantee a long life time and a high reliability of the device preparing the network for future bandwidth requirements.
Designed for the Living Room:
A timeless housing design in the smallest form factor suitable for the living area. Winner of the RedDot Award 2014 for the effective housing concept.
Flexible use for more success
Thanks to its modularity, the XON1300 can be used in various point-to-point FTTH applications. The module is available in different versions for 1- and 2-fiber
Topologies:
XON1300.S Gigabit Ethernet Switch
XON1300.P / IP passive module for maintaining router freedom
Modularity Saves Investment and Service Costs
No matter if it concerns the housing industry, a city carrier or a utility company, easy planning and scaling of the FTTH network is a key point in the deployment process. Terminating the network with the XON1300 provides the ideal solution.
Flexibility:
The XON30.W wallmount unit acts as a passive network termination and can be installed independently from the active XON1300 unit.
Reduction of Operational Costs:
Simple insertion of the XON1300 into the wallmount unit and placing into operation is carried out by the end user. Modification in services requires only an exchange of the active equipment.
Durable & Robust Technology:
Excellent quality and robustness guarantee a long life time and a high reliability of the device preparing the network for future bandwidth requirements.
Designed for the Living Room:
A timeless housing design in the smallest form factor suitable for the living area. Winner of the RedDot Award 2014 for the effective housing concept.
Flexible use for more success
Thanks to its modularity, the XON1300 can be used in various point-to-point FTTH applications. The module is available in different versions for 1- and 2-fiber
Topologies:
XON1300.S Gigabit Ethernet Switch
XON1300.P / IP passive module for maintaining router freedom
Technical properties
| Cable entry without cable gland: | 4 |
|---|---|
| Cable sheath support: | False |
| Colour: | white |
| Dimension: | 48x150x150 mm |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | False |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IP Protection: | IP20 |
| Material: | Plastic |
| Max. Assembly (Adapter): | 2 |
| Mounting method: | Wall mounting |
| Number of Fibres: | 2 |
| Possibility of mast mounting: | False |
| Scope of application: | Indoor |
| Type of Splice protection: | Crimp & Thermo |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | False |
