IP67 Receptacle, M20, USB2.0, F-M, A-A, guy rope
IP67 Receptacle, M20, USB2.0, F-M, A-A, service port, guy rope, 0.5m
Item number:
IP67EBUSBA-A0,5FLHS
EAN no.:
4049759194826

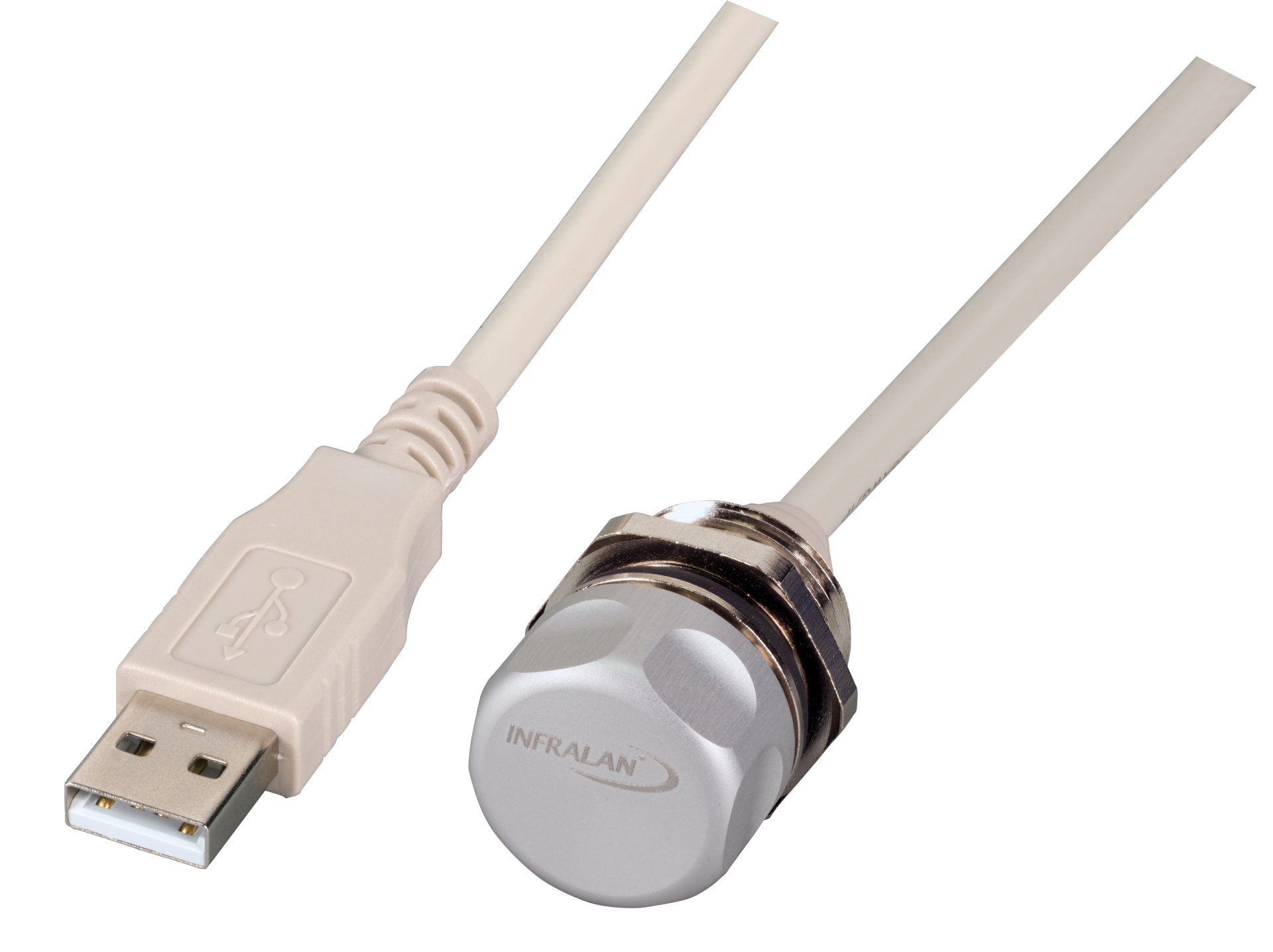

Product information for IP67 Receptacle, M20, USB2.0, F-M, A-A, service port, guy rope, 0.5m
IP67 panel socket for installation in distributor boxes with M25 cut-out.

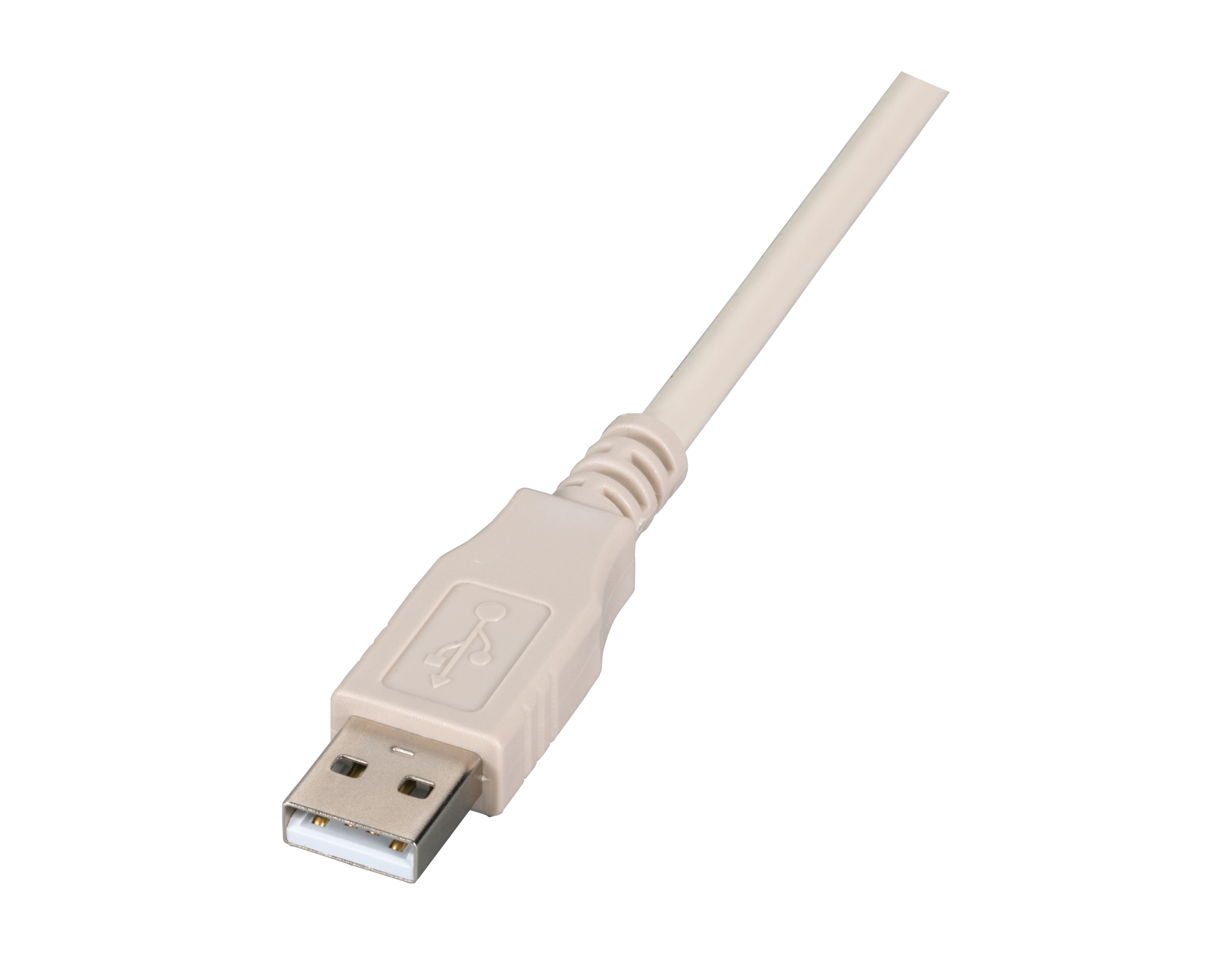

With built-in USB2.0 socket / plug A-A cable
Material: brass
With captive dust protection cap
With built-in USB2.0 socket / plug A-A cable
Material: brass
With captive dust protection cap
| Connection type connection 1: | jack |
|---|---|
| Connection type connection 2: | Plug |
| Dust cover: | Non-losable (service) |
| Model: | panel socket, 0.5m |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-A |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M20 |
Technical properties
| Connection type connection 1: | jack |
|---|---|
| Connection type connection 2: | Plug |
| Dust cover: | Non-losable (service) |
| Model: | panel socket, 0.5m |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-A |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M20 |
Product information for IP67 Receptacle, M20, USB2.0, F-M, A-A, service port, guy rope, 0.5m
IP67 panel socket for installation in distributor boxes with M25 cut-out.
With built-in USB2.0 socket / plug A-A cable
Material: brass
With captive dust protection cap
With built-in USB2.0 socket / plug A-A cable
Material: brass
With captive dust protection cap
| Connection type connection 1: | jack |
|---|---|
| Connection type connection 2: | Plug |
| Dust cover: | Non-losable (service) |
| Model: | panel socket, 0.5m |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-A |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M20 |
| Connection type connection 1: | jack |
|---|---|
| Connection type connection 2: | Plug |
| Dust cover: | Non-losable (service) |
| Model: | panel socket, 0.5m |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB-A |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M20 |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
