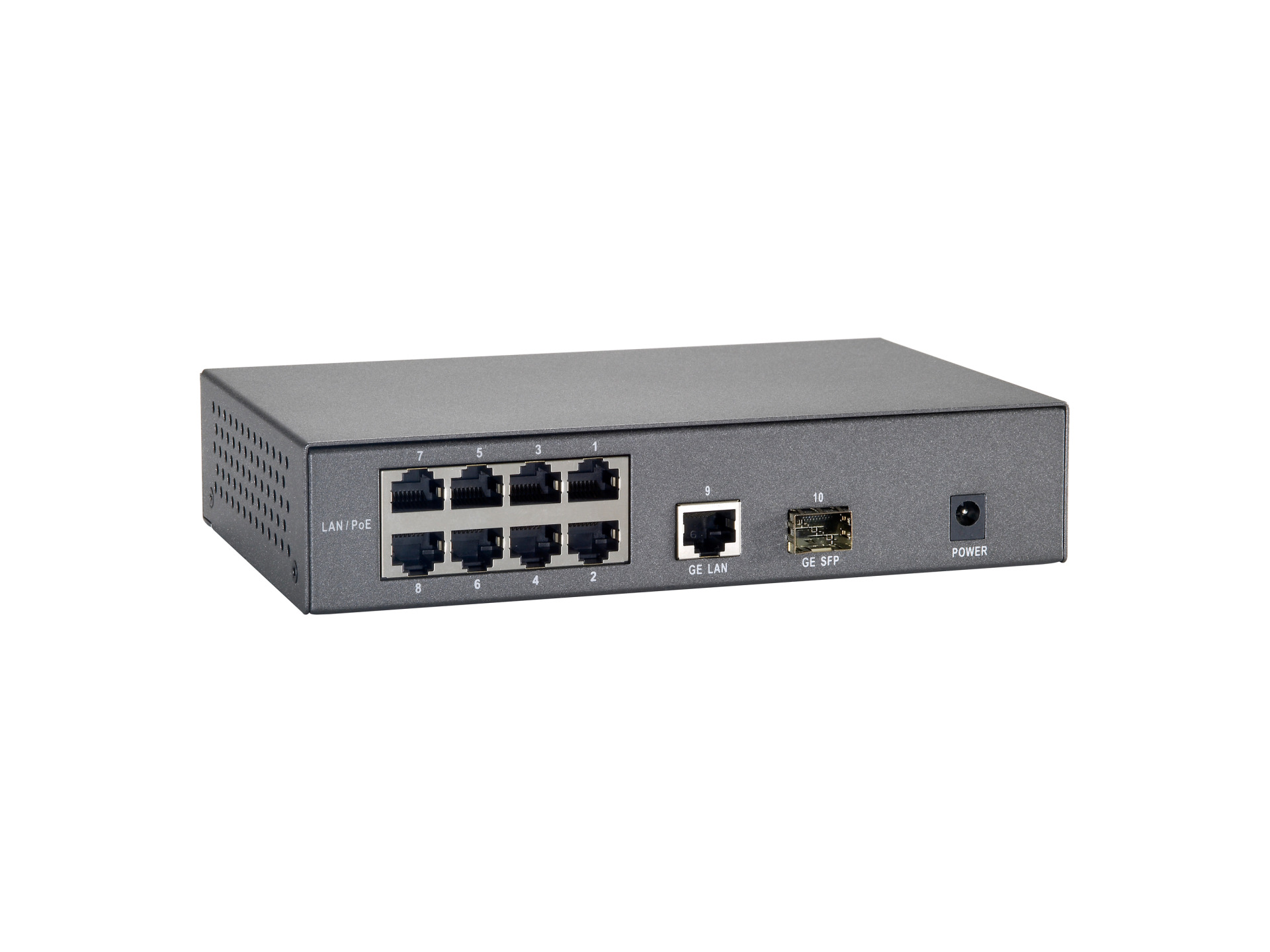

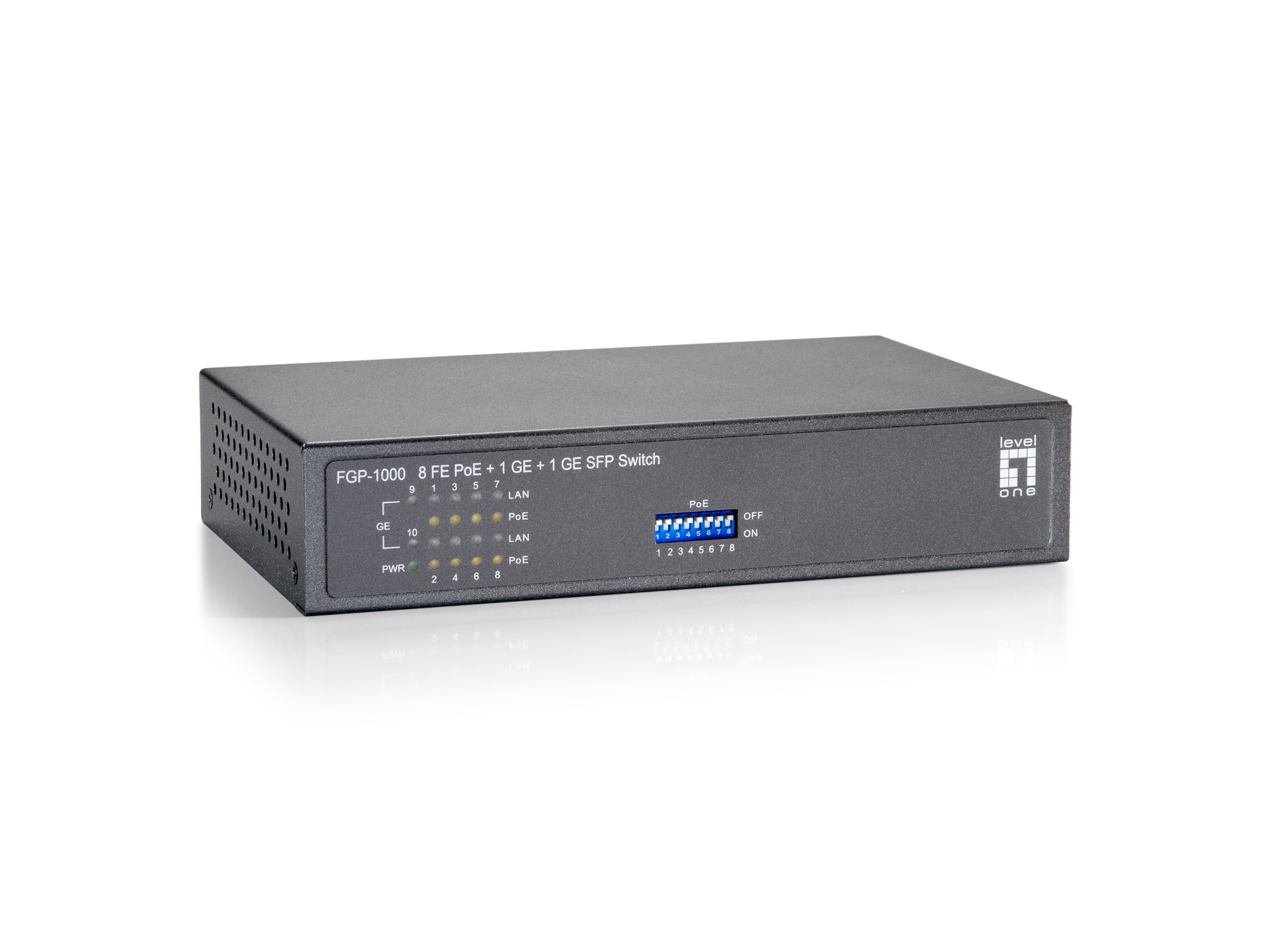

FGP-1000, 10-Port Fast Ethernet PoE+ Switch, DIP, different PoE Variants
10-Port Fast Ethernet PoE+ Switch, 8x FE PoE+, + 1x GE RJ45, +1x GE SFP (120W)
Item number:
FGP-1000
EAN no.:
4015867187982
Product information for 10-Port Fast Ethernet PoE+ Switch, 8x FE PoE+, + 1x GE RJ45, +1x GE SFP (120W)
10-Port Fast Ethernet PoE+ Switch:
8x PoE+ Fast Ethernet Ports + 1x Gigabit Ethernet RJ45 Port + 1x Gigabit Ethernet SFP Slot
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
Compact design for desktop use or wall mounting
Metal housing (L x W x H): 188 x 118 x 38 mm
8x PoE+ Fast Ethernet Ports + 1x Gigabit Ethernet RJ45 Port + 1x Gigabit Ethernet SFP Slot
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
Compact design for desktop use or wall mounting
Metal housing (L x W x H): 188 x 118 x 38 mm
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 118.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 38.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | Surface mounted (plaster) |
| Number of ports 10/100 Mbps RJ45: | 8 |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| Number of ports 100/1000 Mbps Mini GBIC: | 1 |
| Number of ports PoE: | 8 |
| Power over Ethernet (PoE): | Other |
| Width: | 188.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
