FSW-0513, 5-Port Fast Ethernet High Power PoE Switch, 4x PoE (120W)

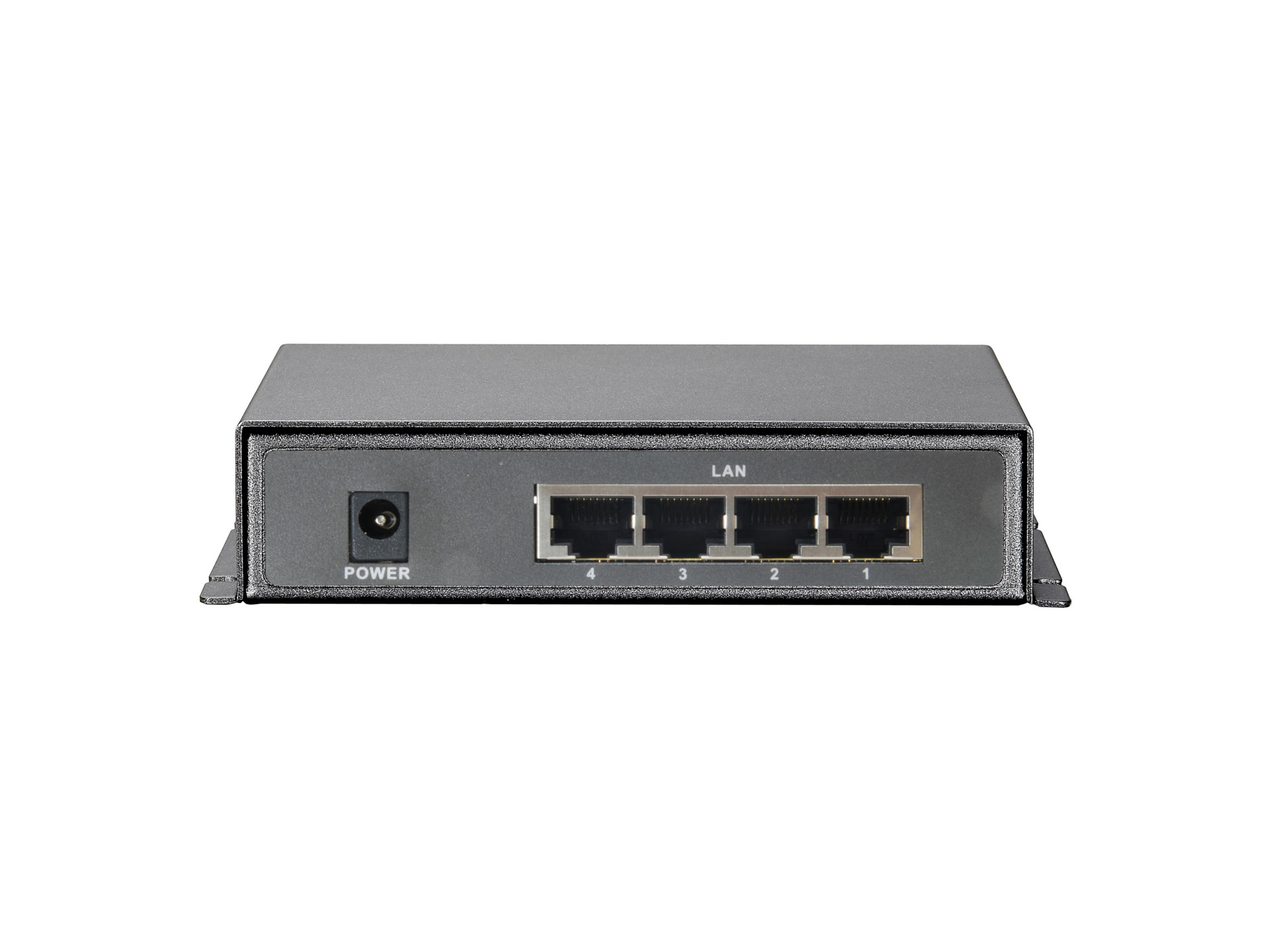

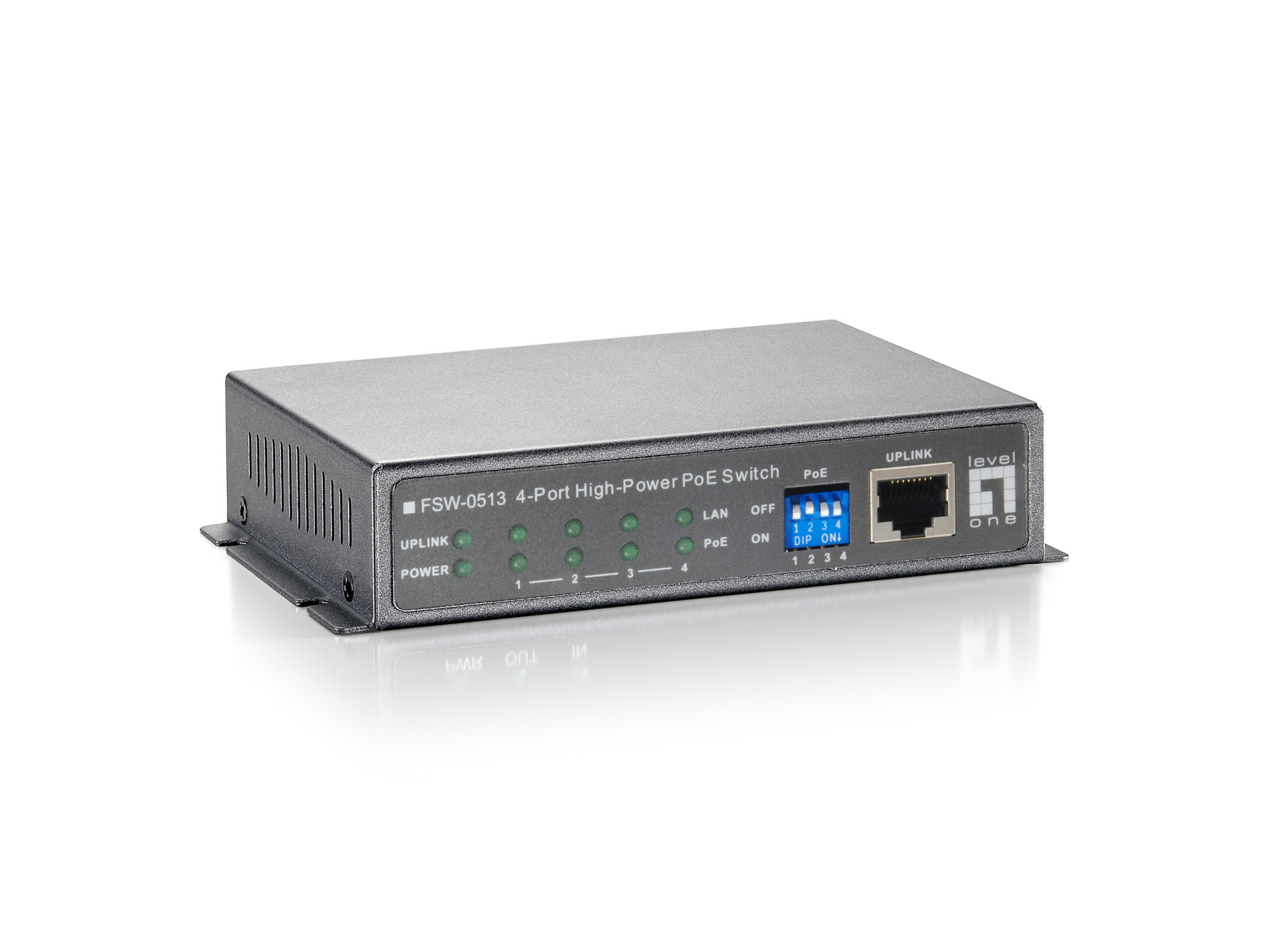

5-Port Fast Ethernet High Power PoE Switch, (120W)
Item number:
FSW-0513
EAN no.:
4015867154564
Product information for 5-Port Fast Ethernet High Power PoE Switch, (120W)
5-Port Fast Ethernet PoE Switch
4x PoE Ports + 1x RJ45 Uplink-Port
PoE: High Power PoE up to 52 W per port
DIP-Switch to control all PoE-ports
Max. PoE-Power: 120 W
Features: Autonegotiation and Auto MDI/MDIX
Metal housing fanless (L x W x H): 120 x 90 x 28 mm
4x PoE Ports + 1x RJ45 Uplink-Port
PoE: High Power PoE up to 52 W per port
DIP-Switch to control all PoE-ports
Max. PoE-Power: 120 W
Features: Autonegotiation and Auto MDI/MDIX
Metal housing fanless (L x W x H): 120 x 90 x 28 mm
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 90.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 28.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | Desk type |
| Number of ports 10/100 Mbps RJ45: | 5 |
| Number of ports PoE: | 4 |
| Power over Ethernet (PoE): | Other |
| Width: | 120.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
