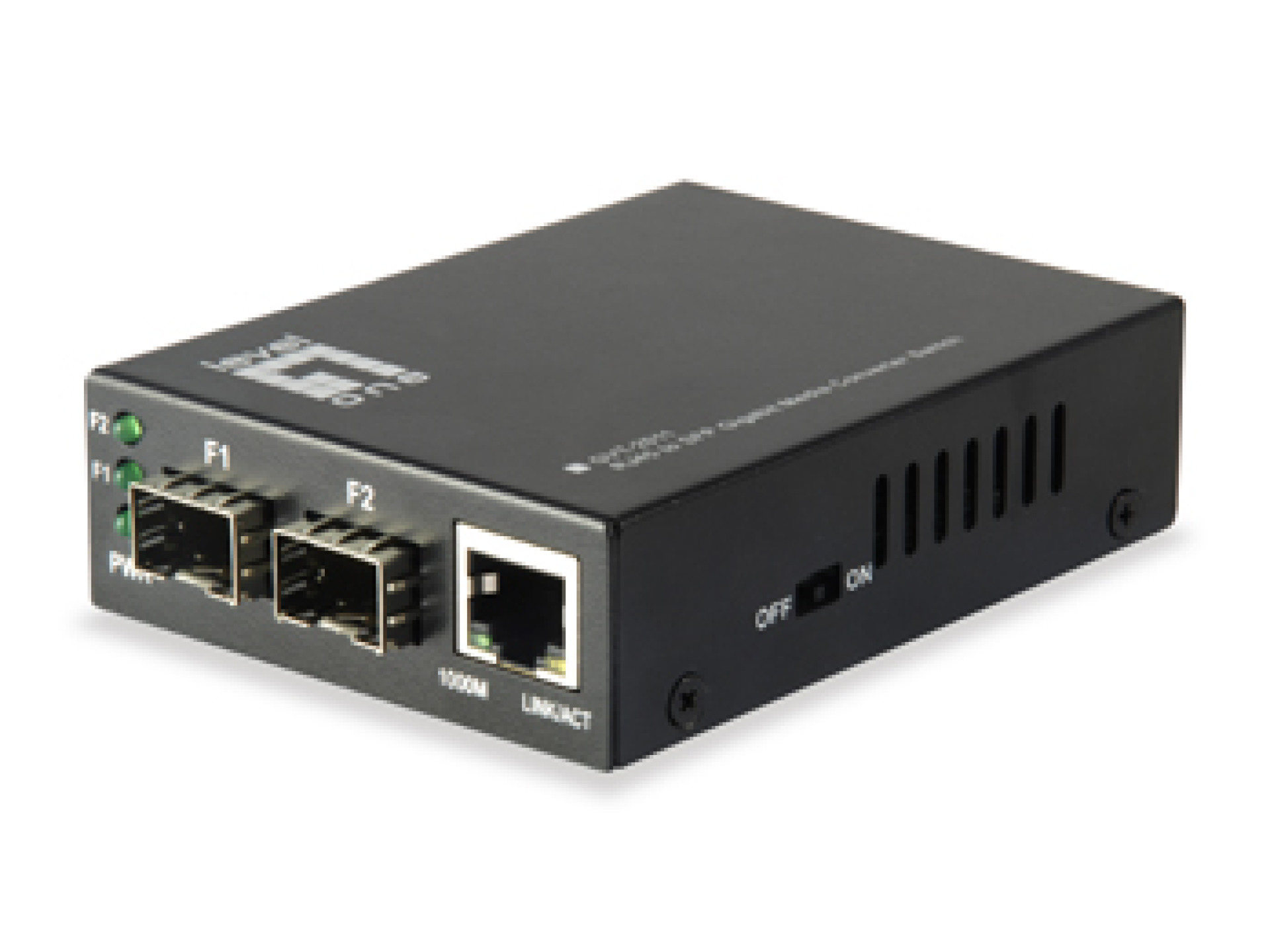

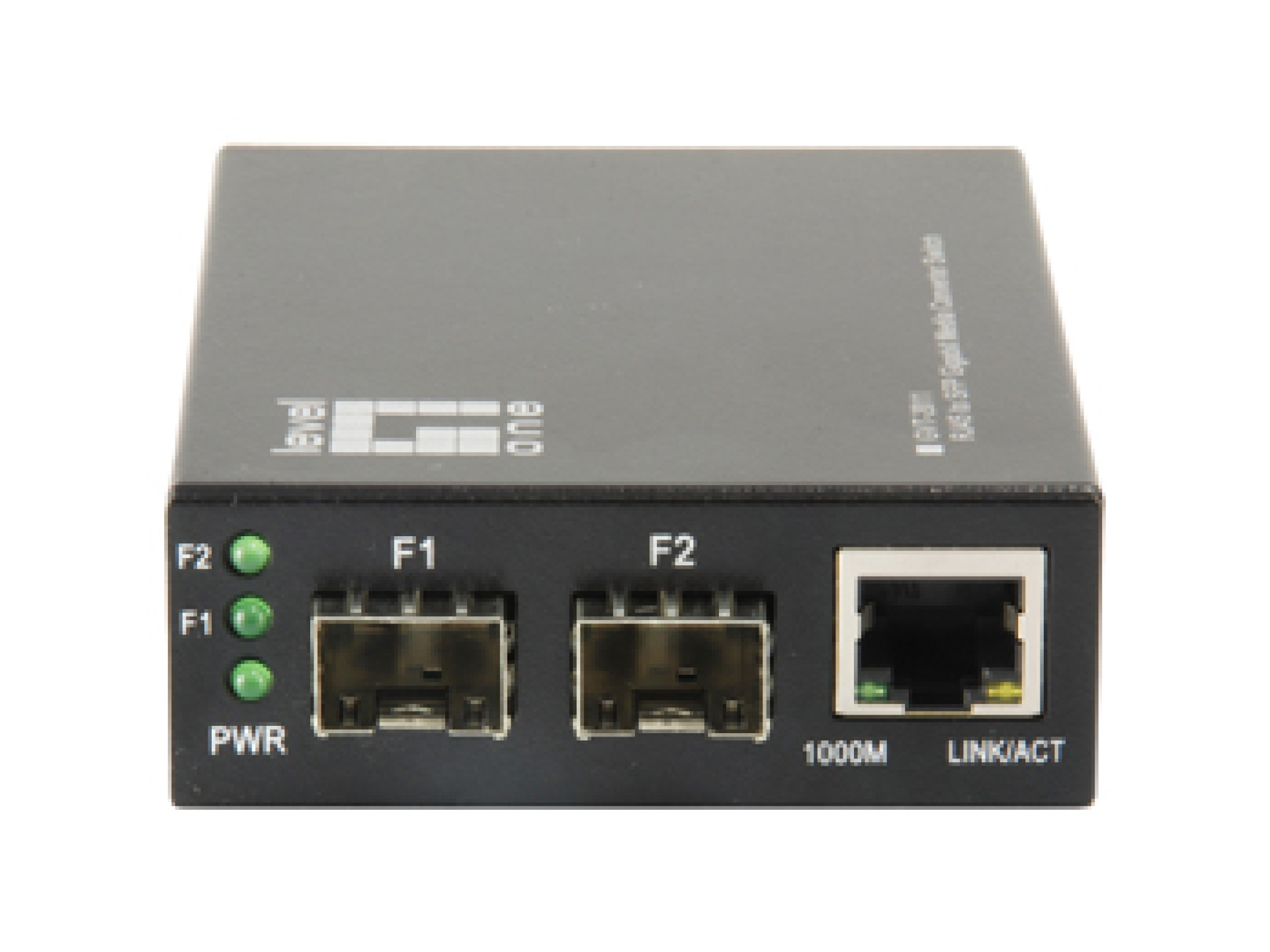

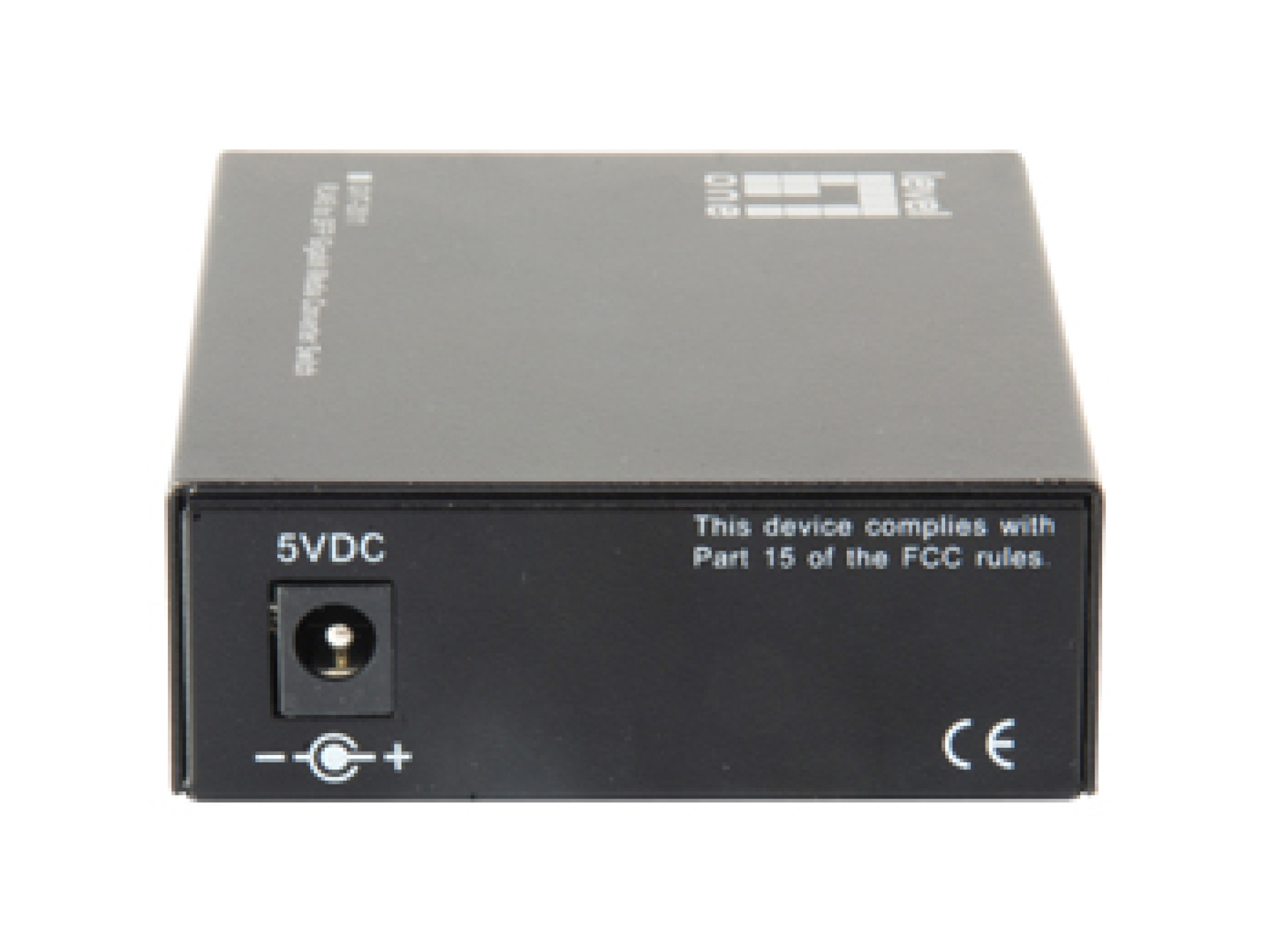

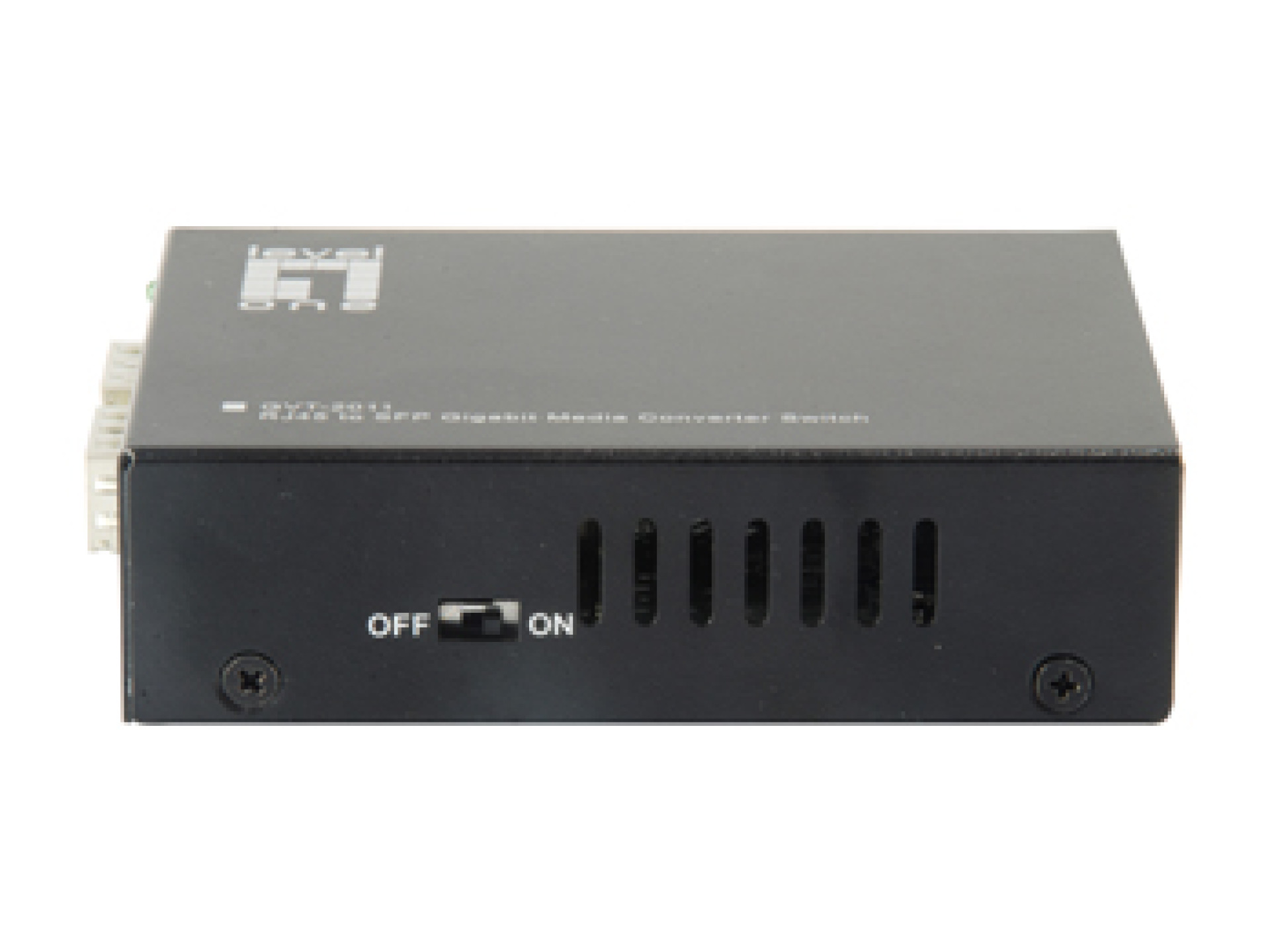

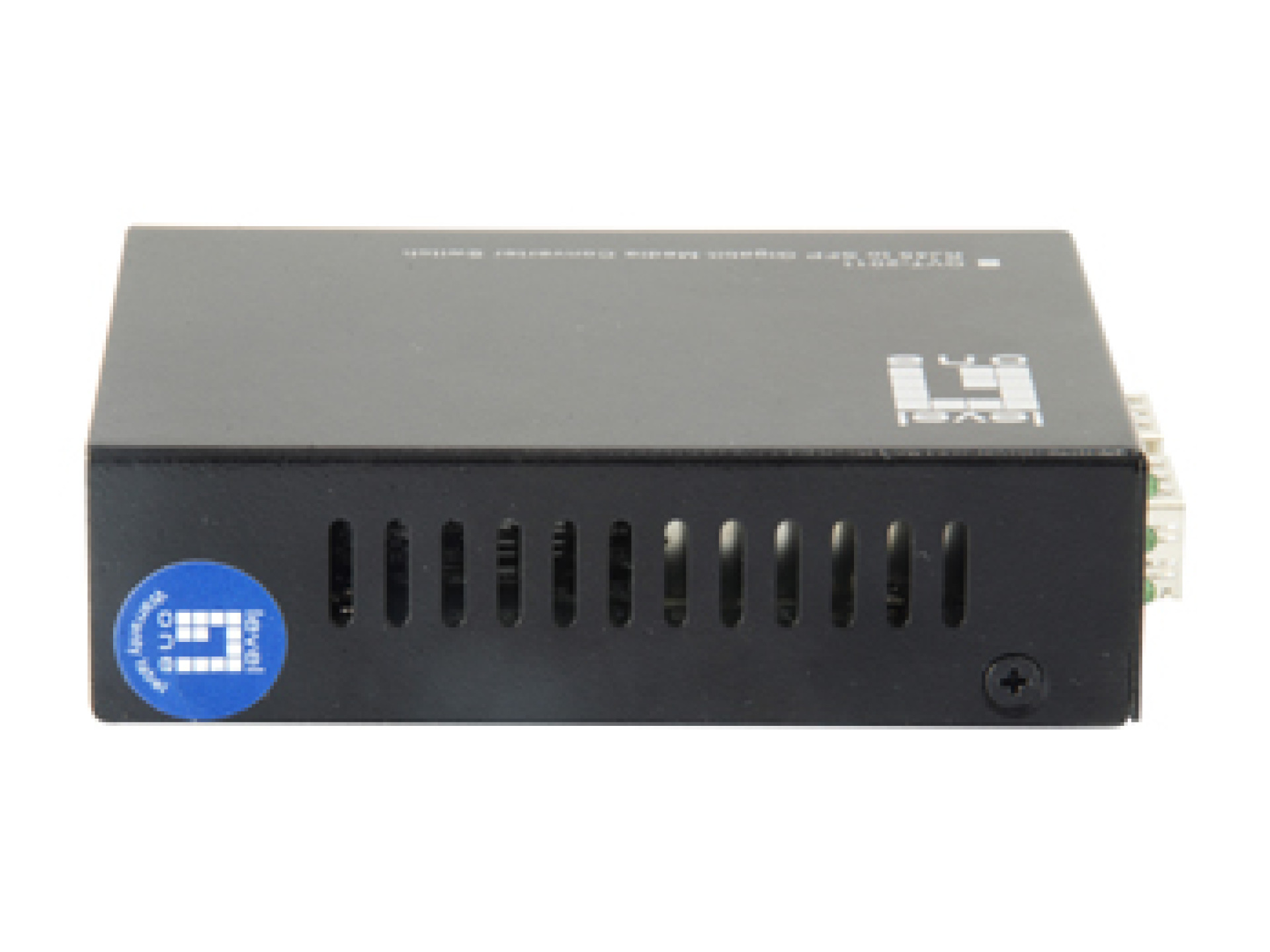

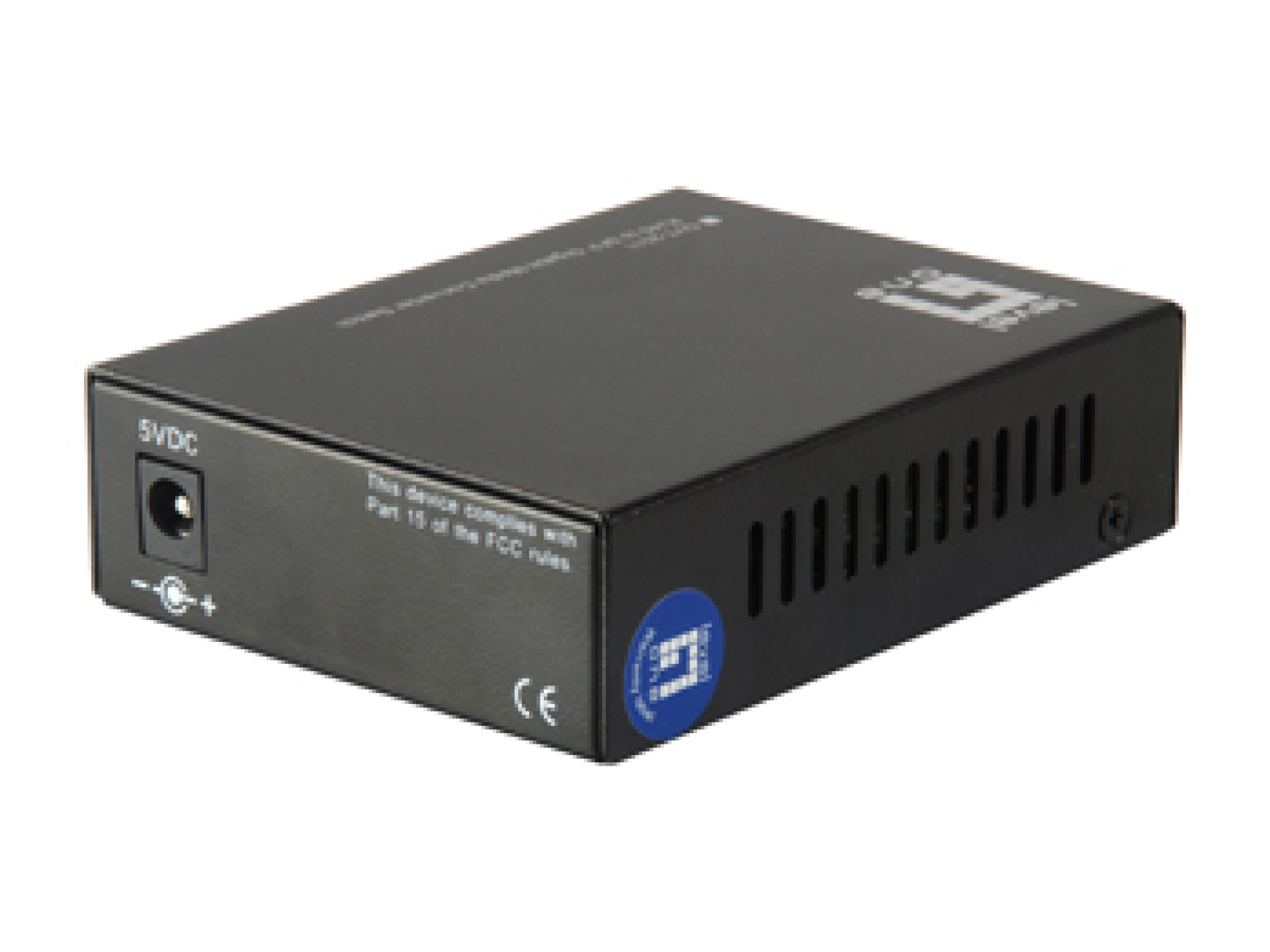

Gigabit RJ45 to 2 x SFP Media Konverter-Switch
Product information for Gigabit RJ45 to SFP Media Converter-Switch, 2x SFP, 1x RJ45
Transmits data of 10/100/1000Base-T-Copper- to Fiber Optic Interfaces
IEEE-802.3x Flow-Control protects from packet-loss and allows a reliable data transmission
Supports transmission with a low time delay
Diagnostic LEDs
External power supply included
Metal housing fanless (L x W x H): 94 x 71 x 26 mm
| Construction type: | Single device |
|---|---|
| Depth: | 94.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 26.0 mm |
| LWL-Port: | 2 x SFP 1000Base-X |
| Manufacturer: | LevelOne |
| Mode: | MM or SM |
| Number of Mini-GBIC-Ports: | 2 |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| RJ45-Port: | 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
| Width: | 71.0 mm |
Technical properties
| Construction type: | Single device |
|---|---|
| Depth: | 94.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 26.0 mm |
| LWL-Port: | 2 x SFP 1000Base-X |
| Manufacturer: | LevelOne |
| Mode: | MM or SM |
| Number of Mini-GBIC-Ports: | 2 |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| RJ45-Port: | 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
| Width: | 71.0 mm |
Product information for Gigabit RJ45 to SFP Media Converter-Switch, 2x SFP, 1x RJ45
Transmits data of 10/100/1000Base-T-Copper- to Fiber Optic Interfaces
IEEE-802.3x Flow-Control protects from packet-loss and allows a reliable data transmission
Supports transmission with a low time delay
Diagnostic LEDs
External power supply included
Metal housing fanless (L x W x H): 94 x 71 x 26 mm
| Construction type: | Single device |
|---|---|
| Depth: | 94.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 26.0 mm |
| LWL-Port: | 2 x SFP 1000Base-X |
| Manufacturer: | LevelOne |
| Mode: | MM or SM |
| Number of Mini-GBIC-Ports: | 2 |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| RJ45-Port: | 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
| Width: | 71.0 mm |
| Construction type: | Single device |
|---|---|
| Depth: | 94.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 26.0 mm |
| LWL-Port: | 2 x SFP 1000Base-X |
| Manufacturer: | LevelOne |
| Mode: | MM or SM |
| Number of Mini-GBIC-Ports: | 2 |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| RJ45-Port: | 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
| Width: | 71.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Warning: Laser beams! Open laser beams, especially in the visible, UV or infrared range, pose a significant safety risk. Direct or indirect exposure to laser beams can lead to serious eye injuries, skin damage and other health problems. Eye exposure is particularly dangerous as it can cause permanent damage such as retinal damage or blindness. Avoid direct eye contact and do not look directly into the laser light.
