HDMI Switch 3x1 4K Pigtail 0.5m

Prices only visible for logged in users

HDMI Switch 3x1 4K Pigtail 0.5m
Item number: IDATA-HDMI-3F30
Piece

Product information for HDMI Switch 3x1 4K Pigtail 0.5m

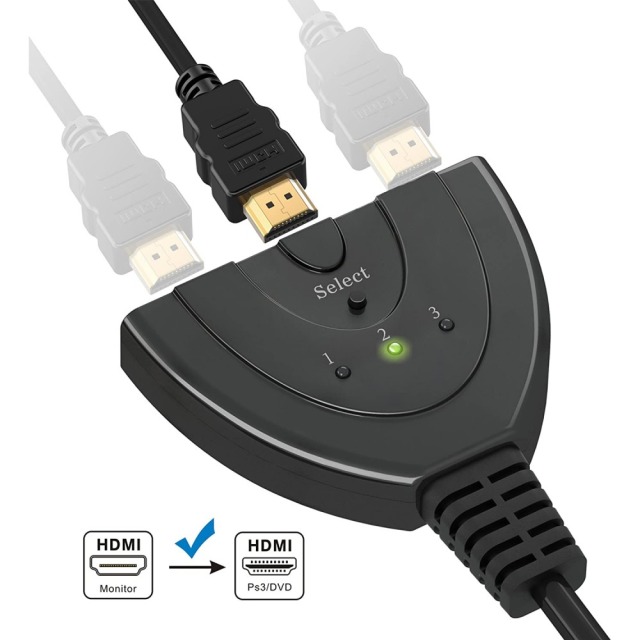

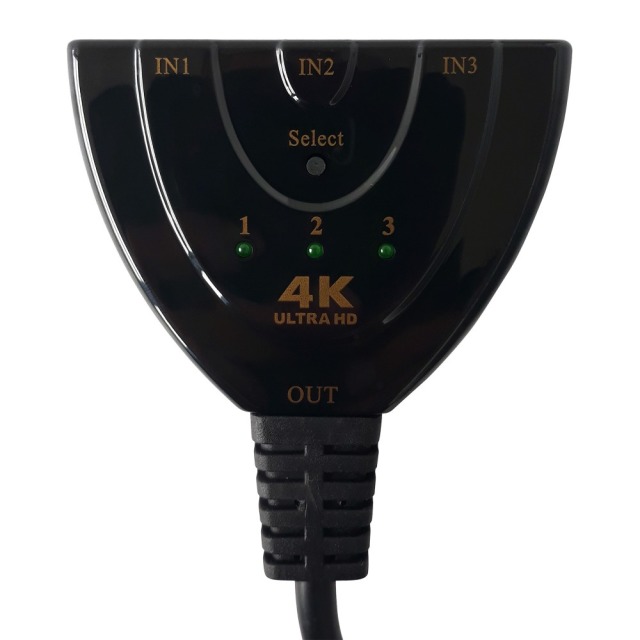

High performance HD switch capable of switching three sources on a single screen.
This switching function is not performed only by pressing the buttons on the device, but also through an intelligent function.

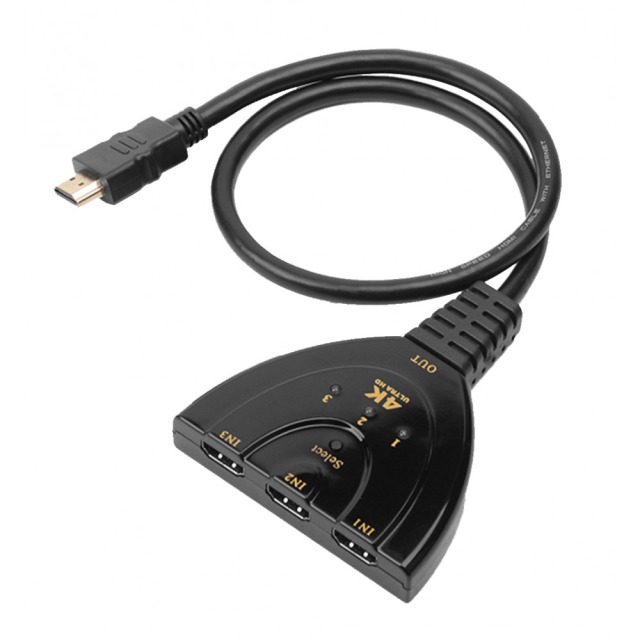

The built-in cable (pigtail) not only reduces costs but also saves users time. Route high definition video (with multiple resolutions up to 4Kx2K at 30Hz) and digital audio from one of the three high definition video sources, also compatible with HD-DVD, SKY-STB, PS3, XBOX, etc. The output sends high definition audio/video signals to a high definition monitor.

Features
Multifunction switching: intelligent or mechanical
Supports HDMI 1.4b
Supports maximum video resolution up to 4Kx2K @ 30Hz
Supports bandwidth of 340MHz / 3.4 Gbps per channel (10.2 Gbps all channels)
Supports 12bit deep color per channel (36bit all channels)
HDCP pass-through
Supports uncompressed audio like LPCM
Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
Input and output signal
5volts p-p DDC signal input (TTL)
Maximum Single Link range 4Kx2K @ 30Hz
HDTV 1.4b video output
Operating frequency
Video frequency range 50 / 60Hz
3.4Gbps / 340MHz video bandwidth
Resolution (HDTV)
Interlaced (50 & 60Hz) 4Kx2K
Progressive (50 & 60Hz) 4Kx2K

Environmental characteristics
Operating temperature from 0 °C to + 70 °C
Operating humidity from 10% to 85% (without condensation)
Storage temperature from 5% to 90% RH (without condensation)

Package contents

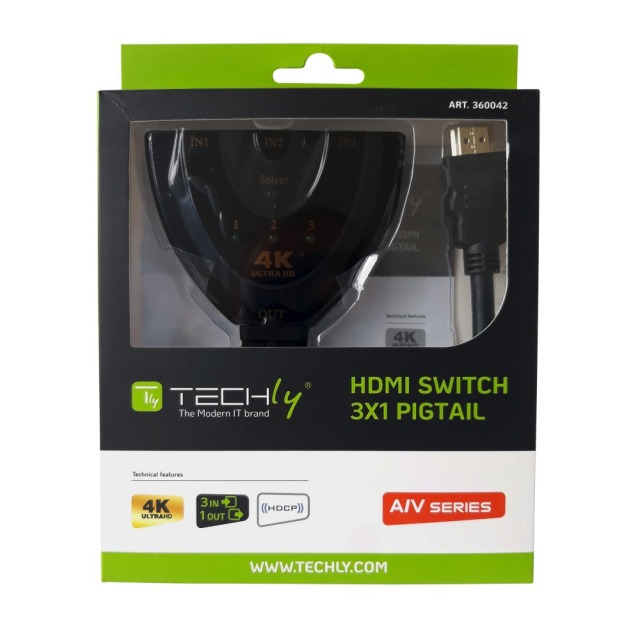

HDMI ™ 3x1 Pigtail switch
User Manual

Technical properties

Suitable for 19 inch mounting: False
Video norm: Colour PAL
