KVM switch DisplayPort 1.2, 4 ways, Dual-View, with USB-Hub
KVM switch DisplayPort 1.2, 4 ways, Dual-View, with USB-Hub
Item number:
IDATA-DP-KVM4
EAN no.:
8051128101935
Product information for KVM switch DisplayPort 1.2, 4 ways, Dual-View, with USB-Hub
The 4x1 DP&USB KVM Switch allows you to show the information of four computers alternately on one display via USB and DisplayPort. USB keyboard & mouse with audio and microphone on four USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840x2160 @ 30Hz with video link rate up to 21.6 Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows the user to switch between devices via front push button or hotkey. It is fully compatible with a wide variety of Windows and Mac OS operating systems.
Features 4 port DisplayPort 1.2 KVM Switch with Hub and audio KVM switch capable of managing four computers through a single DisplayPort monitor, USB keyboard, USB mouse and other USB 2.0 devices DisplayPort 1.2 compliant Integrated 2 port hub for USB 2.0 peripheral sharing Supports resolutions of up to 3840x2160 @ 30Hz with a video link rate up to 21.6 Gbps Supports Dolby True HD and DTS HD Master Audio formats Hotkey and push-button switching Housing: Metal Color: Black
Technical specifications Saves space and equipment costs Share a HDTV or display, USB keyboard & mouse with audio and microphone among 4 USB/DP computer and devices Provides additional USB 2.0 ports with over-current detection and protection Switching between devices via front push button or hotkey Supports Dolby True HD and DTS HD Master Audio formats Metal housing for increased RF shielding 1 of the 4 connected devices has to be a computer with a USB connection to enable the switching mechanism
Requirements Windows, Mac, Linux computers Game consoles, BIu-Ray players, DVD players and other Consumer Electronics devices

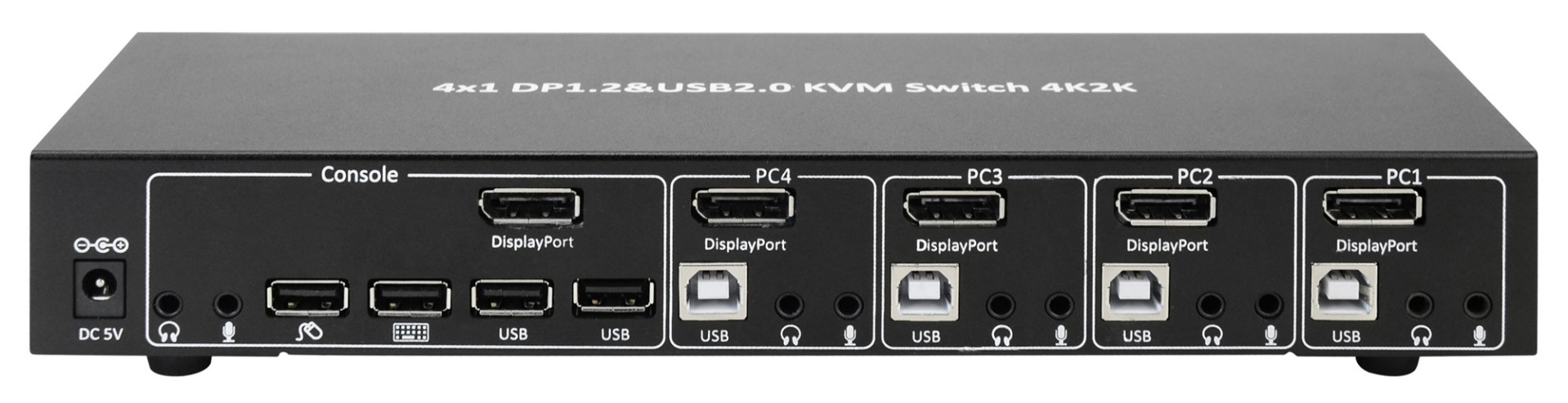

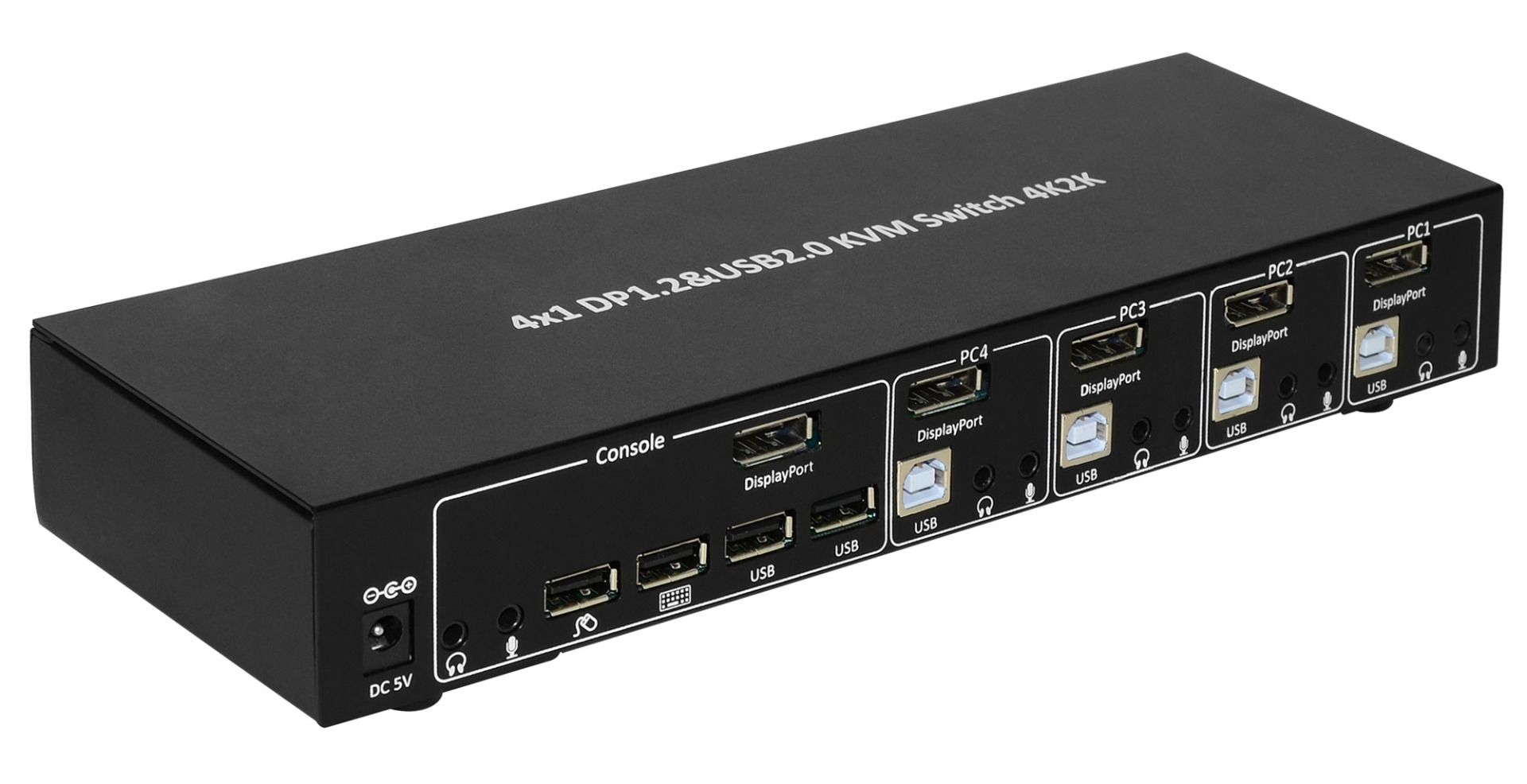

Connections Input: 4x DisplayPort, Female Input: 4x USB 2.0, Type B, Female Output: 1x DisplayPort, Female Output: 1x USB 2.0, Type A, Female (for keyboard) Output: 1x USB 2.0, Type A, Female (for mouse) Output: 2x USB 2.0, Type A, Female Output: 1x Microphone jack Output: 1x Stereo audio jack (earphone)
Power adapter Input: 100 - 240V, 50/60Hz Output: 5V DC, 2A
Package contents 1x 4 port DisplayPort 1.2 KVM Switch with Hub and audio 1x User Manual 1x Power Supply 5V/2A
Features
Technical specifications
Requirements
Connections
Power adapter
Package contents
Technical properties
| Automatic alarm processing: | False |
|---|---|
| Automatic sequence: | False |
| Full screen at alarm: | False |
| OSD-programming: | False |
| Suitable for 19 inch mounting: | False |
| Text generator: | False |
| Video loss function: | False |
| Video norm: | Colour PAL |
| With communication interface: | True |
| With loop through function: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
