Roof Fan Unit, 6 x Fan, 1U, RAL7035

Prices only visible for logged in users

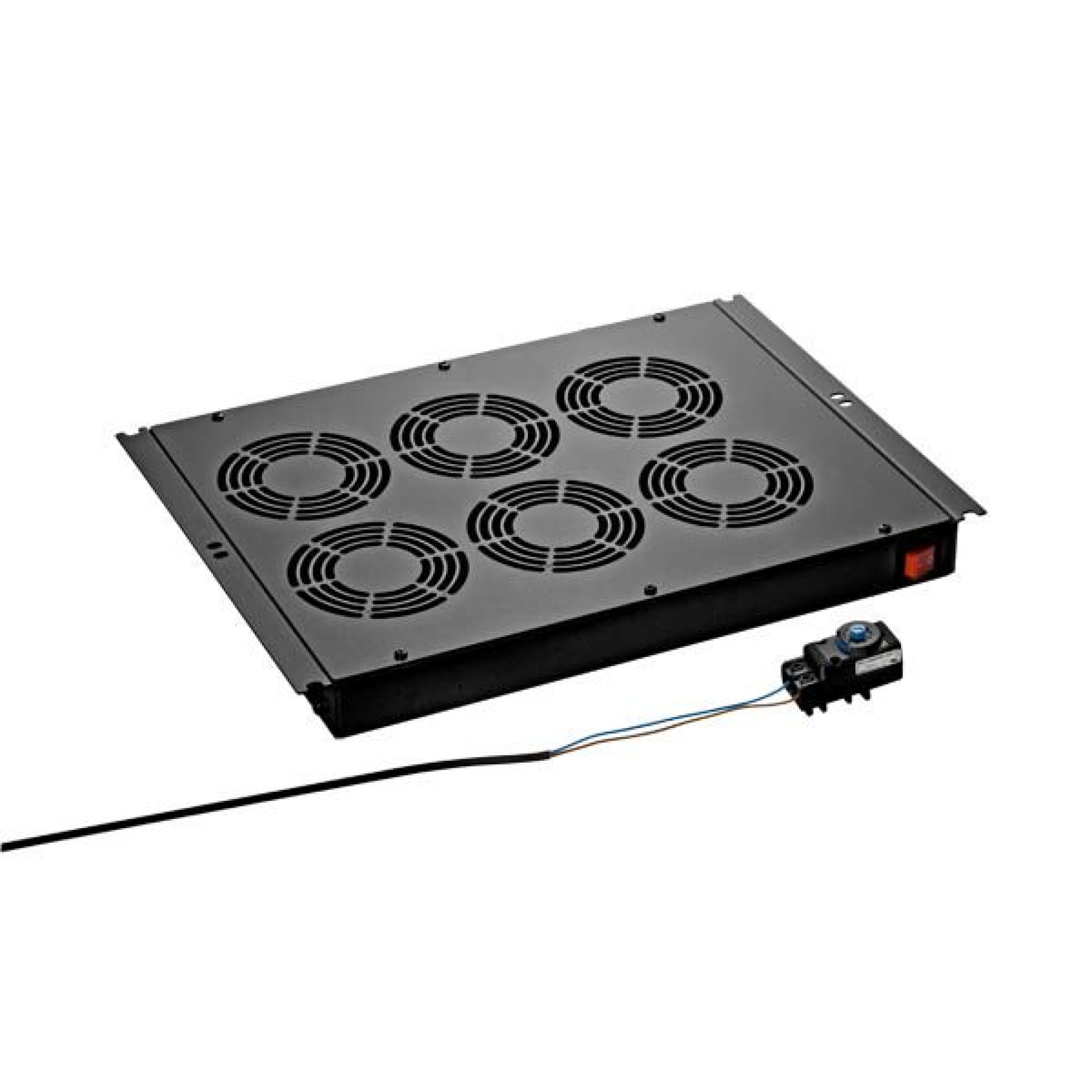

Roof Fan Unit, 6 x Fan, for Network and Server Cabinets
Item number: 691659V3
EAN no.: 4049759051617
Piece

Product information for Roof Fan Unit, 6 x Fan, for Network and Server Cabinets

For installation in roof of all network and server cabinets Classic
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black

Technical properties

Air circulator: True
Built as slide-in ventilator: True
Degree of protection: IP20
EMC-version: True
Mounting method: Screw mounting
Operating voltage at AC 50 Hz: 230 V
Roof ventilator: True
Suitable for 19 inch rack mounting: True
Suitable for wall built-in: False
Voltage type: AC
With filter: False
