USB-A to USB-C cable set 60W QC 3A 3x2m
USB-A to USB-C cable set 60W QC 3A 3x2m grey gold contacts textile coat
Item number:
USB-AC-00008
Product information for USB-A to USB-C cable set 60W QC 3A 3x2m grey gold contacts textile coat

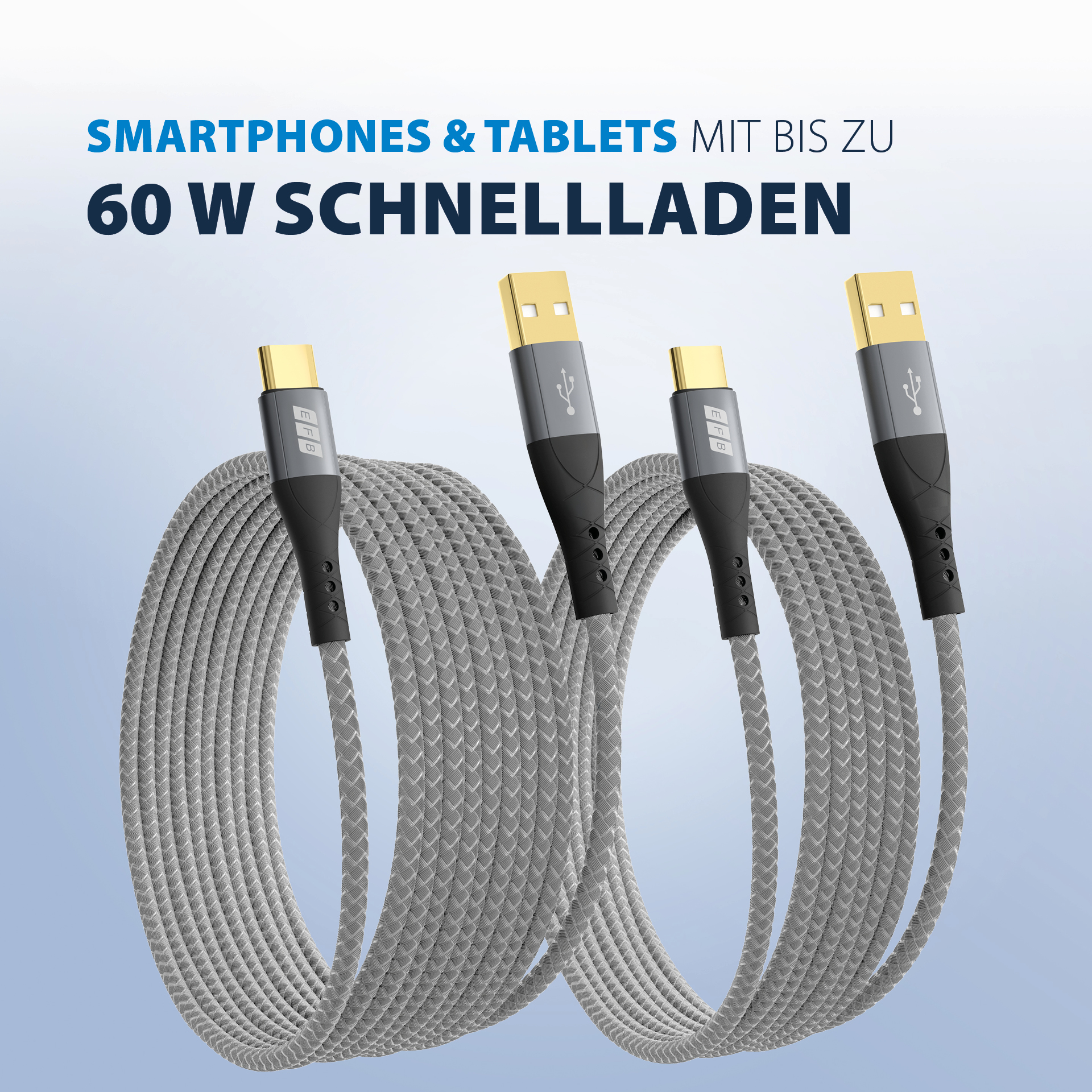

USB-A to USB Type-C Charging Cable Set – 60W, Textile Sheath, 3 x 2m
Our USB charging cable set offers flexible combinations with 3 x 2m length high-quality cables supporting up to 60 watts charging power. The sets are ideal for professional use in sales, office, or warehouse environments.
Product Features:
• 3 x USB-A to USB Type-C charging cables for fast, reliable charging
• Supports up to 60W and the Quick Charging Standard QC

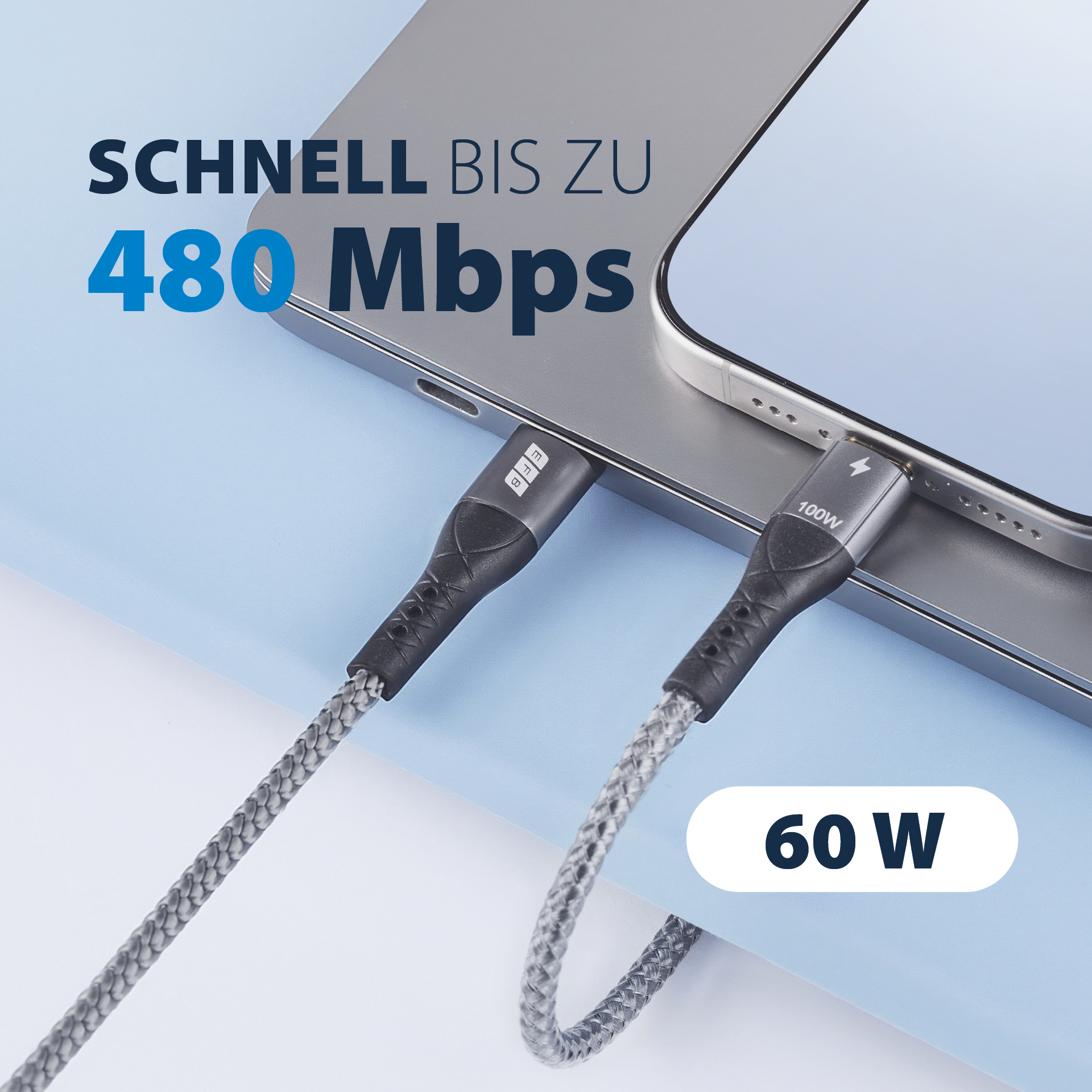

• 480 Mbit/s data transfer rate
• Included in the set: 3 x 2m Quick Charging Cable

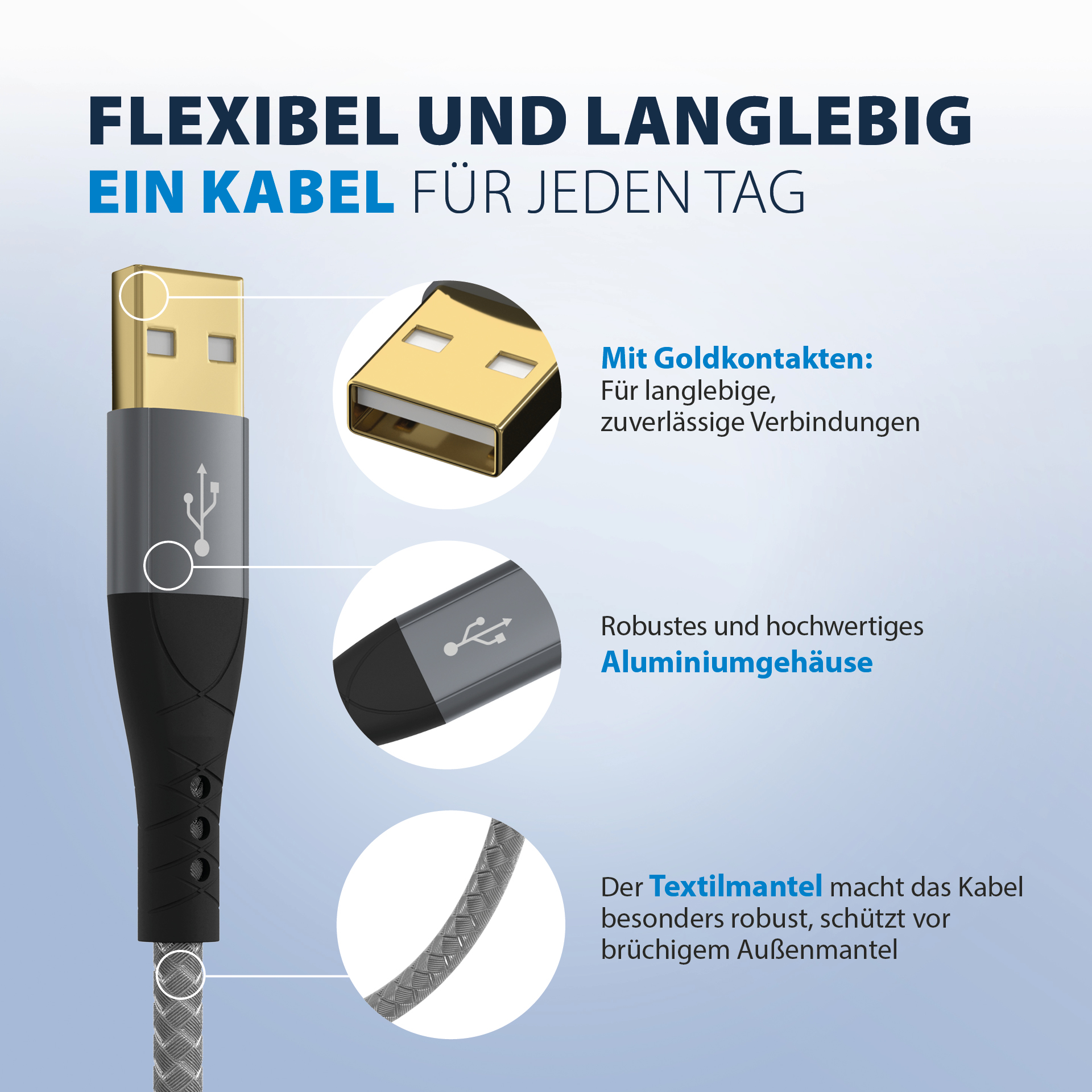

• Gold-plated USB-A and USB Type-C connectors with aluminum housing – for stable connection and long durability
• Robust textile sheath (space gray) – abrasion-resistant, kink-resistant, durable
• Charging lightning bolt icon as a visual usage aid (no LED)
• Plastic-free individual packaging, ready for shipping
• Environmentally friendly: paper cable ties, no plastic accessories
• Application & Target Groups:

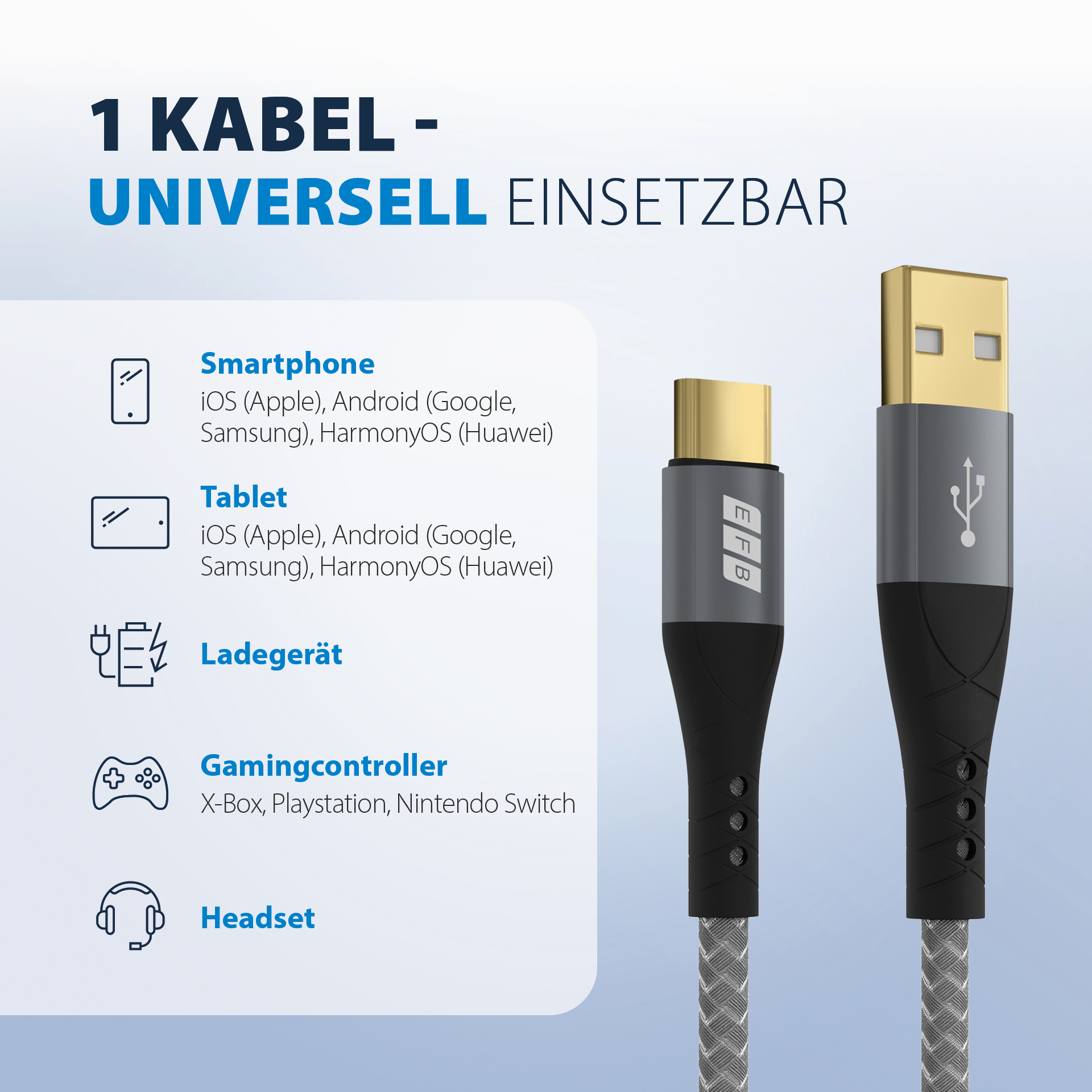

Ideal for system integration, device accessories, workplace cabling, conference technology, and educational or governmental technology. Suitable for notebooks, tablets, smartphones, and all USB-C compatible devices.
Our USB charging cable set offers flexible combinations with 3 x 2m length high-quality cables supporting up to 60 watts charging power. The sets are ideal for professional use in sales, office, or warehouse environments.
Product Features:
• 3 x USB-A to USB Type-C charging cables for fast, reliable charging
• Supports up to 60W and the Quick Charging Standard QC
• 480 Mbit/s data transfer rate
• Included in the set: 3 x 2m Quick Charging Cable
• Gold-plated USB-A and USB Type-C connectors with aluminum housing – for stable connection and long durability
• Robust textile sheath (space gray) – abrasion-resistant, kink-resistant, durable
• Charging lightning bolt icon as a visual usage aid (no LED)
• Plastic-free individual packaging, ready for shipping
• Environmentally friendly: paper cable ties, no plastic accessories
• Application & Target Groups:
Ideal for system integration, device accessories, workplace cabling, conference technology, and educational or governmental technology. Suitable for notebooks, tablets, smartphones, and all USB-C compatible devices.
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | True |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | false |
| Fast Charging technologie: | QC 2.0 |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Model: | Round Cable |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 5 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 12*4.5*20.5mm |
| Plug dimensions Side 2: | 8.25*2.35*14.5mm |
| Power Delivery: | 60 W |
| Scope of delivery: | 3xUSB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -20 – 70 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | paper box |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 3x2m |
| Version: | USB 2.0 High-Speed |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
