1.25 Gbps Copper SFP Transceiver 100m RJ45
1.25 Gbps Copper SFP Transceiver 100m RJ45
Item number:
SFP-3841
EAN no.:
4015867154700
Product information for 1.25 Gbps Copper SFP Transceiver 100m RJ45
Transfers data from 10/100/1000Base-T copper to fiber interfaces
Hot-swappable
Low electromagnetic interference with metal housing
RoHS compliant and lead-free

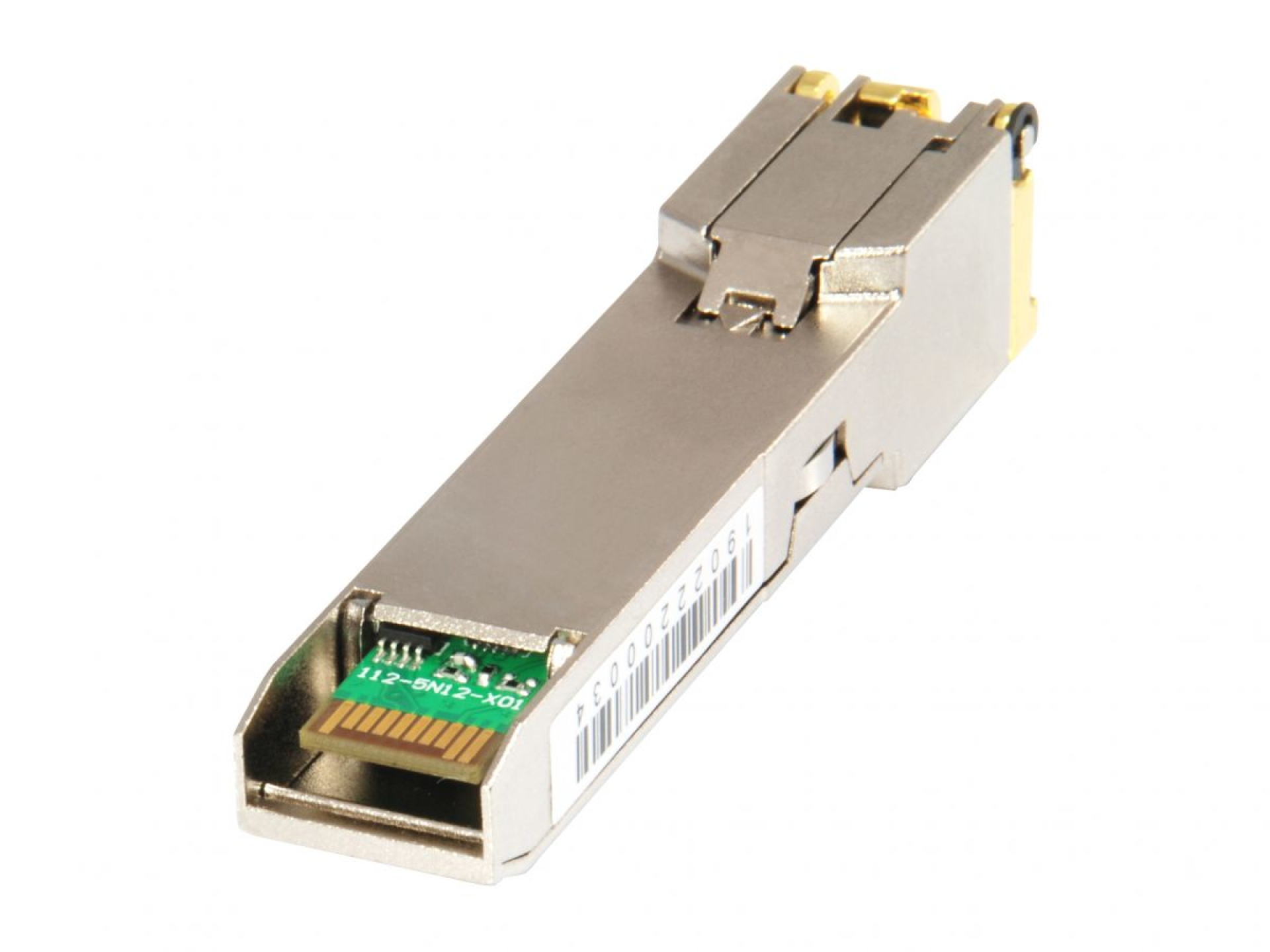

The LevelOne SFP-3841 is a copper SFP transceiver that offers increased flexibility. It converts a 1000BASE-X optical Ethernet port (fiber optic) into a copper Ethernet port (1000-BASE-T) to achieve a data transfer rate of up to 1.25Gbps and up to a distance of 100m via UTP/Cat.5 -Cable to enable.
Port configuration
Gigabit RJ45 1
General
Silver color
Features
Hot swappable
Miscellaneous
Transceiver Type Copper SFP
Grade Commercial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage temperature -40°C ~ 85°C
Scope of delivery SFP-3841
Quick Installation Guide
Physical Specifications
Dimensions (W x D x H) 13.7 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 10/100/1000Base-T
Energy consumption 1.05W
Input voltage 3.3V / 320mA
Standards IEEE 802.3 compatible.
Hot-swappable
Low electromagnetic interference with metal housing
RoHS compliant and lead-free
The LevelOne SFP-3841 is a copper SFP transceiver that offers increased flexibility. It converts a 1000BASE-X optical Ethernet port (fiber optic) into a copper Ethernet port (1000-BASE-T) to achieve a data transfer rate of up to 1.25Gbps and up to a distance of 100m via UTP/Cat.5 -Cable to enable.
Port configuration
Gigabit RJ45 1
General
Silver color
Features
Hot swappable
Miscellaneous
Transceiver Type Copper SFP
Grade Commercial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage temperature -40°C ~ 85°C
Scope of delivery SFP-3841
Quick Installation Guide
Physical Specifications
Dimensions (W x D x H) 13.7 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 10/100/1000Base-T
Energy consumption 1.05W
Input voltage 3.3V / 320mA
Standards IEEE 802.3 compatible.
Technical properties
| Compatible to: | Standard |
|---|---|
| Connector: | RJ45 |
| Detecting range: | 100 m |
| Module type: | SFP+ |
| Speed: | 1,25 Gbit/s |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
Digital Data GmbH
Im Defdahl 10 F
44141 Dortmund
sales.de@ddc-group.com
https://www.digital-data.de/german
