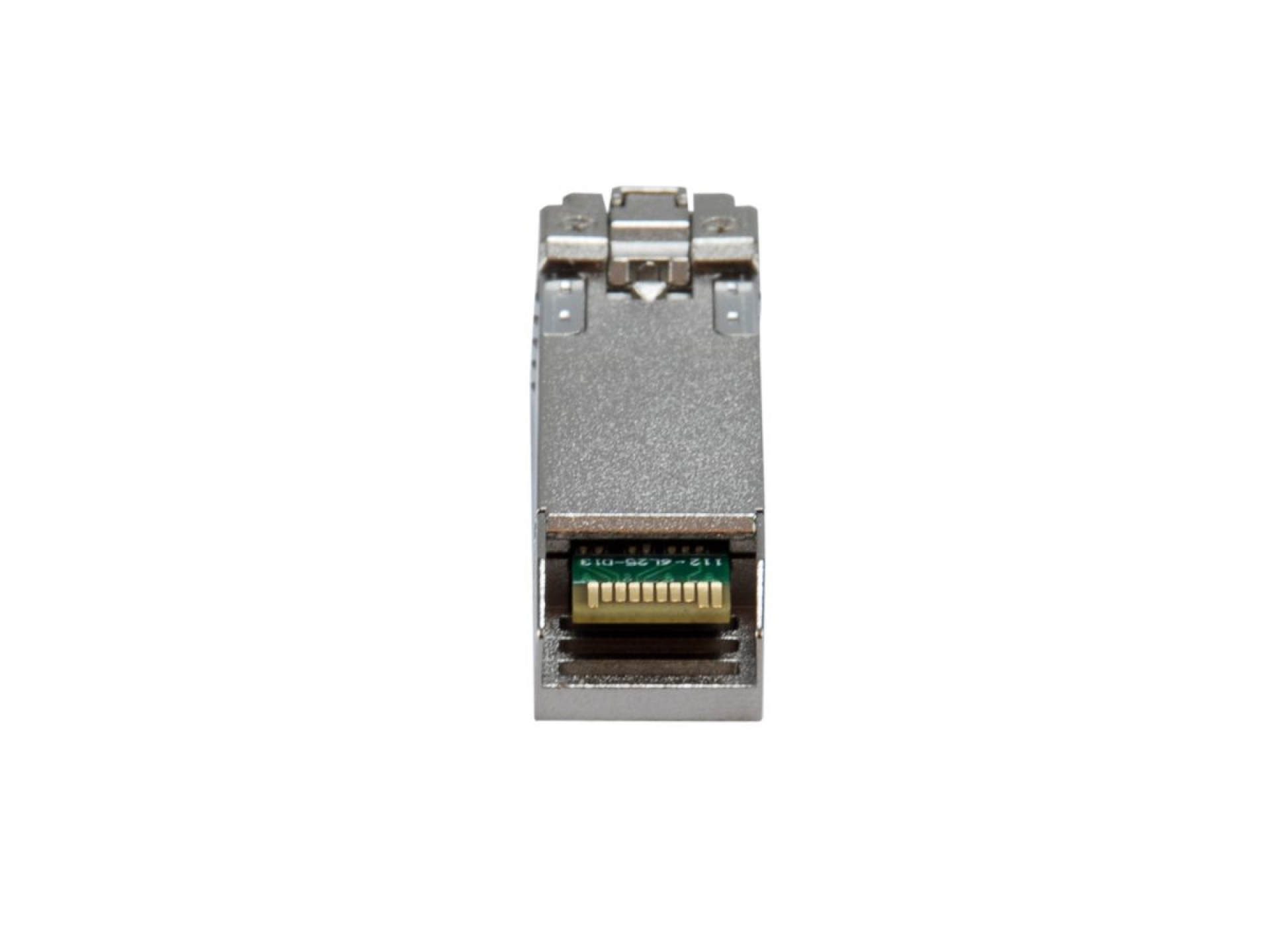

1.25Gbps Multi-mode Industrial SFP Transceiver
1.25Gbps Multi-mode Industrial SFP Transceiver,550m, 850nm
Item number:
SFP-4200
EAN no.:
4015867224441
Product information for 1.25Gbps Multi-mode Industrial SFP Transceiver,550m, 850nm
1000Base-SX multi-mode fiber for connection up to 550m
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
Features duplex LC connection
No service interruption due to hot swap
Compatible with SFP Multi-Sourcing Agreement (MSA) standards

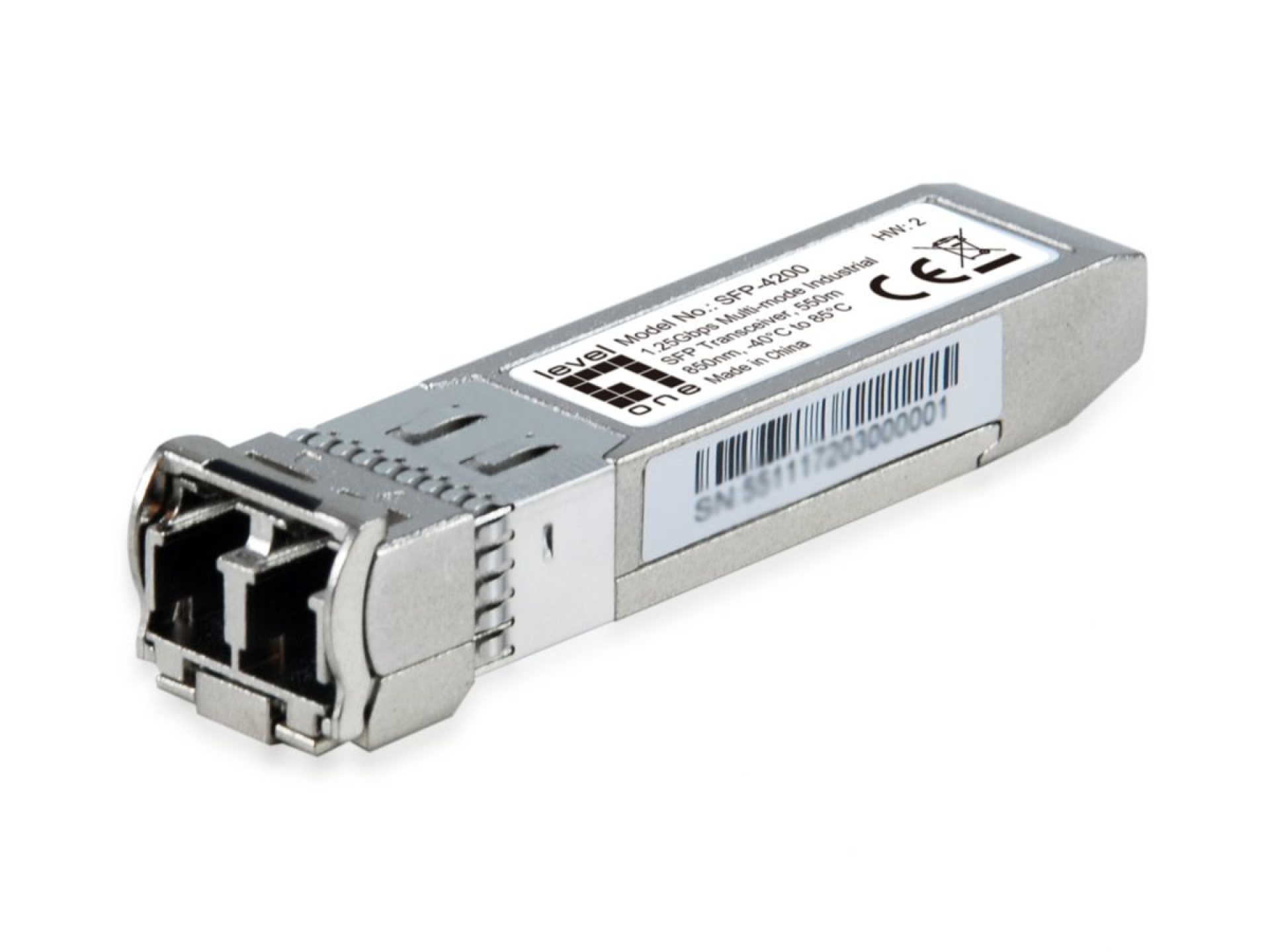

The LevelOne SFP-4200 is a high-performance and cost-effective multi-mode SFP transceiver. For use with Gigabit Ethernet, it offers up to 1.25Gbps bidirectional data transfer rate on a single duplex fiber core. When using 50 and 125 micrometer fiber optic cables, a distance of up to 550m can be achieved. The SFP-4200 transceiver works with a wavelength of 850nm and with a VCSEL laser diode light source and has an LC connection. This hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and can withstand a wide operating temperature range.
General
Silver color
Features
• Power Consumption: 0.8W (0°C to 70°C), 1W (-40°C to -85°C)
• Hot swappable
Miscellaneous
Fiber Optical Mode Multi-Mode
Transceiver type SFP
Grade industrial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
• EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B
• Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1.2
• ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
• ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
• Immunity compatible with IEC 61000-4-3
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage humidity 5% RH ~ 95% RH
Scope of delivery SFP-4200,
Quick Installation Guide
performance
Reception sensitivity (dBm) -18 dBm
Physical Specifications
Dimensions (W x D x H) 14 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 1.25 Gbps
Optical transmission power (dBm) -9 to -4dBm
Port Configuration Duplex LC connector
Standards
• 1000BASE-SX
• SFP MSA SFF-8074i Compliant
Wavelength (nm) 850nm (VCSEL Laser Optical Components)
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
Features duplex LC connection
No service interruption due to hot swap
Compatible with SFP Multi-Sourcing Agreement (MSA) standards
The LevelOne SFP-4200 is a high-performance and cost-effective multi-mode SFP transceiver. For use with Gigabit Ethernet, it offers up to 1.25Gbps bidirectional data transfer rate on a single duplex fiber core. When using 50 and 125 micrometer fiber optic cables, a distance of up to 550m can be achieved. The SFP-4200 transceiver works with a wavelength of 850nm and with a VCSEL laser diode light source and has an LC connection. This hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and can withstand a wide operating temperature range.
General
Silver color
Features
• Power Consumption: 0.8W (0°C to 70°C), 1W (-40°C to -85°C)
• Hot swappable
Miscellaneous
Fiber Optical Mode Multi-Mode
Transceiver type SFP
Grade industrial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
• EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B
• Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1.2
• ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
• ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
• Immunity compatible with IEC 61000-4-3
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage humidity 5% RH ~ 95% RH
Scope of delivery SFP-4200,
Quick Installation Guide
performance
Reception sensitivity (dBm) -18 dBm
Physical Specifications
Dimensions (W x D x H) 14 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 1.25 Gbps
Optical transmission power (dBm) -9 to -4dBm
Port Configuration Duplex LC connector
Standards
• 1000BASE-SX
• SFP MSA SFF-8074i Compliant
Wavelength (nm) 850nm (VCSEL Laser Optical Components)
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Mode: | Multimode |
| Range: | 550 m |
| Speed: | 1,25 Gbit/s |
| Wave length: | 850 nm |
Technical properties
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Mode: | Multimode |
| Range: | 550 m |
| Speed: | 1,25 Gbit/s |
| Wave length: | 850 nm |
Product information for 1.25Gbps Multi-mode Industrial SFP Transceiver,550m, 850nm
1000Base-SX multi-mode fiber for connection up to 550m
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
Features duplex LC connection
No service interruption due to hot swap
Compatible with SFP Multi-Sourcing Agreement (MSA) standards
The LevelOne SFP-4200 is a high-performance and cost-effective multi-mode SFP transceiver. For use with Gigabit Ethernet, it offers up to 1.25Gbps bidirectional data transfer rate on a single duplex fiber core. When using 50 and 125 micrometer fiber optic cables, a distance of up to 550m can be achieved. The SFP-4200 transceiver works with a wavelength of 850nm and with a VCSEL laser diode light source and has an LC connection. This hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and can withstand a wide operating temperature range.
General
Silver color
Features
• Power Consumption: 0.8W (0°C to 70°C), 1W (-40°C to -85°C)
• Hot swappable
Miscellaneous
Fiber Optical Mode Multi-Mode
Transceiver type SFP
Grade industrial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
• EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B
• Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1.2
• ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
• ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
• Immunity compatible with IEC 61000-4-3
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage humidity 5% RH ~ 95% RH
Scope of delivery SFP-4200,
Quick Installation Guide
performance
Reception sensitivity (dBm) -18 dBm
Physical Specifications
Dimensions (W x D x H) 14 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 1.25 Gbps
Optical transmission power (dBm) -9 to -4dBm
Port Configuration Duplex LC connector
Standards
• 1000BASE-SX
• SFP MSA SFF-8074i Compliant
Wavelength (nm) 850nm (VCSEL Laser Optical Components)
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
Features duplex LC connection
No service interruption due to hot swap
Compatible with SFP Multi-Sourcing Agreement (MSA) standards
The LevelOne SFP-4200 is a high-performance and cost-effective multi-mode SFP transceiver. For use with Gigabit Ethernet, it offers up to 1.25Gbps bidirectional data transfer rate on a single duplex fiber core. When using 50 and 125 micrometer fiber optic cables, a distance of up to 550m can be achieved. The SFP-4200 transceiver works with a wavelength of 850nm and with a VCSEL laser diode light source and has an LC connection. This hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and can withstand a wide operating temperature range.
General
Silver color
Features
• Power Consumption: 0.8W (0°C to 70°C), 1W (-40°C to -85°C)
• Hot swappable
Miscellaneous
Fiber Optical Mode Multi-Mode
Transceiver type SFP
Grade industrial
Others
Approvals and Compliance
• CE
• RoHS
• ISO 14001:2015
• ISO 9001:2015
• EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B
• Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1.2
• ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
• ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
• Immunity compatible with IEC 61000-4-3
Operating humidity 0%RH ~ 85%RH
Operating temperature 0°C ~ 70°C
Storage humidity 5% RH ~ 95% RH
Scope of delivery SFP-4200,
Quick Installation Guide
performance
Reception sensitivity (dBm) -18 dBm
Physical Specifications
Dimensions (W x D x H) 14 x 57 x 12 mm
Product weight (kg) 0.02
System specifications
Data rate 1.25 Gbps
Optical transmission power (dBm) -9 to -4dBm
Port Configuration Duplex LC connector
Standards
• 1000BASE-SX
• SFP MSA SFF-8074i Compliant
Wavelength (nm) 850nm (VCSEL Laser Optical Components)
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Mode: | Multimode |
| Range: | 550 m |
| Speed: | 1,25 Gbit/s |
| Wave length: | 850 nm |
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Mode: | Multimode |
| Range: | 550 m |
| Speed: | 1,25 Gbit/s |
| Wave length: | 850 nm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Warning: Laser beams! Open laser beams, especially in the visible, UV or infrared range, pose a significant safety risk. Direct or indirect exposure to laser beams can lead to serious eye injuries, skin damage and other health problems. Eye exposure is particularly dangerous as it can cause permanent damage such as retinal damage or blindness. Avoid direct eye contact and do not look directly into the laser light.
