9K jumbo frames for high transfer rates Supports low time delay transmission Supports ITU-T DWDM/CWDM wavelengths Hot swappable Fast, easy installation

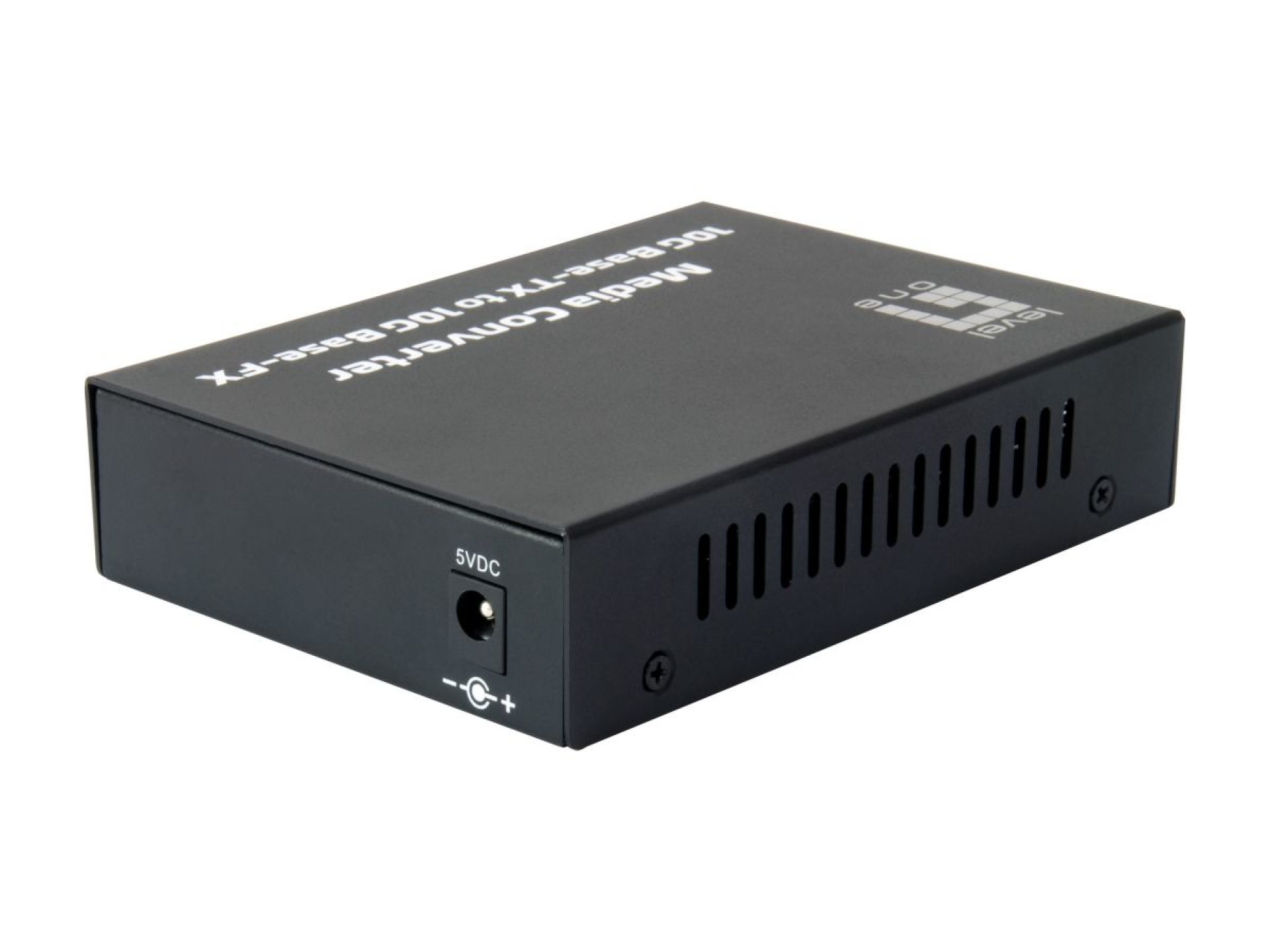

The LevelOne GVT-0500 is a powerful 10Gigabit media converter that, in conjunction with the optionally available LevelOne SFP+ modules, converts optical signals into electrical signals, realizes optical signal balance amplification, clock extraction and optical regeneration. It works with WDM (DWDM/CWDM) technology, which can transmit data signals over a long distance in single or multiple ways in a single fiber. On the existing network infrastructure, the GVT-0500 can quickly improve transmission capacity and expand bandwidth. At the same time, it is a cost-effective and highly cost-effective solution for managing and operating the system. It is also optimized for easy operation and maintenance.

General
Color: Black

Miscellaneous
Data rate Gigabit and 10-Gigabit Ethernet
Fiber Optical Mode Both
Media Interface RJ45 to SFP+(10G)
Manageable No
Grade Commercial

Others
Operating humidity 5% RH ~ 90% RH
Operating temperature -10°C ~ 55°C
Storage temperature -40°C ~ 75°C
scope of delivery
GVT-0500
Power adapters
Quick Installation Guide

Physical Specifications
Dimensions (W x D x H) 115 x 85 x 25 mm
Product weight (kg) 0.3

System specifications
Wavelength (nm) Depend on SFP fiber optical transceiver
