FEP-1601, 16-Port Fast Ethernet PoE+ Switch, DIP, different PoE Variants
16-Port Fast Ethernet PoE+ Switch (150W)
Item number:
FEP-1601W150
EAN no.:
4015867199855
Product information for 16-Port Fast Ethernet PoE+ Switch (150W)

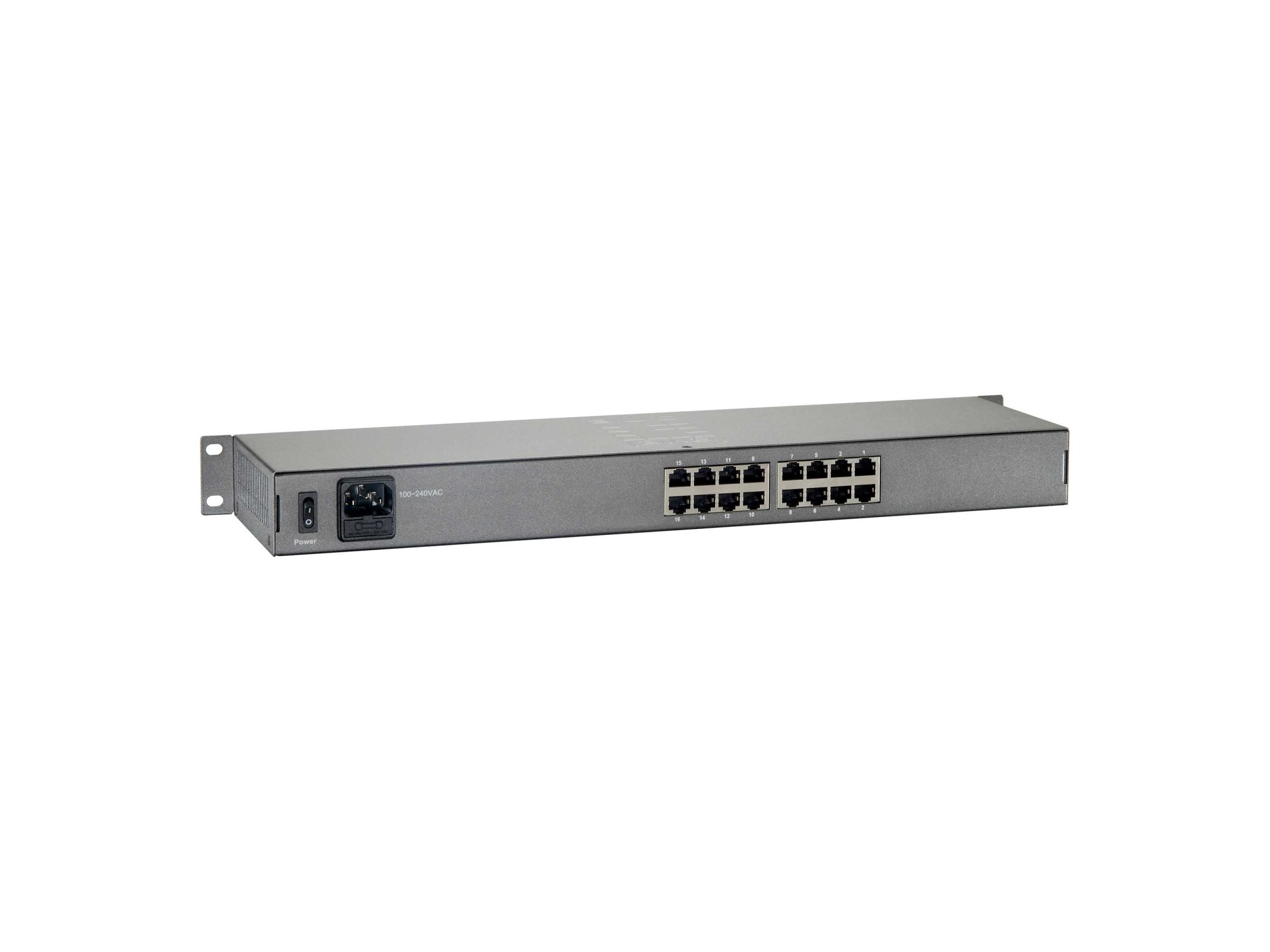

16-Port Fast Ethernet PoE+ Switch
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing (L x W x H): 480 x 118 x 44 mm
PoE: PoE On/OFF via DIP-Switch for every Port seperatly selectable
PoE+ up to 30W per Port
Features: Autonegotiation, Auto MDI/MDIX and much more
19" Metal housing (L x W x H): 480 x 118 x 44 mm
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 118.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Height: | 44.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Max. PoE per Port: | 30 W |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of ports 10/100 Mbps RJ45: | 16 |
| Number of ports PoE: | 16 |
| Power over Ethernet (PoE): | Other |
| Width: | 480.0 mm |
Variants
| Item no. | Name | Max. PoE power | |
|---|---|---|---|
| FEP-1601 | 16-Port Fast Ethernet PoE+ Switch (250W) | 250 W | |
| FEP-1601W120 | 16-Port Fast Ethernet PoE+ Switch (120W) | 120 W | |
| FEP-1601W150 | 16-Port Fast Ethernet PoE+ Switch (150W) | 150 W |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
