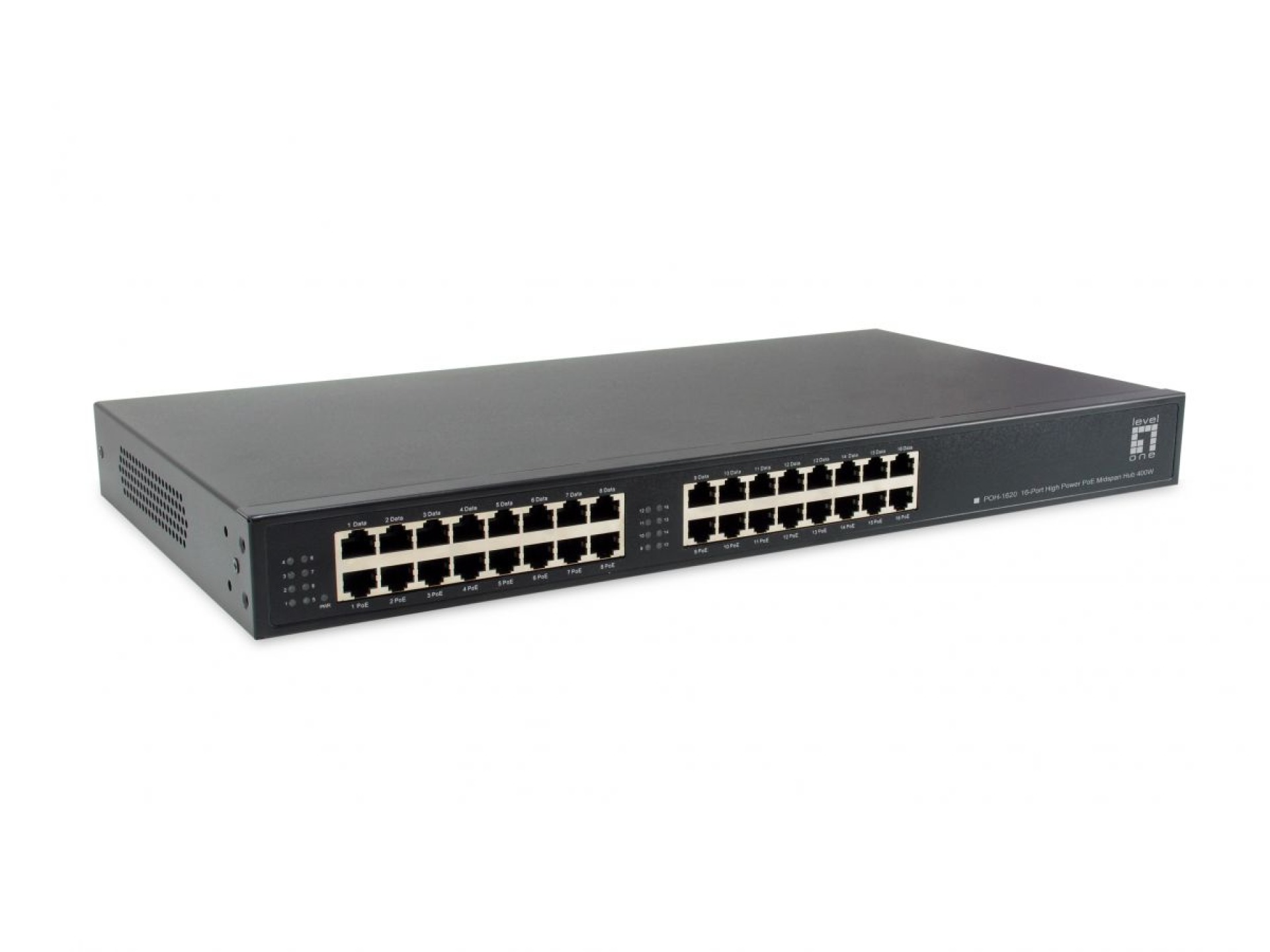

POH-1620, 16-Port High Power PoE Midspan Hub, 400W
16-Port High Power PoE Midspan Hub, 400W
Item number:
POH-1620
EAN no.:
4015867228821
Product information for 16-Port High Power PoE Midspan Hub, 400W
Short description
• Automatic detection and protection of non-standard PoE devices
• Transmission and reception with 10/100/1000 Mbps cable speed
• PoE total power budget: 400W, up to 30W per port
Description
The LevelOne POH-1620 16 GE PoE Hub is equipped with 16 RJ-45 ports with PoE capability to eliminate the need for bulky power cables while implementing your network infrastructure, allowing greater flexibility in locating network devices and significantly reduces the installation effort. Easy to Use The compact 19-inch IU rack-mountable design allows the switch to be easily placed in a server room to centralize power management and simplify network integration for various applications. For all features of the POH-1620, users can take advantage of flexible network solutions that can simplify the installation of wireless access points, IP cameras, IP phones and other devices or applications on the network.
Additional Information
• Indicator: Power Link PoE
• Mounting: 19" rack mount
• Pin assignment and polarity: 1/2 (+), 3/6 (-)
• Output voltage: 400
• Standards: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+
• Port Configuration: 16*10/100/1000Mbps Data in, 16*10/100/1000Mbps PoE out
• Product weight (kg): 6
• Color: Black
• Scope of delivery: power cable
• Data rate: 10/100/1000 Mbps
• Energy consumption: <20W without PoE output
• Automatic detection and protection of non-standard PoE devices
• Transmission and reception with 10/100/1000 Mbps cable speed
• PoE total power budget: 400W, up to 30W per port
Description
The LevelOne POH-1620 16 GE PoE Hub is equipped with 16 RJ-45 ports with PoE capability to eliminate the need for bulky power cables while implementing your network infrastructure, allowing greater flexibility in locating network devices and significantly reduces the installation effort. Easy to Use The compact 19-inch IU rack-mountable design allows the switch to be easily placed in a server room to centralize power management and simplify network integration for various applications. For all features of the POH-1620, users can take advantage of flexible network solutions that can simplify the installation of wireless access points, IP cameras, IP phones and other devices or applications on the network.
Additional Information
• Indicator: Power Link PoE
• Mounting: 19" rack mount
• Pin assignment and polarity: 1/2 (+), 3/6 (-)
• Output voltage: 400
• Standards: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+
• Port Configuration: 16*10/100/1000Mbps Data in, 16*10/100/1000Mbps PoE out
• Product weight (kg): 6
• Color: Black
• Scope of delivery: power cable
• Data rate: 10/100/1000 Mbps
• Energy consumption: <20W without PoE output
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Depth: | 235.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 43.0 mm |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of 10/100/1000 Mbps RJ45-Ports: | 16 |
| Number of Copper Ports: | 16 |
| Number of ports PoE: | 16 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 440.0 mm |
