19" 1U Socket Strip 8 x CEE7/3 with Surge Protection
19" 1U Socket Strip 8 x CEE 7/3 with Surge Protection, RAL7035
Item number:
691687K
EAN no.:
4049759210533
Product information for 19" 1U Socket Strip 8 x CEE 7/3 with Surge Protection, RAL7035
Socket Strip PROFIversal 8-way with surge protection SAFETRONIC
Optical failure indication after surge damage
45° turned socket inserts in aluminium profile
Cable 2.0 m grey, H05VV-F 3G 1.5 mm², 250 V AC / 16 A with angled CEE7/7 plug, rewireable
Included metal brackets allow any fastening position
VDE certified
Optical failure indication after surge damage
45° turned socket inserts in aluminium profile
Cable 2.0 m grey, H05VV-F 3G 1.5 mm², 250 V AC / 16 A with angled CEE7/7 plug, rewireable
Included metal brackets allow any fastening position
VDE certified
Technical properties
| Angle rotated central insert: | 45 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |

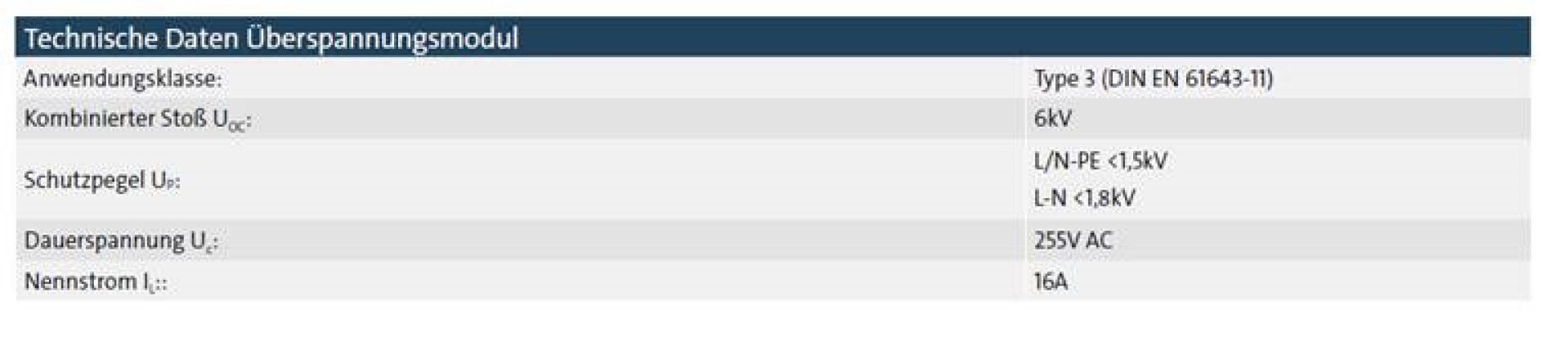

| Over voltage protection: | True |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
