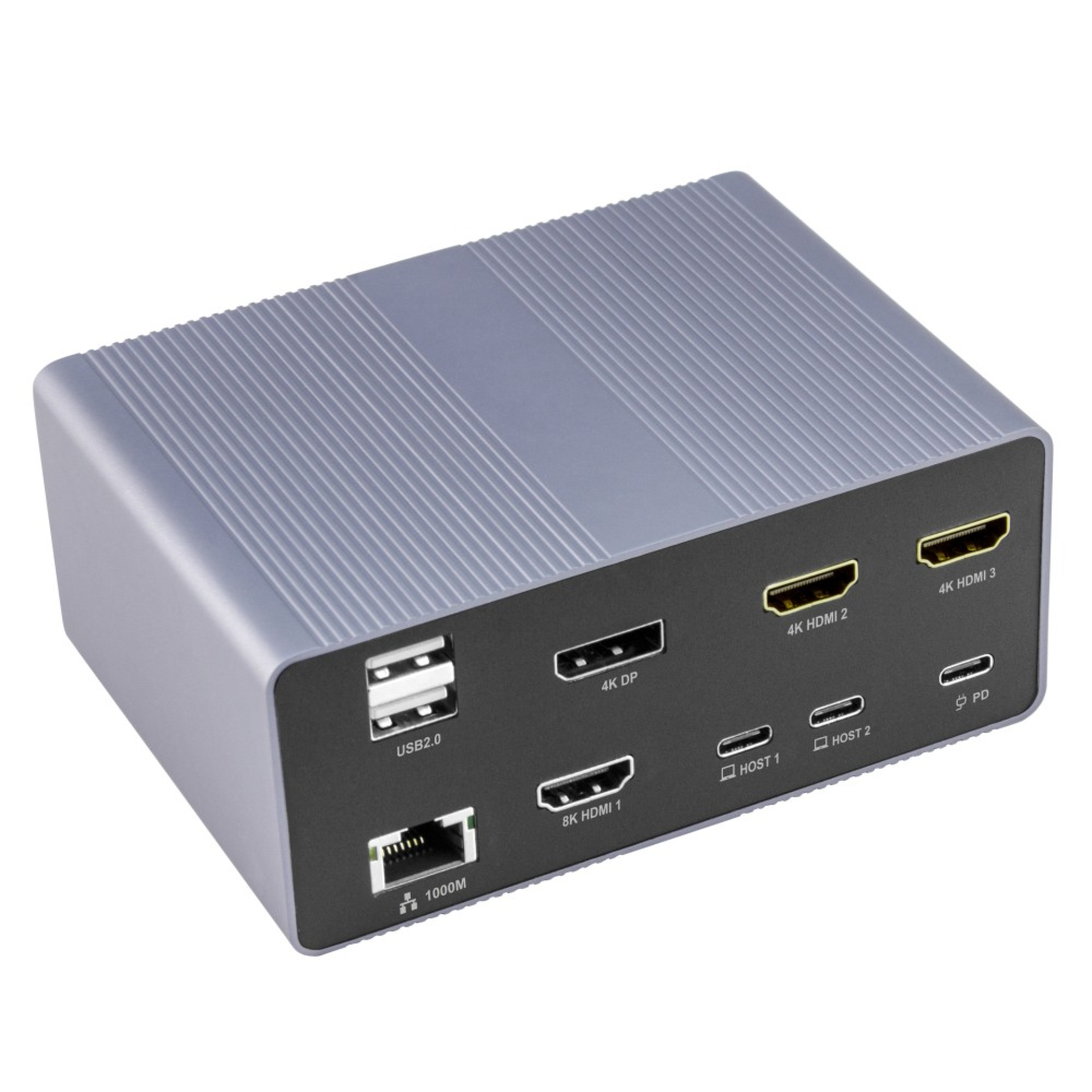

19 in 1 USB-C™ 8K HDMI Docking Station
Techly
19 in 1 USB-C™ 8K HDMI Docking Station, 4 Video outputs (3xHDMI 1xDP)
Item number:
IUSB32C-DOCK198K
EAN no.:
8058956621239
Product information for 19 in 1 USB-C™ 8K HDMI Docking Station, 4 Video outputs (3xHDMI 1xDP)
Multifunction docking station designed to meet the needs of multi-display expansion for Mac and Windows systems.
It is equipped with three HDMI video outputs and a Display Port, thus giving the possibility of connecting up to 4 monitors simultaneously.
It allows you to divide the content into triple displays for the Mac system or quad displays for the Windows system.

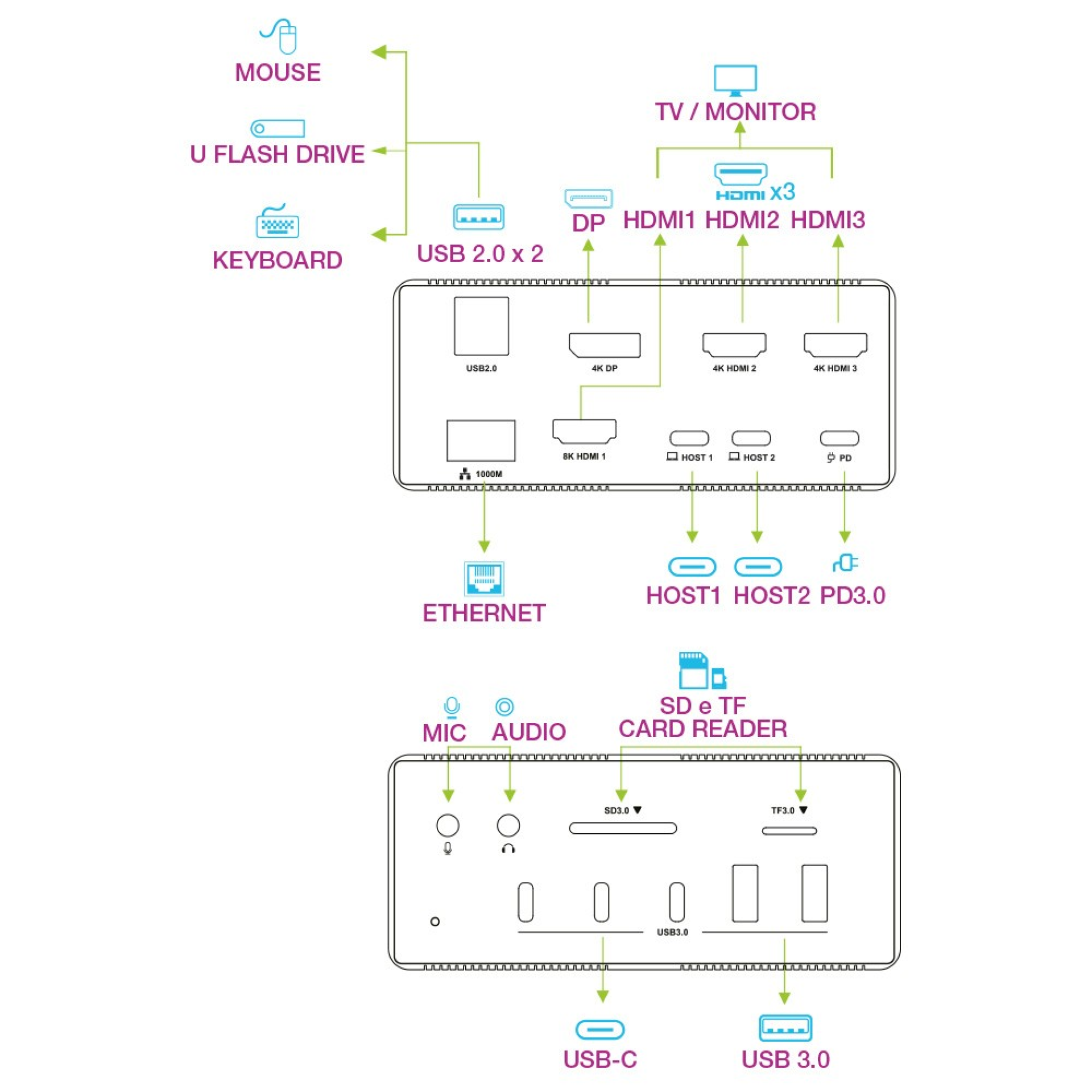

Connections
2 USB-C™ ports to HOST
1x HDMI 8K@30Hz
2× HDMI 4K@60Hz
1× DP 4K/60Hz
2× USB3.0
1× PD 3.0
1x SD and Micro SD
2x USB2.0
1× RJ45 Gigabit Ethernet
3x USB-C™
1x audio output
1x microphone input
Technical specifications
SD and Micro SD card reader: reading 50-104 MB/s; writing: 30-80 MB/s. Data transfer speeds are subject to the speed of the memory card itself and the USB ports on your PC
Three USB-C™ outputs support USB 3.0 data transfer up to 5Gbps data rate and maximum output power 5V/0.9A
Two USB-A ports support USB 3.0 standard (data + downstream charging) up to 5Gbps, 5V/1.5A at 7.5W
Two USB-A ports support USB 2.0 standard: speed up to 480Mbps, 5V/0.5A at 2.5W. They are designed to connect 2.4GHz wireless devices, such as wireless keyboard/mouse adapters, etc.
Supports 100W power supply
Dimensions
Width: 121.5 mm
Height: 51.0 mm
Depth: 87.0 mm
Package Contents
1x IUSB32C-DOCK198K Docking Station
2x USB-C™ Cable
1x User Manual
It is equipped with three HDMI video outputs and a Display Port, thus giving the possibility of connecting up to 4 monitors simultaneously.
It allows you to divide the content into triple displays for the Mac system or quad displays for the Windows system.
Connections
2 USB-C™ ports to HOST
1x HDMI 8K@30Hz
2× HDMI 4K@60Hz
1× DP 4K/60Hz
2× USB3.0
1× PD 3.0
1x SD and Micro SD
2x USB2.0
1× RJ45 Gigabit Ethernet
3x USB-C™
1x audio output
1x microphone input
Technical specifications
SD and Micro SD card reader: reading 50-104 MB/s; writing: 30-80 MB/s. Data transfer speeds are subject to the speed of the memory card itself and the USB ports on your PC
Three USB-C™ outputs support USB 3.0 data transfer up to 5Gbps data rate and maximum output power 5V/0.9A
Two USB-A ports support USB 3.0 standard (data + downstream charging) up to 5Gbps, 5V/1.5A at 7.5W
Two USB-A ports support USB 2.0 standard: speed up to 480Mbps, 5V/0.5A at 2.5W. They are designed to connect 2.4GHz wireless devices, such as wireless keyboard/mouse adapters, etc.
Supports 100W power supply
Dimensions
Width: 121.5 mm
Height: 51.0 mm
Depth: 87.0 mm
Package Contents
1x IUSB32C-DOCK198K Docking Station
2x USB-C™ Cable
1x User Manual
| Color: | grey |
|---|---|
| Depth: | 87 mm |
| Height: | 51 mm |
| Mounting method: | Free standing model |
| Nominal capacity: | 100 W |
| Width: | 121.5 mm |
Technical properties
| Color: | grey |
|---|---|
| Depth: | 87 mm |
| Height: | 51 mm |
| Mounting method: | Free standing model |
| Nominal capacity: | 100 W |
| Width: | 121.5 mm |
Product information for 19 in 1 USB-C™ 8K HDMI Docking Station, 4 Video outputs (3xHDMI 1xDP)
Multifunction docking station designed to meet the needs of multi-display expansion for Mac and Windows systems.
It is equipped with three HDMI video outputs and a Display Port, thus giving the possibility of connecting up to 4 monitors simultaneously.
It allows you to divide the content into triple displays for the Mac system or quad displays for the Windows system.
Connections
2 USB-C™ ports to HOST
1x HDMI 8K@30Hz
2× HDMI 4K@60Hz
1× DP 4K/60Hz
2× USB3.0
1× PD 3.0
1x SD and Micro SD
2x USB2.0
1× RJ45 Gigabit Ethernet
3x USB-C™
1x audio output
1x microphone input
Technical specifications
SD and Micro SD card reader: reading 50-104 MB/s; writing: 30-80 MB/s. Data transfer speeds are subject to the speed of the memory card itself and the USB ports on your PC
Three USB-C™ outputs support USB 3.0 data transfer up to 5Gbps data rate and maximum output power 5V/0.9A
Two USB-A ports support USB 3.0 standard (data + downstream charging) up to 5Gbps, 5V/1.5A at 7.5W
Two USB-A ports support USB 2.0 standard: speed up to 480Mbps, 5V/0.5A at 2.5W. They are designed to connect 2.4GHz wireless devices, such as wireless keyboard/mouse adapters, etc.
Supports 100W power supply
Dimensions
Width: 121.5 mm
Height: 51.0 mm
Depth: 87.0 mm
Package Contents
1x IUSB32C-DOCK198K Docking Station
2x USB-C™ Cable
1x User Manual
It is equipped with three HDMI video outputs and a Display Port, thus giving the possibility of connecting up to 4 monitors simultaneously.
It allows you to divide the content into triple displays for the Mac system or quad displays for the Windows system.
Connections
2 USB-C™ ports to HOST
1x HDMI 8K@30Hz
2× HDMI 4K@60Hz
1× DP 4K/60Hz
2× USB3.0
1× PD 3.0
1x SD and Micro SD
2x USB2.0
1× RJ45 Gigabit Ethernet
3x USB-C™
1x audio output
1x microphone input
Technical specifications
SD and Micro SD card reader: reading 50-104 MB/s; writing: 30-80 MB/s. Data transfer speeds are subject to the speed of the memory card itself and the USB ports on your PC
Three USB-C™ outputs support USB 3.0 data transfer up to 5Gbps data rate and maximum output power 5V/0.9A
Two USB-A ports support USB 3.0 standard (data + downstream charging) up to 5Gbps, 5V/1.5A at 7.5W
Two USB-A ports support USB 2.0 standard: speed up to 480Mbps, 5V/0.5A at 2.5W. They are designed to connect 2.4GHz wireless devices, such as wireless keyboard/mouse adapters, etc.
Supports 100W power supply
Dimensions
Width: 121.5 mm
Height: 51.0 mm
Depth: 87.0 mm
Package Contents
1x IUSB32C-DOCK198K Docking Station
2x USB-C™ Cable
1x User Manual
| Color: | grey |
|---|---|
| Depth: | 87 mm |
| Height: | 51 mm |
| Mounting method: | Free standing model |
| Nominal capacity: | 100 W |
| Width: | 121.5 mm |
| Color: | grey |
|---|---|
| Depth: | 87 mm |
| Height: | 51 mm |
| Mounting method: | Free standing model |
| Nominal capacity: | 100 W |
| Width: | 121.5 mm |
