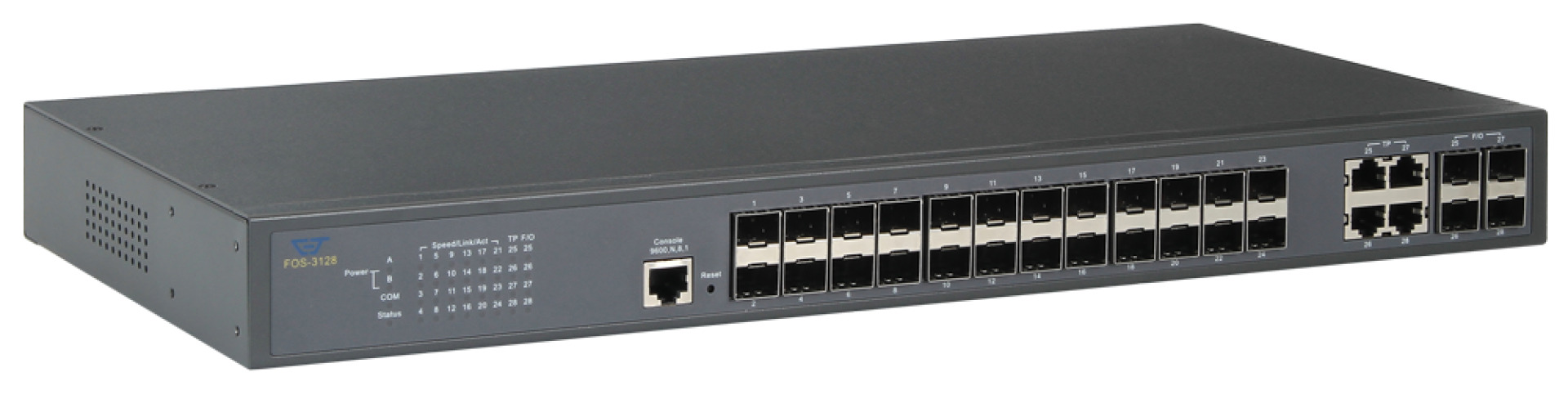

FOS-3128, 28-Port L2 Managed Gigabit Ethernet Fiber Switch, 24x 100/1000 SFP, 4x Combo RJ45/SFP
28-Port L2 Managed Gigabit Fiber Switch, 24x 100/1000 SFP, 4x Combo RJ45/SFP
Item number:
FOS-3128
EAN no.:
4049759214562
Product information for 28-Port L2 Managed Gigabit Fiber Switch, 24x 100/1000 SFP, 4x Combo RJ45/SFP
24x 100/1000Mbps SFP Slots
4x 100/1000Mbps Combo (SFP + RJ45)
SFP Slots support for MiniGBICs 100-FX, 1000Base-X
Management: SNMP, WEB, RMON, Telnet and TFTP management
IPv6, IGMPv3, Multicast, VLAN, QOS, Autonegotiation, Auto MDI/MDIX and more.
1x RS232 RJ45 Port, Diagnostic led
19" Bracket included
Metal housing (L x B x H): 440 x 205 x 44 mm
4x 100/1000Mbps Combo (SFP + RJ45)
SFP Slots support for MiniGBICs 100-FX, 1000Base-X
Management: SNMP, WEB, RMON, Telnet and TFTP management
IPv6, IGMPv3, Multicast, VLAN, QOS, Autonegotiation, Auto MDI/MDIX and more.
1x RS232 RJ45 Port, Diagnostic led
19" Bracket included
Metal housing (L x B x H): 440 x 205 x 44 mm
Technical properties
| Depth: | 205.0 mm |
|---|---|
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 44.0 mm |
| Layer 2: | True |
| Manageable: | True |
| Management: | L2 |
| Manufacturer: | CTS |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of combination-ports RJ45/Mini GBIC: | 4 |
| Number of other ports: | 1 |
| Number of ports 1000 Mbps Mini GBIC: | 24 |
| Operating Temperature: | 0 – 50 °C |
| Width: | 440.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
Connection Technology Systems Northern Europe AB
August Barks gata 21b, Västra Frölunda
42132 Västra Frölunda
order@ctsystem.se
https://www.ctsystem.com
