4 Fast Ethernet ports and 1 Fast Ethernet fiber port
For multimode fiber optics with SC connection for transmission up to 2 km
Operating temperature range from -20°C to 70°C
10/100 Mb/s, full/half duplex, auto-negotiation, auto-MDI/MDIX
Supports 12 to 48 V DC power inputs
Compliant with IEC61000-6-2 for industrial environments

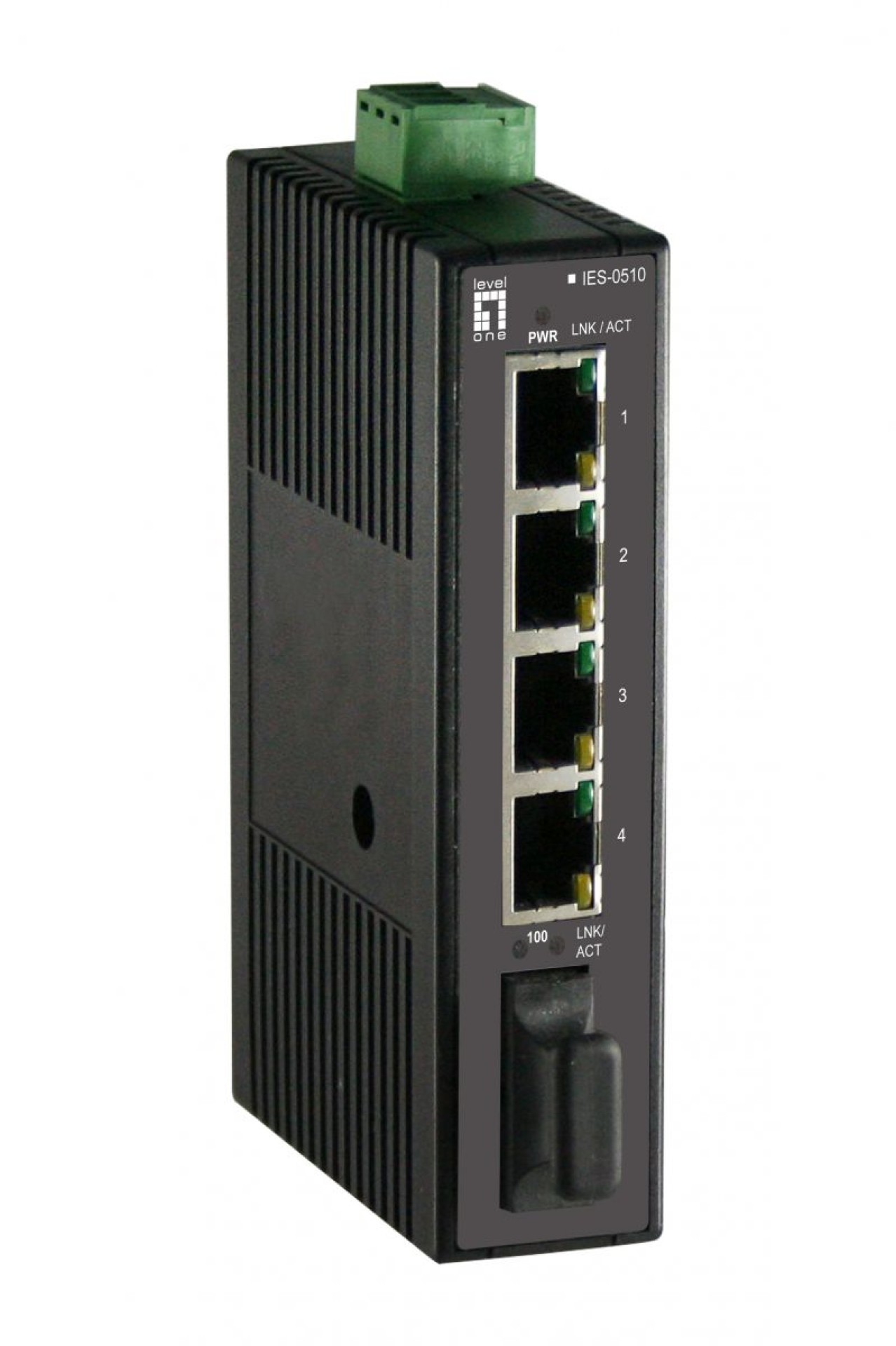

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

general
Color: Black

Miscellaneous
Data rate Fast Ethernet
PoE Supported No
Concurrent ports 5.00 ports
Fanless Yes
Manageable No
Grade industrial

Others
scope of delivery
IES-0510,
Quick Installation Guide,
Resource CD (User Manual, QIG)

Physical Specifications
Dimensions (W x D x H) 26 x 70 x 110 mm
Product weight (kg) 0.2

System specifications
Fastening DIN rail mount
Port Configuration 4*10/100 Mbps RJ-45.1* 10/100 Mbps SC
