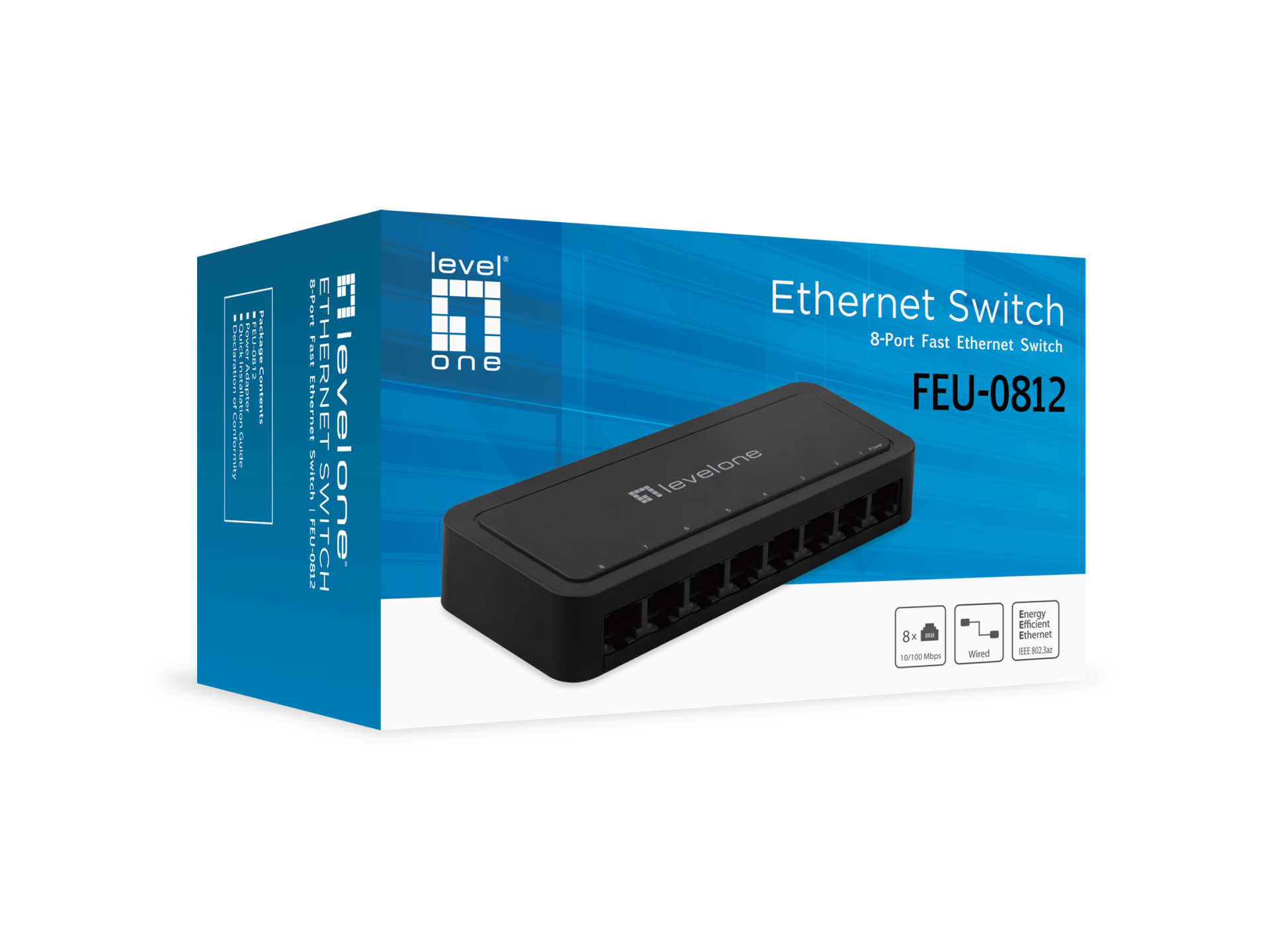

FEU-0812, 8-Port Fast Ethernet Switch
Product information for 8-Port Fast Ethernet Switch
10/100 Mb/s, full/half duplex, auto-negotiation, auto-MDI/MDIX
Fast, easy installation
Supports auto-learning and validity assignment for 1K MAC addresses
Easy plug and play installation
The LevelOne FEU-0812 is a wired, non-blocking switch with eight 10/100 Mbit/s RJ45 Ethernet ports. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or uplink ports. Each port can be used as a general network port or as a connection port to a router, server, hub or other network switch. An ideal choice for price-conscious users.
Approvals and Compliance:
● CE ● RoHS
Backplane (Gbps) 1.6 Gbps
Packet buffer 1.19 Mpps
Indicator ● Power ● Link/Active
MAC address table 1K
Mounting Desk mount, Wall mount
Power supply Input : 5VDC, 0.55A (External Power Adapter)
Standards ● IEEE802.3 (10BASE-T) ● IEEE802.3u (100BASE-T)
● IEEE802.3az (Energy Efficient Ethernet) ● IEEE802.3x
Product weight (kg) 0.11
Color: Black

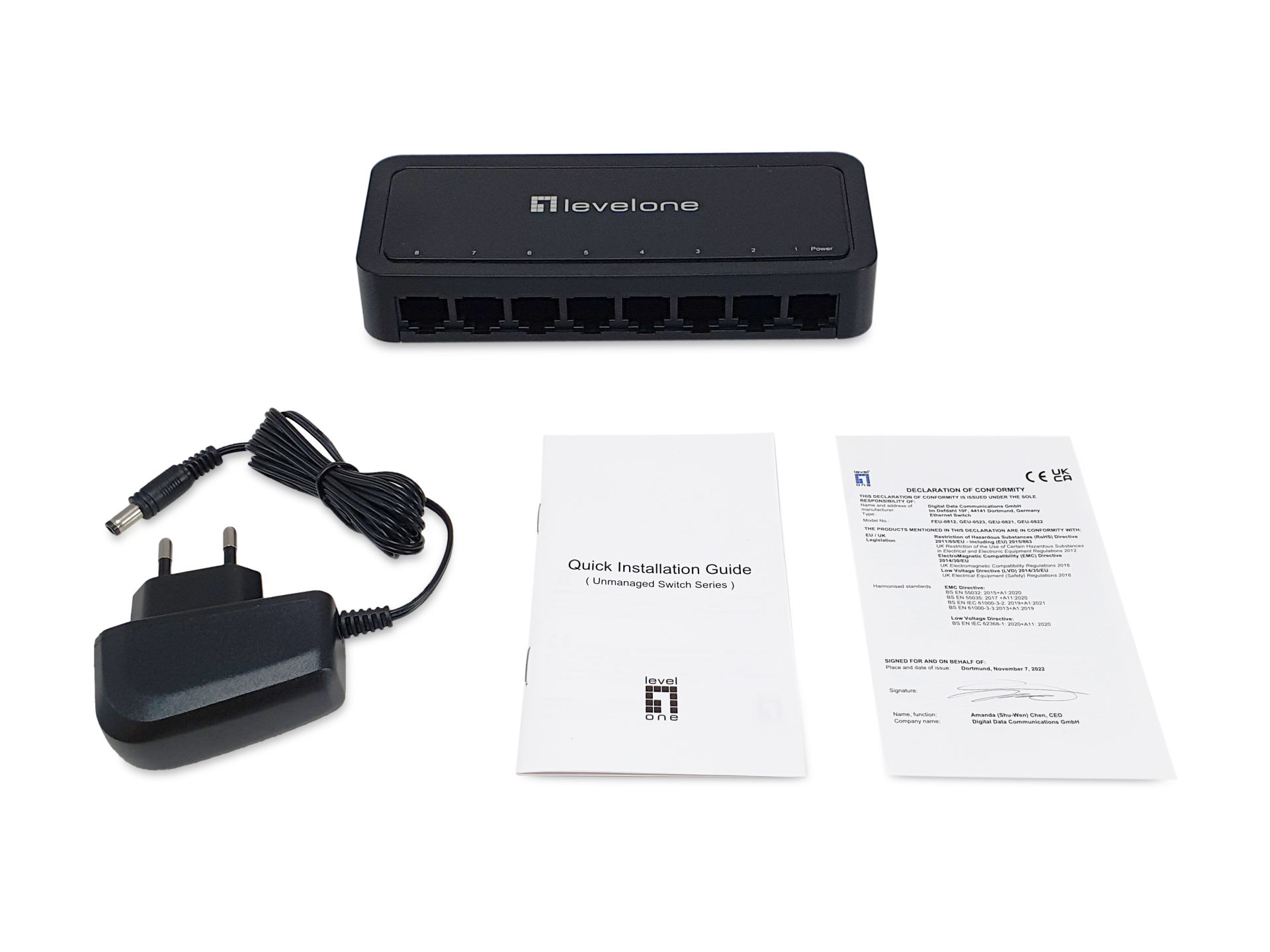

Package Contents ● FEU-0812 ● Power Adapter ● Quick Installation Guide
● Declaration of Conformity
PoE Supported No
Concurrent ports 8.00 total
Power Consumption 1.7W
Technical properties
| 10 Gigabit Ethernet: | False |
|---|---|
| Ethernet: | True |
| Fan: | False |
| Fast Ethernet: | True |
| Gigabit Ethernet: | False |
| Manageable: | False |
| Manufacturer: | LevelOne |
| Mounting method: | Desk type |
| Number of ports 10/100 Mbps RJ45: | 8 |
| Power IN: | Ext. power supply |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Warning: Laser beams! Open laser beams, especially in the visible, UV or infrared range, pose a significant safety risk. Direct or indirect exposure to laser beams can lead to serious eye injuries, skin damage and other health problems. Eye exposure is particularly dangerous as it can cause permanent damage such as retinal damage or blindness. Avoid direct eye contact and do not look directly into the laser light.
