Adapter DisplayPort to HDMI M/F 4k60Hz

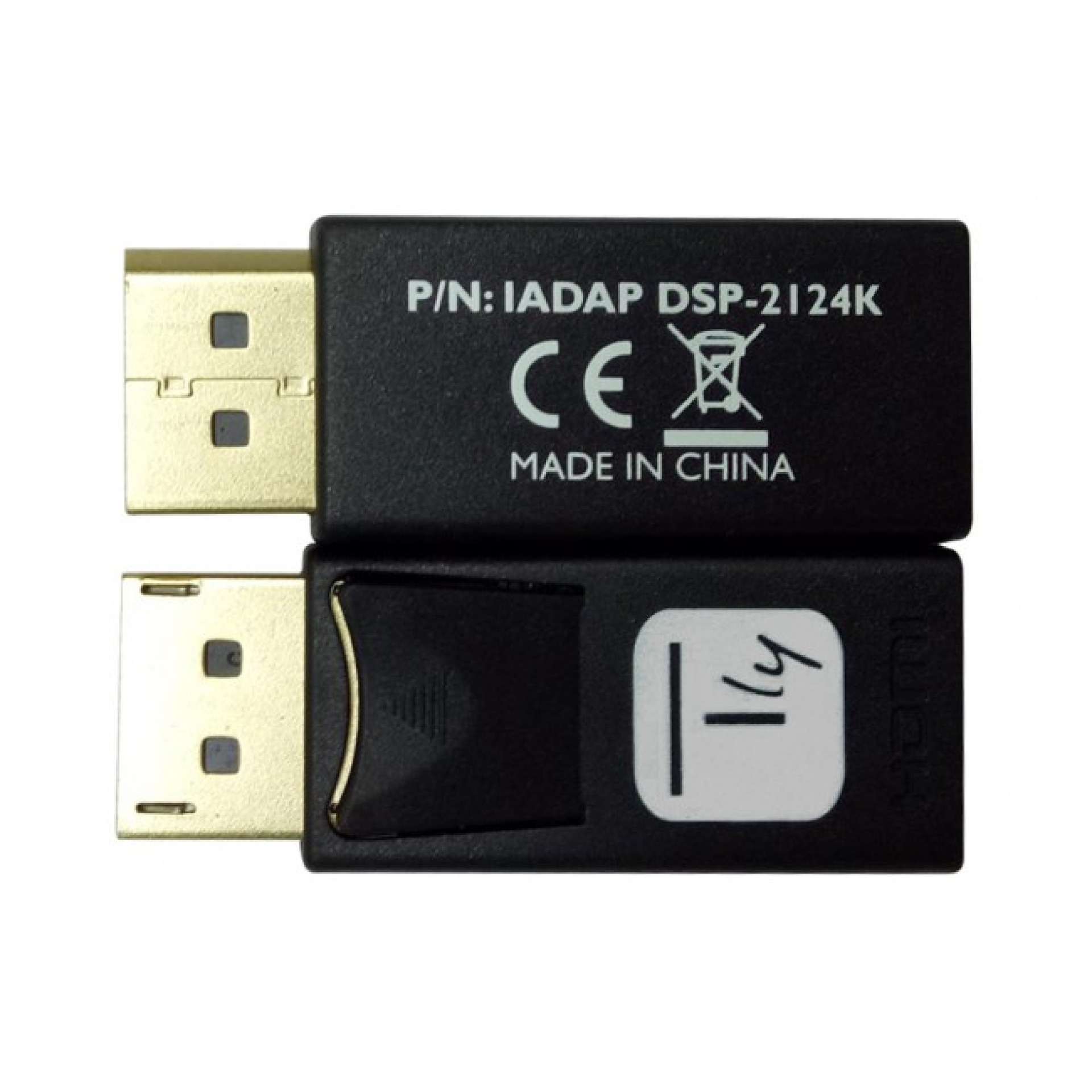

Adapter - DisplayPort 1.2 Male to HDMI 4K 60Hz
Item number:
IADAP-DSP-2124K
EAN no.:
8051128109214
Product information for Adapter - DisplayPort 1.2 Male to HDMI 4K 60Hz
IADAP DSP-2124K is a converter from DisplayPort 1.2 to HDMI signal.
Allows you to connect HDMI devices to the DP output of your computer, notebook or Mac with UHD quality.
Technical specifications
• Supports DisplayPort1.2
• Supports DisplayPort 1.2a input and HDMI1.4b output
• Supports 4K X 2K and 3D video formats over HDMI
• Supported resolution: 4K @ 60Hz
• Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2, 8/10 / 12bpc
• Compliant with HDMI 1.4b specifications up to 3.0 Gbps
• Supports 1080p deep color 10/12 bit up to 2.25 Gbps
• Black colour
Size
• Length: 58.6mm
• Width: 22.5 mm
• Height: 14.0 mm
Package contents
• HDMI DP converter
Allows you to connect HDMI devices to the DP output of your computer, notebook or Mac with UHD quality.
Technical specifications
• Supports DisplayPort1.2
• Supports DisplayPort 1.2a input and HDMI1.4b output
• Supports 4K X 2K and 3D video formats over HDMI
• Supported resolution: 4K @ 60Hz
• Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2, 8/10 / 12bpc
• Compliant with HDMI 1.4b specifications up to 3.0 Gbps
• Supports 1080p deep color 10/12 bit up to 2.25 Gbps
• Black colour
Size
• Length: 58.6mm
• Width: 22.5 mm
• Height: 14.0 mm
Package contents
• HDMI DP converter
Technical properties
| Connection 1: | DisplayPort (DP) |
|---|---|
| Connection 2: | HDMI (HDMI-A) |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Screened: | True |
| With terminal resistor: | True |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
