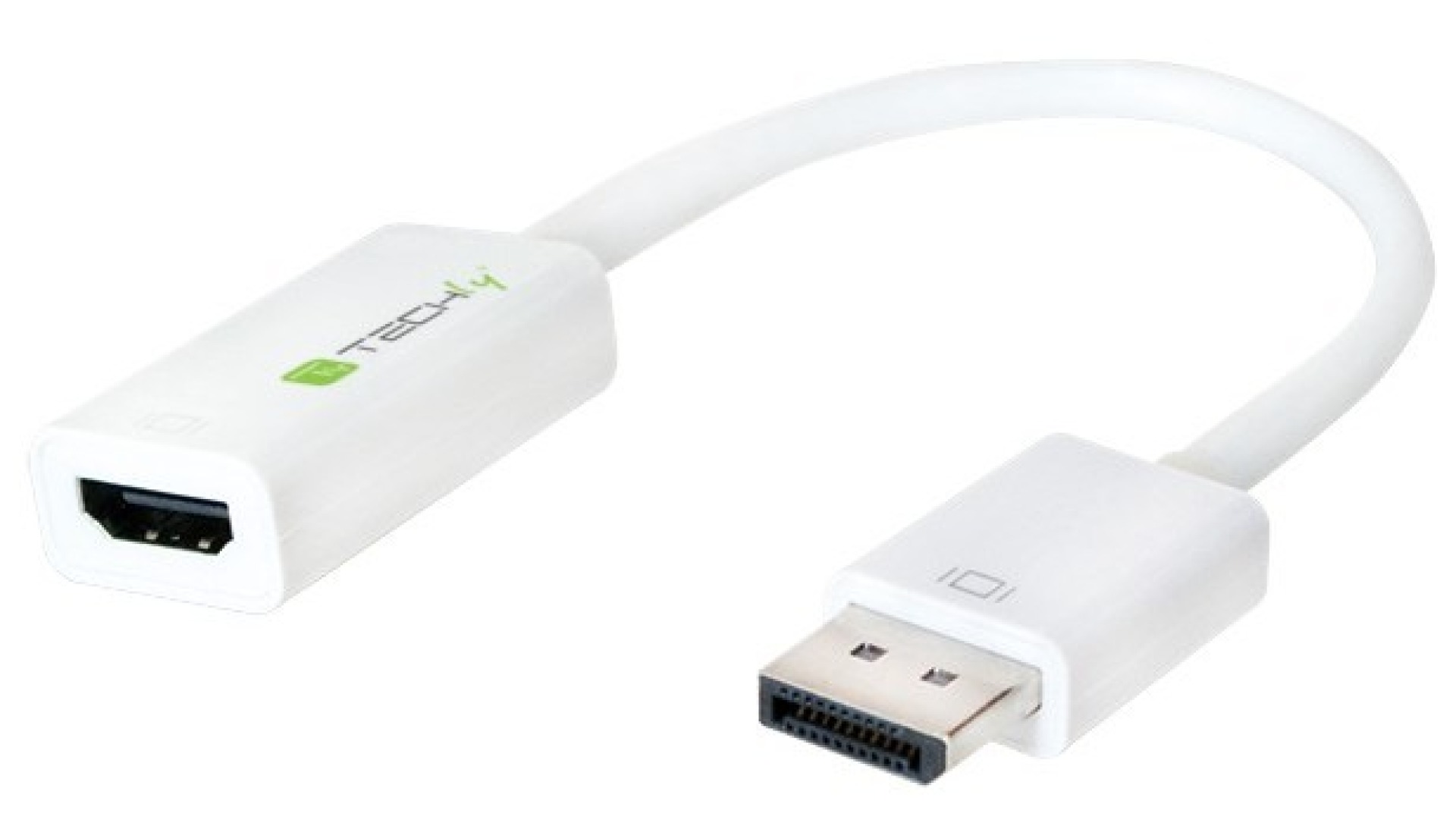

Adapter - DisplayPort 1.2 male to HDMI female 15 cm
Adapter - DisplayPort 1.2 male to HDMI female 15 cm
Item number:
IADAP-DP-HDMIF2
EAN no.:
8057685309814
Product information for Adapter - DisplayPort 1.2 male to HDMI female 15 cm
• Connects a DisplayPort source to an HDMI monitor cable
• Provides a single high-quality signal to an HDMI - ideal for computer Mac
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Connections
• 1x DisplayPort 20-pin male
• 1x HDMI 19-pin female
• Molded PVC
• Shielded
Signal: IN / OUT
• Input video signal: DisplayPort
• Maximum range Single Link: 4Kx2K
• Video Output: HDMI
• Input Connector: DisplayPort Male 20pin
• Output Connector Type: HDMI A female 19pin
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth up to 5.4Gbps
Resolutions (HDTV)
• 4Kx2K / 30HZ
• Supports 3D mode
Dimensions
• Length: 80 mm
• Width: 23 mm
• Height: 12 mm
• Cable length: 150 mm
Environmental Characteristics
• Operating Temperature: 0°C to +70°C
• Operating humidity: 10% to 85% (non-condensing)
• Storage temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• 1x Adapter DisplayPort (Thunderbolt) to HDMI
• 1x Instruction Manual
• Provides a single high-quality signal to an HDMI - ideal for computer Mac
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot
Connections
• 1x DisplayPort 20-pin male
• 1x HDMI 19-pin female
• Molded PVC
• Shielded
Signal: IN / OUT
• Input video signal: DisplayPort
• Maximum range Single Link: 4Kx2K
• Video Output: HDMI
• Input Connector: DisplayPort Male 20pin
• Output Connector Type: HDMI A female 19pin
Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth up to 5.4Gbps
Resolutions (HDTV)
• 4Kx2K / 30HZ
• Supports 3D mode
Dimensions
• Length: 80 mm
• Width: 23 mm
• Height: 12 mm
• Cable length: 150 mm
Environmental Characteristics
• Operating Temperature: 0°C to +70°C
• Operating humidity: 10% to 85% (non-condensing)
• Storage temperature: -10°C to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W
Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE
Package Contents
• 1x Adapter DisplayPort (Thunderbolt) to HDMI
• 1x Instruction Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
