Adapter USB-C M to VGA F
Adapter USB-C M to VGA F
Item number:
IADAP-USBC-VGAC
Product information for Adapter USB-C M to VGA F

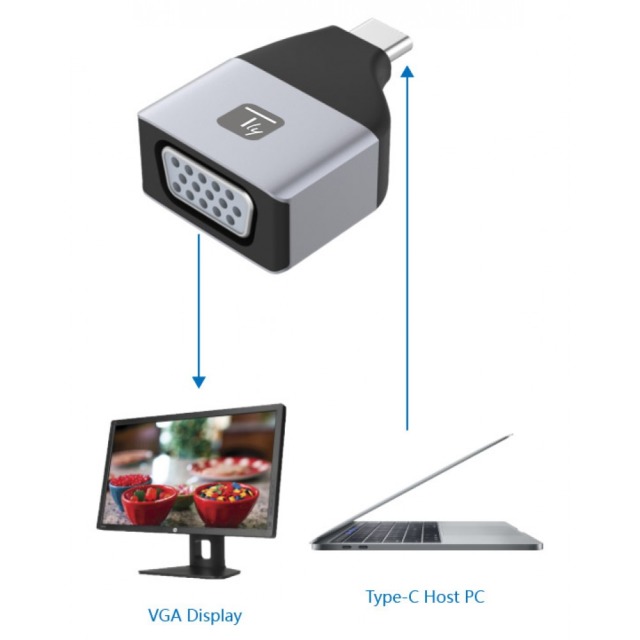

IADAP USBC-VGAC is a USB-C™ to VGA Adapter. It allows you to transmit signals from a USB-C™ source to a high definition VGA display (TV sets, projectors, etc). It can work on Macbook or Google new Chromebook Pixel and other USB-C supported devices. With this product, you can watch videos or slideshows together on the big screen.
Features
Supports USB-C™ input, VGA output
USB-C™ supports reversible plug
Supports VGA Resolution up to 1920x1200@60Hz
Plug and play
Technical specifications
Input connector: male USB-C™
Output connector: female VGA
VGA resolution: 1920x1200@60Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85 % RH (no condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90 % RH (no condensation)
Power Source Bus Power

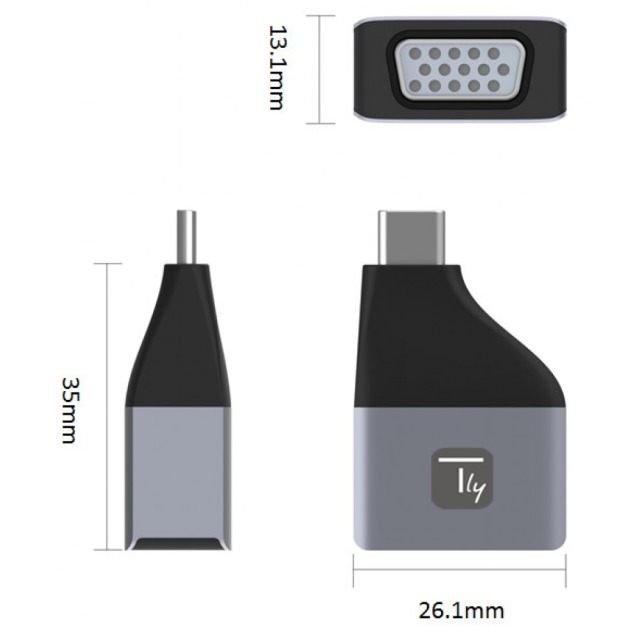

Dimensions: 35 x 26,1 x 13,1 mm
Certifications: FCC, CE
Package contents
USB-C™ to VGA adapter
Features
Supports USB-C™ input, VGA output
USB-C™ supports reversible plug
Supports VGA Resolution up to 1920x1200@60Hz
Plug and play
Technical specifications
Input connector: male USB-C™
Output connector: female VGA
VGA resolution: 1920x1200@60Hz
Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10% ~ 85 % RH (no condensation)
Storage Temperature: -10°C ~ 70°C
Storage Humidity: 5% ~ 90 % RH (no condensation)
Power Source Bus Power
Dimensions: 35 x 26,1 x 13,1 mm
Certifications: FCC, CE
Package contents
USB-C™ to VGA adapter
Technical properties
| Connection 1: | USB-C |
|---|---|
| Connection 2: | HD-D-Sub 15-pole |
| Connection type connection 1: | plug |
| Connection type connection 2: | jack |
| screened: | True |
