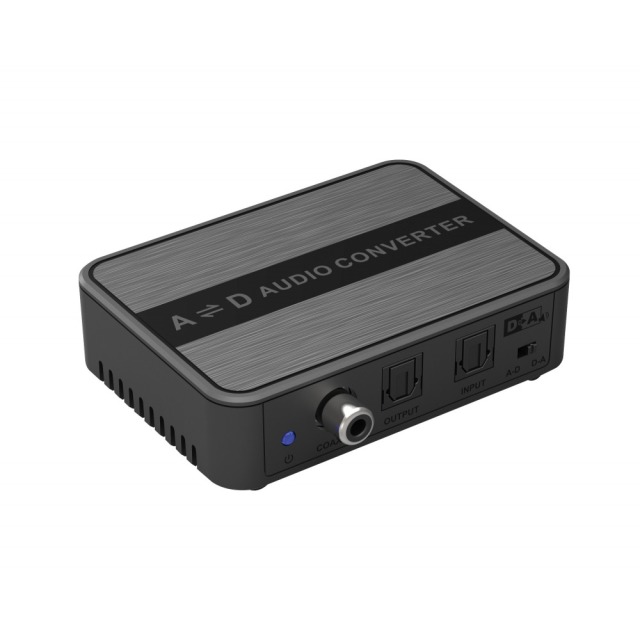

Bidirectional Audio Converter Digital to Analog / Analog to Digital
Bidirectional Audio Converter Digital to Analog / Analog to Digital
Item number:
IDATA-SPDIF-8
EAN no.:
8059018361636
Product information for Bidirectional Audio Converter Digital to Analog / Analog to Digital

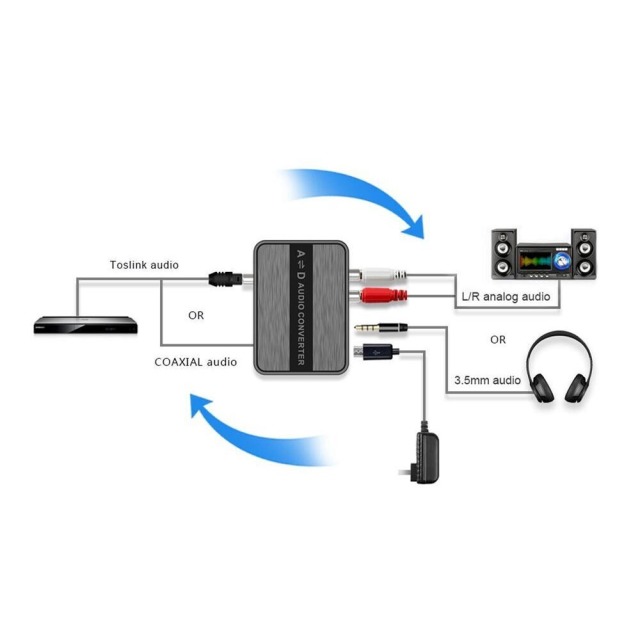

This digital to anlog / analog to digital combo audio converter is designed for either home or professional audio switching. It converts coaxial or optical digital audio input to analog stereo output over RCA or 3.5 mm mini jack, and also can convert analog audio signals to digital audio signals, it can convert in either direction.
Features
Supports coaxial or optical digital audio to analog stereo audio
Supports analog stereo audio to coaxial or optical digital audio
Supports 2 channels LPCM digital audio signal output
Supports 32, 44.1, 48, 96, 128 and 192 kHz sampling rate when digital to analog, 48kHz sampling rate when analog to digital
Plug and Play
Housing material: ABS
Color: black
Tecnical specifications
Voltage: DC5V/0.5A
Power consumption: < 1W
Power port: Micro USB
Input digital sampling rate: 32, 44.1, 48, 96, 128 e 192 kHz
Output digital sampling rate: 48kHz
Analog audio format: stereo
Input/output interfaces: 3.5 mm, R/L, coaxial
Input interface: S/PDIF
Output interface: S/PDIF
Environmental information
Working temperature: from 0 to ~ 60°C
Storage temperature: from -10 to ~ 70°C
Humidity (non-condensing): from 0 to ~ 90%
Package contents
Combo audio converter
DC5V/0.5A power adapter
User Manual
Features
Supports coaxial or optical digital audio to analog stereo audio
Supports analog stereo audio to coaxial or optical digital audio
Supports 2 channels LPCM digital audio signal output
Supports 32, 44.1, 48, 96, 128 and 192 kHz sampling rate when digital to analog, 48kHz sampling rate when analog to digital
Plug and Play
Housing material: ABS
Color: black
Tecnical specifications
Voltage: DC5V/0.5A
Power consumption: < 1W
Power port: Micro USB
Input digital sampling rate: 32, 44.1, 48, 96, 128 e 192 kHz
Output digital sampling rate: 48kHz
Analog audio format: stereo
Input/output interfaces: 3.5 mm, R/L, coaxial
Input interface: S/PDIF
Output interface: S/PDIF
Environmental information
Working temperature: from 0 to ~ 60°C
Storage temperature: from -10 to ~ 70°C
Humidity (non-condensing): from 0 to ~ 90%
Package contents
Combo audio converter
DC5V/0.5A power adapter
User Manual
Technical properties
| Suitable for 19 inch mounting: | False |
|---|
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
