Data outlet Cat.6A, incl Surface

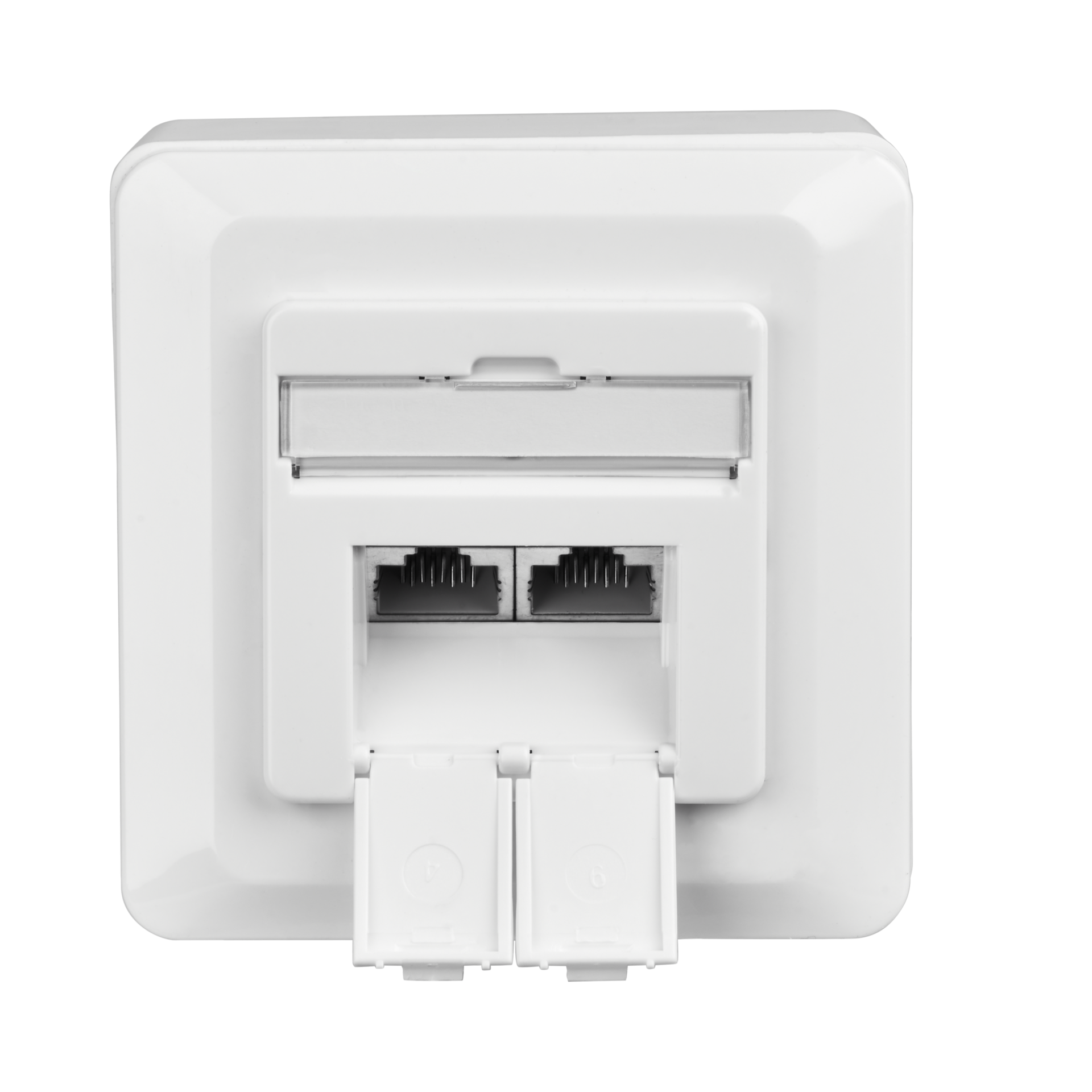

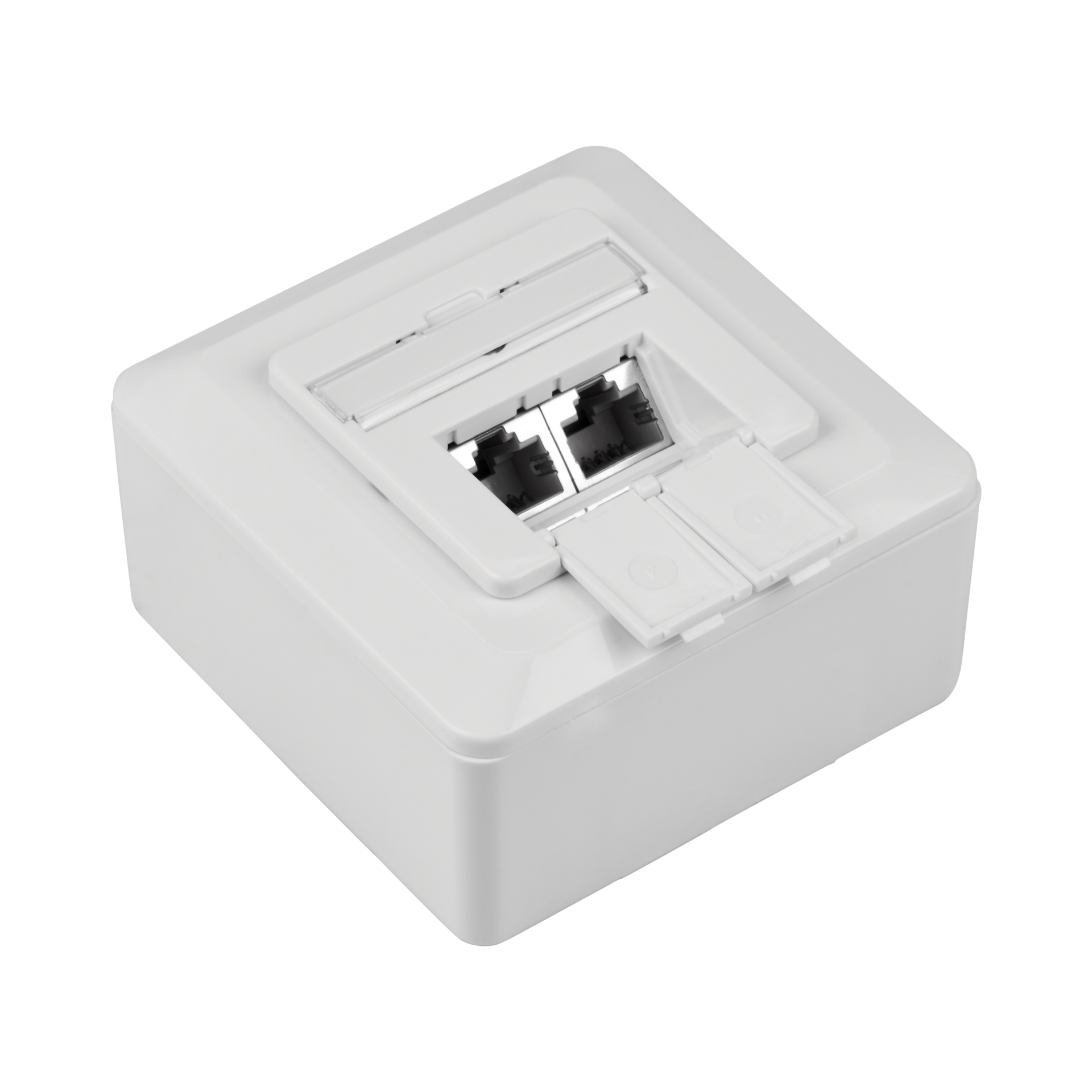

Data outlet Cat.6A 500MHz, Surface, 2xRJ45, RAL9010
Item number:
ET-25133AV5-R
EAN no.:
4049759107420
Product information for Data outlet Cat.6A 500MHz, Surface, 2xRJ45, RAL9010

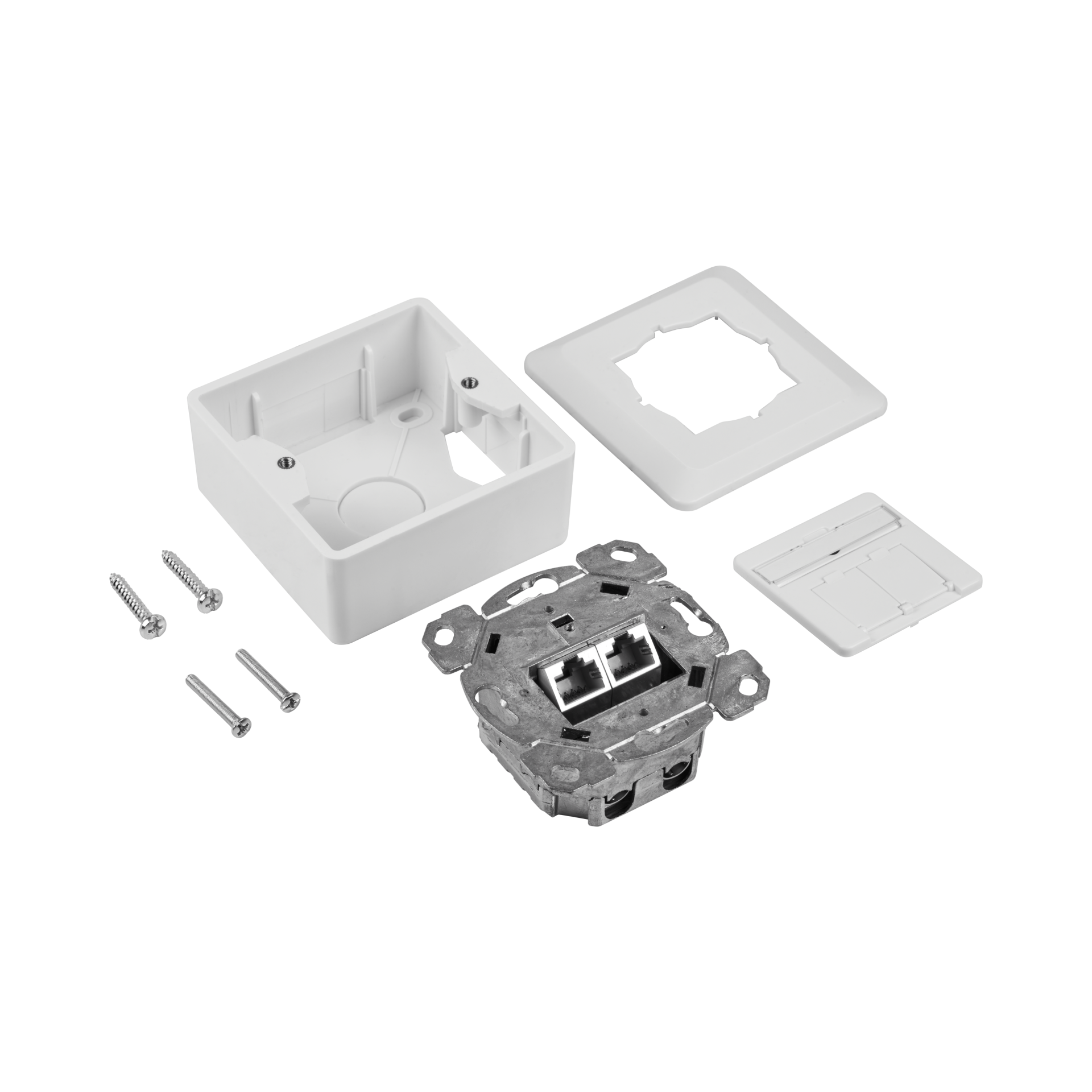

40°-outlet, LSA IDC terminals, incl. 6.3 mm Grounding connection. Full shielded aluminium
die-cast housing, labeling field with transparent cover. For installation in ducts and underfloor
systems, central plate conform to DIN49075, metal frame. Design-capable, compatible

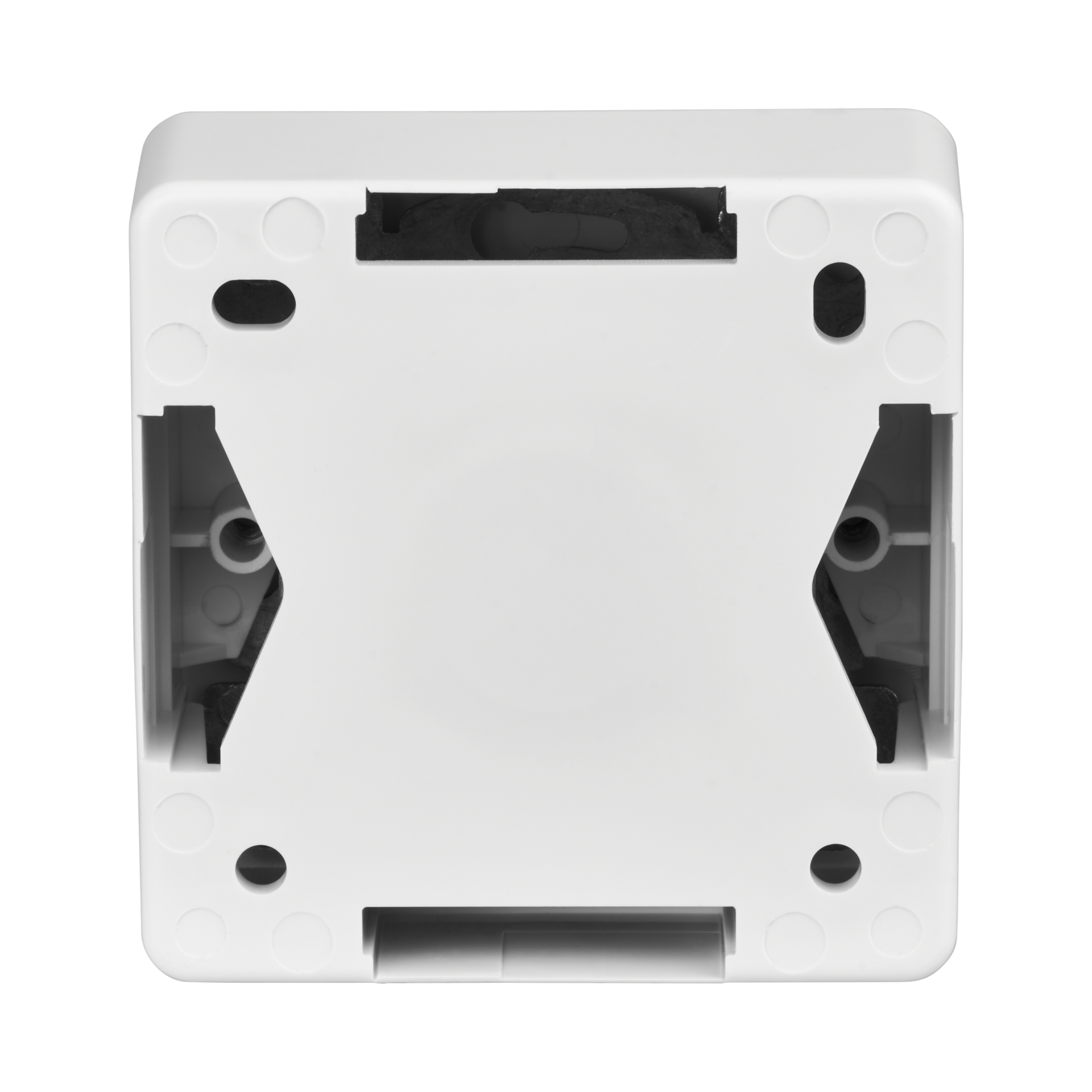

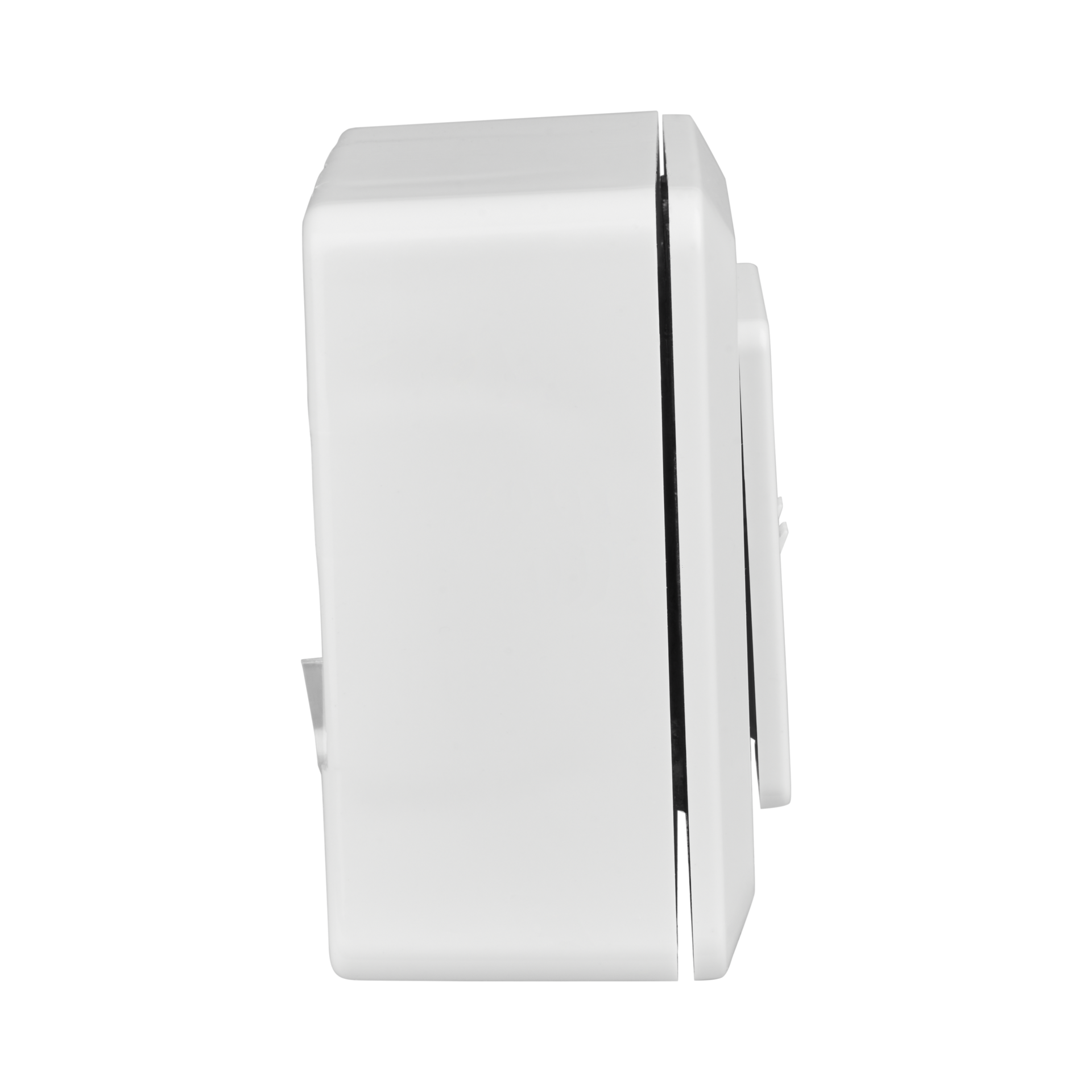

with all common switch programmes. Incl. surface frame 80 x 80 x 40 mm
die-cast housing, labeling field with transparent cover. For installation in ducts and underfloor
systems, central plate conform to DIN49075, metal frame. Design-capable, compatible
with all common switch programmes. Incl. surface frame 80 x 80 x 40 mm
Technical properties
| Category: | 6A (TIA) |
|---|---|
| Centre plate: | Ja |
| Colour coding: | Ja |
| Connection type: | LSA |
| Cover frame: | Ja |
| Degree of protection: | IP20 |
| Design suitable: | Nein |
| Duct installation: | Ja |
| Floor box/sub-floor mounted: | Nein |
| Flush mounted (plaster): | Ja |
| Mechanical coding: | Nein |
| Mounting method shielding connection: | Klemme |
| Outlet direction: | Inclined |
| POE Standard: | POE |
| POE Standard: | POE+ |
| RAL number: | 9010 |
| Separate earthing connection: | Ja |
| Separate strain relief: | Ja |
| Shielded buses: | True |
| Shielded housing: | Ja |
| Suitable for number of connectors: | 2 |
| Surface mounting: | Ja |
| Tape width: | 500 MHz |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Terminal resistor: | Nein |
| Transmission: | 1 Gbit |
| Transmission: | 10 Gbit |
| Transmission: | 2,5 Gbit |
| Transmission: | 5 Gbit |
| Type of connector: | RJ45 2x8(8) |
| Type of fastening: | schrauben |
| With buses/couplings: | Ja |
| With dust cover: | True |
| With label space: | Ja |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
