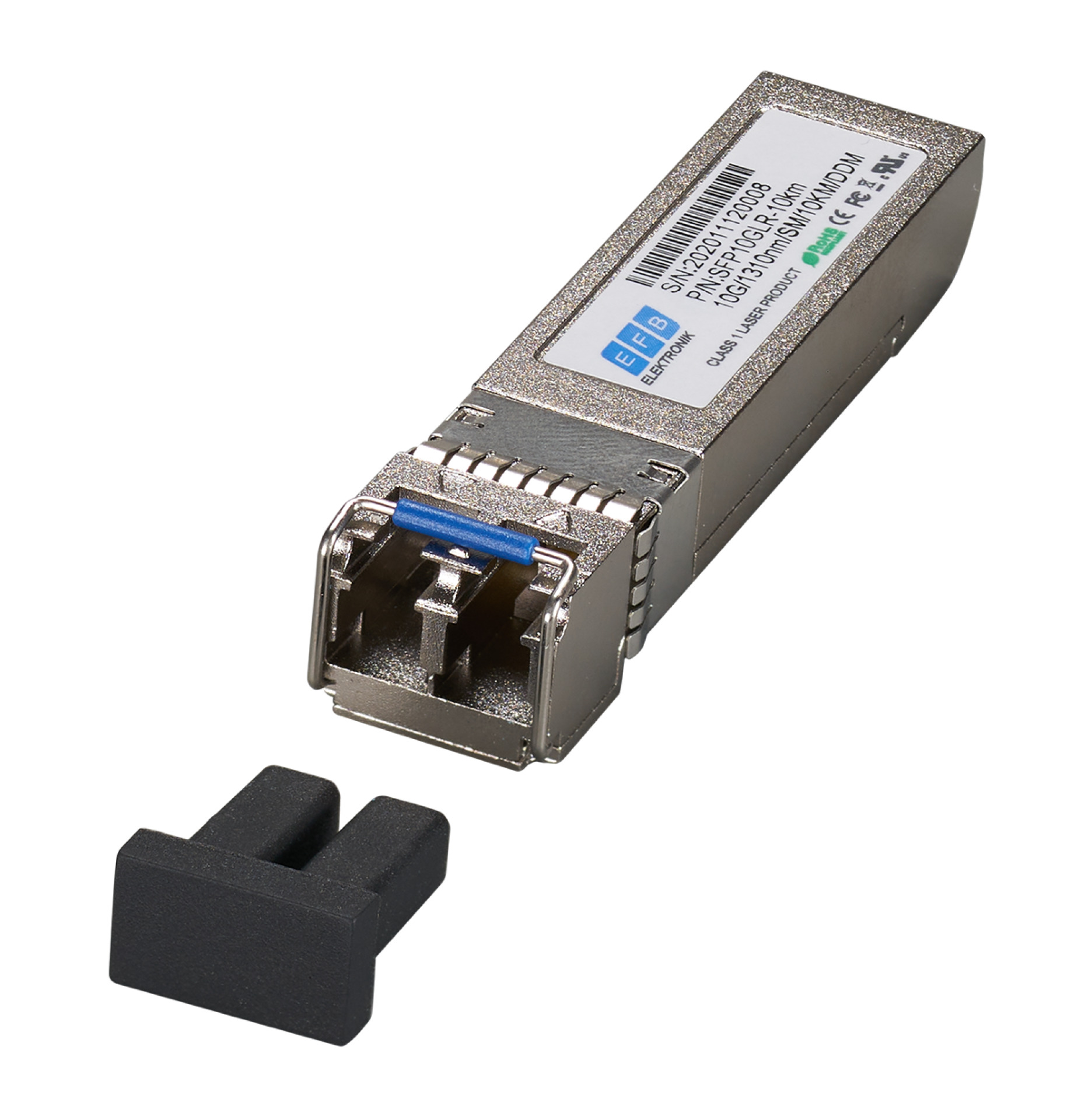

EFB 10G SFP+ SMF,10km 1310nm LC DDM, compatble to Cisco SFP+-10G-LR
EFB10G SFP+ SMF,10km 1310nm LC DDM, compatible to Cisco SFP+-10G-LR
Item number:
SFP10GLR-10KM
EAN no.:
4049759255497
Product information for EFB10G SFP+ SMF,10km 1310nm LC DDM, compatible to Cisco SFP+-10G-LR
10G SFP+ transceiver for single-mode 10G data transmission in fiber optic networks. Compatible with Cisco SFP+-10G-LR and standard MSA SFP+ ports
Technical data
SFP+ transceiver with LC duplex connector
Hot-pluggable SFP
With Digital Diagnostic Monitoring Function
1310nm DFB Laser
LC Duplex Connector
Up to 20km to 9/125μm Singlemode Fiber
Low EMC Interference and good ESDbr> Protection
Temperature range 0 to +70°C
RoHS compliant
Compatible with SFF8472
application
1.25Gbps 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel
Technical data
SFP+ transceiver with LC duplex connector
Hot-pluggable SFP
With Digital Diagnostic Monitoring Function
1310nm DFB Laser
LC Duplex Connector
Up to 20km to 9/125μm Singlemode Fiber
Low EMC Interference and good ESDbr> Protection
Temperature range 0 to +70°C
RoHS compliant
Compatible with SFF8472
application
1.25Gbps 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel
Technical properties
| Compatible to: | Standard |
|---|---|
| Connector: | LC Duplex |
| Detecting range: | 10 km |
| Medium: | Singlemode |
| Protocol: | 10GBaseSR |
| Speed: | 10 Gbit/s |
| Wave length: | 1310 nm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
