VDS-1201, Ethernet VDSL2 Converter (Annex A)
Ethernet over VDSL2-Converter (Annex A)
Item number:
VDS-1201
EAN no.:
4015867209066
Product information for Ethernet over VDSL2-Converter (Annex A)
Supports a VDSL connection up to 2km over single pair copper wire
Provides100Mbps up and downstream up to 300m
Features selectable Fast and Interleaved modes
Selectable fixed data rate and fixed SNR margin

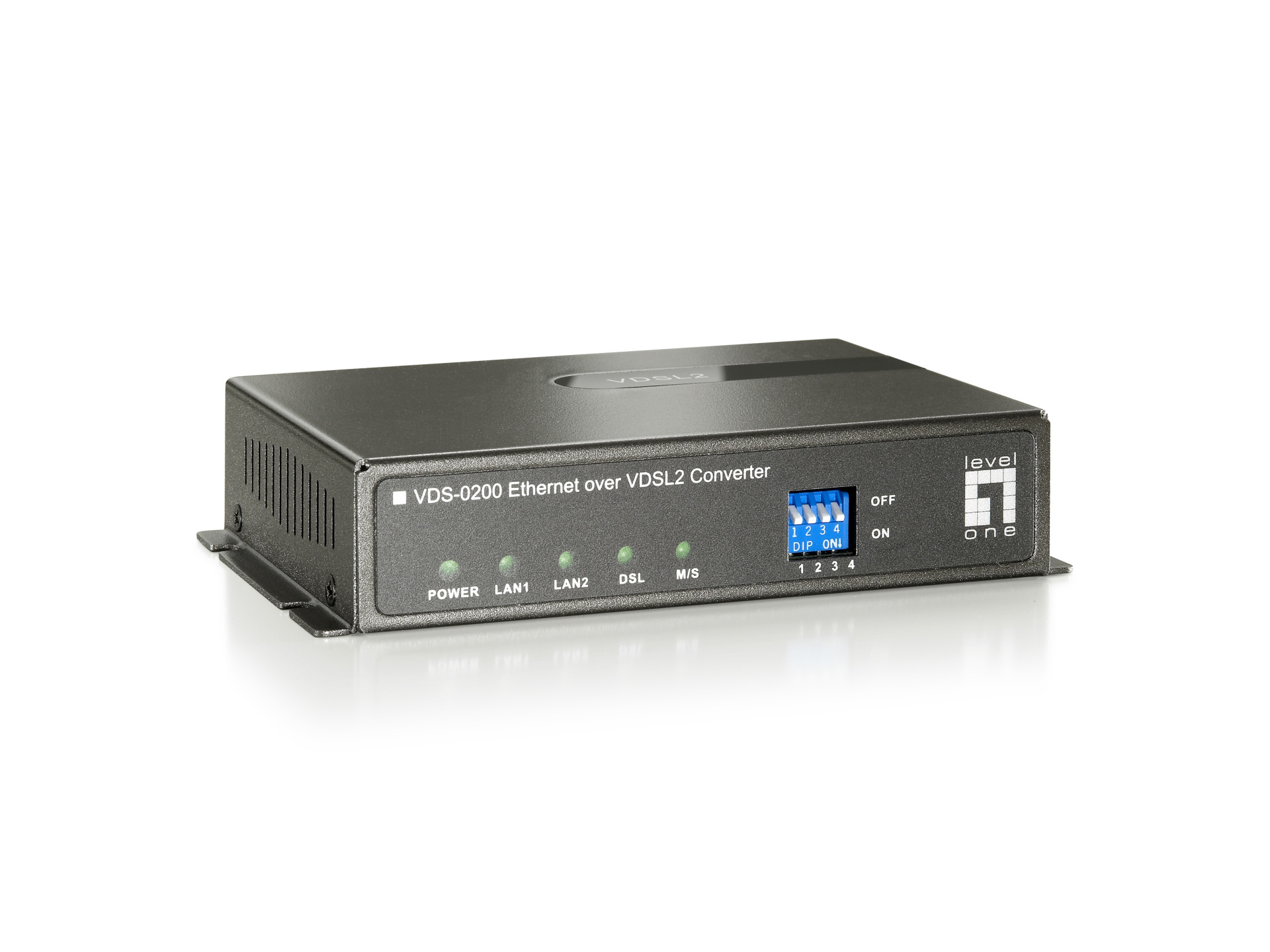

Features 4 DIP Switches for Configuration Settings
Low-Latency for Video/Voice/Data applications

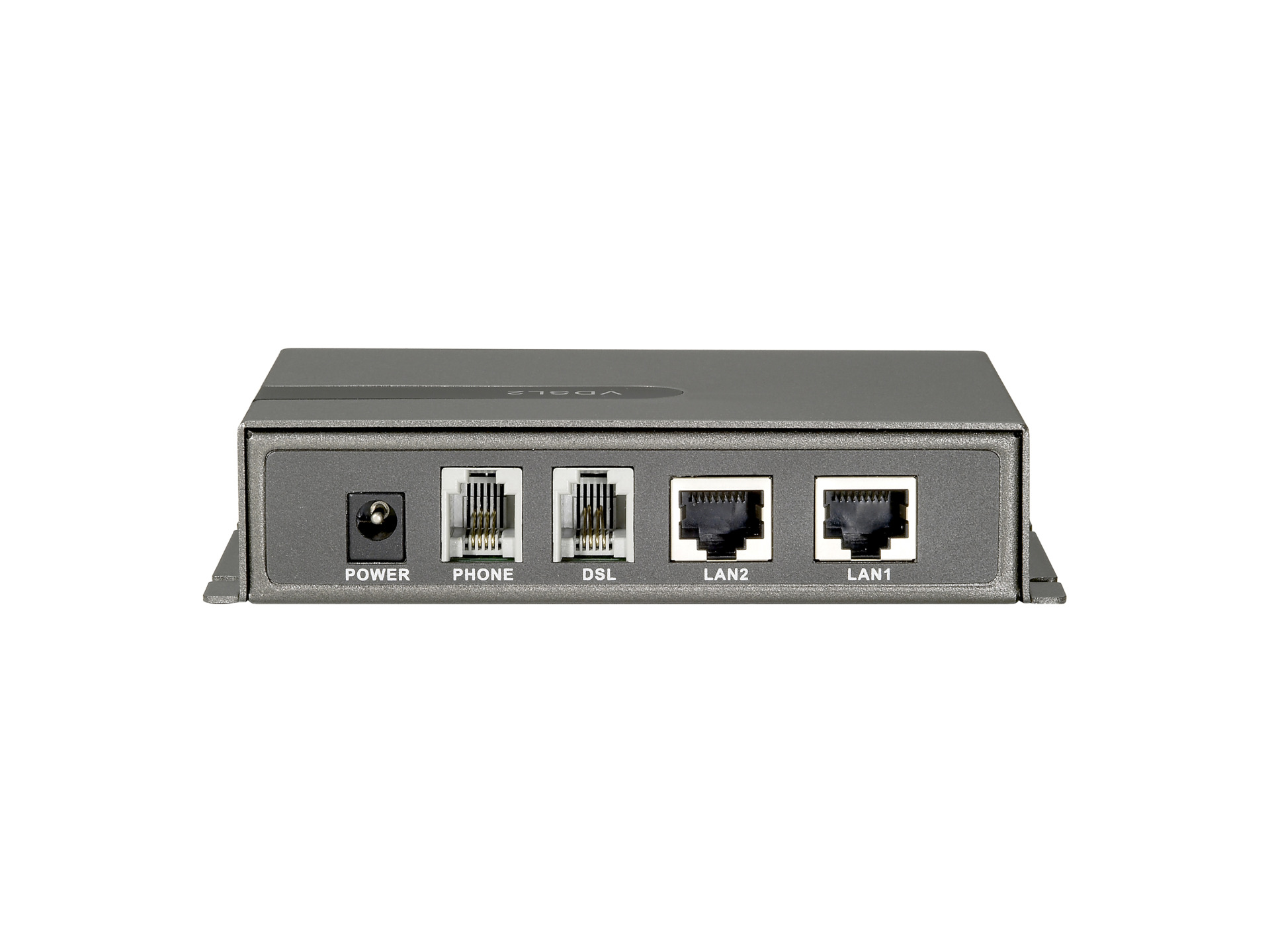

2 x RJ45 LAN Ports, 1 x RJ11 phone, 1 x RJ11 VDSL
Annex A
Provides100Mbps up and downstream up to 300m
Features selectable Fast and Interleaved modes
Selectable fixed data rate and fixed SNR margin
Features 4 DIP Switches for Configuration Settings
Low-Latency for Video/Voice/Data applications
2 x RJ45 LAN Ports, 1 x RJ11 phone, 1 x RJ11 VDSL
Annex A
Technical properties
| Construction type: | Single device |
|---|---|
| Depth: | 90.0 mm |
| Ethernet: | True |
| Fast Ethernet: | True |
| Height: | 28.0 mm |
| Manufacturer: | LevelOne |
| Number of ports 10/100 Mbps RJ45: | 2 |
| Type: | Annex A |
| Width: | 120.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
