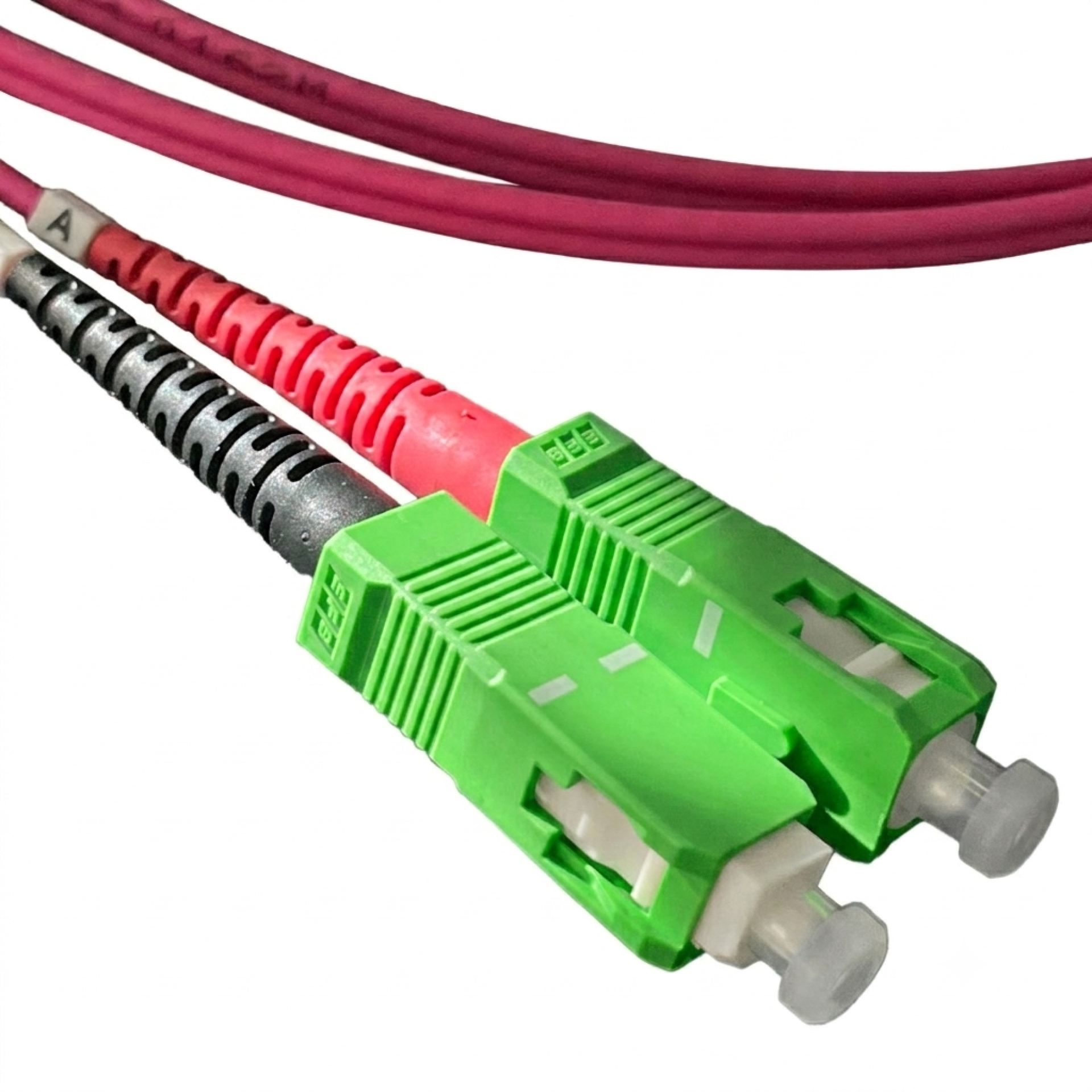

Fiber Pigtail SC/APC OS2 G657A2-colored set - 12 pieces
Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
Item number:
FTTH-PIGTAIL-SCA12
EAN no.:
4049759193980
Product information for Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
The SC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | True |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | ≤ 0,25 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Technical properties
| APC version: | True |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | ≤ 0,25 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Product information for Fiber Pigtail SC/APC OS2 G657A2-colored set 2m - 12 pieces
The SC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | True |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | ≤ 0,25 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
| APC version: | True |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G657A2 |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | ≤ 0,25 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD mm |
| Mion. Bending Radius Static: | 10xOD mm |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
