FO outlet UP, 2 SC-S adapter OM3
Prices only visible for logged in users
FO data outlet UP, 2 SC-S adapter OM3 with shutter, integrated splice holder
Item number:
FTTH-OUTLET-SC-OM3
EAN no.:
4049759211271
Product information for FO data outlet UP, 2 SC-S adapter OM3 with shutter, integrated splice holder
Fiber Optical flush-mounted data outlet to accommodate 2 SC-Simplex adapter or 2 LC-Duplex adapter. The data outlet is equipped with couplings in the classes OM3, OM4 or OS2 including shutter. The highlight of this flush-mounted data outlet is that it not only has an integrated receptacle for excess fiber lengths, but also has a receptacle for splice protection (4x crimp or 4x shrink). Depending on the application, the holder can also be dismantled so that it does not get in the way when pre-assembled cables are installed.
Performance features:
Horizontal and vertical installation in the cable duct or flush mounting
Recording of fiber overlengths
Integrated splice protection for 4 splices
Cover 80mm x 80mm
Data outlet depth of 40mm for installation in flush-mounted boxes or cavity wall boxes
Performance features:
Horizontal and vertical installation in the cable duct or flush mounting
Recording of fiber overlengths
Integrated splice protection for 4 splices
Cover 80mm x 80mm
Data outlet depth of 40mm for installation in flush-mounted boxes or cavity wall boxes
Technical properties
| Cable strain relief: | True |
|---|---|
| Category: | Multimode |
| Central plate according to: | DIN 49075 |
| Centre plate: | True |
| Colour of adapter: | aqua |
| Cover frame: | True |

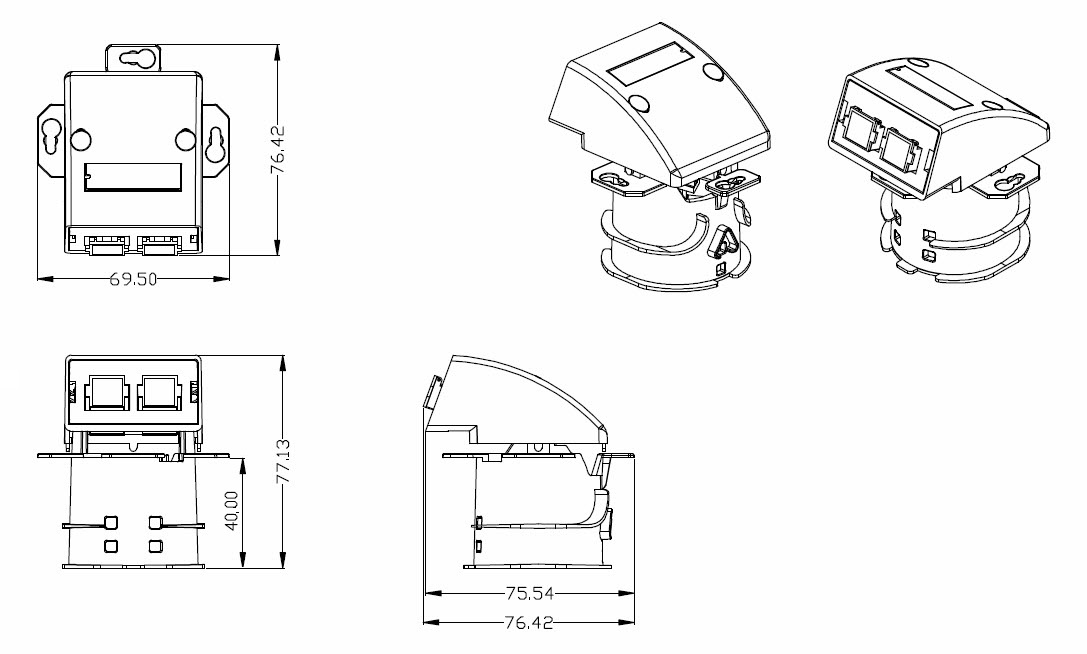

| Dimension: | 80 x 80 x 40 mm |
| Duct installation: | True |
| Dust protection cap: | shutter |
| Equipped with adapters: | SC simplex |
| Flush mounted (plaster): | True |
| Material adapter plates: | ABS plastic |
| Material bearing ring: | Zinc die cast |
| Material central plate: | ABS plastic |
| Max. Assembly (Adapter): | 2 |
| Number of buses/couplings: | 2 |
| Outlet direction: | down |
| Splice holder: | crimp/ shrink |
| Suitable for adapter: | SC Simplex/LC Duplex |
| Surface mounting: | False |
| Type of fastening: | screw/lock |
| Wire stock: | True |
| With bus/coupling: | True |
| With label space: | True |
