The new foldable 19“ wall housing


Easy, quick and tool-free assembly: Our new foldable 19" wall housings impress with their innovativeness: Thanks to the foldable side walls, they can be set up in just a few minutes without any tools. The reduced packing volume also saves a lot of space in logistics and in your warehouse thanks to the flat-pack concept.

flatpack-wandgehaeuse




Save time and money - with folding and clip technology

Mount completely without tools
Assemble the 19" wall housing completely without screws and tools: The assembly is done thanks to clip technology with plastic expanding rivets, so the bottom and top panels are simply attached to the housing.
Only 1 person to assemble
Transform your Flat Pack into a 19" wall-mounted enclosure in no time at all - only one person is needed for this: Simply unfold the side panels and assemble the remaining parts.
Save time
Thanks to the hinged side walls and the tool-free assembly, the set-up is done in no time! No complicated fiddling with small parts or additional equipment.
Space-saving for transport and storage
The compact and space-saving format of the packaging also saves you costs during transport and in your warehouse.




Here is the assembly video


Convince yourself: In our product video, we show you how easy and quick it is to mount the foldable wall housing.




At a glance: These variants are possible


  • Variants from 4U up to 15U, width 540 mm
  • Depths 450 mm and 600 mm available
  • Paint finish light grey (RAL7035), jet black (RAL9005), pure white (RAL9010)
  • Front door made of certified safety glass, lockable
  • Max. load up to 50 kg
Download assembly instructions as PDF

Watch assembly video




Foldable 19“ wall housing

%

Item no. WGF-PRO15

19" Profile Rails 15U for Wall Housing Foldable, Set 2 Pcs.
Number of height units: 15 U
Select variants
%
19“ 04U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL7035

Item no. WGF-1904GR.60

19“ 04U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL7035
Colour: grey
Degree of protection (NEMA): -
Depth: 600 mm
Height: 237 mm
Select variants
%
19“ 09U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005

Item no. WGF-1909TS.60

19“ 09U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9005
Colour: black
Degree of protection (NEMA): 1
Depth: 600 mm
Height: 458 mm
Select variants
%
19“ 09U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9010

Item no. WGF-1909WS.60

19“ 09U Wall Housing Foldable, Depth 600 mm, 1-Part, Flat Pack, RAL9010
Colour: white
Degree of protection (NEMA): 1
Depth: 600 mm
Height: 458 mm
Select variants
%
19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035

Item no. WGF-1909GR.45

19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035
Colour: grey
Depth: 450 mm
Height: 458 mm
Max. Load: 50 kg
Select variants
%
19“ 12U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL9010

Item no. WGF-1912WS.45

19“ 12U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL9010
Colour: white
Degree of protection (NEMA): -
Depth: 450 mm
Height: 592 mm
Select variants
%
19“ 15U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL9005

Item no. WGF-1915TS.45

19“ 15U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL9005
Colour: black
Depth: 450 mm
Height: 726 mm
Max. Load: 50 kg
Select variants
%
Front Door for Wall Housing Foldable 09U

Item no. WGF-TUR09

Front Door for Wall Housing Foldable 09U
Building width for cabinet build in: 544 mm
Select variants

Item no. WGF-SRN01

Hinge for Wall Housing Foldable
Select variants

The matching accessories

19" 1U Shelf, Depth 150 mm, max. Load 5 kg, RAL9005

Item no. 691650TS.1A

19" 1U Shelf, Depth 150 mm, max. Load 5 kg, RAL9005
Colour: black
Depth: 150 mm
Max. Load: 5 kg
Select variants

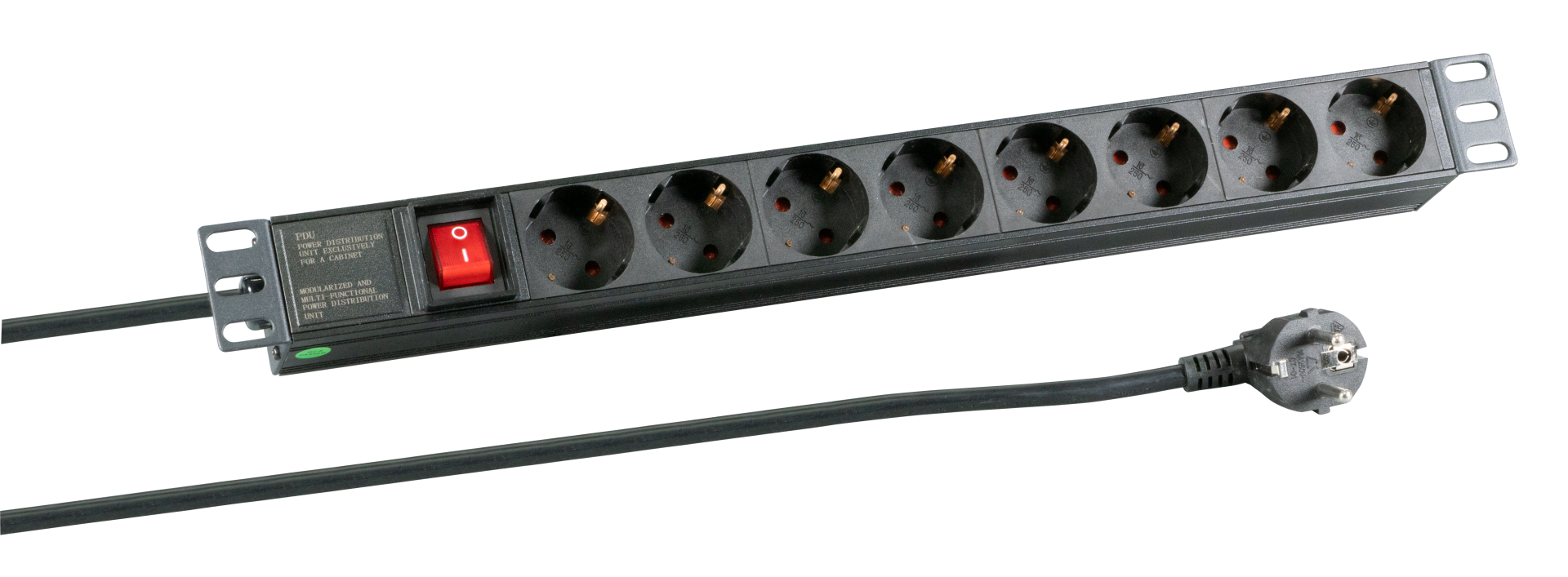

19“ 1U Socket Strip 8 x CEE 7/3 with Switch, in Plastic Profile, Black

Item no. EK622DE.2

19“ 1U Socket Strip 8 x CEE 7/3 with Switch, in Plastic Profile, Black
Anti-bacterial treatment: False
Colour: black
Number of socket outlets with protective contact (CEE7/3): 8
With on/off switch: True
Select variants

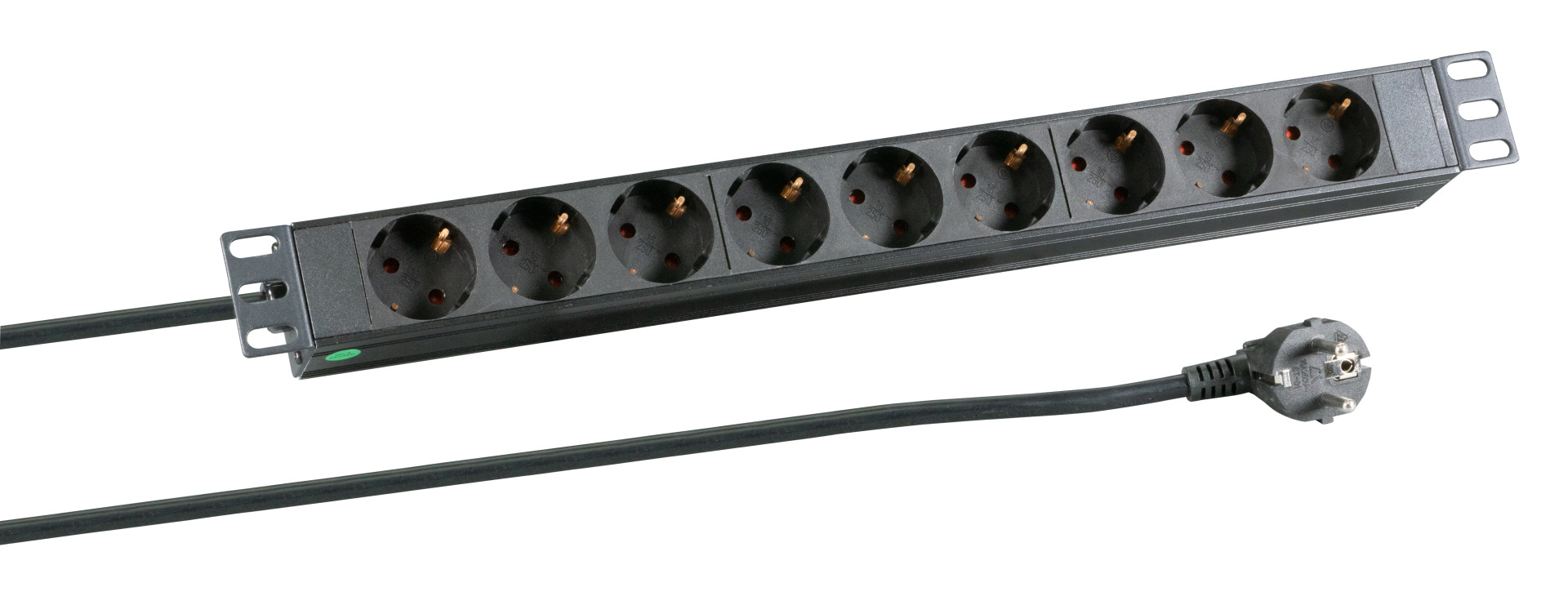

19“ 1U Socket Strip 9 x CEE 7/3 without Switch, in Plastic Profile, Black

Item no. EK622DE.1

19“ 1U Socket Strip 9 x CEE 7/3 without Switch, in Plastic Profile, Black
Anti-bacterial treatment: False
Colour: black
Number of socket outlets with protective contact (CEE7/3): 9
With on/off switch: False
Select variants
Fan for 19" Wall Mounting Cabinets, 120 mm, 230 V / 50 Hz

Item no. 691664

Fan for 19" Wall Mounting Cabinets, 120 mm, 230 V / 50 Hz
Number of fans: 1
Select variants
