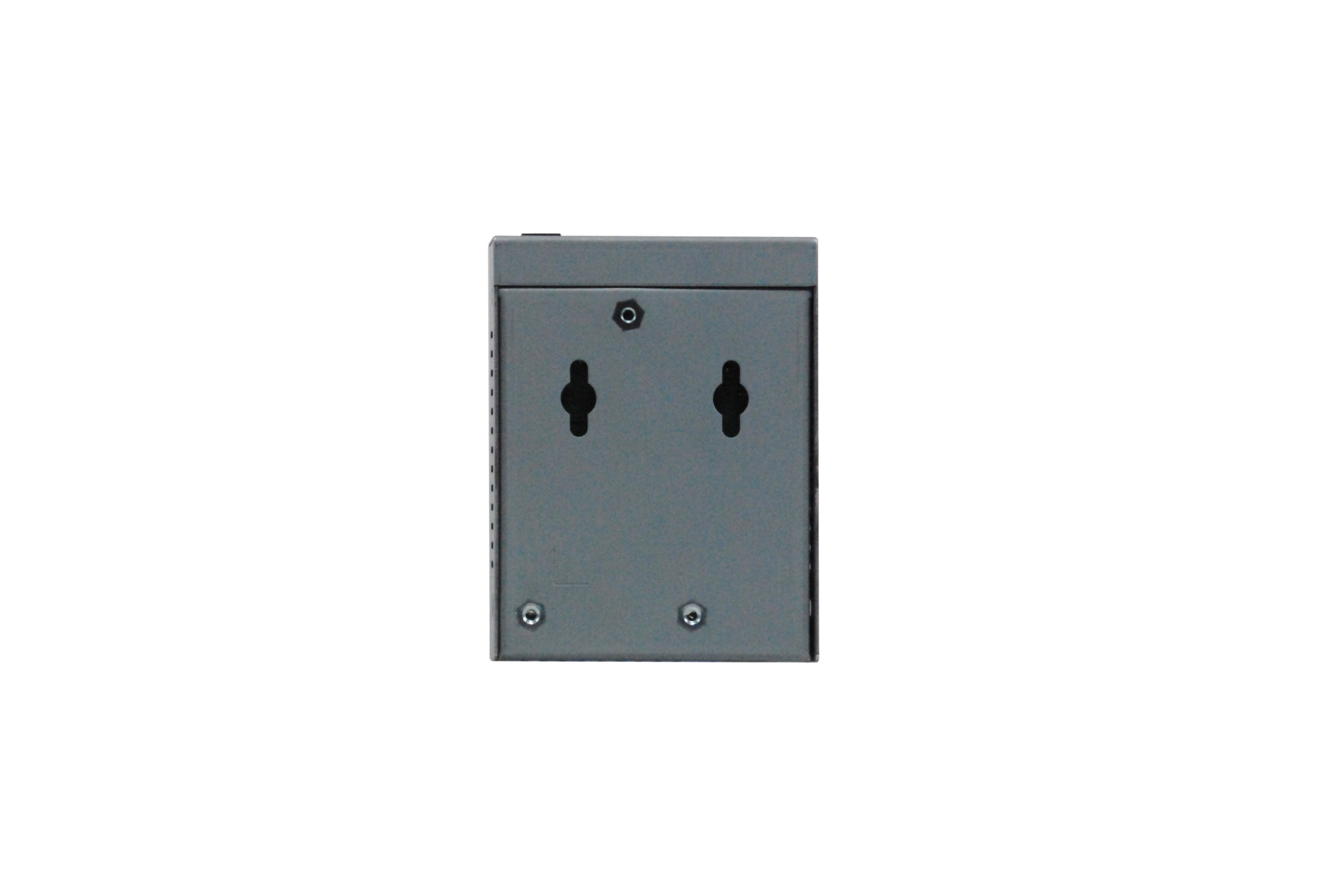

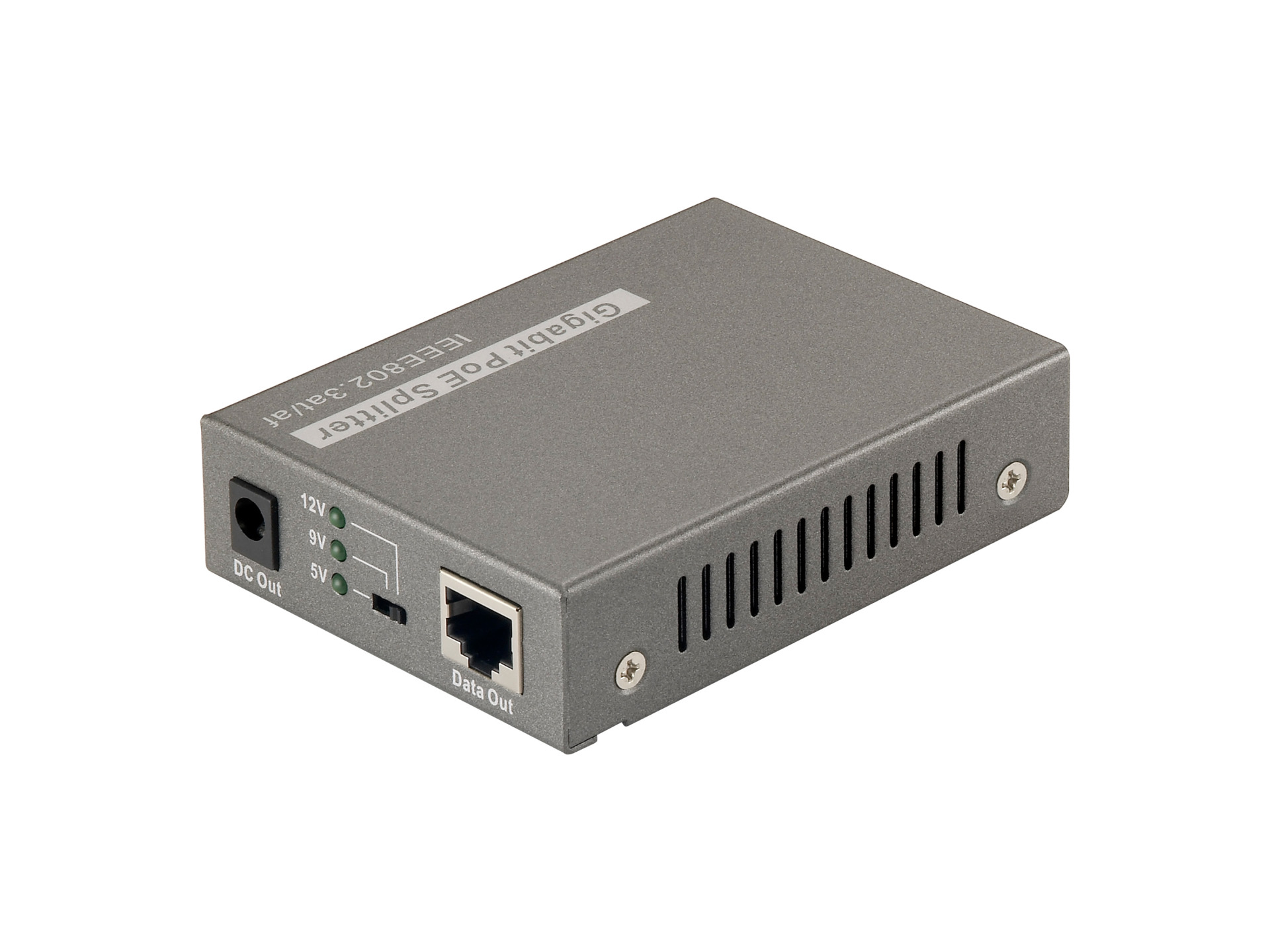

Gigabit Ethernet PoE+ Splitter 30W
Gigabit Ethernet PoE+ Splitter 30W
Item number:
POS-3000
EAN no.:
4015867158128
Product information for Gigabit Ethernet PoE+ Splitter 30W
Compact splitter supports Gigabit Ethernet speed
Automatically detects PoE terminals and supplies inline power
Easily install non-PoE devices where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network device with short circuit protection
Adjustable DIP switch for 5V, 9V, or 12V output
Intergrates Non-PoE devices with Power Over Ethernet support
Auto-sensing power drawn from 802.3af / 802.3at power source equipment(PSE) devices
Supplies power up to 25 watts
Provides Interchangeable tips
Metal housing (L x B x H): 60 x 92 x 27 mm
Automatically detects PoE terminals and supplies inline power
Easily install non-PoE devices where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network device with short circuit protection
Adjustable DIP switch for 5V, 9V, or 12V output
Intergrates Non-PoE devices with Power Over Ethernet support
Auto-sensing power drawn from 802.3af / 802.3at power source equipment(PSE) devices
Supplies power up to 25 watts
Provides Interchangeable tips
Metal housing (L x B x H): 60 x 92 x 27 mm
Technical properties
| Depth: | 80.0 mm |
|---|---|
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| Height: | 31.0 mm |
| Manufacturer: | LevelOne |
| Mounting method: | other |
| Number of ports 10/100/1000 Mbps RJ45: | 1 |
| Power over Ethernet (PoE): | 802.3 at (PoE+) |
| Width: | 55.0 mm |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
