Gigabit PoE+ high performance injector
Product information for Gigabit PoE+ high performance injector
IEEE 802.3at (PoE+) compliant
Up to 30 watts PoE output power
Supported distance: up to 100 m
Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points and bridges, VoIP and IP cameras for video surveillance, etc.)
Supports IEEE 802.3at/af detection as well as short circuit, overload and high voltage protection
Internal power supply
Fanless design, ideal for quiet operation
CE approved
Standards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (Flow control, for full duplex mode)
General Information
Supports:
- 100Base-TX Cat5 UTP/STP RJ45, 8-pin
- 1000Base-T Cat5e UTP/STP RJ45, 8-pin

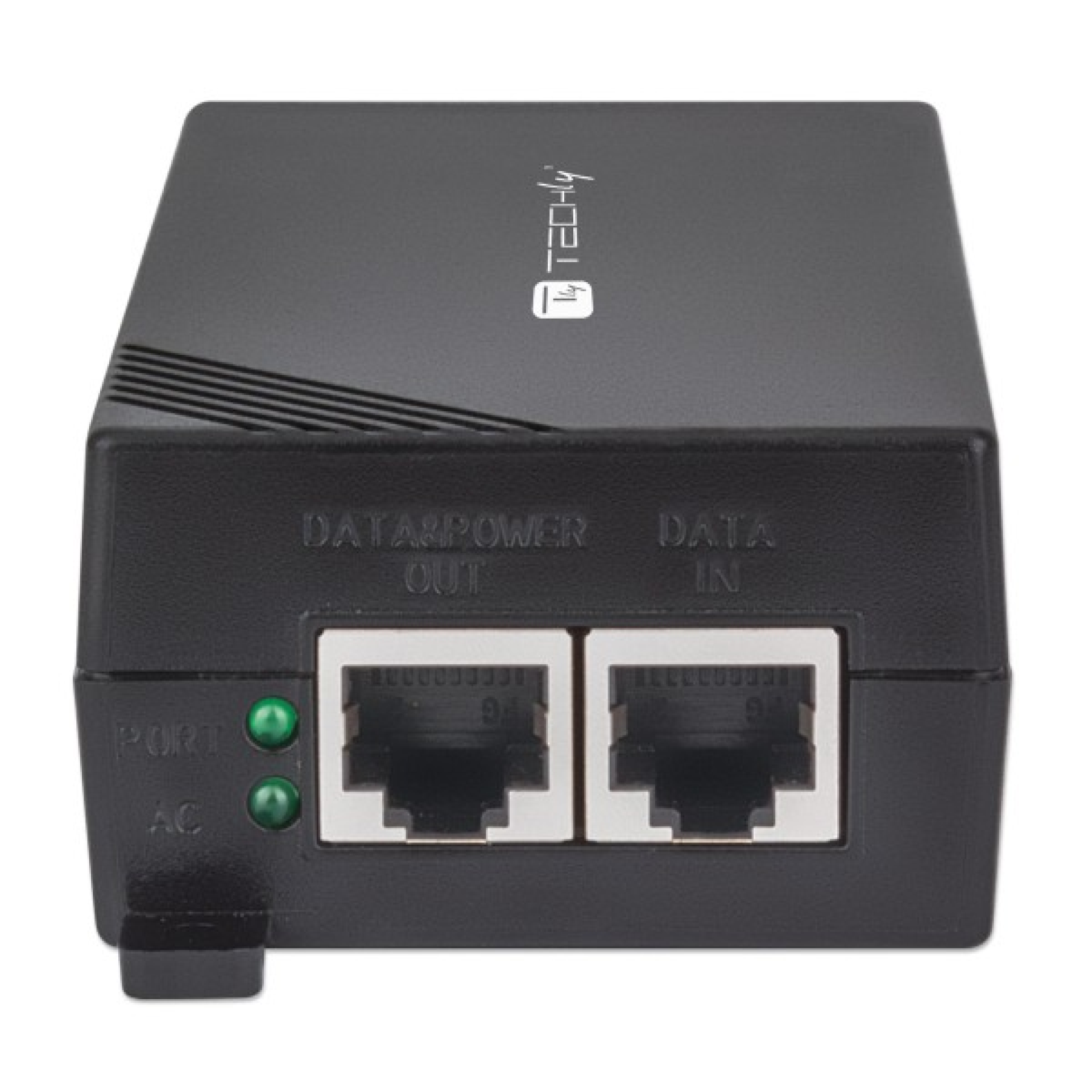

Ports:
- One 10/100/1000 Mbps RJ45 input port
- One 10/100/1000 Mbps RJ45 output port for data and power
Protection Features:
- Short circuit protection for short circuit GND
- Overload protection for current over 0.6A
PoE Configuration: IEEE 802.3af/at Mode A standard
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)
Certifications: FCC Class A, CE, UL
LED:
Dual color LED for power and PoE
Power Supply

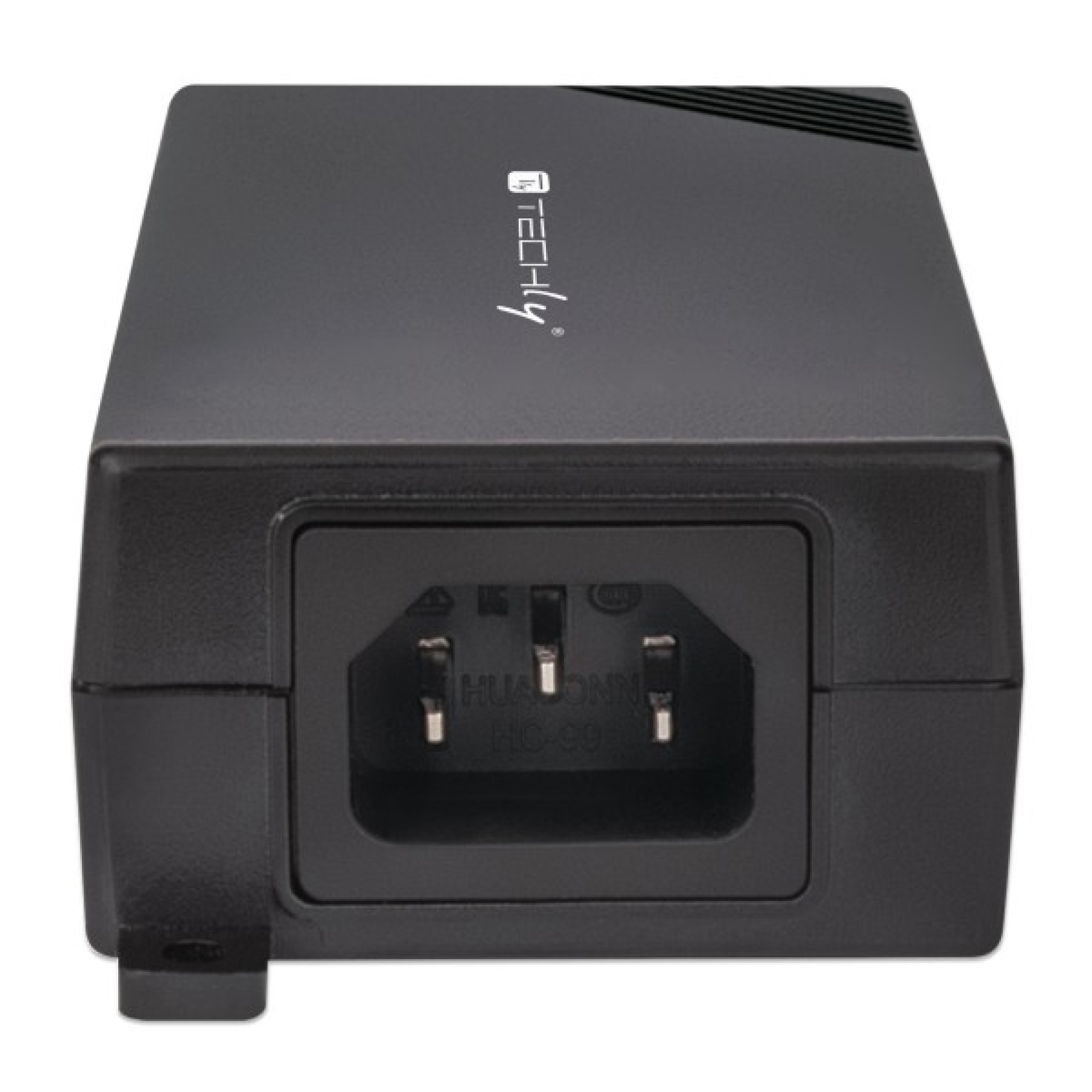

Input: 100~240VAC, 50~60Hz
Power Consumption: 35W (maximum)
Physical Information

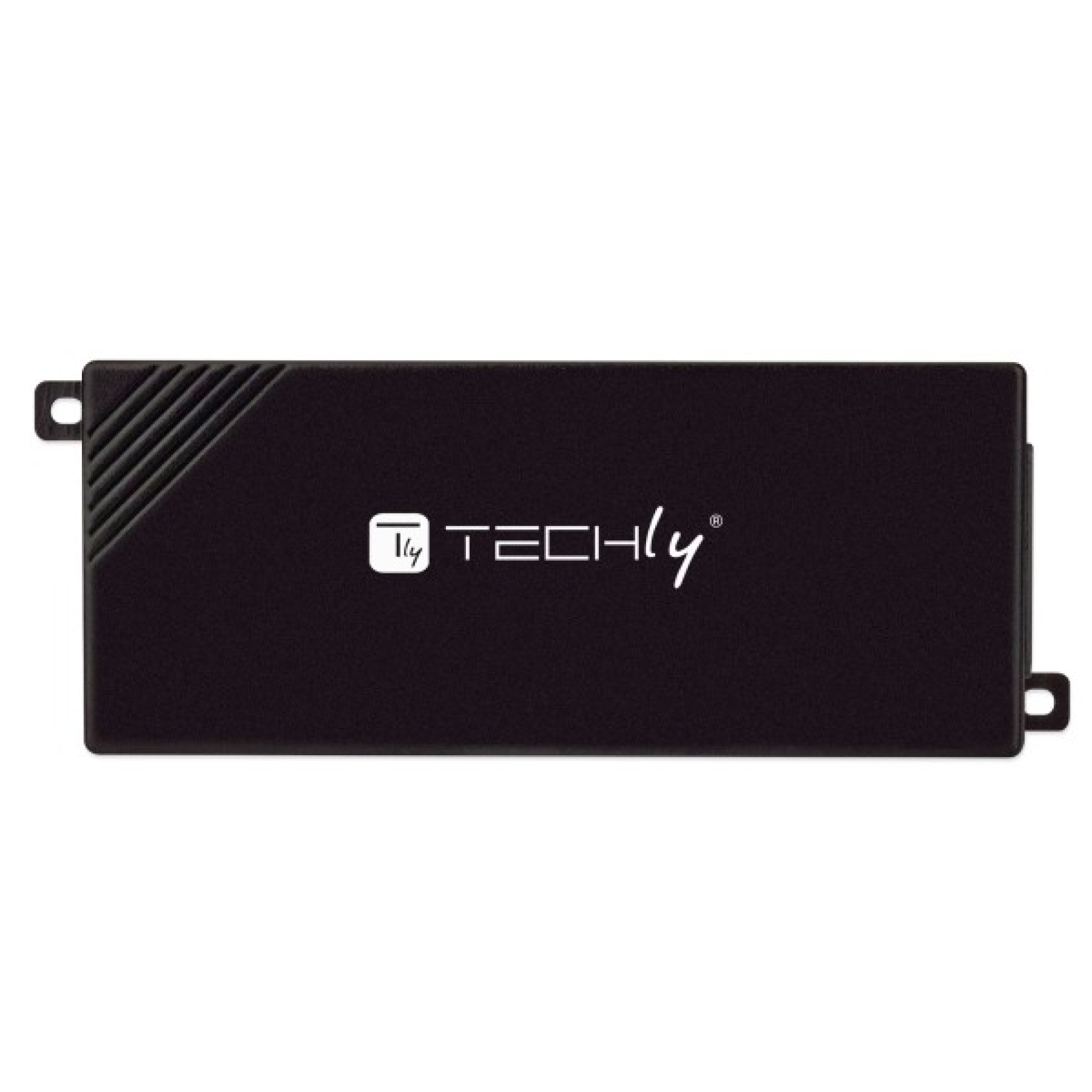

Plastic housing
Dimensions: 130(D) x 57(W) x 34(H)mm
Operating Temperature: 0~50°C
Operating Humidity: 5~ 90% relative humidity, non-condensing
Storage temperature: -20 – 80 °C
Package contents
Gigabit PoE+ high-performance injector
Power cable
User manual
Product information for Gigabit PoE+ high performance injector
IEEE 802.3at (PoE+) compliant
Up to 30 watts PoE output power
Supported distance: up to 100 m
Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points and bridges, VoIP and IP cameras for video surveillance, etc.)
Supports IEEE 802.3at/af detection as well as short circuit, overload and high voltage protection
Internal power supply
Fanless design, ideal for quiet operation
CE approved
Standards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (Flow control, for full duplex mode)
General Information
Supports:
- 100Base-TX Cat5 UTP/STP RJ45, 8-pin
- 1000Base-T Cat5e UTP/STP RJ45, 8-pin
Ports:
- One 10/100/1000 Mbps RJ45 input port
- One 10/100/1000 Mbps RJ45 output port for data and power
Protection Features:
- Short circuit protection for short circuit GND
- Overload protection for current over 0.6A
PoE Configuration: IEEE 802.3af/at Mode A standard
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)
Certifications: FCC Class A, CE, UL
LED:
Dual color LED for power and PoE
Power Supply
Input: 100~240VAC, 50~60Hz
Power Consumption: 35W (maximum)
Physical Information
Plastic housing
Dimensions: 130(D) x 57(W) x 34(H)mm
Operating Temperature: 0~50°C
Operating Humidity: 5~ 90% relative humidity, non-condensing
Storage temperature: -20 – 80 °C
Package contents
Gigabit PoE+ high-performance injector
Power cable
User manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.
