HDBitT HDMI Extender Set, max. 120m
HDBitT HDMI additional receiver
Item number:
IDATA-EXTIP-383RV4
EAN no.:
8059018361865
Product information for HDBitT HDMI additional receiver
The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the position where the display is located.
Technical specifications
• Transmitter Kit and IR receiver with HDMI HDbitT
• Transmission protocol: HDbitT
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: UTP / STP Cat. 5e / 6
• Transmission distance up to 120m, transmission distance for 1080p 60Hz Full HD on a single Cat. 6 cable
• IR Signal: Supports IR devices 20-60KHz
• Operating Temperature: 0°C - 60°C
• Power supply DC5V / 1A
• TX consumption: 3.5W;
• RX consumption: 3W
Installation Requirements
• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
• HDMI screens as SDTV, projector with HDMI port.
• Network cables: Network cables UTP / STP Cat. 5e / 6 that meet the standard EIA568B
• Transmission length: 80m Cat. 5 / Cat. 5e, 100m / Cat. 6, 120m
Connections

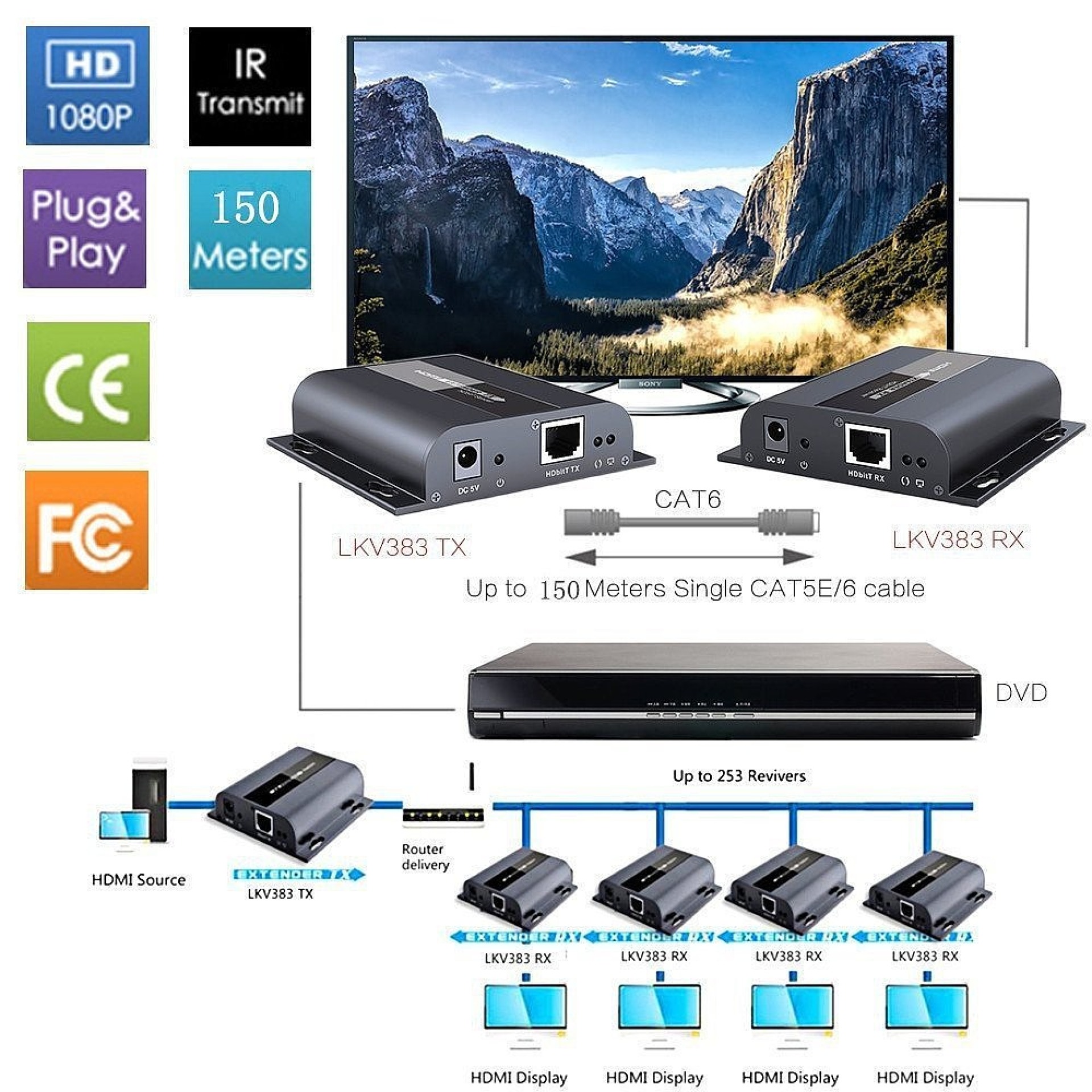

• Point-to-point connection: up to 120 meters transmission distance through single Cat. 6 cable (with a high quality cable can reach up to 150 meters)
• Connection with Router: Using a router / repeater, you can reach unlimited extensions.
• Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.
Dimensions
• Width: 96.8 mm
• Depth: 94 mm
• Height: 23.7 mm
Certifications
• EC
• FCC
• RoHS
• WEEE

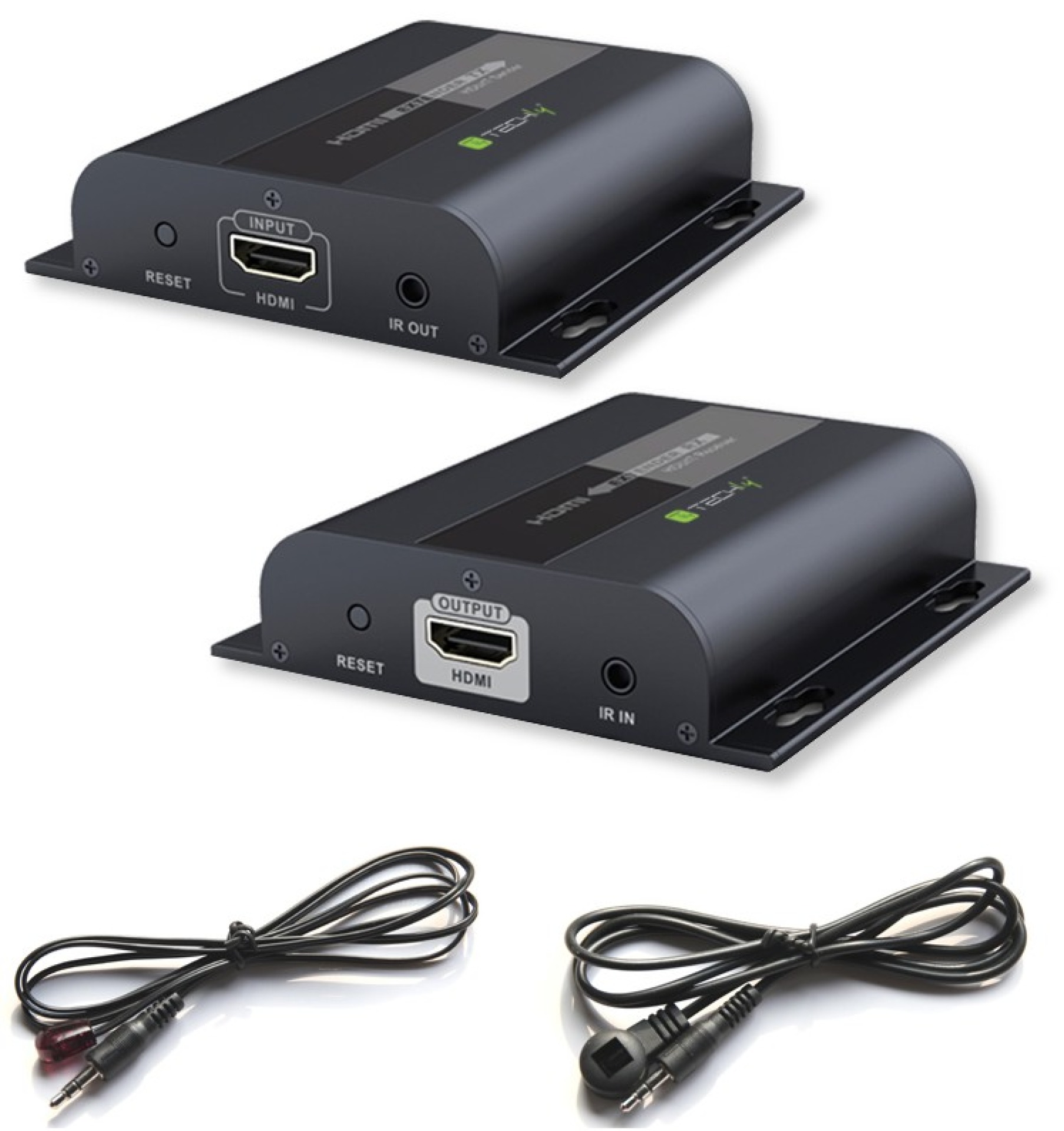

Package Contents

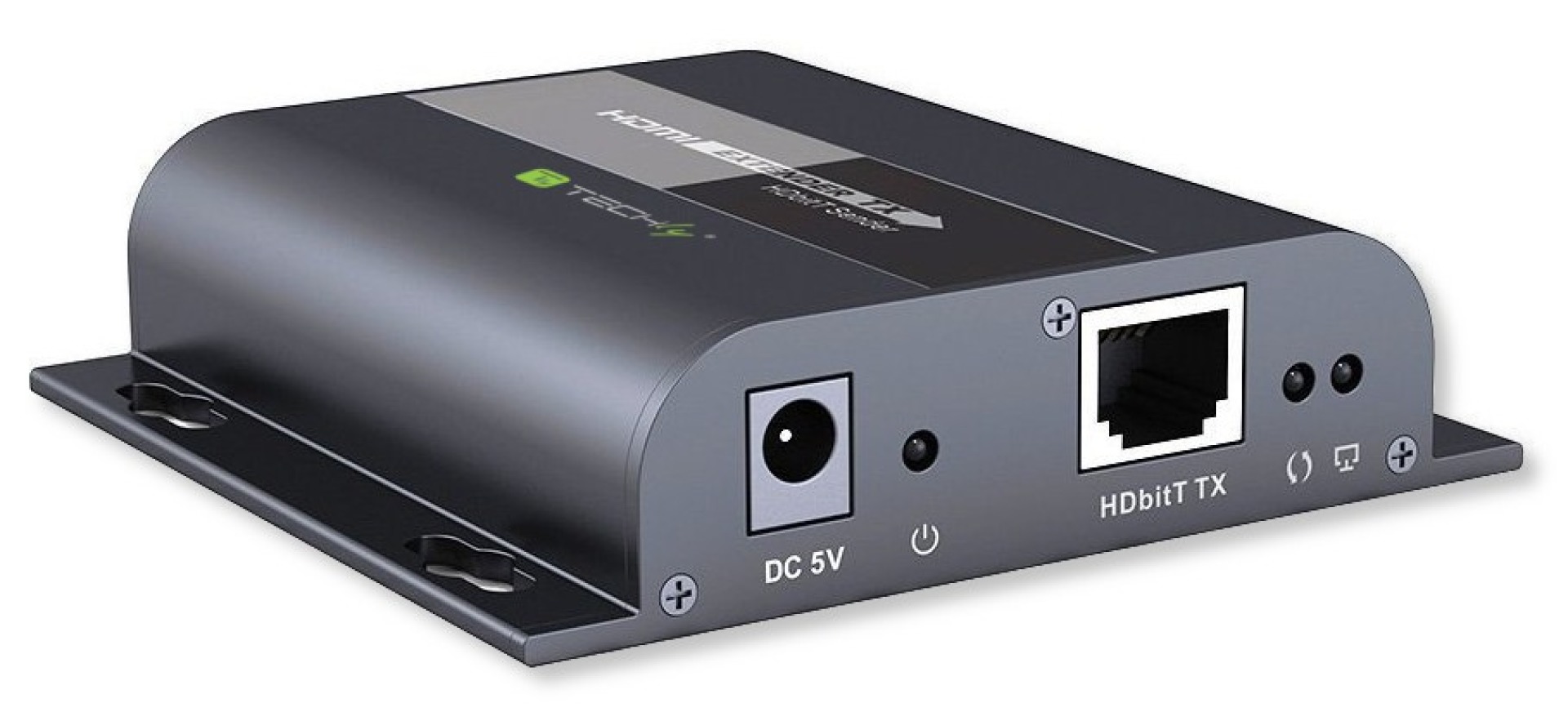

• 1x HDMI EXTENDER Transmitter TX
• 1x HDMI EXTENDER Receiver RX
• 2x Power Supply DC5V / 1A
• 1x extension cable IR Blaster
• 1x IR receiver extension cable
• 1x Instruction Manual
Technical specifications
• Transmitter Kit and IR receiver with HDMI HDbitT
• Transmission protocol: HDbitT
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Network cable: UTP / STP Cat. 5e / 6
• Transmission distance up to 120m, transmission distance for 1080p 60Hz Full HD on a single Cat. 6 cable
• IR Signal: Supports IR devices 20-60KHz
• Operating Temperature: 0°C - 60°C
• Power supply DC5V / 1A
• TX consumption: 3.5W;
• RX consumption: 3W
Installation Requirements
• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
• HDMI screens as SDTV, projector with HDMI port.
• Network cables: Network cables UTP / STP Cat. 5e / 6 that meet the standard EIA568B
• Transmission length: 80m Cat. 5 / Cat. 5e, 100m / Cat. 6, 120m
Connections
• Point-to-point connection: up to 120 meters transmission distance through single Cat. 6 cable (with a high quality cable can reach up to 150 meters)
• Connection with Router: Using a router / repeater, you can reach unlimited extensions.
• Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.
Dimensions
• Width: 96.8 mm
• Depth: 94 mm
• Height: 23.7 mm
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents
• 1x HDMI EXTENDER Transmitter TX
• 1x HDMI EXTENDER Receiver RX
• 2x Power Supply DC5V / 1A
• 1x extension cable IR Blaster
• 1x IR receiver extension cable
• 1x Instruction Manual
Technical properties
| Max. resolution: | 1920 × 1080 (FulHD) |
|---|---|
| Suitable for 19 inch mounting: | False |
| Video interface: | HDMI |
Variants
| Item no. | Name | Number of camera inputs | Number of monitor outputs | |
|---|---|---|---|---|
| IDATA-EXTIP-383V4 | HDBitT Extender Sender/Receiver over IP, with IR, 120m | 1 | - | |
| IDATA-EXTIP-383RV4 | HDBitT HDMI additional receiver | - | 1 |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
