HDMI Extender with IR over RJ45, up to 60m
HDMI Extender with IR over RJ45, up to 60m
Item number:
IDATA-EXT-E70I
EAN no.:
8054529020355
Product information for HDMI Extender with IR over RJ45, up to 60m

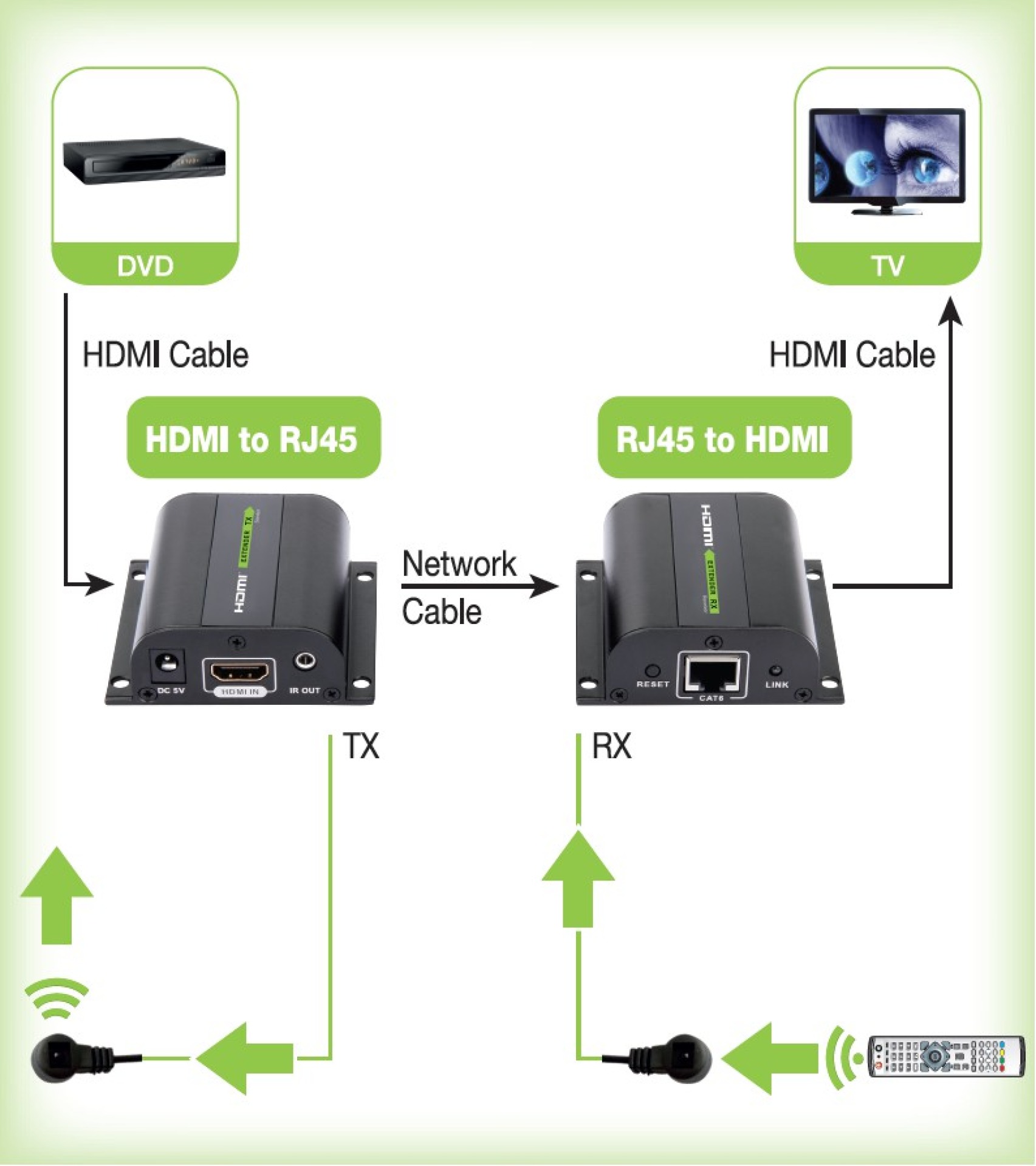

This HDMI Extender allows the transmission of HDTV signals over long distances using a network cable Cat. 5e / 6 / 6A / 7.
By using a network cable in copper of high quality you can reach up to 60 m in length transmission with a video resolution of 1080p.
Thanks to automatic adjustment it is possible to adjust the settings according to the different cable length from 1 to 60m to get the best possible view.
This model is equipped with IR synchronization technology.
Characteristics
• Allows you to easily extend the HDTV signal up to 60 m using a network cable Cat. 6 / 6A / 7 of copper
• With automatic adjustment based on the type of network cable used and IR
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz , 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Maximum supported video resolution: 1080p
• Bandwidth supported: 10.2 Gbps
• Supports Deep Color 8 bit
• Supports PCM stereo audio
• HDCP 1.3 compliant
• Supports 3D
• IR remote control: supports 20-60 kHz
• Consumption: Transmitter: <2W; Receiver: <2W

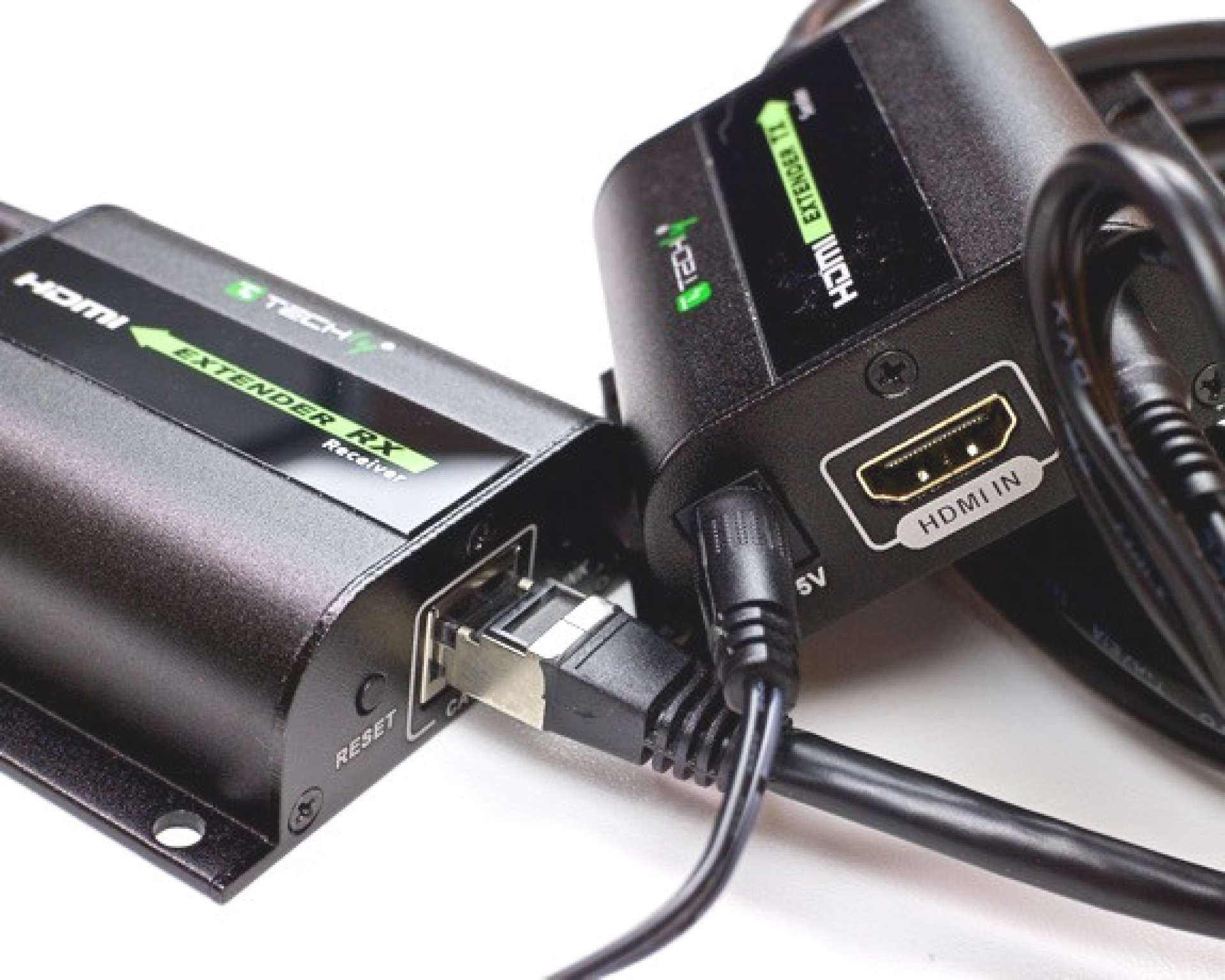

Transmitter Connections
• Power Input DC 5V
• Signal Input HDMI
• IR signal output for connection with extension cable IR
• Reset button
• Output Signal RJ45
• LED indicator HDMI signal

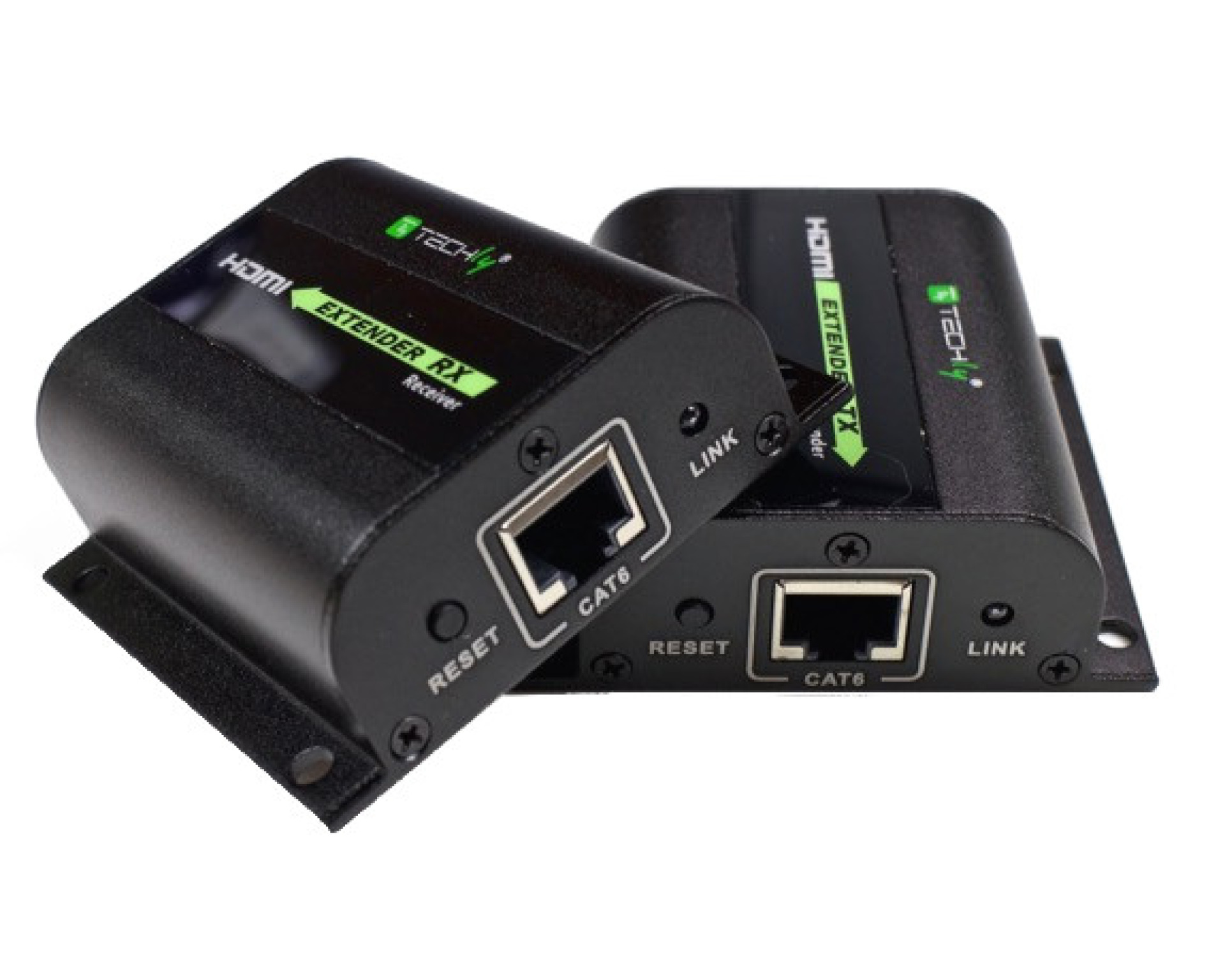

Receiver Connections
• Reset button
• Signal input RJ45
• LED indicator for connection status
• Power Input DC 5V
• HDMI signal output
• Signal input IR
Dimensions
• Width: 71.6 mm
• Depth: 66.6 mm
• Height: 24.8 mm
Certifications
• FCC
• RoHS
• WEEE

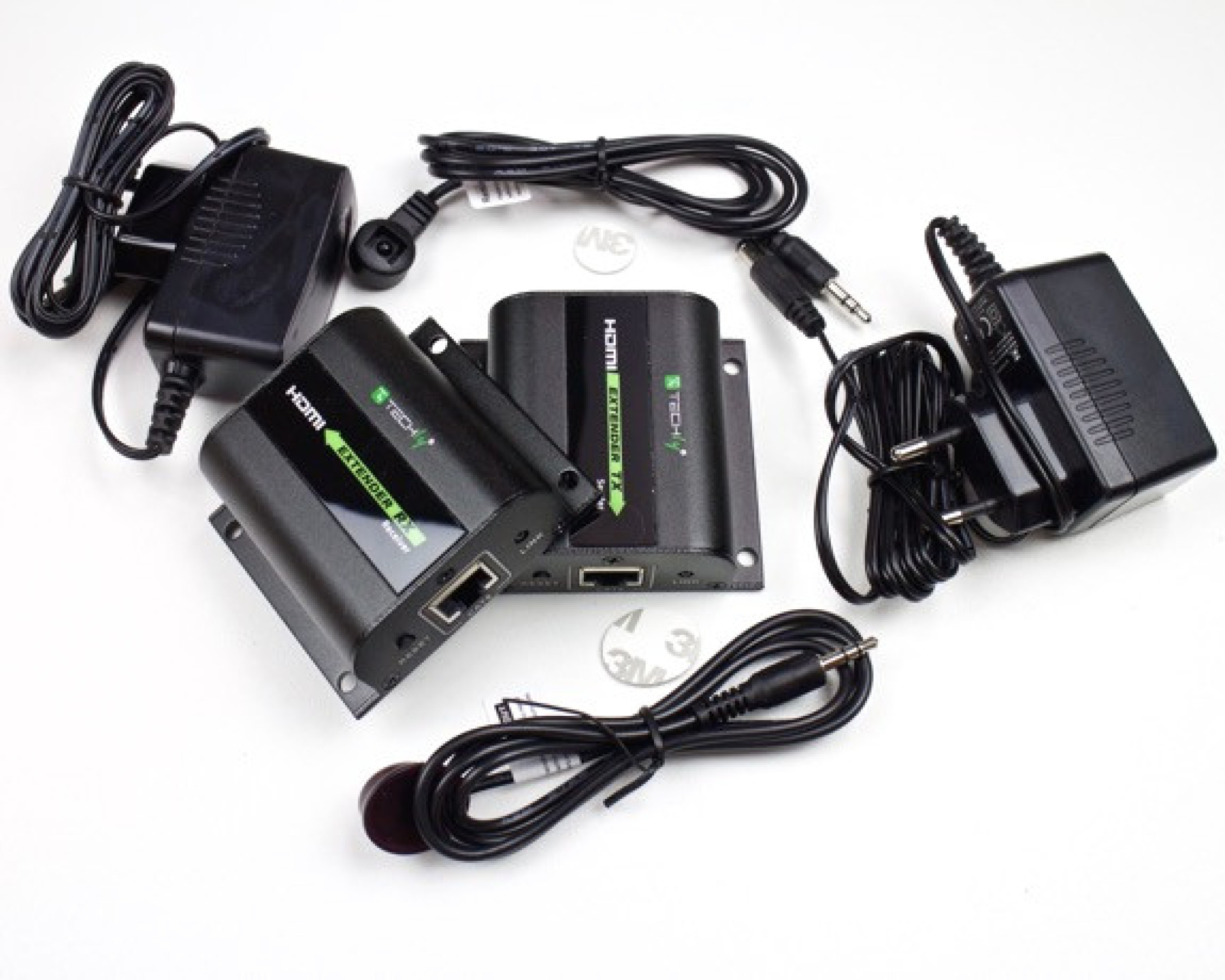

Package Contents
• 1x Transmitter HDMI to LAN
• 1x Receiver LAN to HDMI
• 2x Power DC5V1A
• 1x extension IR
• 1x extension IR receiver
• 1x User Manual
By using a network cable in copper of high quality you can reach up to 60 m in length transmission with a video resolution of 1080p.
Thanks to automatic adjustment it is possible to adjust the settings according to the different cable length from 1 to 60m to get the best possible view.
This model is equipped with IR synchronization technology.
Characteristics
• Allows you to easily extend the HDTV signal up to 60 m using a network cable Cat. 6 / 6A / 7 of copper
• With automatic adjustment based on the type of network cable used and IR
• Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz , 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
• Maximum supported video resolution: 1080p
• Bandwidth supported: 10.2 Gbps
• Supports Deep Color 8 bit
• Supports PCM stereo audio
• HDCP 1.3 compliant
• Supports 3D
• IR remote control: supports 20-60 kHz
• Consumption: Transmitter: <2W; Receiver: <2W
Transmitter Connections
• Power Input DC 5V
• Signal Input HDMI
• IR signal output for connection with extension cable IR
• Reset button
• Output Signal RJ45
• LED indicator HDMI signal
Receiver Connections
• Reset button
• Signal input RJ45
• LED indicator for connection status
• Power Input DC 5V
• HDMI signal output
• Signal input IR
Dimensions
• Width: 71.6 mm
• Depth: 66.6 mm
• Height: 24.8 mm
Certifications
• FCC
• RoHS
• WEEE
Package Contents
• 1x Transmitter HDMI to LAN
• 1x Receiver LAN to HDMI
• 2x Power DC5V1A
• 1x extension IR
• 1x extension IR receiver
• 1x User Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
