HDMI-KVM EXTENDER OVER CAT5
HDMI-KVM Extender over CAT5
Item number:
IDATA-HDMI-KVM60
EAN no.:
8051128104790
Product information for HDMI-KVM Extender over CAT5

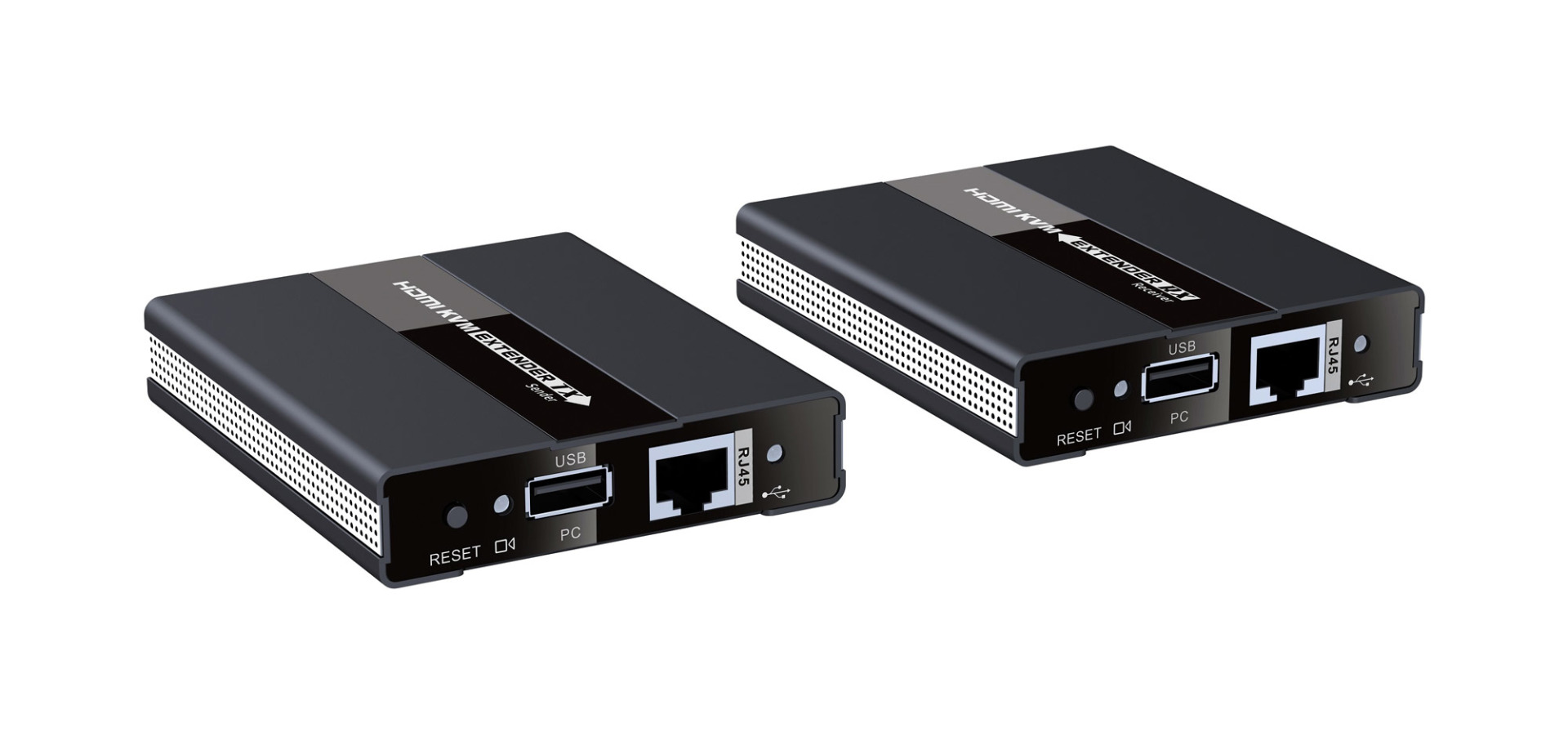

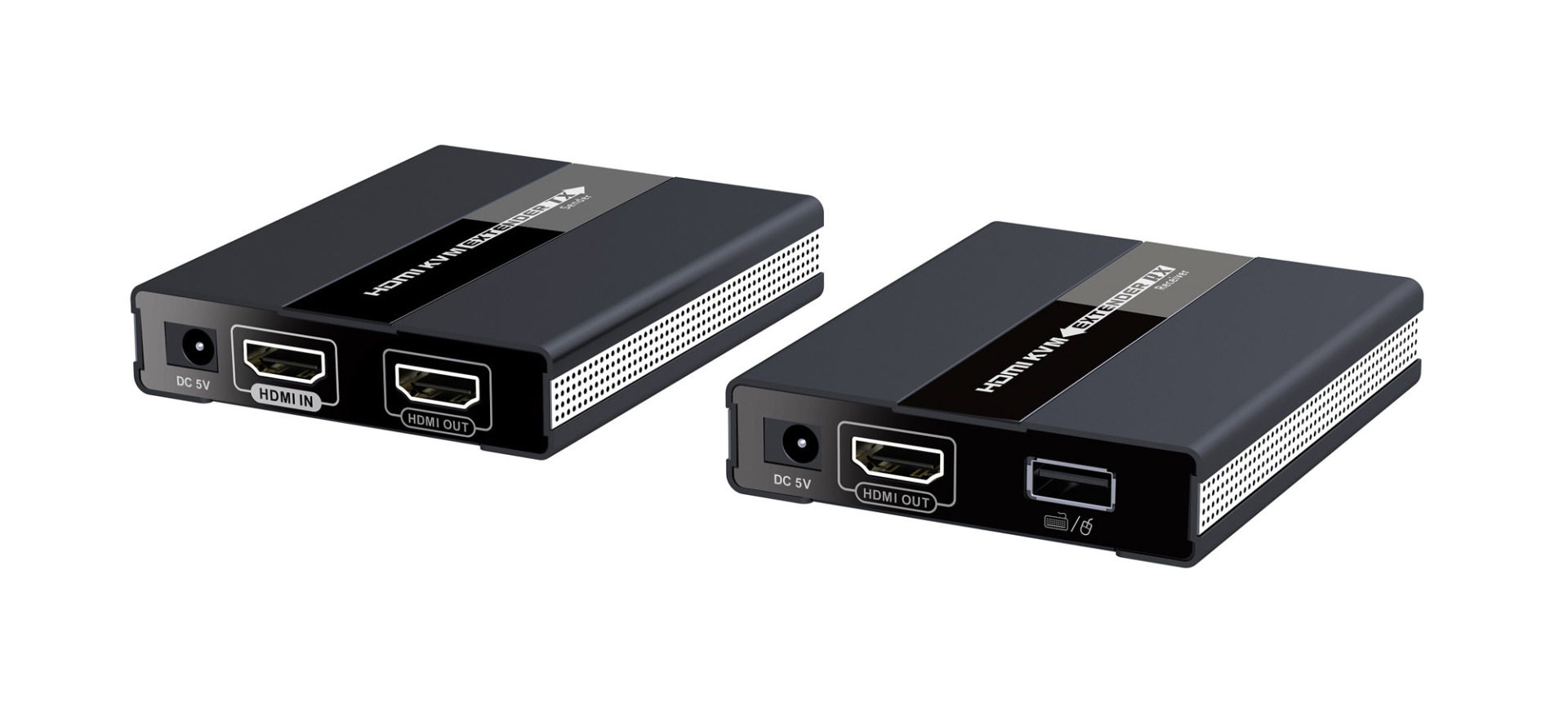

This KVM HDMI Extender is a solution for transmission and extension of uncompressed 1080p@60Hz HDMi signal over a single Cat5/5e/6 network cable. It includes a transmitter(TX) and a receiver unit (RX), working as pair. Transmission distance is up to 60 meters with nearly zero latency. This KVM Extender can remote control the source device from the receiver side via keybord and mouse. It’s perfect for Audio Video transmission in applications of HD conference systems, HD video shooting, HD multimedia education system, HD digital advertising and digital signage etc.
FeaturesHDMI KVM Extender on Low Latency network cable Extends HDMI signal up to 60 m and supports KVM function for point to point connection With integrated microphone and audio input 3.5 m Transmitter supports one HDMI loop-out Supports resolution up to 1080p@60Hz Real time transmission, low latency Supports KVM function Transmission distance up to 60 m via Cat6 cable, 50 m via Cat5E and Cat5 Can be powered by network cable and only transmitter need power supply Dimensions: 95 x 78 x 18.6 mm (L x W x H) Material: aluminum alloy and crystal panel Treatment process: Grit blast Color: black
Technical specificationPower Supply: DC5V/2A only for transmitter Consumption: Transmitter 2W; Receiver <2W Supports HDMI 1.3 and HDCP 1.4 Supported HDMI resolutions: 720x576p@50Hz, 720x480p@60Hz, 1280x720p@60Hz, 1920x1080p@60Hz, 1024x768p@60Hz, 1280x800p@60Hz, 1280x1024p@60Hz, 1440x900p@60Hz, 1680x10850p@60Hz Maximum transfer rate: 10.2Gbps Input and output TMDS signal: from 0.5 to 1.5Vp-p Input and output DDC signal: 5Vp-p(TTL) Transmission lenght: up to 60 m with Cat6 cable; up to 50 m with Cat5E and Cat5 cables
Operating environmentWorking temperature: from 0 to 60°C Storage temperature: from -10 to 70°C Humidity (no condensation): from 0 to 90%
Package content 1 Transmitter 1 Receiver 1 DC5V/2A power adapter 1 User manual
Features
Technical specification
Operating environment
Package content
Technical properties
| Automatic alarm processing: | False |
|---|---|
| Automatic sequence: | False |
| Full screen at alarm: | False |
| OSD-programming: | False |
| Suitable for 19 inch mounting: | False |
| Text generator: | False |
| Video loss function: | False |
| Video norm: | Colour PAL |
| With communication interface: | False |
| With loop through function: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
