HDMI KVM Extender over Network Cable
HDMI KVM Extender over Network Cable, 120m
Item number:
IDATA-HDMI-KVM2
EAN no.:
8054529028214
Product information for HDMI KVM Extender over Network Cable, 120m

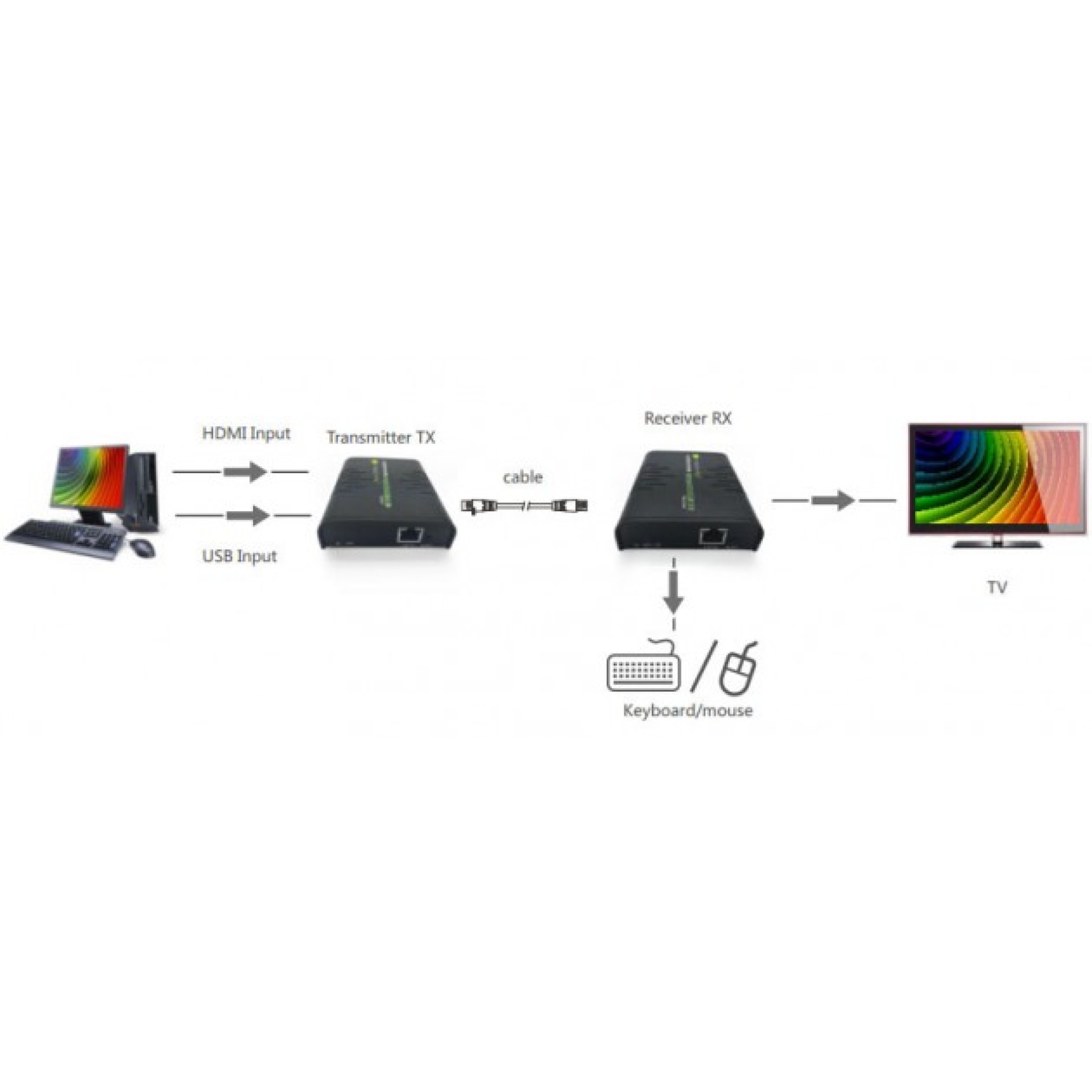

This HDMI KVM extender transmits HDMI signal up to 120 meters via network cable. The resolution supported is up to 1080p@60Hz. It allows access to a computer system from a remote console by USB connectors (USB keyboard and mouse).
Features
• Extends the HDMI signal up to 120 meters via a single network cable
• The highest resolution supported is up to 1080p@60Hz
• LED indicators know the status of power and USB connection easily
• Supports KVM function, remote control conveniently
• Supports network standard IEEE 802.3 up to Ethernet 10/100/1000 Mbps
• Compliant STP and UTP CAT5/5e/6 network cables
• Aluminium alloy housing design, stable and durable
• Supported OS and version Windows 10, Windows 8, Windows 7, Windows 7 x64, Windows Server 2008, Windows Server 2008 x64, Windows Vista, Windows Vista x64, Windows Server 2003, Windows XP, Windows XP x64, Windows 2000, Windows ME, Windows 98SE
Specifications
• HDCP version: HDCP 1.2
• Video bandwidth: ≤ 70 Mbps
• HDMI resolution supported: 640*480@60Hz; 800*600@60Hz; 1024*768@60Hz; 1280*720@60Hz; 1360*768@60Hz; 1440*900@60Hz; 1400*1050@60Hz; 1680*1050@60Hz; 1920*1080@60Hz;
• Audio format: PCM (44.1 KHz, 48 KHz)
Connections
• HDMI connector: type A, 19 pin, Female
• LAN connector: RJ-45
• USB connector: USB 2.0
Physical information
• Operation temperature: 0°C - 50°C
• Relative humidity: 0 - 95% (no condensation)
• Power supply: 5V/1A x 2 pcs
• Power consumption: TX< 3.5W, RX< 3.5W
• Weight: TX: 160 g, RX: 170 g
• Dimension (LxWxH): 109.6 x 89.5 x 26.3 mm x 2pcs
• Color: black
Package contents
• 2x HDMI KVM extender over Network Cable
• 2x Power supply
• 1x USB cable A Male to A Male 1m
• 1x User's manual
