HDMI Splitter 4K, UHD, 3D, 4 way
Product information for HDMI Splitter 4K, UHD, 3D, 4 way
Characteristics

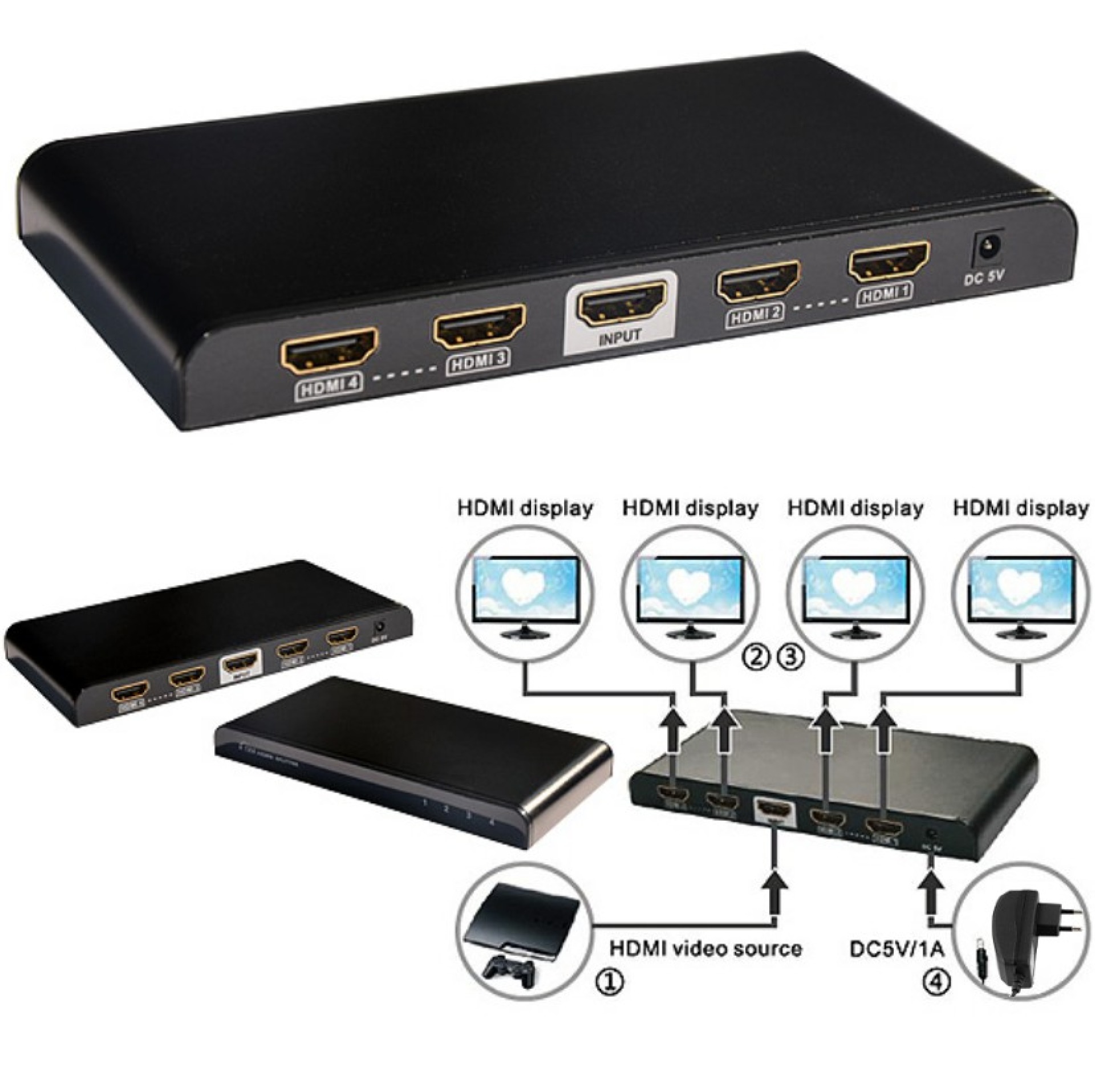

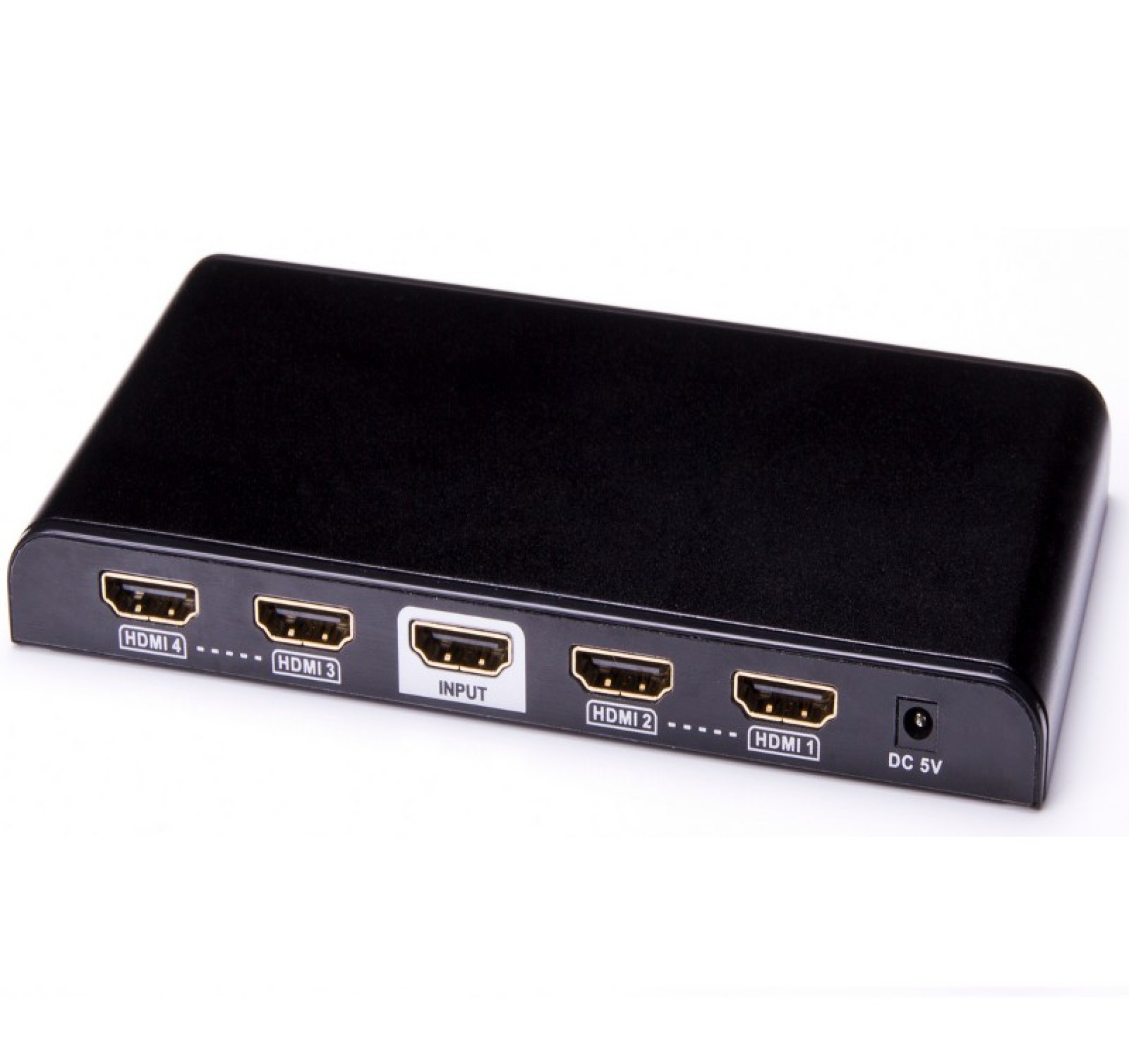

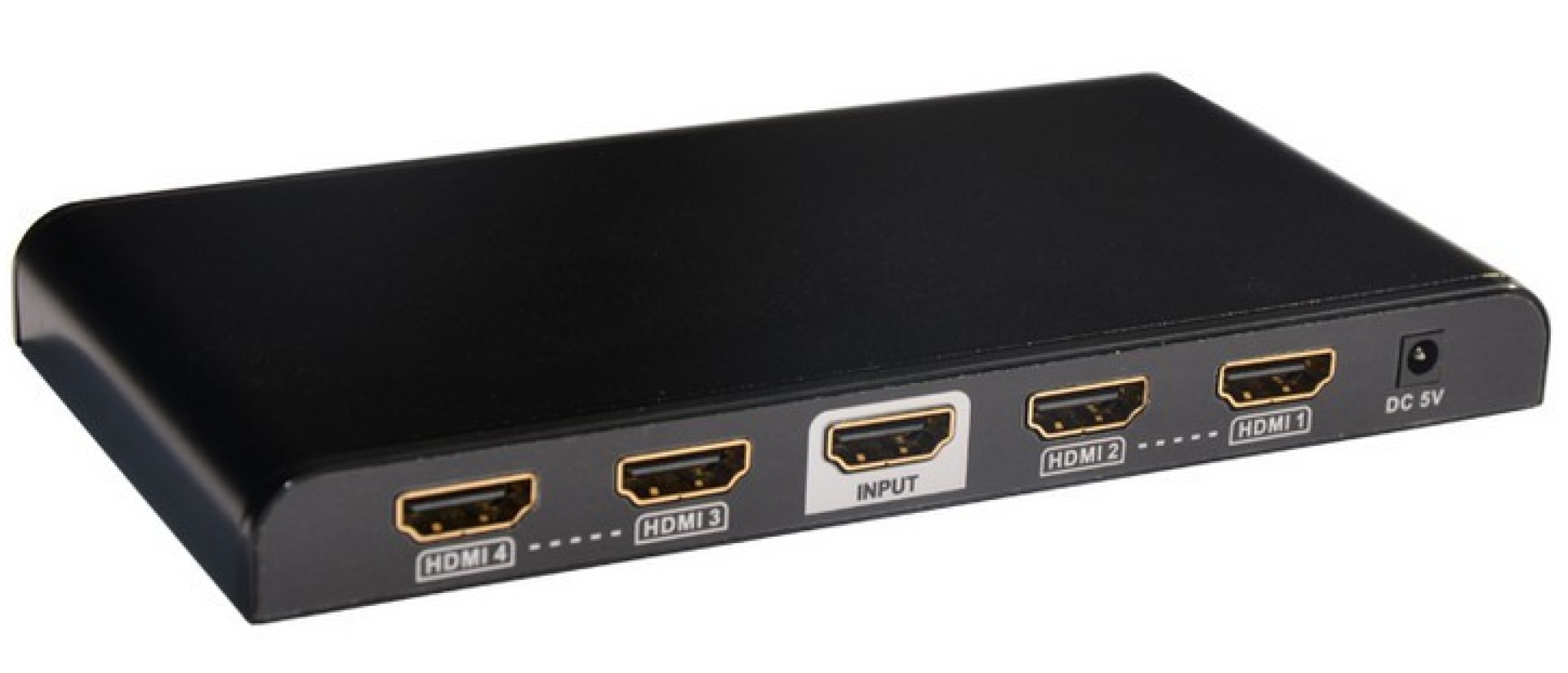

• 1 input, 4 output HDMI

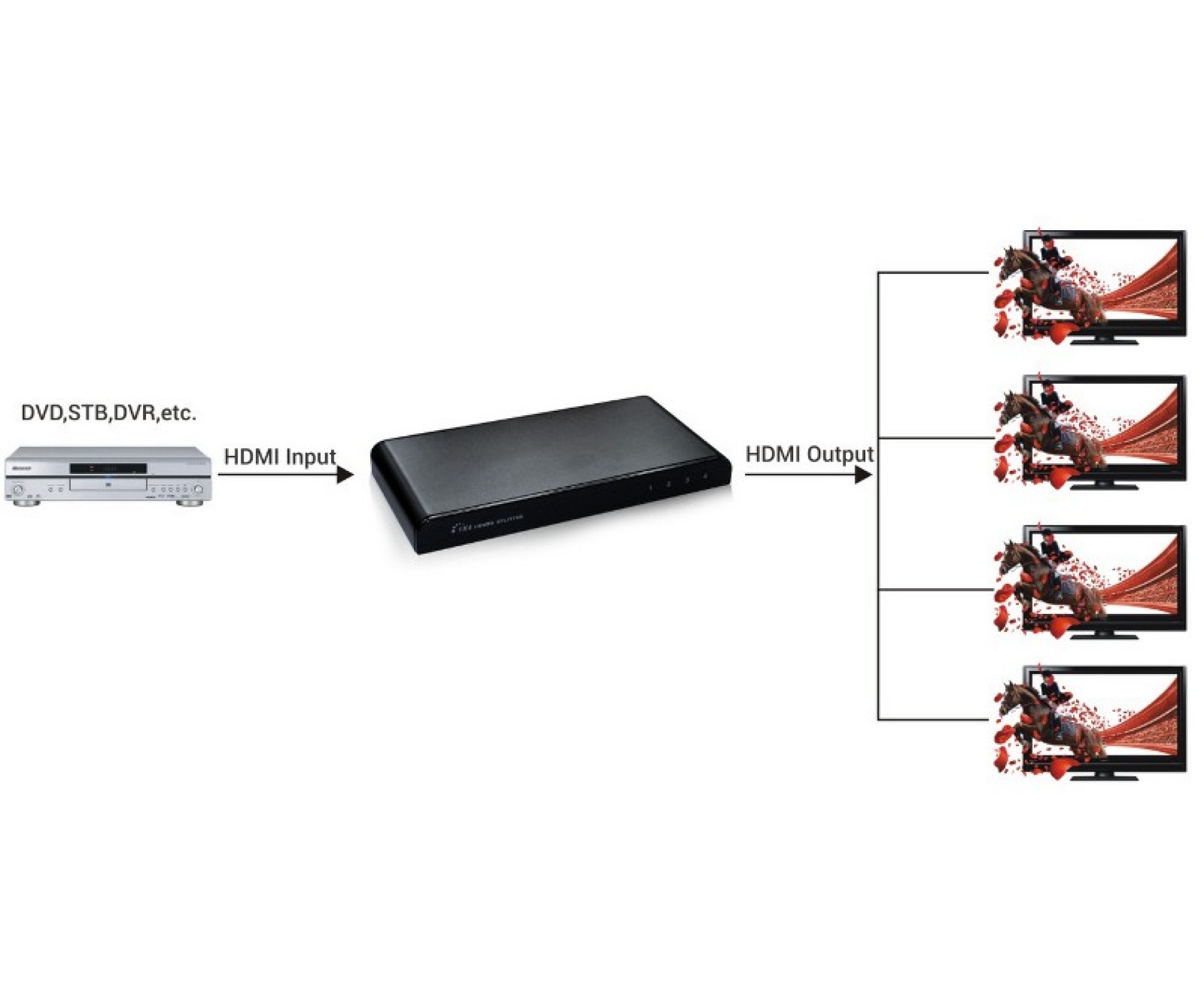

• Allows you to display the same image on four screens simultaneously
• It can extend the distance from the source of 30 m from the splitter to the monitors up to 25 m
• Supports 3D
• Supports CEC
• Supports HDCP 1.2
• Audio supported: LPCM, Dolby-AC3, DTS7.1, DSD / Dolby TrueHD / DTS-HD Master Audio, essentially all of the available audio options are supported
• Supports Ultra HD 3840 x 2160 resolution and 3D, deep color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC
• Supports resolution ultra-HD 4K * 2K
• Resolutions Supported HDMI: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D, 720p / 50Hz 3D, 720p / 60Hz 3D 4Kx2K
• Maximum transmission speed: 10.2Gbs
• Can be cascaded
• Black color
Environmental Characteristics
• Operating Temperature: -10 / 55 ° C
• Storage Temperature: -20 / 70 ° C
• Relative humidity: 0/95% non-condensing
Dimensions
• Width 156 mm
• Depth 79mm
• Height 17 mm
• Weight 205 g
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents
• 1x HDMI Splitter 4-way
• 1x Power supply 5V / 1A
• 1x Instruction Manual
Product information for HDMI Splitter 4K, UHD, 3D, 4 way
Characteristics
• 1 input, 4 output HDMI
• Allows you to display the same image on four screens simultaneously
• It can extend the distance from the source of 30 m from the splitter to the monitors up to 25 m
• Supports 3D
• Supports CEC
• Supports HDCP 1.2
• Audio supported: LPCM, Dolby-AC3, DTS7.1, DSD / Dolby TrueHD / DTS-HD Master Audio, essentially all of the available audio options are supported
• Supports Ultra HD 3840 x 2160 resolution and 3D, deep color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC
• Supports resolution ultra-HD 4K * 2K
• Resolutions Supported HDMI: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D, 720p / 50Hz 3D, 720p / 60Hz 3D 4Kx2K
• Maximum transmission speed: 10.2Gbs
• Can be cascaded
• Black color
Environmental Characteristics
• Operating Temperature: -10 / 55 ° C
• Storage Temperature: -20 / 70 ° C
• Relative humidity: 0/95% non-condensing
Dimensions
• Width 156 mm
• Depth 79mm
• Height 17 mm
• Weight 205 g
Certifications
• EC
• FCC
• RoHS
• WEEE
Package Contents
• 1x HDMI Splitter 4-way
• 1x Power supply 5V / 1A
• 1x Instruction Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.
