HDMI Switch 4K, UHD, 3D, 3 Wege
HDMI Switch 4K, UHD, 3D, 3 way
Item number:
IDATA-HDMI-4K31
EAN no.:
8057685309913
Product information for HDMI Switch 4K, UHD, 3D, 3 way
• HDMI switch that shares HDMI sources with a single HD monitor.

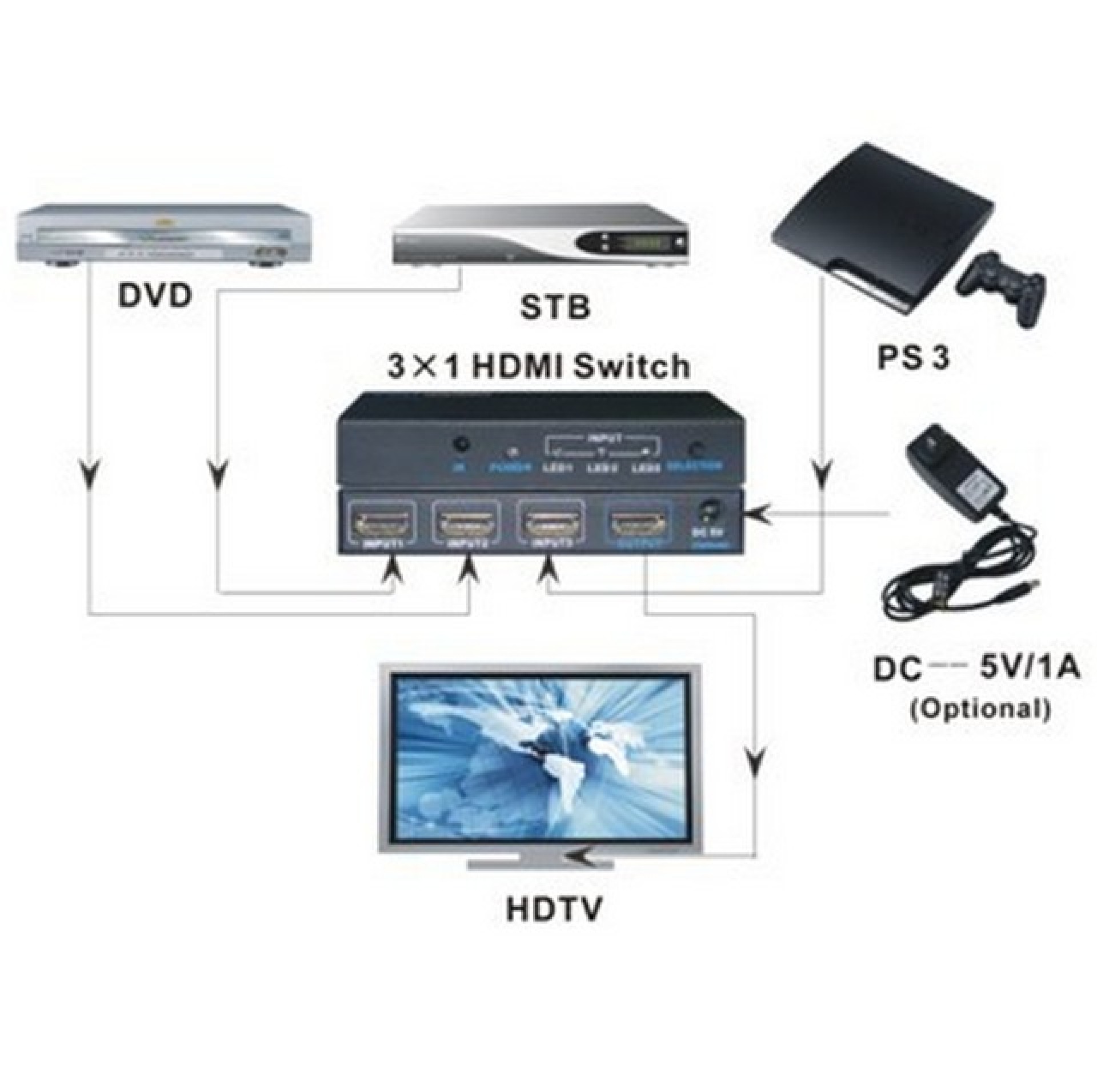

• Allows to switch between 3 HDMI sources such as Blu-ray player, DVD player and various game consoles to a TV with HDMI input.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS): This switch allows to connect 3 different HDMI devices to one LCD- or plasma screen.

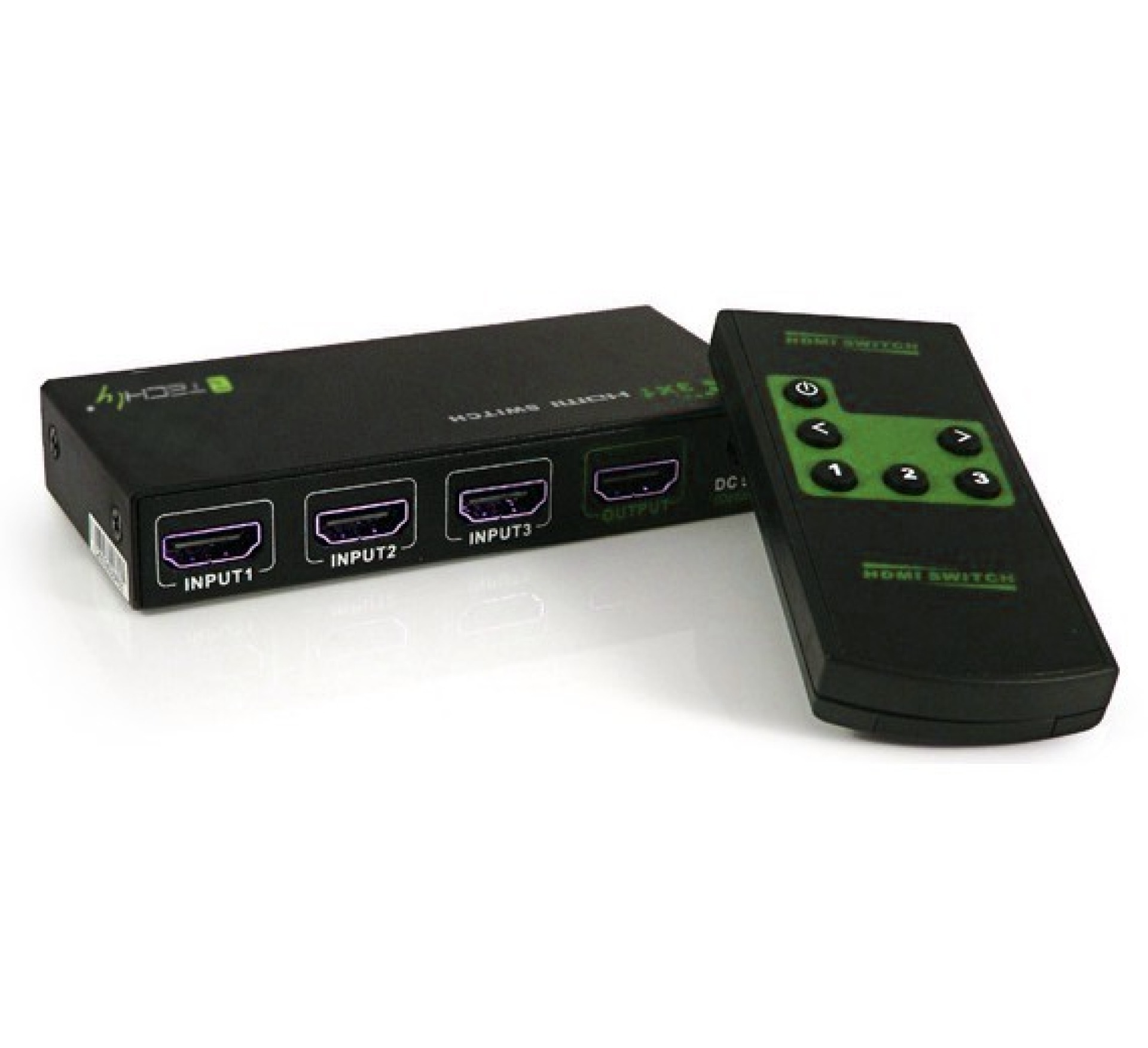

• Selection by remote control and a LED shows which input is active.

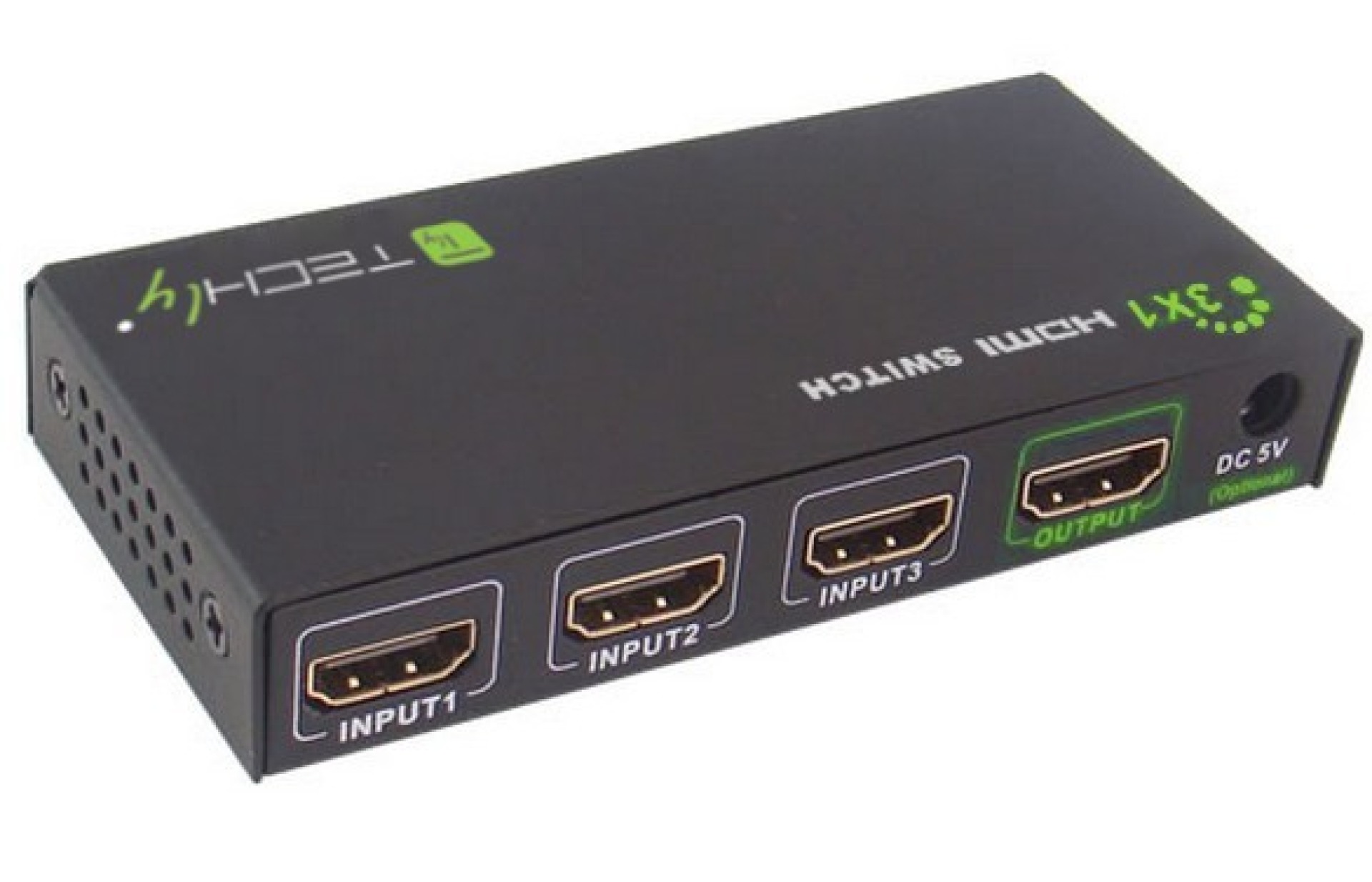

Connections
• 1x Input DDC signal: 5V
• 3x Input HDMI female
• 1x Output HDMI female
Operating Frequency
• Frequency range: 50/60Hz
• Bandwidth video amplifier: up to 297MHz
• Supports Deep Color
Resolutions
• HDMI: 480i, 576i, 480p, 720p, 1080i, 1080p, 4Kx2K
• DVI: 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K
• XUVGA: up to 1920x1200
Environmental Features
• Operating temperature: 0 to +70°C
• Operating Humidity: 10% to 80% (non-condensing)
• Storage temperature: -10 to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• For standard products: no external power supply required
• Power consumption (max.): 5W
Dimensions
• Width: 114mm
• Depth: 53mm
• Height: 20mm
Certifications
• CE
• FCC
• UL
• RoHS
• WEEE
Package Content
• 3 in 1 out HDMI switch
• Remote control (battery not included), suitable battery 1x CR 2025
• Manual
• Allows to switch between 3 HDMI sources such as Blu-ray player, DVD player and various game consoles to a TV with HDMI input.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS): This switch allows to connect 3 different HDMI devices to one LCD- or plasma screen.
• Selection by remote control and a LED shows which input is active.
Connections
• 1x Input DDC signal: 5V
• 3x Input HDMI female
• 1x Output HDMI female
Operating Frequency
• Frequency range: 50/60Hz
• Bandwidth video amplifier: up to 297MHz
• Supports Deep Color
Resolutions
• HDMI: 480i, 576i, 480p, 720p, 1080i, 1080p, 4Kx2K
• DVI: 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K
• XUVGA: up to 1920x1200
Environmental Features
• Operating temperature: 0 to +70°C
• Operating Humidity: 10% to 80% (non-condensing)
• Storage temperature: -10 to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• For standard products: no external power supply required
• Power consumption (max.): 5W
Dimensions
• Width: 114mm
• Depth: 53mm
• Height: 20mm
Certifications
• CE
• FCC
• UL
• RoHS
• WEEE
Package Content
• 3 in 1 out HDMI switch
• Remote control (battery not included), suitable battery 1x CR 2025
• Manual
Product information for HDMI Switch 4K, UHD, 3D, 3 way
• HDMI switch that shares HDMI sources with a single HD monitor.
• Allows to switch between 3 HDMI sources such as Blu-ray player, DVD player and various game consoles to a TV with HDMI input.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS): This switch allows to connect 3 different HDMI devices to one LCD- or plasma screen.
• Selection by remote control and a LED shows which input is active.
Connections
• 1x Input DDC signal: 5V
• 3x Input HDMI female
• 1x Output HDMI female
Operating Frequency
• Frequency range: 50/60Hz
• Bandwidth video amplifier: up to 297MHz
• Supports Deep Color
Resolutions
• HDMI: 480i, 576i, 480p, 720p, 1080i, 1080p, 4Kx2K
• DVI: 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K
• XUVGA: up to 1920x1200
Environmental Features
• Operating temperature: 0 to +70°C
• Operating Humidity: 10% to 80% (non-condensing)
• Storage temperature: -10 to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• For standard products: no external power supply required
• Power consumption (max.): 5W
Dimensions
• Width: 114mm
• Depth: 53mm
• Height: 20mm
Certifications
• CE
• FCC
• UL
• RoHS
• WEEE
Package Content
• 3 in 1 out HDMI switch
• Remote control (battery not included), suitable battery 1x CR 2025
• Manual
• Allows to switch between 3 HDMI sources such as Blu-ray player, DVD player and various game consoles to a TV with HDMI input.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS): This switch allows to connect 3 different HDMI devices to one LCD- or plasma screen.
• Selection by remote control and a LED shows which input is active.
Connections
• 1x Input DDC signal: 5V
• 3x Input HDMI female
• 1x Output HDMI female
Operating Frequency
• Frequency range: 50/60Hz
• Bandwidth video amplifier: up to 297MHz
• Supports Deep Color
Resolutions
• HDMI: 480i, 576i, 480p, 720p, 1080i, 1080p, 4Kx2K
• DVI: 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K
• XUVGA: up to 1920x1200
Environmental Features
• Operating temperature: 0 to +70°C
• Operating Humidity: 10% to 80% (non-condensing)
• Storage temperature: -10 to +80°C
• Storage Humidity: 5% to 90% (non-condensing)
Power Requirements
• For standard products: no external power supply required
• Power consumption (max.): 5W
Dimensions
• Width: 114mm
• Depth: 53mm
• Height: 20mm
Certifications
• CE
• FCC
• UL
• RoHS
• WEEE
Package Content
• 3 in 1 out HDMI switch
• Remote control (battery not included), suitable battery 1x CR 2025
• Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
