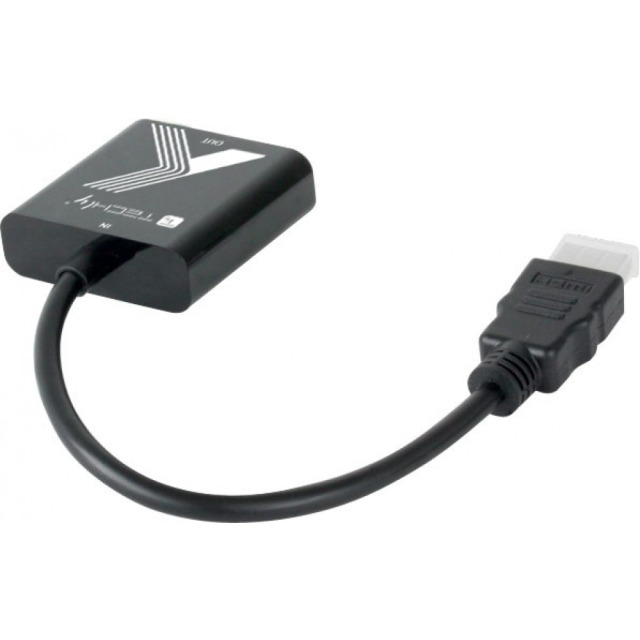

HDMI to VGA Cable Adapter Converter, 0.1m
HDMI to VGA Cable Adapter Converter, 0.1m
Item number:
IDATA-HDMI-VGA2P
EAN no.:
8059018361902
Product information for HDMI to VGA Cable Adapter Converter, 0.1m
It converts HDMI signal to standard VGA signal. It can be designed in devices such as adapters, smart cables.It allows you to enjoy their high definition image when you watch movies or play games on traditional VGA monitors or projectors.
Features
Convert HDMI video signal to VGA with max resolution 1920 x 1200 - 60 Hz
Easy to use: install in seconds, no need of configurations
Supports triple 8-bit DAC
HDCP 1.4 compliant
Convert HDMI1.4b to VGA
Support hot plug detection
Chipset AG6200
Specifications
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Input connection: male HDMI A (19pin)
Output connection: female VGA
Input HDMI Video Format: 480p/576p/720p/1080p
Output VGA Video Format: 1920 x 1200 60 Hz
Range of Vertical frequency: 50 / 60Hz
Linear PCM with 32 kHz, 44,1 kHz and 48 kHz sample rate
Physical Information
Dimensions (WxHxD): 43 mm x 14 mm x 44 mm
HDMI cable length: 100 ± 10 mm

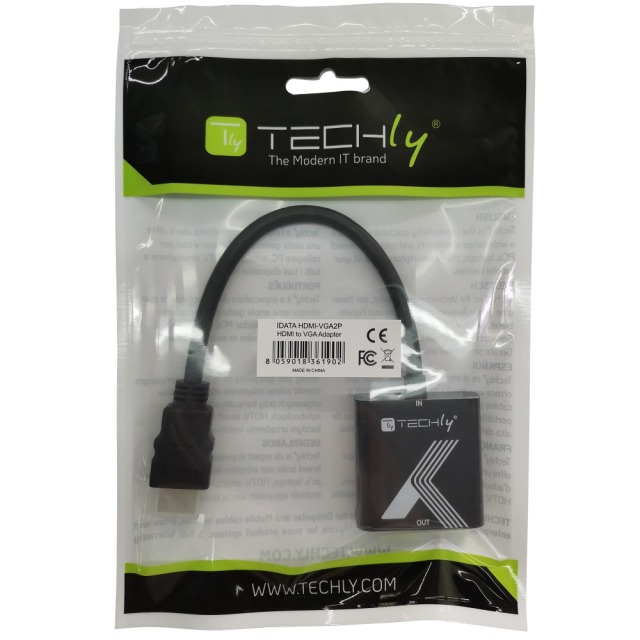

Polybag Package
General Information
Operating Temperature: 0 ° to + 70 ° C
Operating Humidity: 10% to 85% RH (non-condensing)
Storage Temperature: -10 ° to + 80 ° C
Storage Humidity: 5% to 95% RH (non-condensing)
Consumption (Max) 2W
Certifications
CE
FCC
RoHS
RAEE
Package Contents
Converter HDMI to VGA
Features
Convert HDMI video signal to VGA with max resolution 1920 x 1200 - 60 Hz
Easy to use: install in seconds, no need of configurations
Supports triple 8-bit DAC
HDCP 1.4 compliant
Convert HDMI1.4b to VGA
Support hot plug detection
Chipset AG6200
Specifications
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Input connection: male HDMI A (19pin)
Output connection: female VGA
Input HDMI Video Format: 480p/576p/720p/1080p
Output VGA Video Format: 1920 x 1200 60 Hz
Range of Vertical frequency: 50 / 60Hz
Linear PCM with 32 kHz, 44,1 kHz and 48 kHz sample rate
Physical Information
Dimensions (WxHxD): 43 mm x 14 mm x 44 mm
HDMI cable length: 100 ± 10 mm
Polybag Package
General Information
Operating Temperature: 0 ° to + 70 ° C
Operating Humidity: 10% to 85% RH (non-condensing)
Storage Temperature: -10 ° to + 80 ° C
Storage Humidity: 5% to 95% RH (non-condensing)
Consumption (Max) 2W
Certifications
CE
FCC
RoHS
RAEE
Package Contents
Converter HDMI to VGA
Technical properties
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
