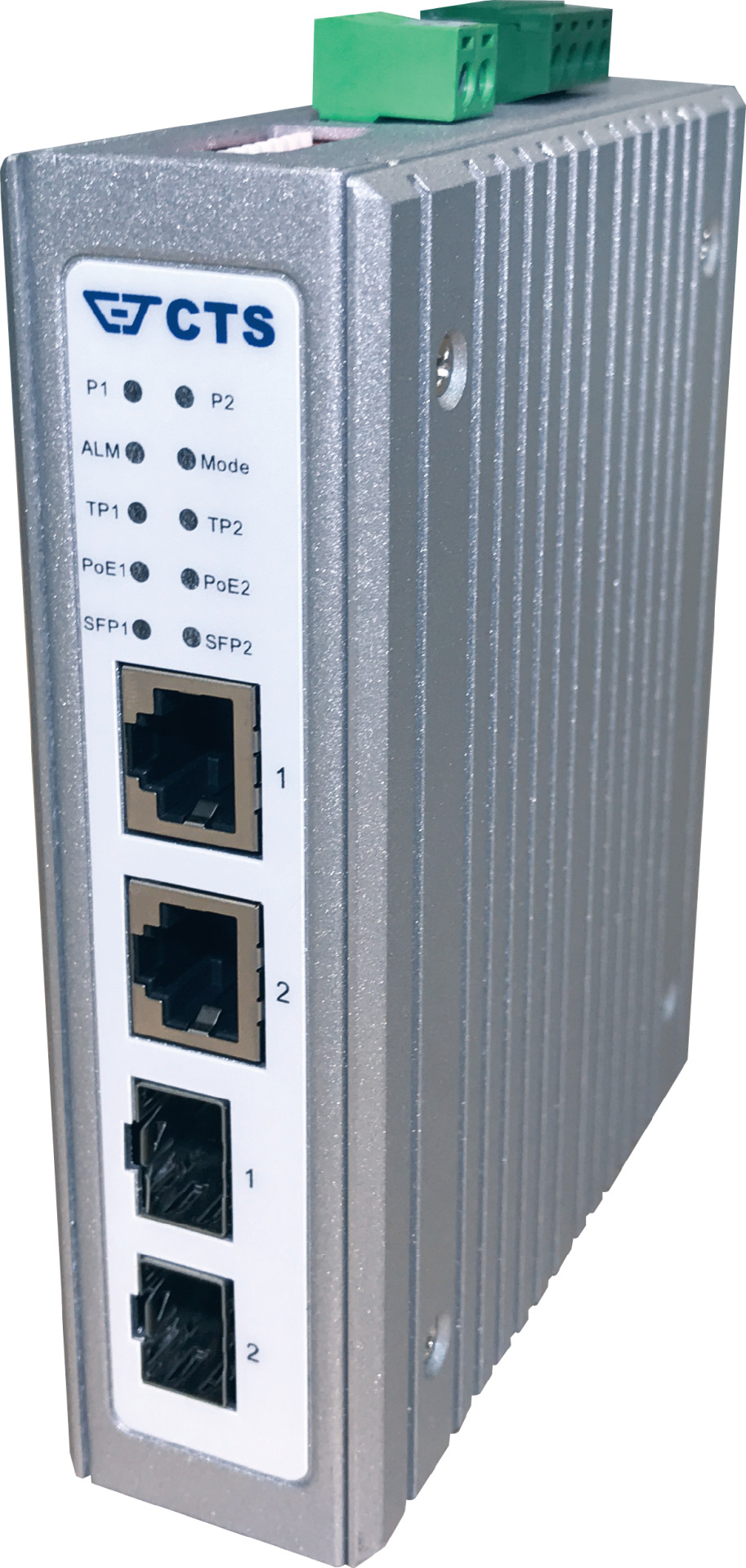

IAC-3014, Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Item number:
IAC-3014
EAN no.:
4049759194017
Product information for Industrial Media Converter, 2 x 100/1000 SFP, 2x 100/1000T RJ45
Wide range of operation voltage 12 .. 48 V DC
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Support for 3 different modes: Switch, Fiber Backup and Dual Media Converter mode
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible

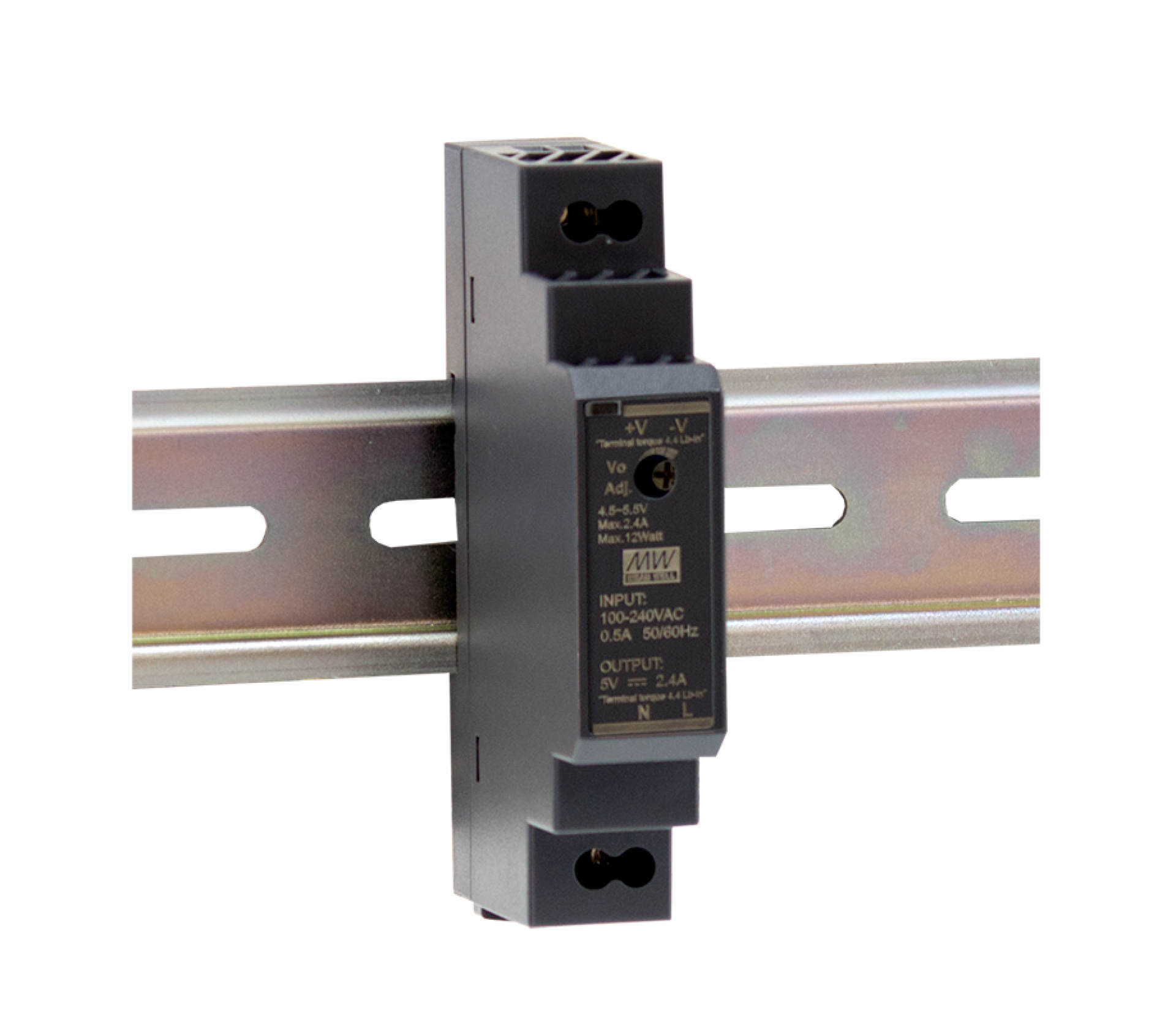

Suitable DIN-Rail power supply: HDR-15-24
Auto-MDI/MDI-X function
Dual Rate SFP Slot
Support for 3 different modes: Switch, Fiber Backup and Dual Media Converter mode
Redundant power supply input
Temperature range -40°C .. +75°C
Rugged metal housing, EMV-secure, protection class IP30
DIN-Rail or wall mounting possible
Suitable DIN-Rail power supply: HDR-15-24
Technical properties
| Construction type: | Single device |
|---|---|
| Degree of protection: | IP30 |
| Ethernet: | True |
| Fast Ethernet: | True |
| Gigabit Ethernet: | True |
| LWL-Port: | 2 x MGBIC 1000Mbit/s |
| Layer 2: | False |
| Managed: | False |
| Manufacturer: | CTS |
| Medium: | MM or SM |
| Power over Ethernet: | False |
| RJ45-Port: | 2x 10/100/1000 T |
| Suitable for 19 inch mounting: | False |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
