INFRALAN® A-DQ(ZN)B2Y OM2 Fca 2000N CE PE black 5.8mm
INFRALAN® A-DQ(ZN)B2Y OM2 24G (1x24), Fca 2000N black 5.8mm
Item number:
A24M2F1
EAN no.:
4049759325824
Product information for INFRALAN® A-DQ(ZN)B2Y OM2 24G (1x24), Fca 2000N black 5.8mm

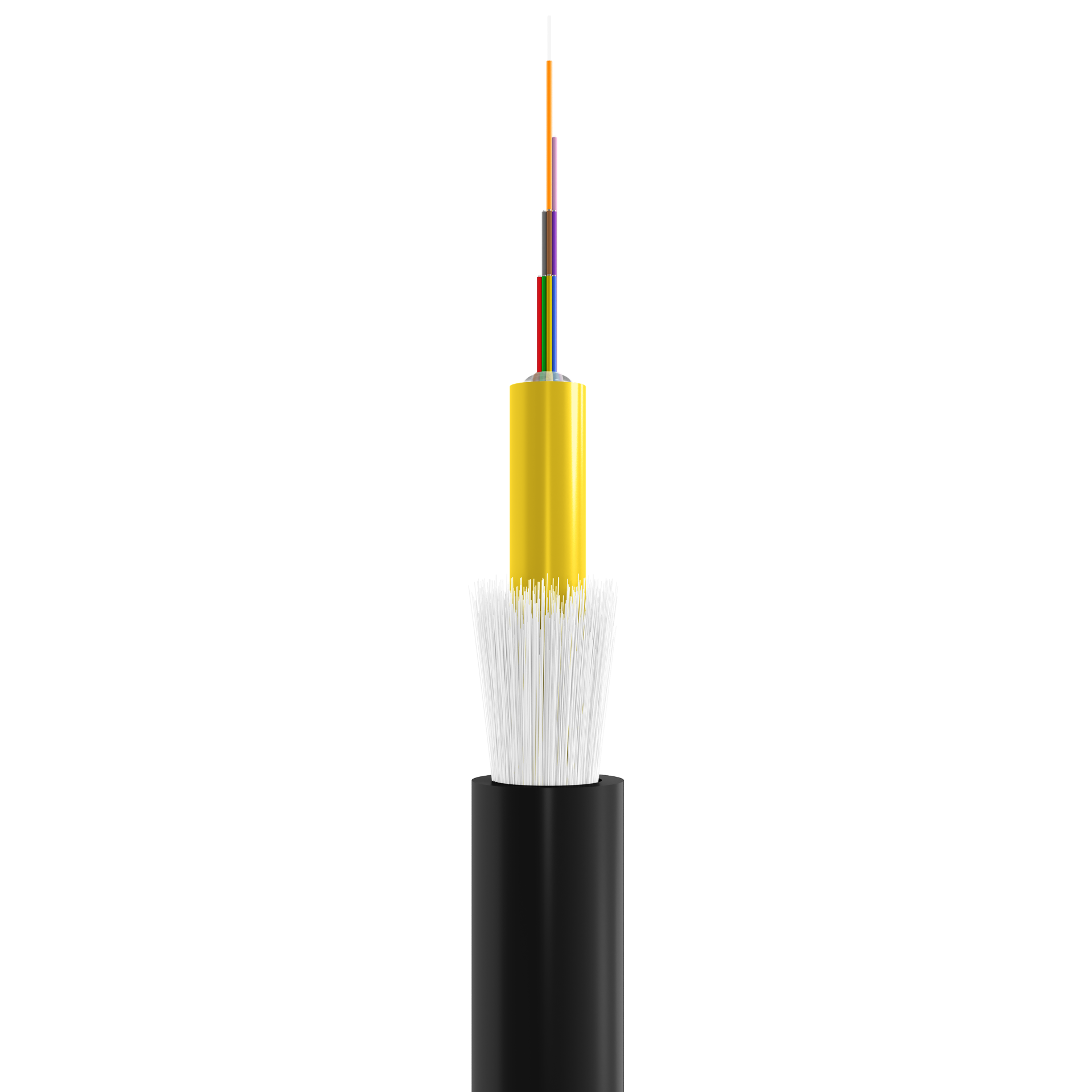

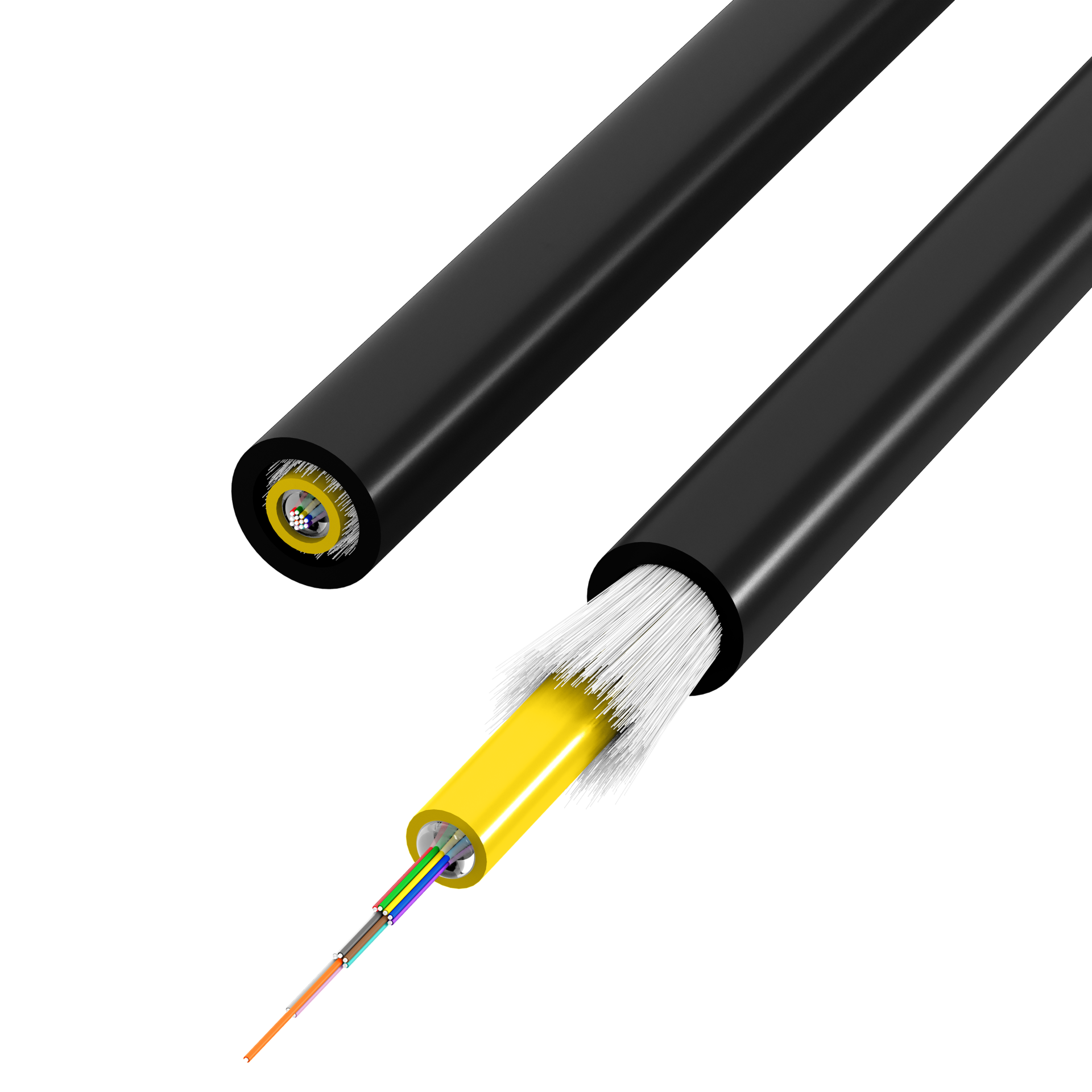

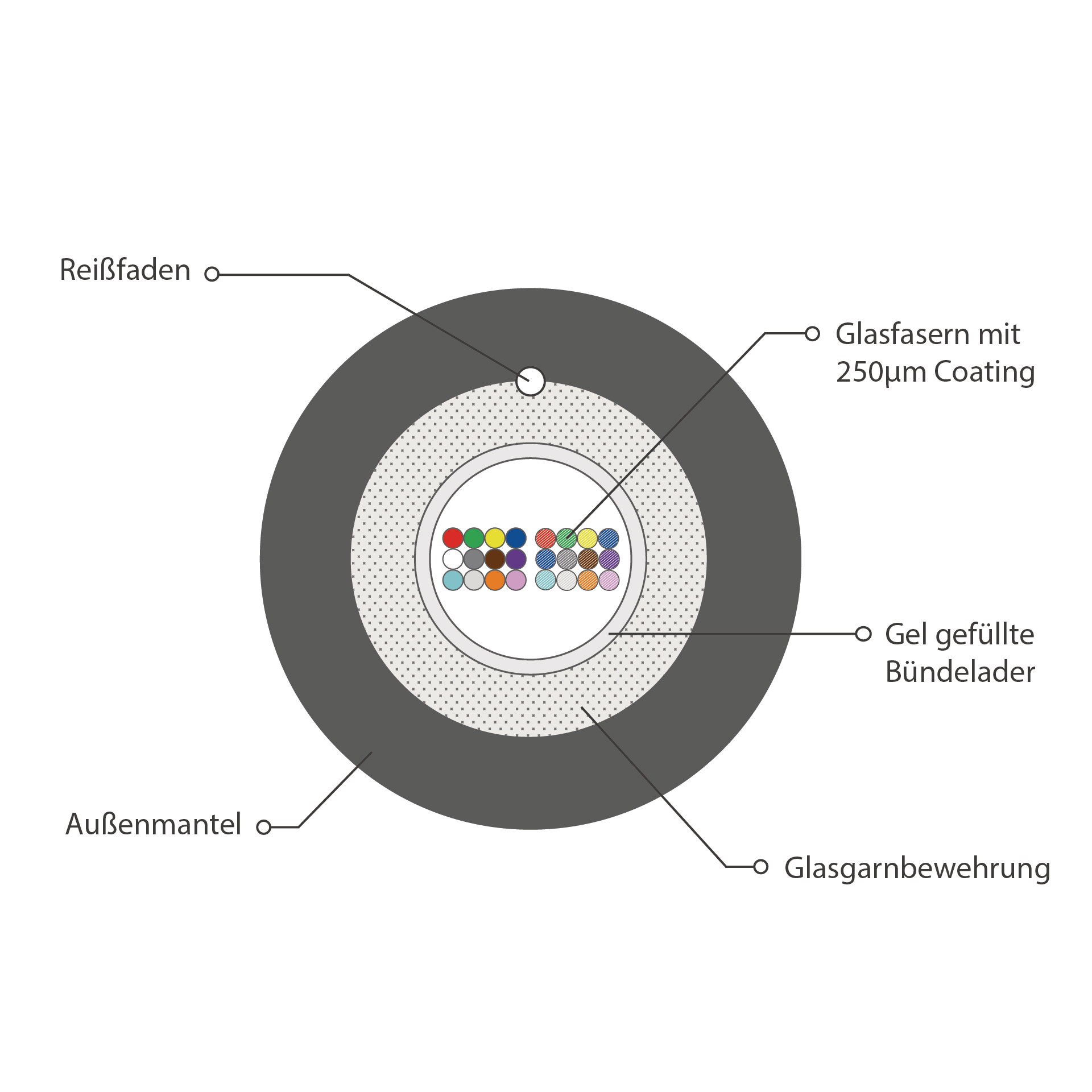

This fiber optic cable with a central, gel-filled loose tube and up to 24 fibers is ideal for outdoor applications in modern telecommunications networks. Its dielectric construction with glass yarn armoring makes it longitudinally watertight and resistant to mechanical stress. A robust LDPE outer jacket further protects the cable from environmental influences.
It can be installed outdoors – directly in the ground (in a sand bed), in pipes, or shafts. Thanks to its metal-free and rodent-resistant design, it is particularly durable and reliable under demanding conditions.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-building, and fiber-to-the-home drop and access connections.
Features:
• Robust outdoor cable for versatile applications
• Dielectric construction with glass yarns – completely metal-free
• Gel-filled, stranded loose tubes with up to 288 fibers
• Longitudinally watertight
• UV- and weather-resistant LDPE jacket
• Suitable for direct burial in sand beds
• Rodent-resistant and resistant to tensile loads
• DIN/VDE: A-DQ(ZN)B2Y
It can be installed outdoors – directly in the ground (in a sand bed), in pipes, or shafts. Thanks to its metal-free and rodent-resistant design, it is particularly durable and reliable under demanding conditions.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-building, and fiber-to-the-home drop and access connections.
Features:
• Robust outdoor cable for versatile applications
• Dielectric construction with glass yarns – completely metal-free
• Gel-filled, stranded loose tubes with up to 288 fibers
• Longitudinally watertight
• UV- and weather-resistant LDPE jacket
• Suitable for direct burial in sand beds
• Rodent-resistant and resistant to tensile loads
• DIN/VDE: A-DQ(ZN)B2Y
Technical properties
| Application: | außen |
|---|---|
| Armouring: | Ja |
| Blow in: | Nein |
| Colour outer sheath: | black |
| Fiber marking: | Farbe |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Jacket material: | Polyethylen (PE) |
| Longitudinal water blocking: | Ja |
| Radial water blocking: | Ja |
| Temperature Range (Installation): | -20,,60 – °C |
| Temperature Range (Operation): | -20 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube Ø: | 2,8 mm |
| Type of tube: | zentrale Bündelader |
| UV resistant: | Ja |
| With rodent protection: | Ja |
Variants
| Item no. | Name | Cable Ø | Category | CPR-Class | Tensile force max. | Number of fibers | |
|---|---|---|---|---|---|---|---|
| A12M2F1 | INFRALAN® A-DQ(ZN)B2Y OM2 12G (1x12), Fca 2000N black 5.8mm | 5.8 mm | OM2 | Fca | 2000 N | 12 | |
| A24M2F1 | INFRALAN® A-DQ(ZN)B2Y OM2 24G (1x24), Fca 2000N black 5.8mm | 5.8 mm | OM2 | Fca | 2000 N | 24 | |
| A4M2F1 | INFRALAN® A-DQ(ZN)B2Y OM2 4G (1x4), Fca 2000N black 5.8mm | 5.8 mm | OM2 | Fca | 2000 N | 4 | |
| A8M2F1 | INFRALAN® A-DQ(ZN)B2Y OM2 8G (1x8), Fca 2000N black 5.8mm | 5.8 mm | OM2 | Fca | 2000 N | 8 |
