INFRALAN® A-DQ(ZN)B2Y OM2 Fca 5000N PE black
INFRALAN
INFRALAN® A-DQ(ZN)B2Y OM2 48G (4x12), Fca 5000N black 11.1mm
Item number:
A48M2F1
EAN no.:
4049759325794
Product information for INFRALAN® A-DQ(ZN)B2Y OM2 48G (4x12), Fca 5000N black 11.1mm

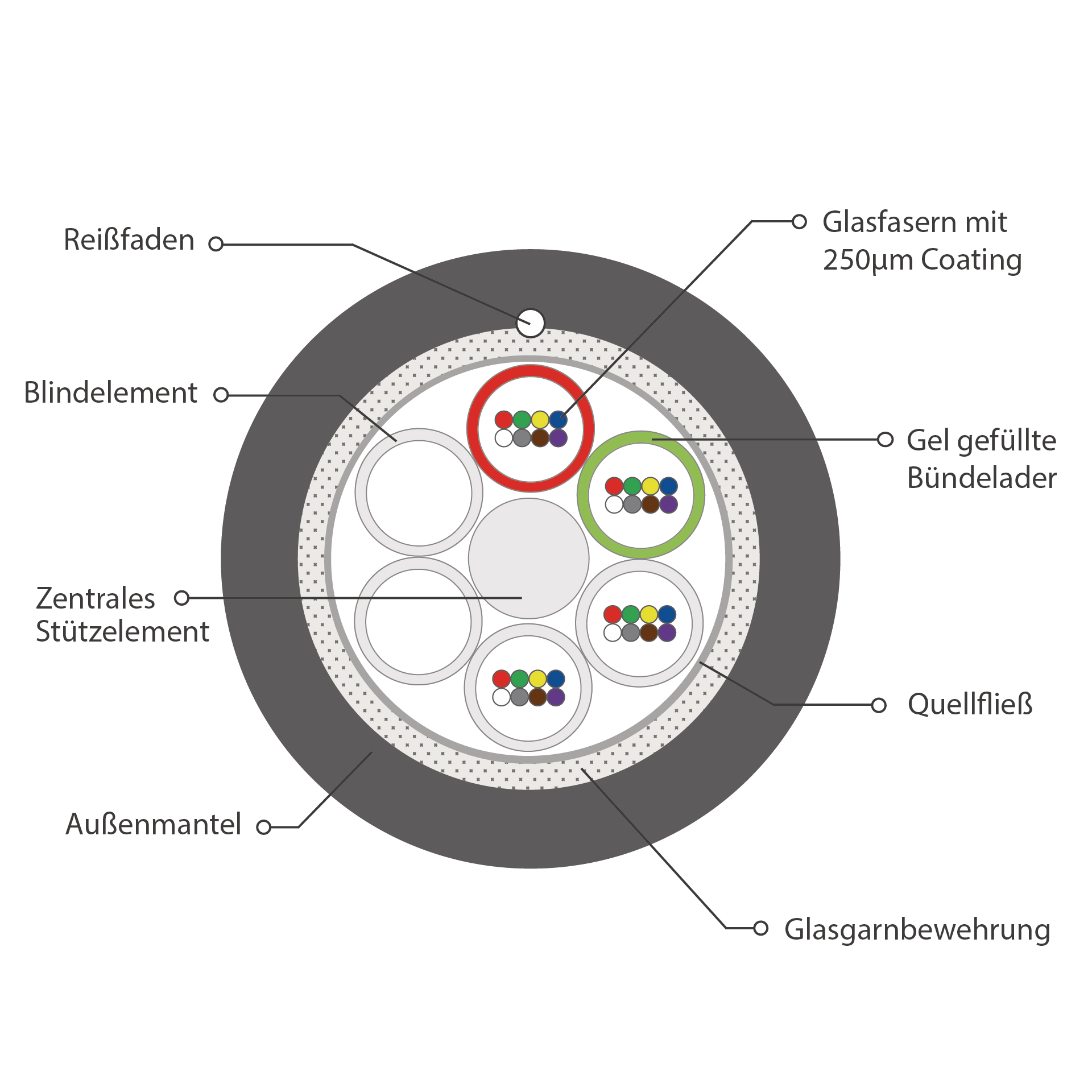

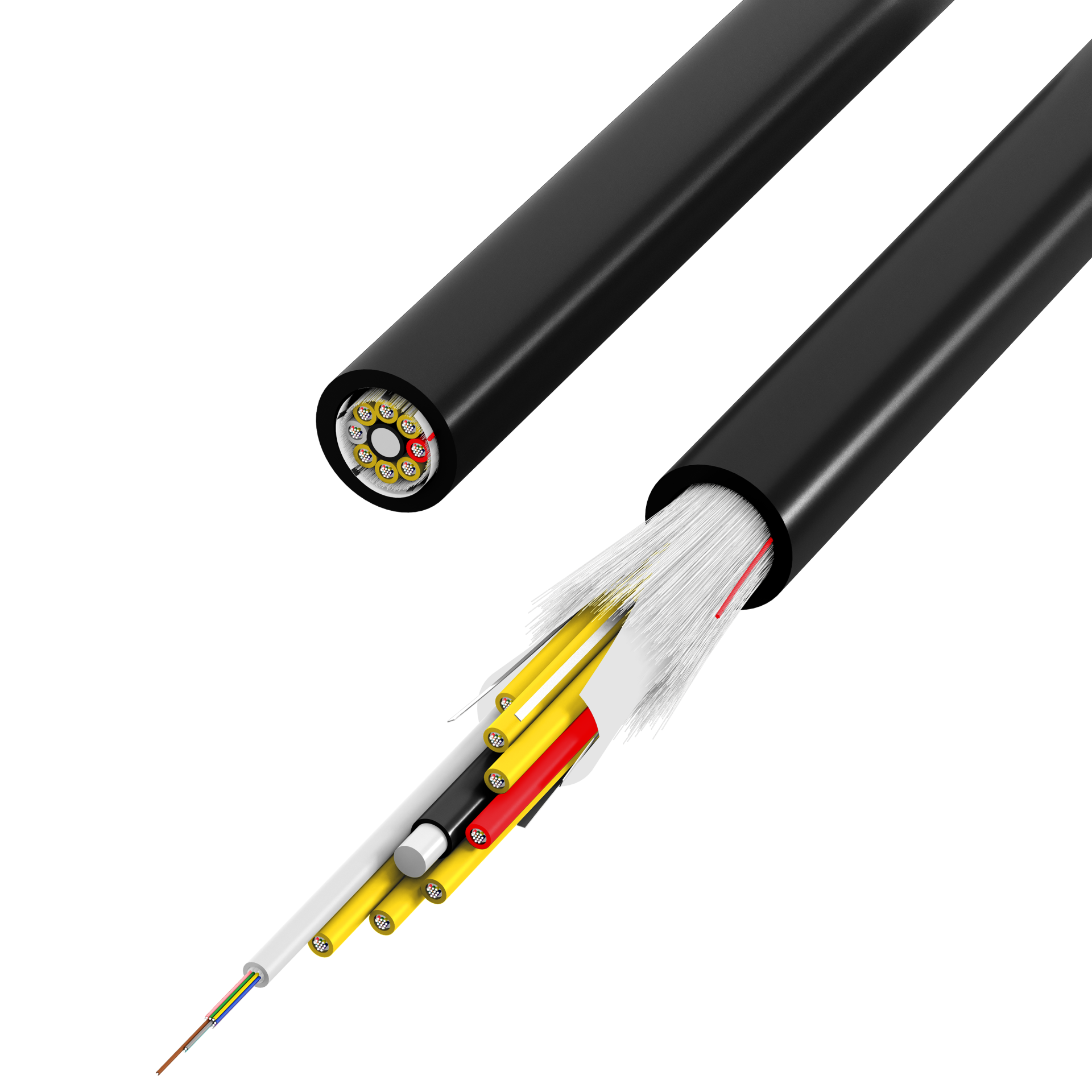

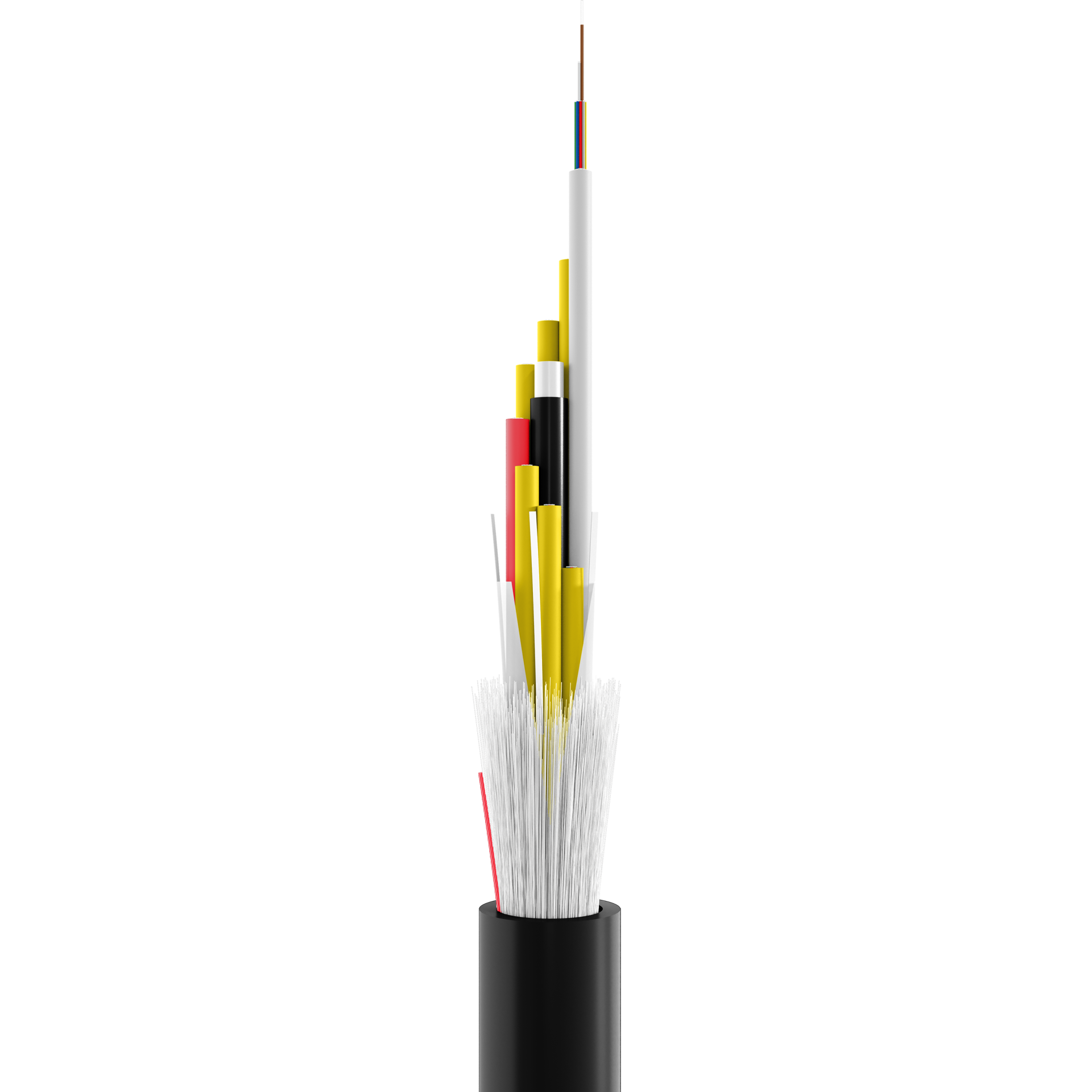

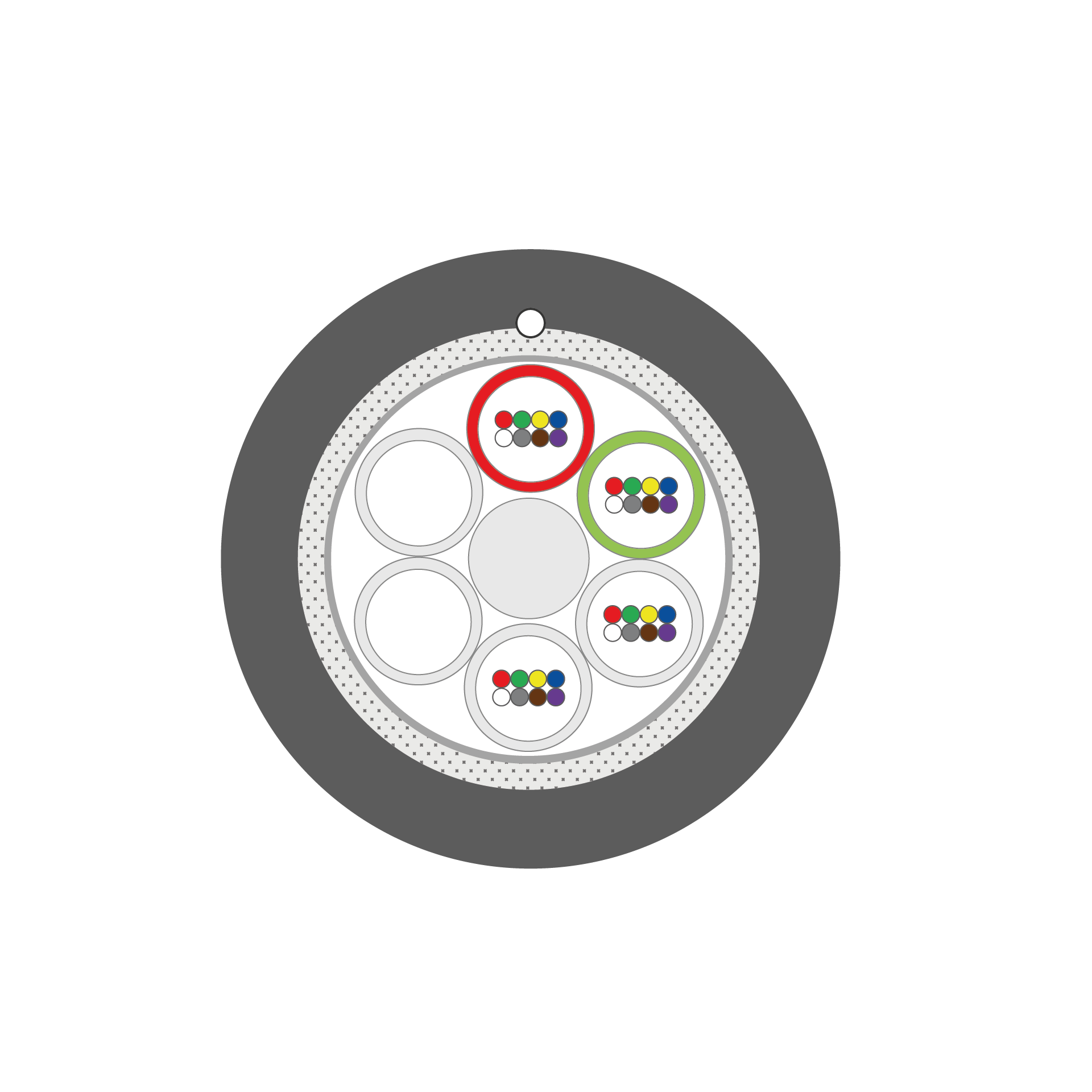

The fiber optic cable, with its stranded, gel-filled loose tube construction and a tensile strength of 5000N, is ideal for structured outdoor cabling. The robust, dielectric design with glass yarn armoring makes the cable longitudinally watertight, UV-resistant, and rodent-proof. A durable PE sheath provides additional protection against mechanical stress.
It is suitable for direct burial, even using trenchless plowing methods, as well as in pipes and shafts. With a temperature range of -40°C to +70°C (operating), the cable is ideal for demanding environments.
This cable is versatile for LAN, MAN, and telecommunications backbones, as well as modern outdoor fiber optic access networks.
Features:
• Robust outdoor cable for direct burial and ploughing
• Tensile strength up to 5000N – ideal for long distances
• Dielectric construction with E-glass yarns – metal-free and rodent-resistant
• Gel-filled, stranded loose tubes with up to 288 fibers
• Water-blocked and weather-resistant (-40°C to +70°C)
• Black, UV-resistant PE jacket (RAL 9005)
• Color code according to IEC 60794-2 / VDE 0888
• Suitable for backbone and access networks (LAN, MAN, FTTH, FTTB)
• DIN/VDE: A-DQ(ZN)B2Y
It is suitable for direct burial, even using trenchless plowing methods, as well as in pipes and shafts. With a temperature range of -40°C to +70°C (operating), the cable is ideal for demanding environments.
This cable is versatile for LAN, MAN, and telecommunications backbones, as well as modern outdoor fiber optic access networks.
Features:
• Robust outdoor cable for direct burial and ploughing
• Tensile strength up to 5000N – ideal for long distances
• Dielectric construction with E-glass yarns – metal-free and rodent-resistant
• Gel-filled, stranded loose tubes with up to 288 fibers
• Water-blocked and weather-resistant (-40°C to +70°C)
• Black, UV-resistant PE jacket (RAL 9005)
• Color code according to IEC 60794-2 / VDE 0888
• Suitable for backbone and access networks (LAN, MAN, FTTH, FTTB)
• DIN/VDE: A-DQ(ZN)B2Y
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | True |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | False |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | - |
| IL max. (dB/km) 850nm: | 3.5 dB/km |
| IL max. (dB/km) 1300nm: | 1.5 dB/km |
| Jacket material: | Polyethylene (PE) |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Technical properties
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | True |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | False |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | - |
| IL max. (dB/km) 850nm: | 3.5 dB/km |
| IL max. (dB/km) 1300nm: | 1.5 dB/km |
| Jacket material: | Polyethylene (PE) |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Product information for INFRALAN® A-DQ(ZN)B2Y OM2 48G (4x12), Fca 5000N black 11.1mm
The fiber optic cable, with its stranded, gel-filled loose tube construction and a tensile strength of 5000N, is ideal for structured outdoor cabling. The robust, dielectric design with glass yarn armoring makes the cable longitudinally watertight, UV-resistant, and rodent-proof. A durable PE sheath provides additional protection against mechanical stress.
It is suitable for direct burial, even using trenchless plowing methods, as well as in pipes and shafts. With a temperature range of -40°C to +70°C (operating), the cable is ideal for demanding environments.
This cable is versatile for LAN, MAN, and telecommunications backbones, as well as modern outdoor fiber optic access networks.
Features:
• Robust outdoor cable for direct burial and ploughing
• Tensile strength up to 5000N – ideal for long distances
• Dielectric construction with E-glass yarns – metal-free and rodent-resistant
• Gel-filled, stranded loose tubes with up to 288 fibers
• Water-blocked and weather-resistant (-40°C to +70°C)
• Black, UV-resistant PE jacket (RAL 9005)
• Color code according to IEC 60794-2 / VDE 0888
• Suitable for backbone and access networks (LAN, MAN, FTTH, FTTB)
• DIN/VDE: A-DQ(ZN)B2Y
It is suitable for direct burial, even using trenchless plowing methods, as well as in pipes and shafts. With a temperature range of -40°C to +70°C (operating), the cable is ideal for demanding environments.
This cable is versatile for LAN, MAN, and telecommunications backbones, as well as modern outdoor fiber optic access networks.
Features:
• Robust outdoor cable for direct burial and ploughing
• Tensile strength up to 5000N – ideal for long distances
• Dielectric construction with E-glass yarns – metal-free and rodent-resistant
• Gel-filled, stranded loose tubes with up to 288 fibers
• Water-blocked and weather-resistant (-40°C to +70°C)
• Black, UV-resistant PE jacket (RAL 9005)
• Color code according to IEC 60794-2 / VDE 0888
• Suitable for backbone and access networks (LAN, MAN, FTTH, FTTB)
• DIN/VDE: A-DQ(ZN)B2Y
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | True |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | False |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | - |
| IL max. (dB/km) 850nm: | 3.5 dB/km |
| IL max. (dB/km) 1300nm: | 1.5 dB/km |
| Jacket material: | Polyethylene (PE) |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | True |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM2 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | False |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | - |
| IL max. (dB/km) 850nm: | 3.5 dB/km |
| IL max. (dB/km) 1300nm: | 1.5 dB/km |
| Jacket material: | Polyethylene (PE) |
| Longitudinal water blocking: | True |
| Low smoke: | No |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -20 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
