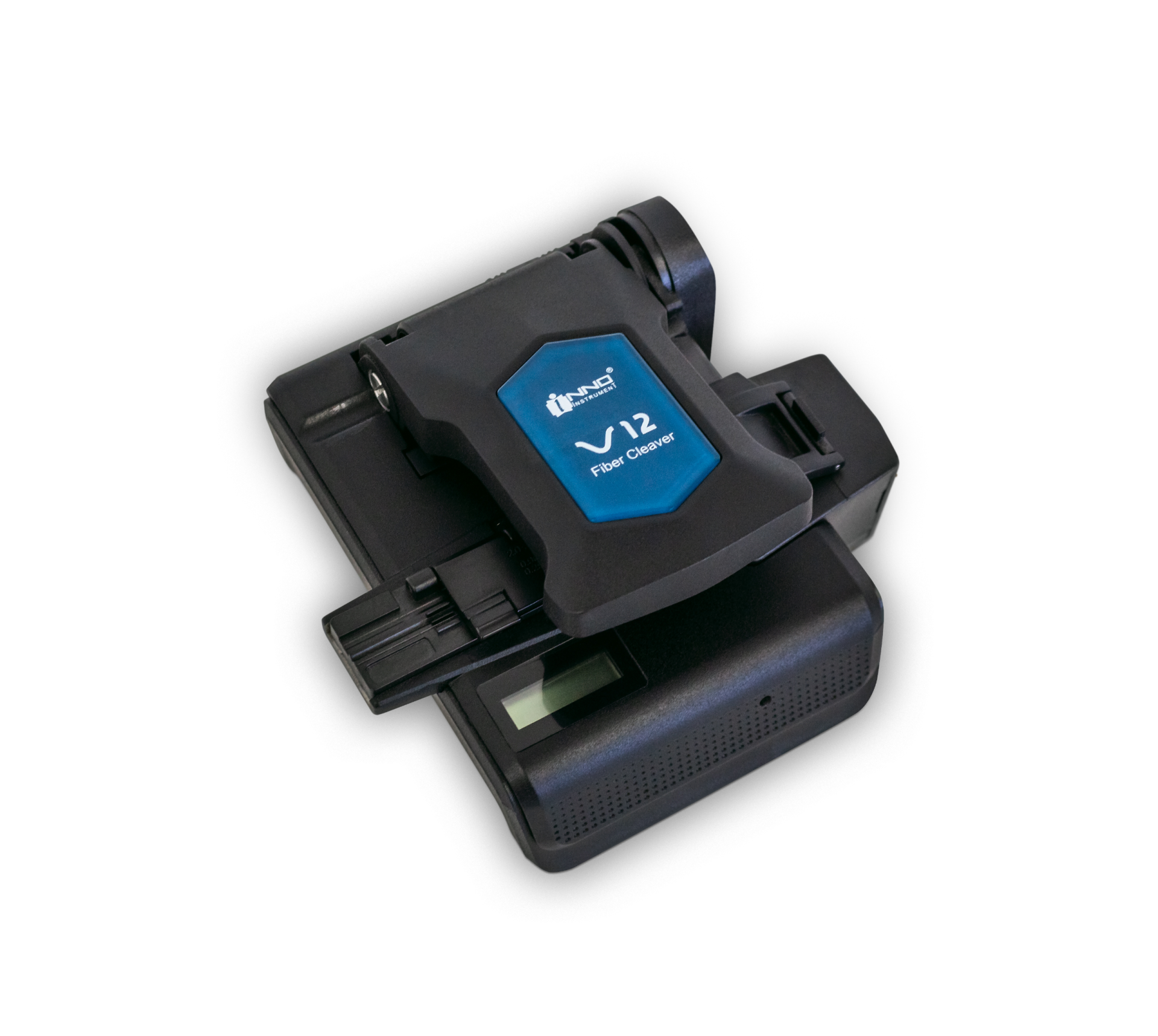

Inno core centering splicer View8X incl. Inno V12 breaking tool
INNO INSTRUMENT EUROPE GmbH
Inno core centering splicer View8X incl. Inno V12 breaking tool
Item number:
VIEW-8X
EAN no.:
4049759316631
Product information for Inno core centering splicer View8X incl. Inno V12 breaking tool

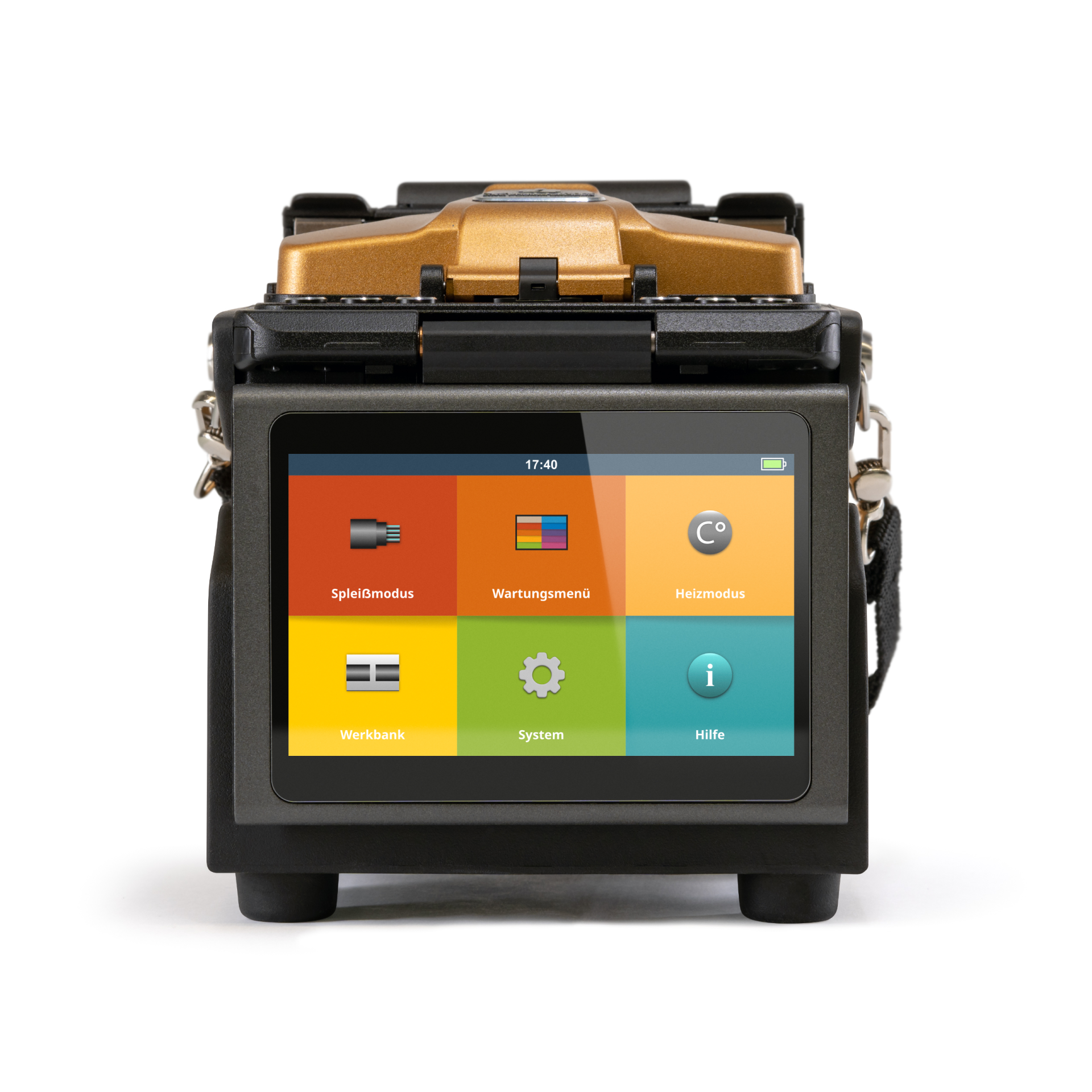

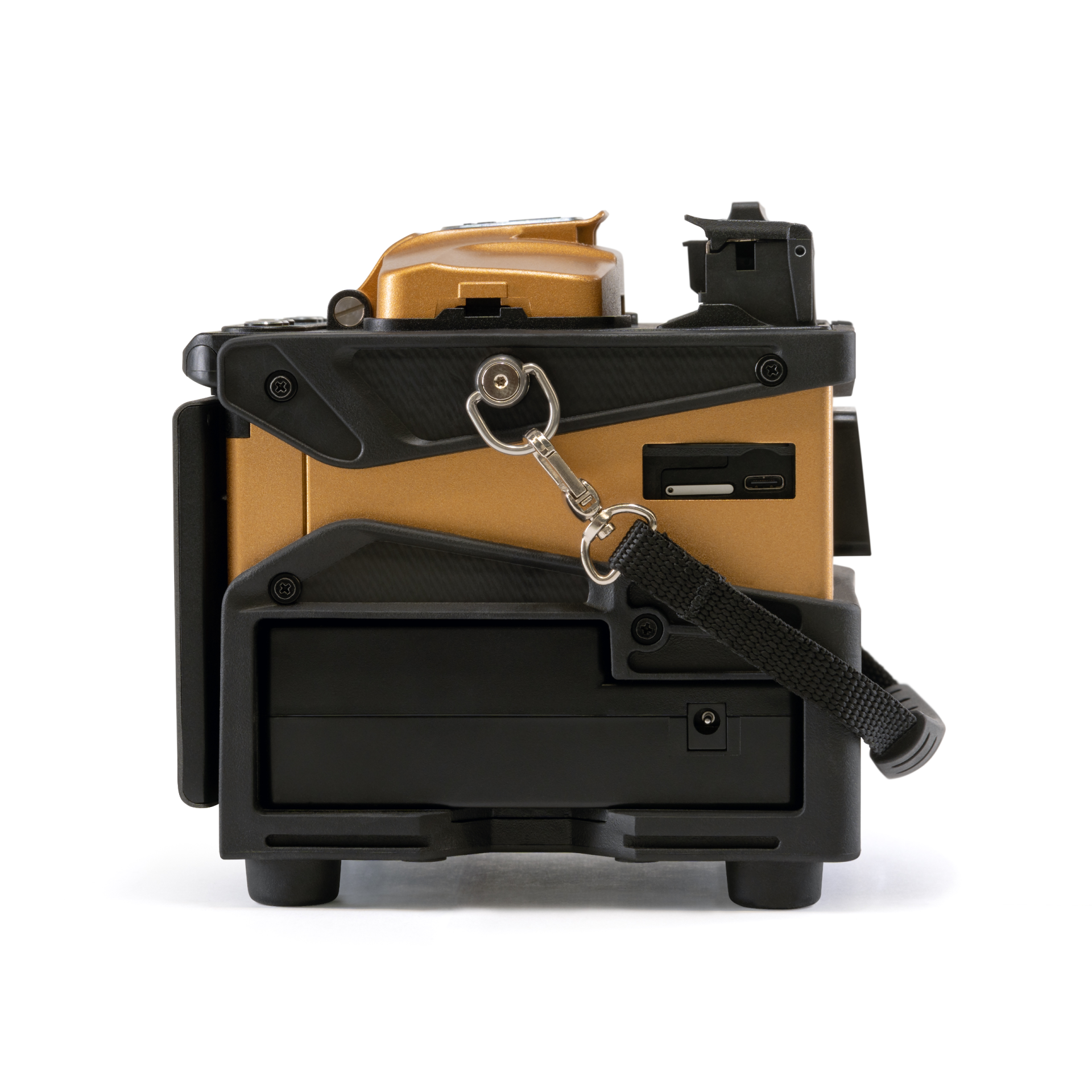

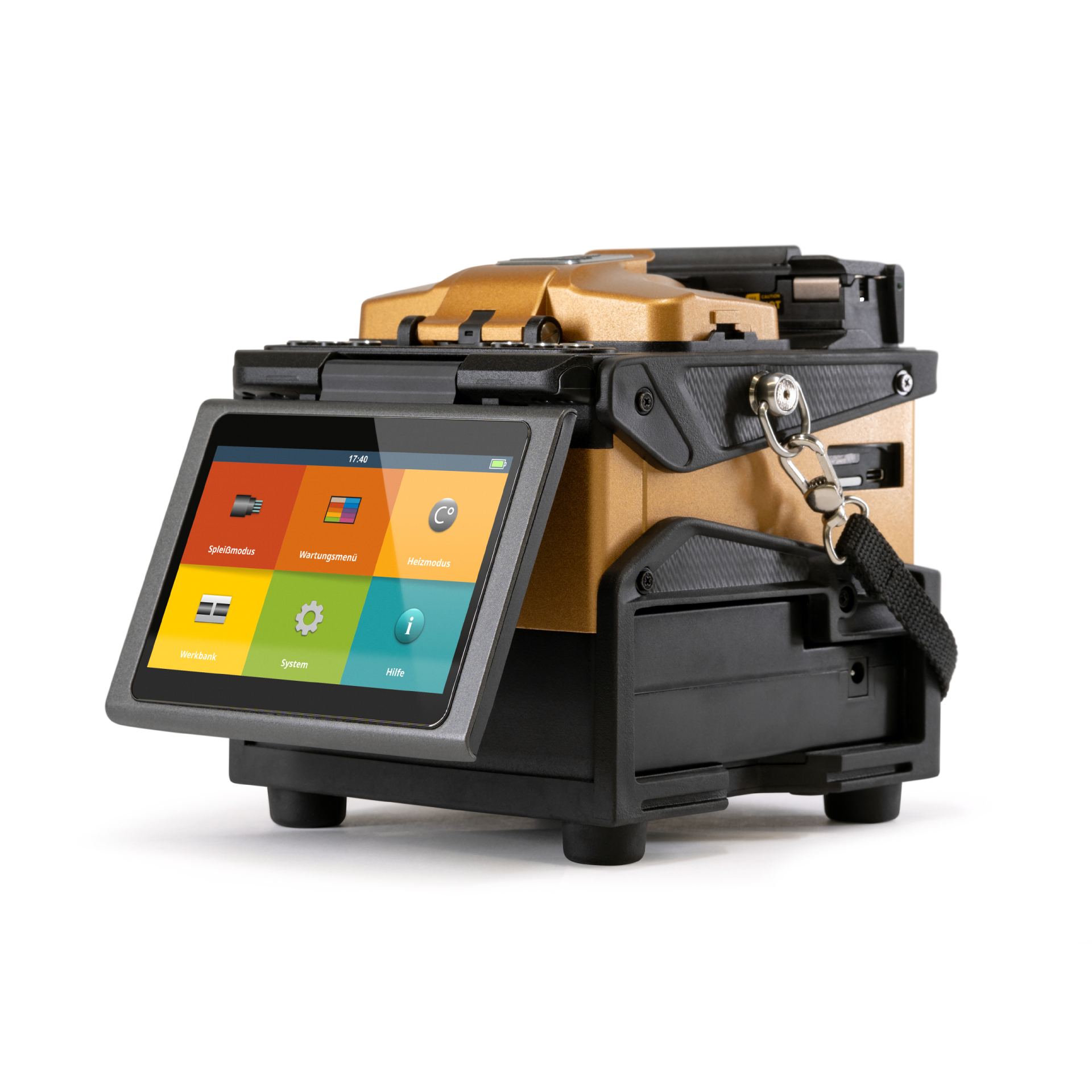

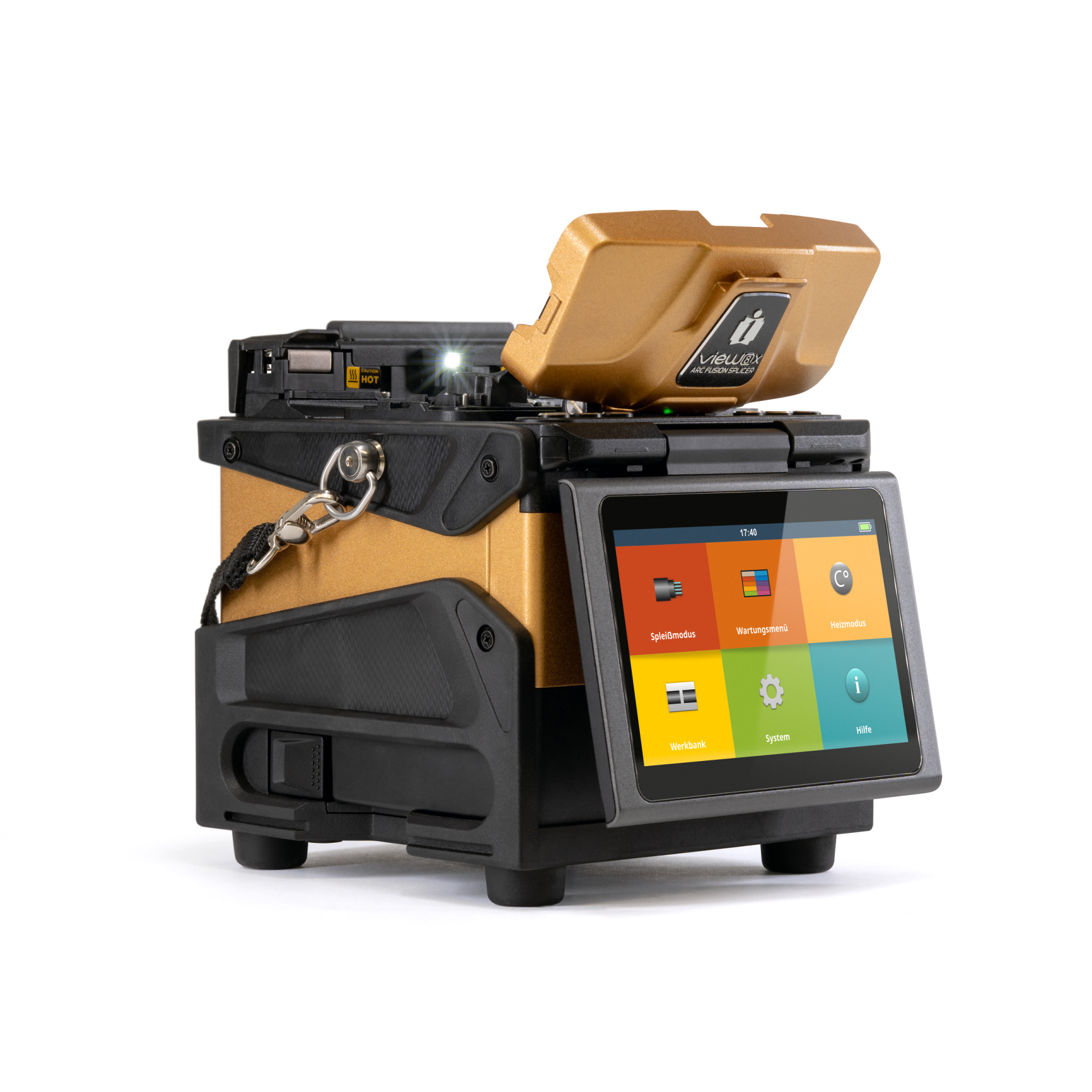

The View8X from INNO Instrument is a first-class core alignment splicer. The X stands for “eXceed eXpectations”—and that’s exactly what the View8X does: it exceeds your expectations. The South Korean high-end manufacturer’s flagship sets the benchmark for splicing efficiency. Period.
This device’s features are not lacking in superlatives: Splicing time: 4 seconds. Heating time: 9 seconds. Battery power: 500 work cycles. Magnification: 520 ×. Plus a high-resolution 5-inch color LCD touchscreen, intuitive user interface, robust design, large memory for measured values and documentation images. The View8X is not to be overlooked.
This device’s features are not lacking in superlatives: Splicing time: 4 seconds. Heating time: 9 seconds. Battery power: 500 work cycles. Magnification: 520 ×. Plus a high-resolution 5-inch color LCD touchscreen, intuitive user interface, robust design, large memory for measured values and documentation images. The View8X is not to be overlooked.
| Battery Capacity: | 9000 mAh |
|---|---|
| Configuration: | Shrink oven |
| Connections: | USB Typ C |
| Displaysize: | 5,0" |
| Electrode Life: | 6000 arcs |
| Fiber Count: | Single |
| Heating Time (oven): | 9 sec |
| Magnification: | 520x |
| Operating Conditions: | Altitude: 0-5000m |
| Operating Conditions: | Humidity: 0 - 95% |
| Operating Conditions: | Temperature: -10 - 50°C |
| Operating Conditions: | Max. Wind: 15m/s |
| Results Storage: | 10000 |
| Size (WxHxD): | 143 x 158 x 162 mm |
| Splice Mode: | 128 |
| Splicing Time: | 4 sec |
| Storage Conditions: | Temperatur: -40 - 80°C |
| Storage Conditions: | Humidity: 0 - 95% |
| Tension Test: | 1,96 - 2,25 N |
| Typical Return Loss: | >60 dB |
| Weight: | 2.68 KG |
Technical properties
| Battery Capacity: | 9000 mAh |
|---|---|
| Configuration: | Shrink oven |
| Connections: | USB Typ C |
| Displaysize: | 5,0" |
| Electrode Life: | 6000 arcs |
| Fiber Count: | Single |
| Heating Time (oven): | 9 sec |
| Magnification: | 520x |
| Operating Conditions: | Altitude: 0-5000m |
| Operating Conditions: | Humidity: 0 - 95% |
| Operating Conditions: | Temperature: -10 - 50°C |
| Operating Conditions: | Max. Wind: 15m/s |
| Results Storage: | 10000 |
| Size (WxHxD): | 143 x 158 x 162 mm |
| Splice Mode: | 128 |
| Splicing Time: | 4 sec |
| Storage Conditions: | Temperatur: -40 - 80°C |
| Storage Conditions: | Humidity: 0 - 95% |
| Tension Test: | 1,96 - 2,25 N |
| Typical Return Loss: | >60 dB |
| Weight: | 2.68 KG |
