IP67 Cable gland, M25, HDMI, M-M, A-A
Prices only visible for logged in users
IP67 Cable gland, M25, HDMI, Plug Type-A to Plug Type-A, 1.0m
Item number:
IP67KVHDMIA-A1,0
EAN no.:
4049759194871
Product information for IP67 Cable gland, M25, HDMI, Plug Type-A to Plug Type-A, 1.0m

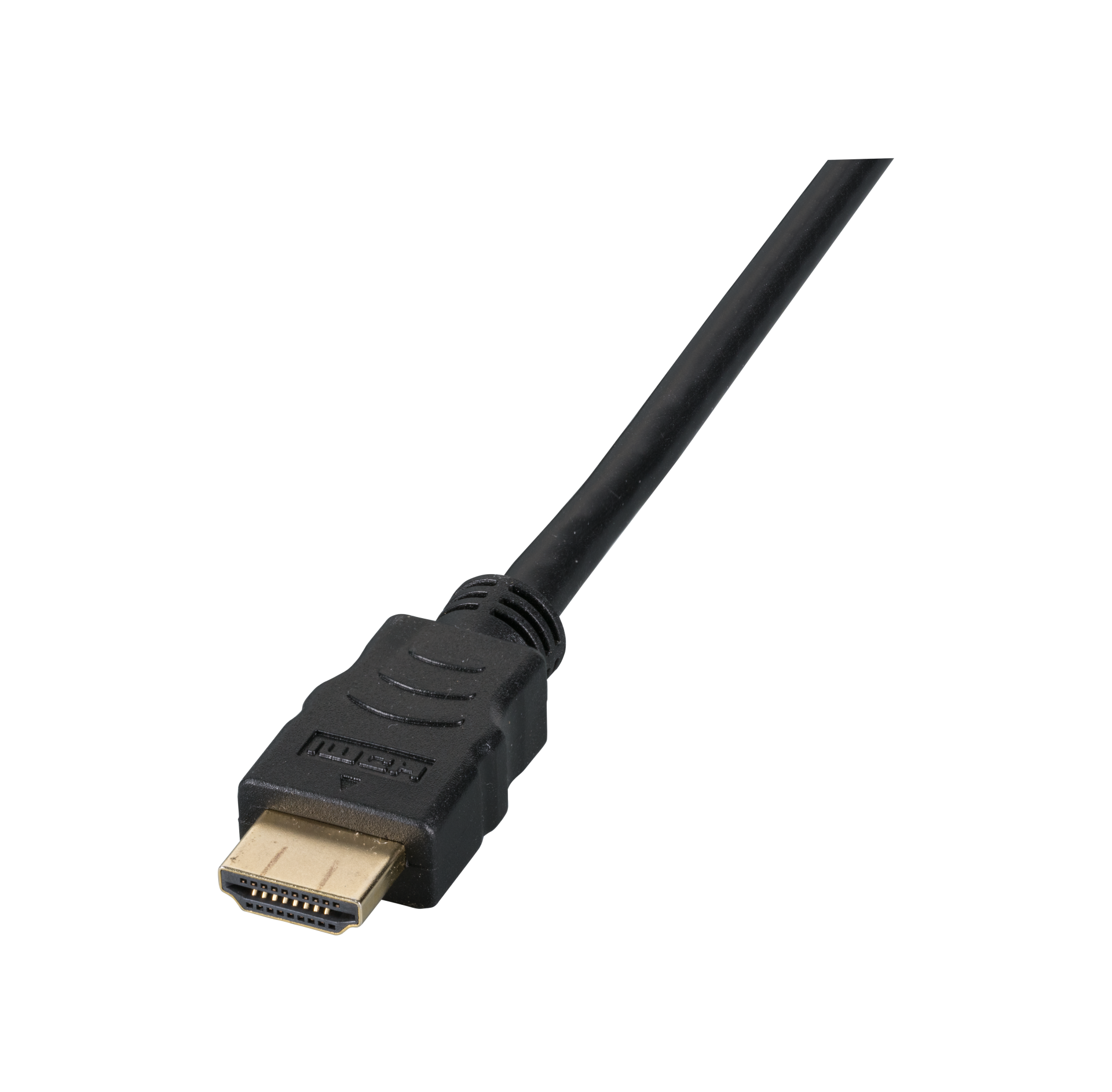

IP67 cable gland with pre-installed HDMI plug / plug cable
For installation in housings with M25 cut-out
Gland material: Brass
Max. 4K60Hz resolution
For installation in housings with M25 cut-out
Gland material: Brass
Max. 4K60Hz resolution
Technical properties
| Connection type connection 1: | plug |
|---|---|
| Connection type connection 2: | plug |
| Model: | cable gland, 1m |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 19 |
| Suitable for degree of protection (IP): | IP67 |
| Type of connector connection 1: | HDMI (HDMI-A) |
| Type of connector connection 2: | HDMI (HDMI-A) |
| Type of housing: | Brass nickel-plated |
| Type of locking: | M25 |
