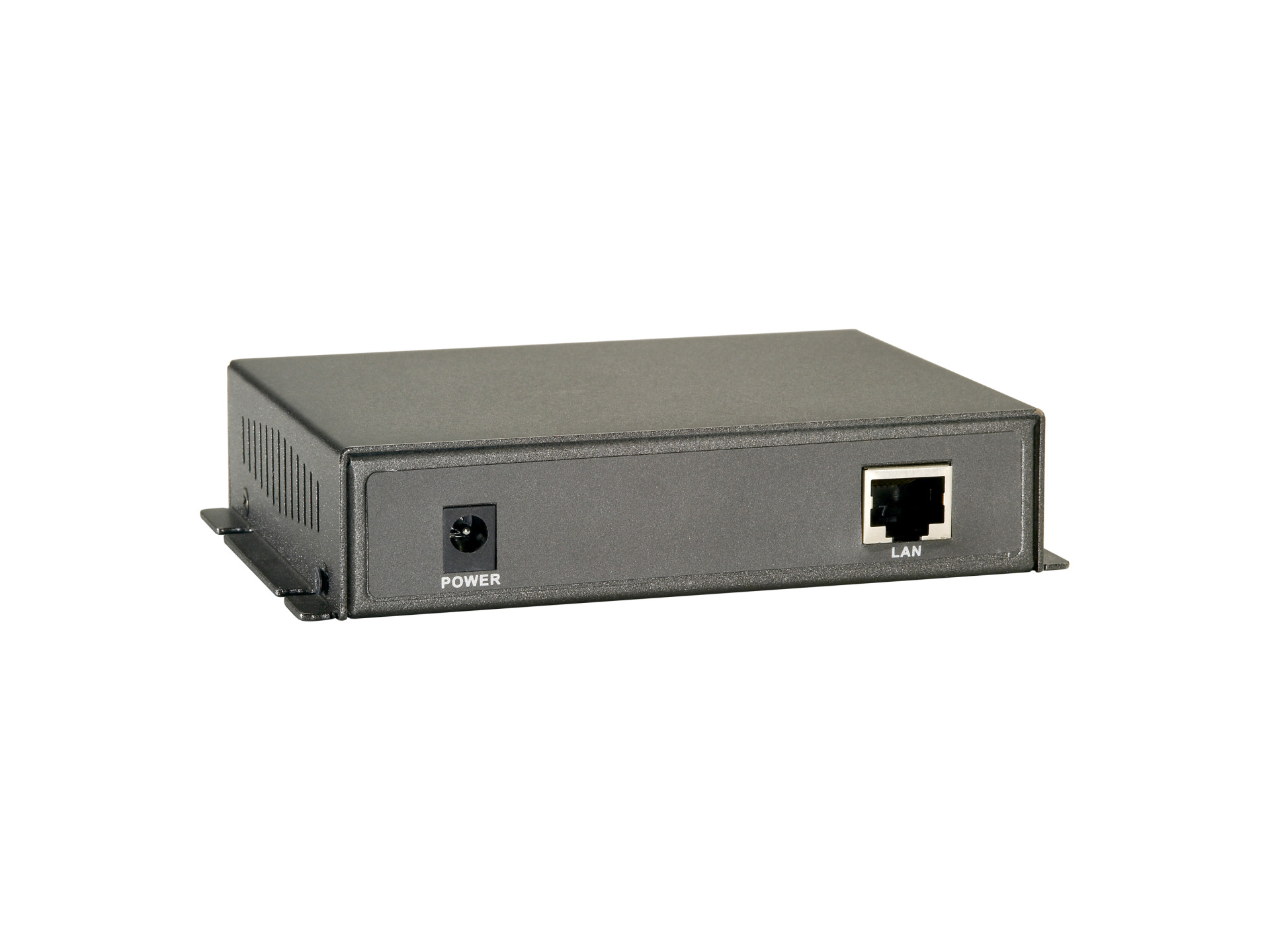

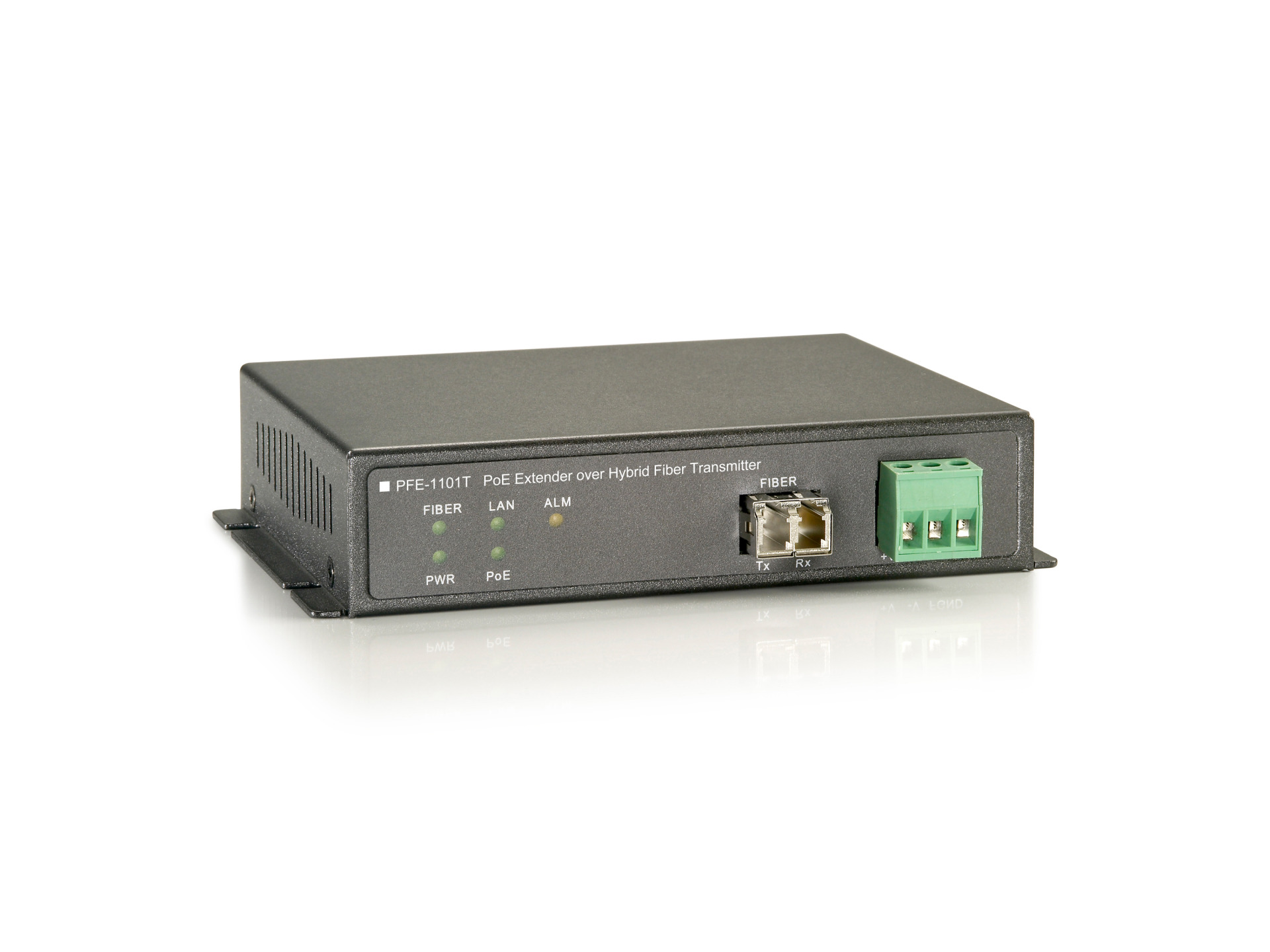

PFE-1101T, PoE Extender over Hybrid Fiber, Transmitter, 120W

PoE Extender over Hybrid Fiber, Transmitter, 120W
PoE Extender over Hybrid Fiber, Transmitter, 120W
PoE Extender over Hybrid Fiber, Transmitter, 120W
PoE Extender over Hybrid Fiber, Transmitter, 120W
PoE Extender over Hybrid Fiber, Transmitter, 120W
Item number: PFE-1101T
EAN no.: 4015867187265
Get notified when the product is back in stock:
Piece
Log in as a customer
Enter your email in the field below and we will notify you when the product is back in stock.
Description

Product information for PoE Extender over Hybrid Fiber, Transmitter, 120W

Through using of a hybrid cable, which consist of fiber optic and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.


  • Extend data and power up to 2km via a single Hybrid Fiber Cable

  • Enable PoE devices to distant remote location

  • Supporting high power consumption devices (up to 60W at 450m link)

  • PoE Compatible: IEEE 802.3at/af Power over Ethernet / PSE

  • Flexible installation option

  • Many different variants. 1x Transmitter and 1x Receiver needed for operational working. (Please order separately)
    • Technical properties

    Technical properties

    Data IN: RJ45 10/100Base-TX
    Data OUT: LC Duplex 100Base-FX MM
    Ethernet: True
    Fast Ethernet: True
    IP: -
    Manufacturer: LevelOne
    Model: Transmitter
    Mounting method: Surface mounted (plaster)
    Number of ports 10/100 Mbps RJ45: 1
    Number of ports 1000 Mbps LC (SX): 2
    Power IN: Ext. power supply
    Power OUT: Terminal Block 3pole
    Power over Ethernet (PoE): 802.3 at (PoE+)
    Downloads

    Downloads

    Safety instructions

    Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
