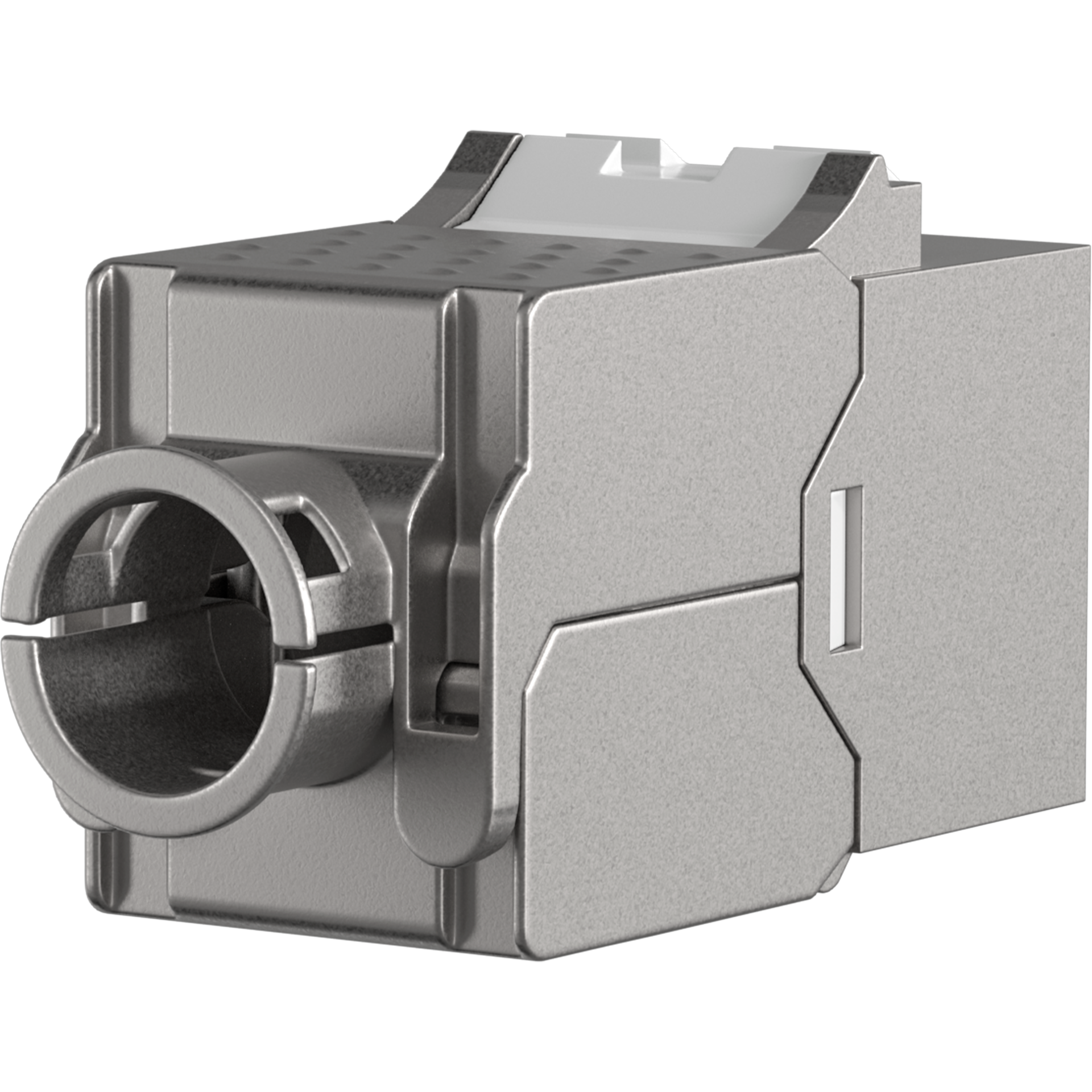

RJ45 Keystone Slimline, Cat.6A, zinc alloy
RJ45 Keystone Slimline, Cat.6A, zinc alloy, 10GE
Item number:
E-200100
EAN no.:
4049759186647
Product information for RJ45 Keystone Slimline, Cat.6A, zinc alloy, 10GE
The high-quality of the RJ45 Slimeline keystone modules warrants very good characteristics for 10Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.
Specifications:

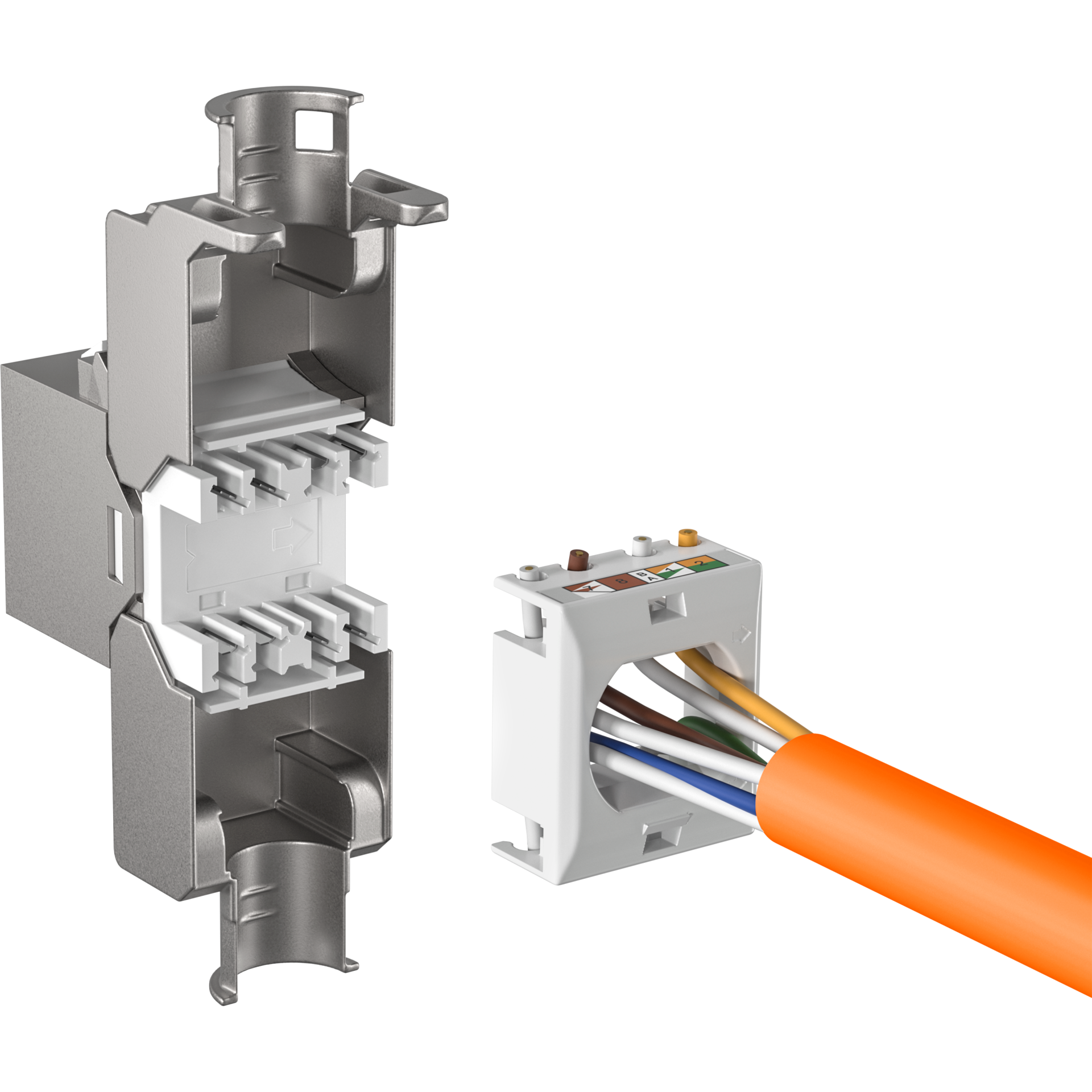

Compact cable presorter for AWG 26/1 .. 22/1 and AWG 26/7 .. AWG 24/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:

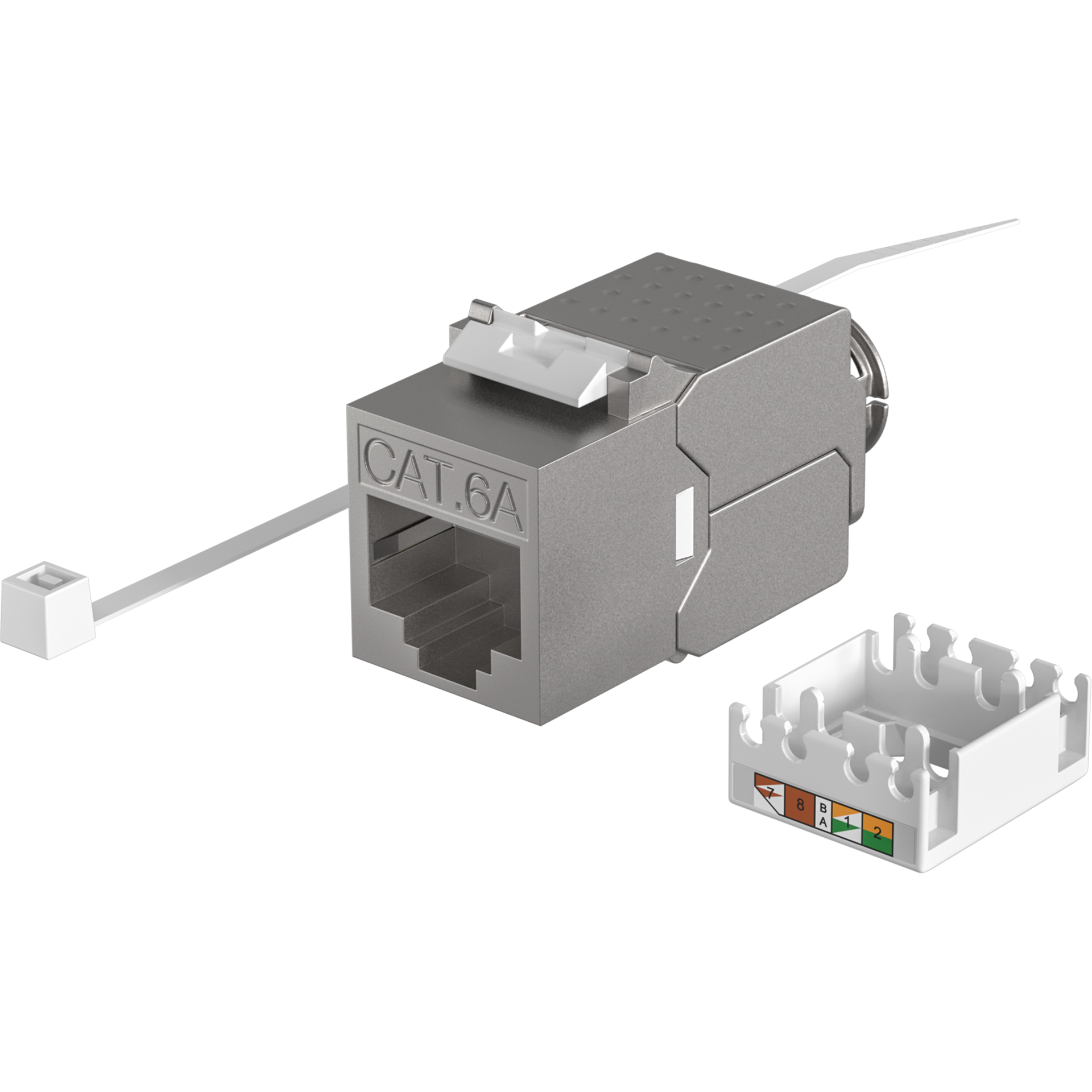

1 x RJ45 keystone, cable tie, mounting instruction
Specifications:
Compact cable presorter for AWG 26/1 .. 22/1 and AWG 26/7 .. AWG 24/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, cable tie, mounting instruction
Technical properties
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 26 – 22 |
| AWG-range for litz wire conductor: | 26 – 24 |
| Cable diameter: | 8.5 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (IEC) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 6 µ" |
| Current capacity: | 1.5 A |
| Dielectric Withstanding Voltage: | 700 V AC 60Hz |
| Dust cover: | Yes |
| For UAE suitable: | True |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | >750 |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
