SFP Transceiver LC-Duplex 1000BASE-LX SM Fiber
CBO
SFP Transceiver LC-Duplex 1000BASE-LX SM Fiber,1310nm 10KM -40°C/+85°C DDM
Item number:
BO05C13610DIN
EAN no.:
4063232340265
Product information for SFP Transceiver LC-Duplex 1000BASE-LX SM Fiber,1310nm 10KM -40°C/+85°C DDM

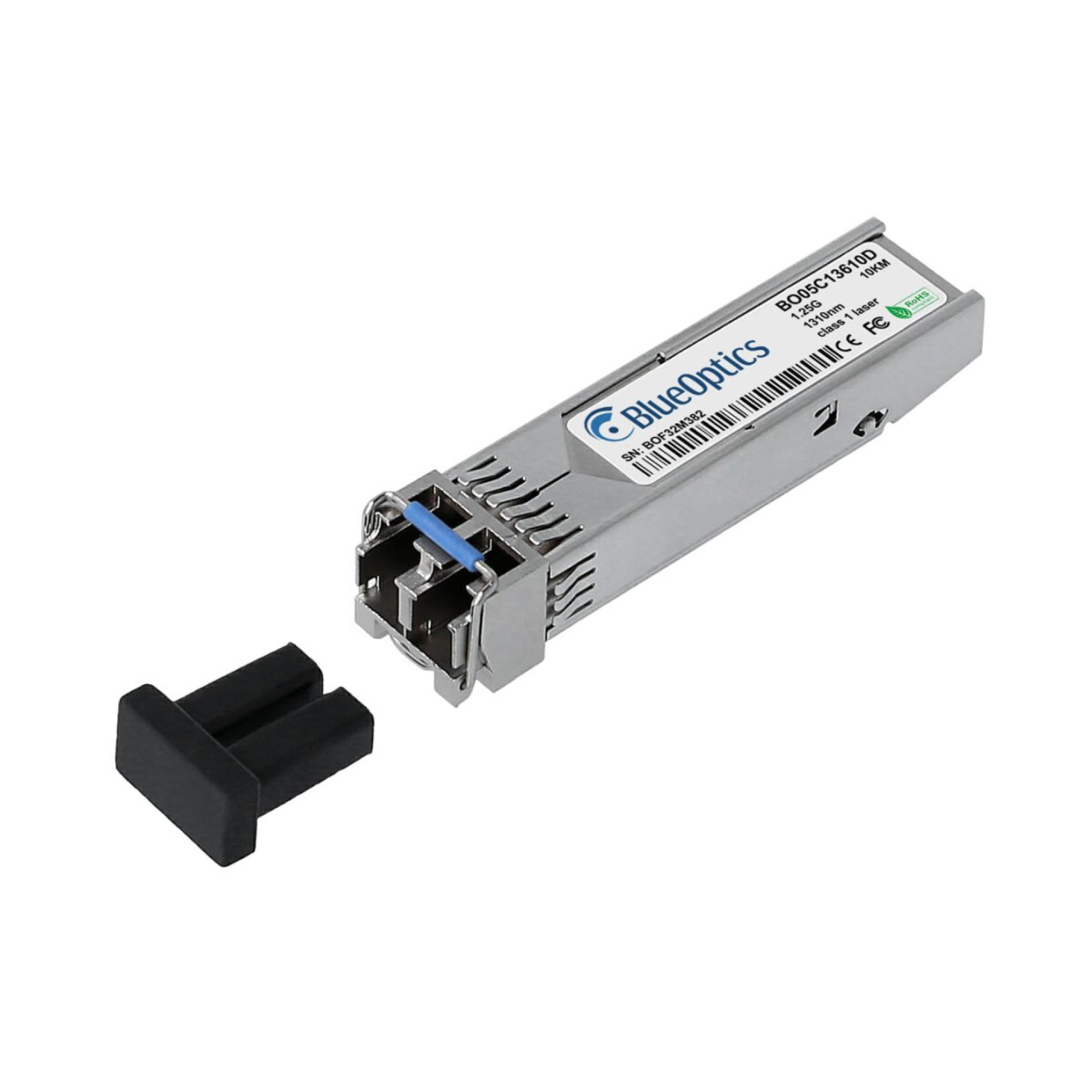

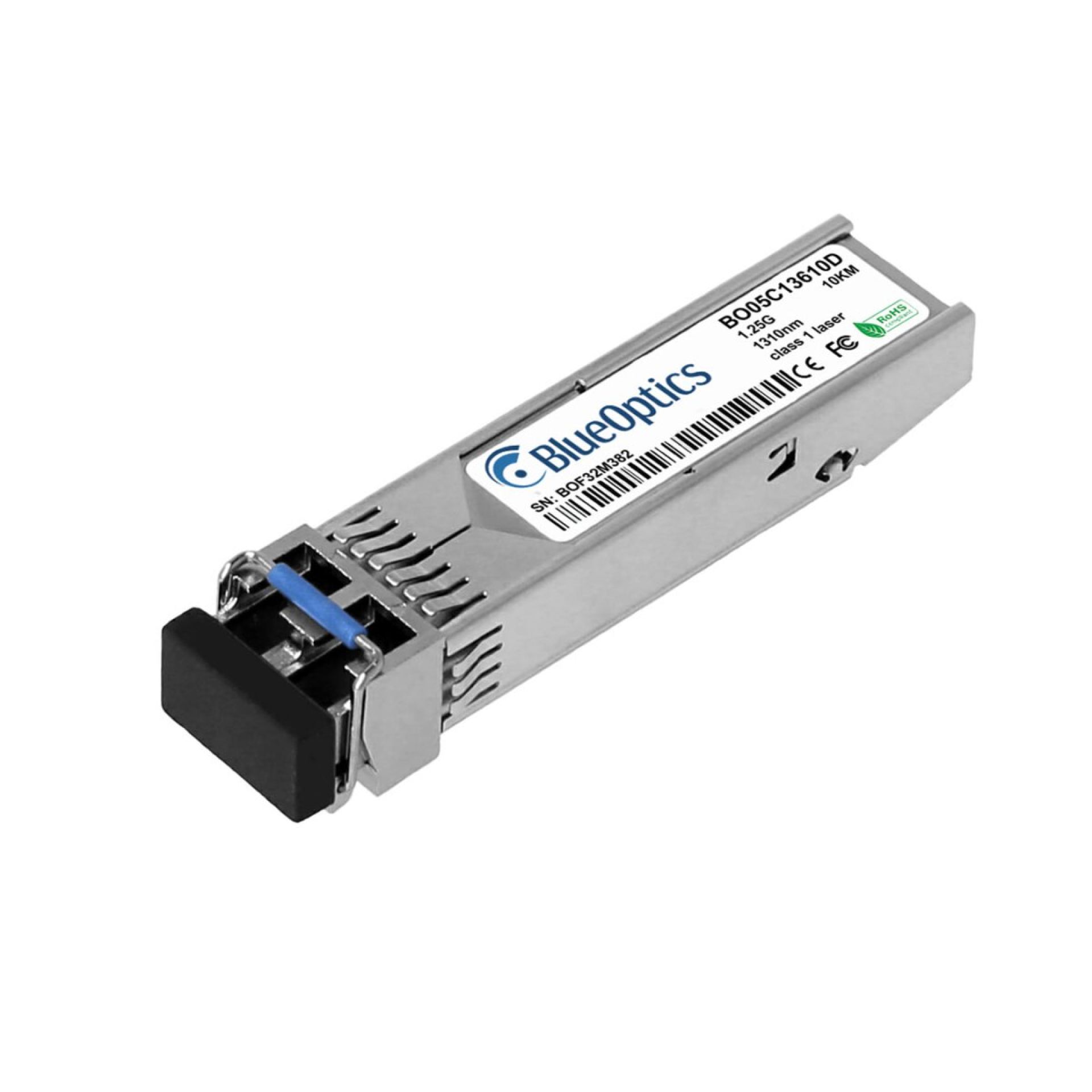

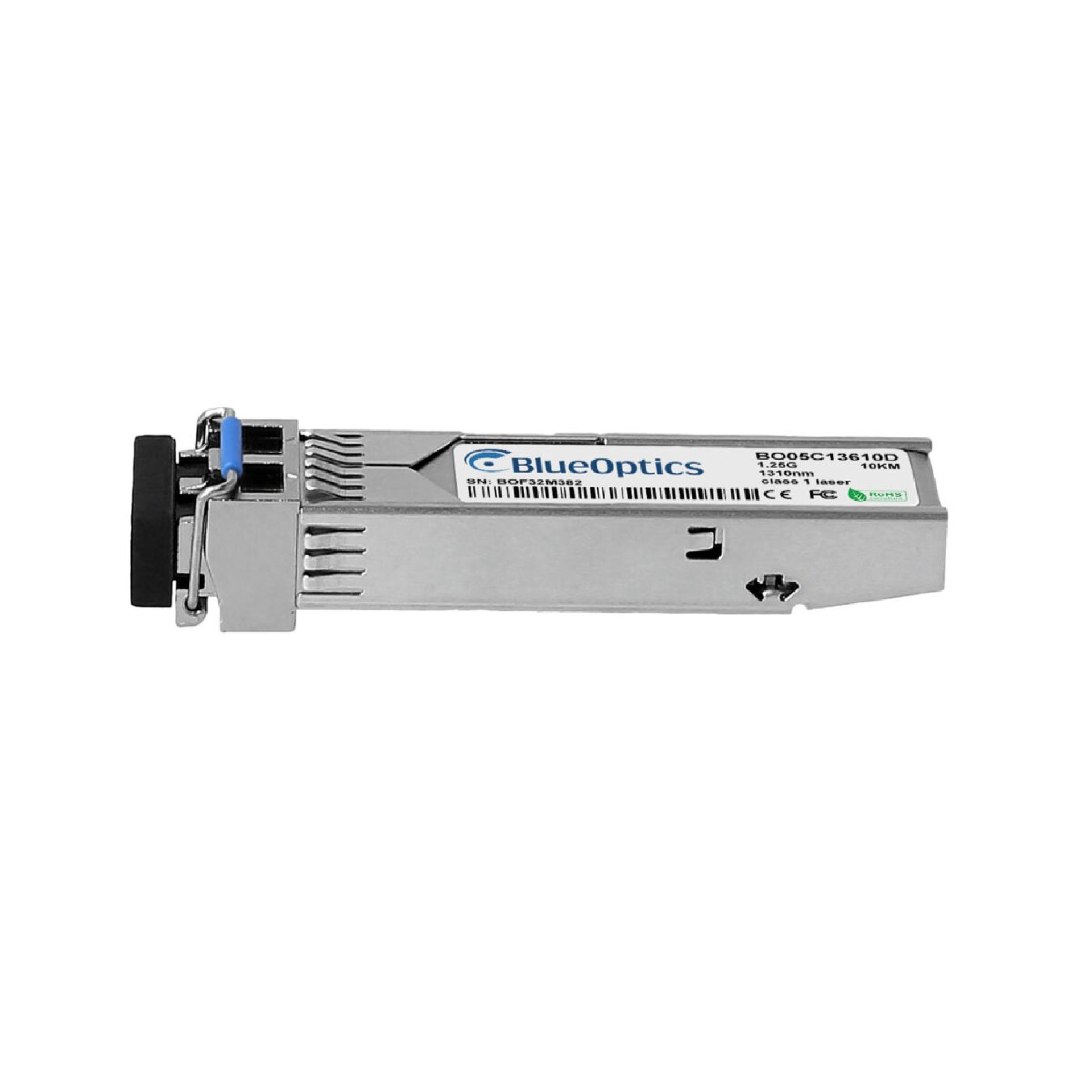

The BlueOptics© BO05C13610 SFP transceiver is a high performance, cost effective module supporting a data rate up to 1.25Gbps with 10 Kilometer link length on single mode fiber.
BlueOptics© transceivers are 100% compliant with SFP Multi-Source Agreement (MSA).
All BlueOptics© SFP transceivers can be equipped with digital diagnostic function compliant to MSA SFF8472.Using digital diagnostic,BlueOptics© SFP Transceivers provide the following real time information:
- Supply voltage
- Laser bias current
- Laser average output power
- Laser received input power
- Temperature
The transceiver consists of five sections: A FP transmitter, a PIN photodiode, a trans-impedance preamplifier (TIA), the LD Driver and the digital diagnostic function.
Applications
- 1000Base-LX
- Ethernet / Fiber Channel
- Switch to Switch Interface
- Router/Server Interface
- Other optical links
Features
- 1.25Gb/s serial optical interface compliant to 802.3z 1000BASE-LX
- FP laser transmitter
- PIN photo-detector

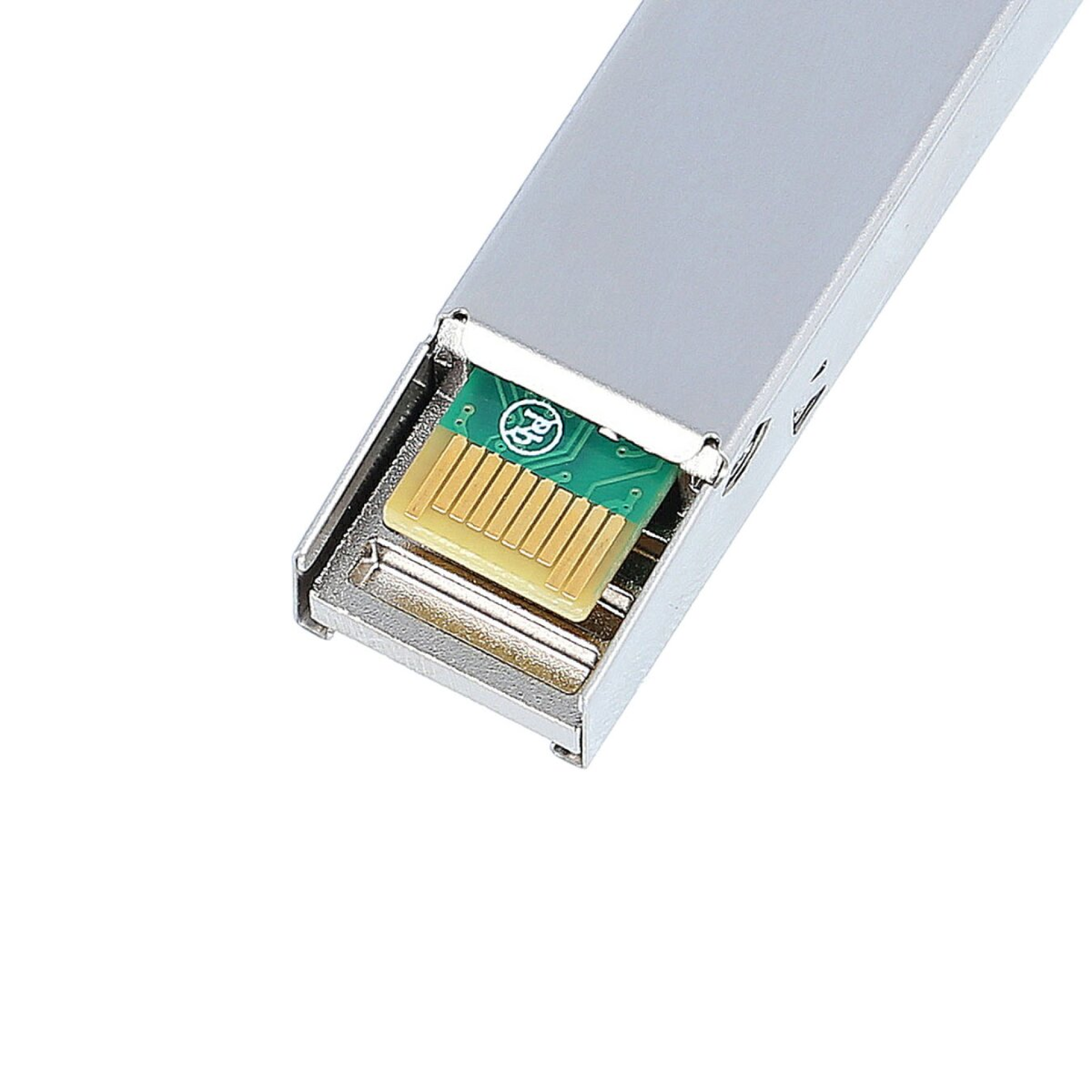

- Hot-pluggable SFP footprint compliant to SFF-8074i

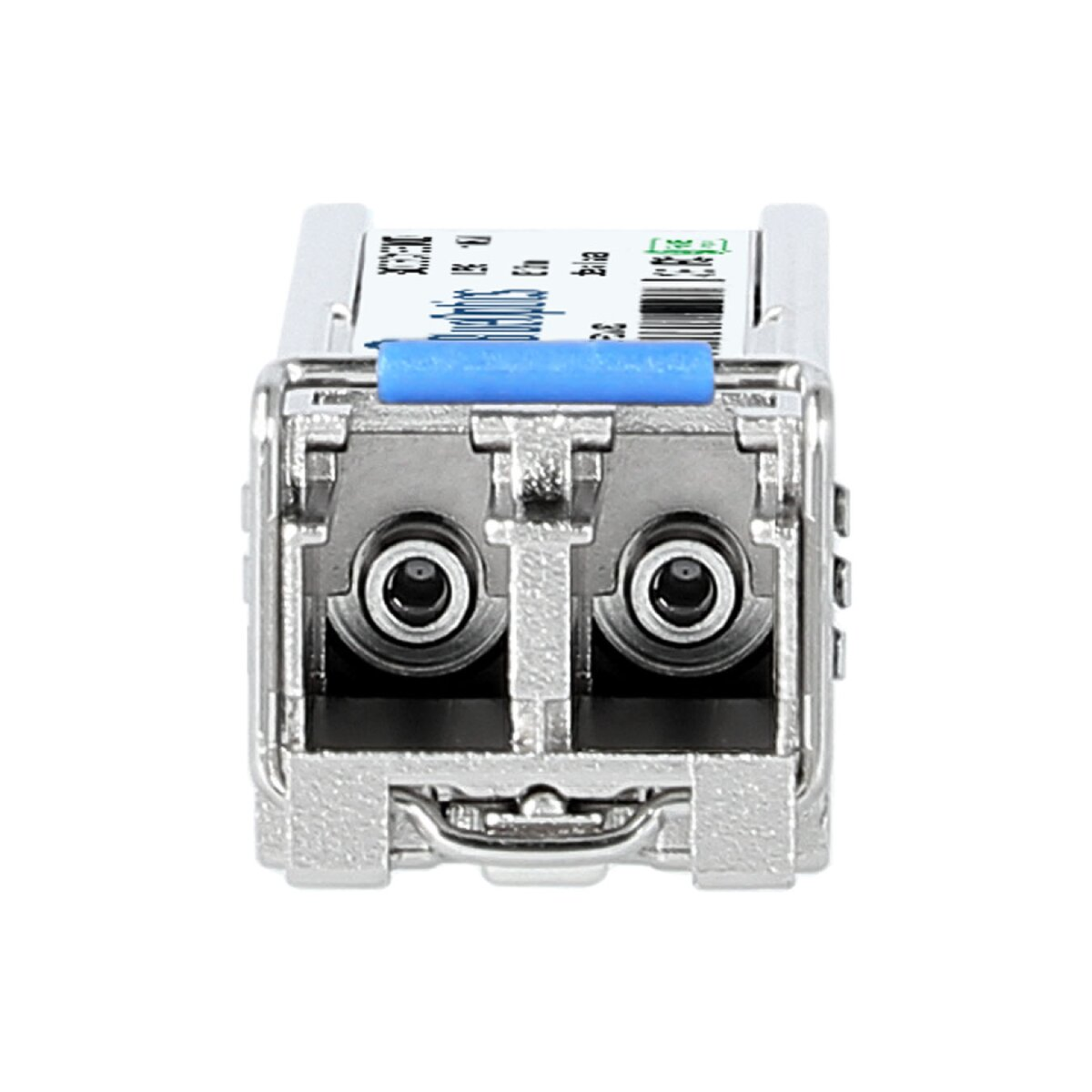

- Duplex LC/UPC type pluggable optical interface
- 2-wire interface for management
- Metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- Compliant with SFF-8472
- Case operating temperature
- Commercial: 0°C to +70°C
- Extended: -10°C to +80°C
- Industrial: -40°C to +85°C
BlueOptics© transceivers are 100% compliant with SFP Multi-Source Agreement (MSA).
All BlueOptics© SFP transceivers can be equipped with digital diagnostic function compliant to MSA SFF8472.Using digital diagnostic,BlueOptics© SFP Transceivers provide the following real time information:
- Supply voltage
- Laser bias current
- Laser average output power
- Laser received input power
- Temperature
The transceiver consists of five sections: A FP transmitter, a PIN photodiode, a trans-impedance preamplifier (TIA), the LD Driver and the digital diagnostic function.
Applications
- 1000Base-LX
- Ethernet / Fiber Channel
- Switch to Switch Interface
- Router/Server Interface
- Other optical links
Features
- 1.25Gb/s serial optical interface compliant to 802.3z 1000BASE-LX
- FP laser transmitter
- PIN photo-detector
- Hot-pluggable SFP footprint compliant to SFF-8074i
- Duplex LC/UPC type pluggable optical interface
- 2-wire interface for management
- Metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- Compliant with SFF-8472
- Case operating temperature
- Commercial: 0°C to +70°C
- Extended: -10°C to +80°C
- Industrial: -40°C to +85°C
| Compatible to: | Cisco |
|---|---|
| Connector: | LC Duplex |
| Construction type: | Mini GBIC |
| Depth: | 58.4 |
| Detecting range: | 10 km |
| Gigabit Ethernet: | True |
| Height: | 8.5 mm |
| Medium: | Singlemode |
| Protocol: | 1000BASE-LX |
| RoHS: | True |
| Speed: | 1,25 Gbit/s |
| Storage Temperature: | -40 – 85 °C |
| Wave length: | 1310 nm |
| Width: | 13.9 |
Technical properties
| Compatible to: | Cisco |
|---|---|
| Connector: | LC Duplex |
| Construction type: | Mini GBIC |
| Depth: | 58.4 |
| Detecting range: | 10 km |
| Gigabit Ethernet: | True |
| Height: | 8.5 mm |
| Medium: | Singlemode |
| Protocol: | 1000BASE-LX |
| RoHS: | True |
| Speed: | 1,25 Gbit/s |
| Storage Temperature: | -40 – 85 °C |
| Wave length: | 1310 nm |
| Width: | 13.9 |
