Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2
Prices only visible for logged in users

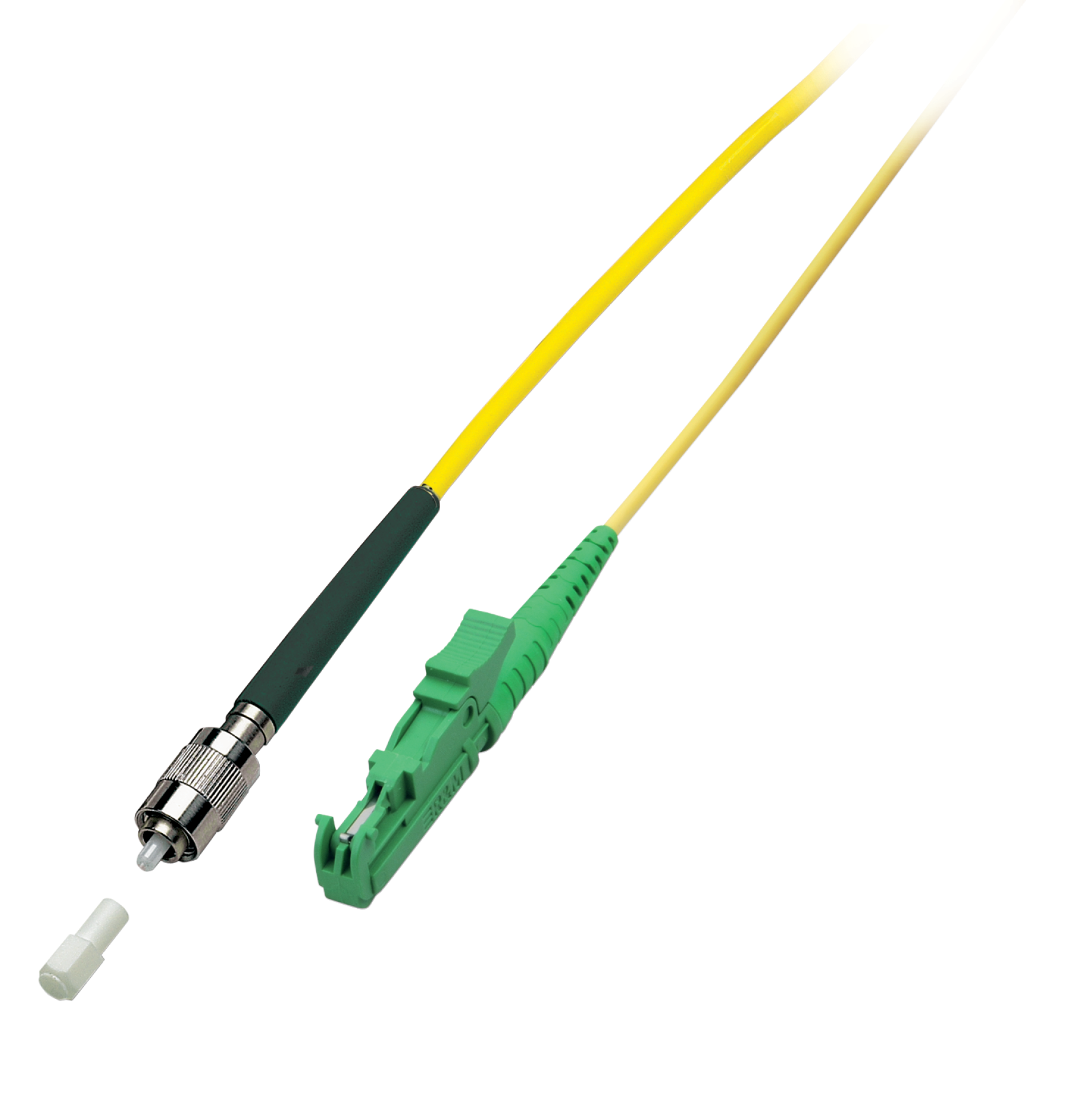

Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2 3m 3,0mm Yellow 9/125µm
Item number:
O0836I3
EAN no.:
4049759263225
Product information for Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2 3m 3,0mm Yellow 9/125µm
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
Technical properties
| APC-version: | True |
|---|---|
| APC version Connector 1: | 8° |
| Anti-kink sleeve: | put-on |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable Construction: | simplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | yellow |
| Connector colour 1: | green |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | According to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Jacket Material: | LSZH |
| Number of fibres: | 1 |
| Operating Temperature: | -20 – 75 °C |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | E2000® |
| Type of connector connection 2: | FC |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| O0836I1 | Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2 1m 3,0mm Yellow 9/125µm | 1.0 m | ±5 % | |
| O0836I2 | Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2 2m 3,0mm Yellow 9/125µm | 2.0 m | ±5 % | |
| O0836I3 | Simplex Fiber Optic Patch Cable E2000®/APC-FC/APC OS2 3m 3,0mm Yellow 9/125µm | 3.0 m | ±5 % |
