Socket Strip Vertical 15 x , 3-Phase
Socket Strip Vertical15 x CEE7/3, 3-Phase, Plug CEE 16 A red
Item number:
691784
EAN no.:
4016514048151
Product information for Socket Strip Vertical15 x CEE7/3, 3-Phase, Plug CEE 16 A red
Aluminium profile with 44 mm, depth 47 mm, length ca. 821 mm
15 x CEE7/3 (5 per phase)
3-phase feeding with phase labelling and colour marking (red/black/grey)

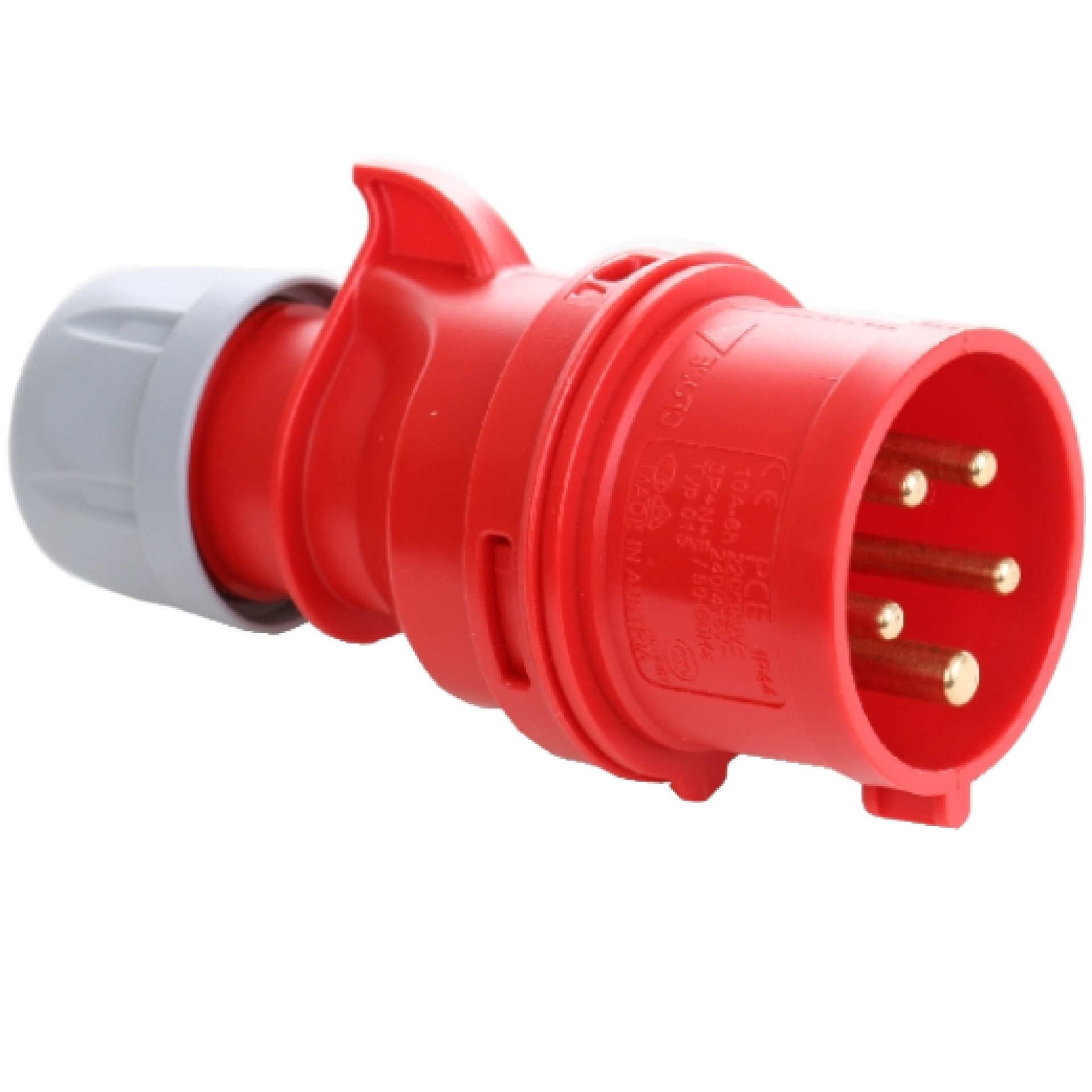

Cable 3.0 m black, H05VV-F 5G 2.5 mm² with CEE 16 A plug 5-pole red
Supplied mounting brackets allow any fastening position
15 x CEE7/3 (5 per phase)
3-phase feeding with phase labelling and colour marking (red/black/grey)
Cable 3.0 m black, H05VV-F 5G 2.5 mm² with CEE 16 A plug 5-pole red
Supplied mounting brackets allow any fastening position
Technical properties
| Core cross section: | 2.50 mm² |
|---|---|
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 3.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | False |
| Residual current circuit breaker (RCCB): | False |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
