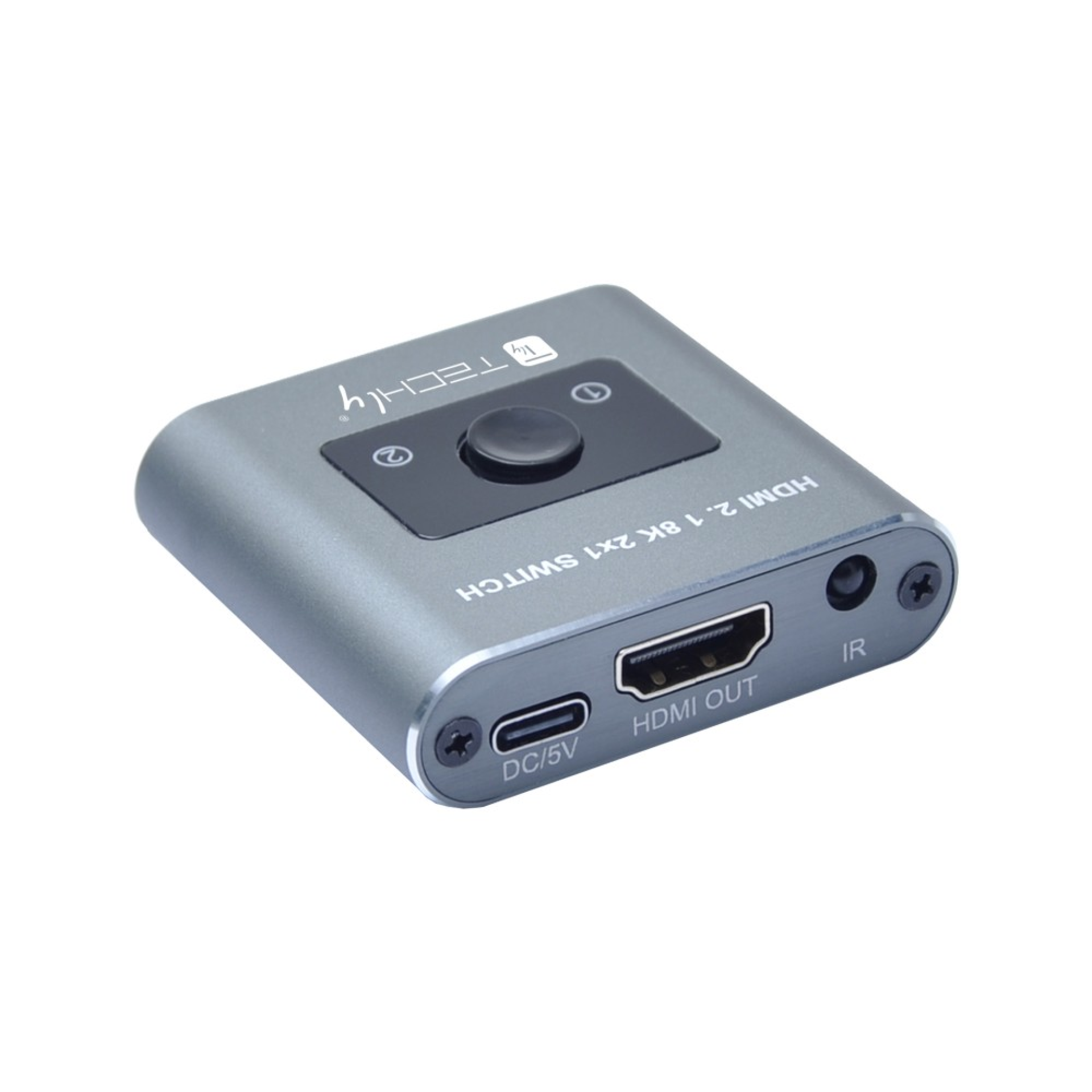

Techly 2x1 HDMI 2.1 8K Switch

Techly 2x1 HDMI 2.1 8K Switch
Item number: IDATA-HDMI-2128KT

Product information for Techly 2x1 HDMI 2.1 8K Switch

HDMI switch capable of connecting two HD input devices to one HDMI output device
Compatible with HDMI V2.1 devices; Supports HD resolutions up to 8k @ 60Hz and backward compatible
Supports uncompressed audio, such as LPCM. It supports compressed audio, such as DTS Digital, Dolby Digital, DTS-HD and Dolby TrueHD
HDMI resolution: 24/50 / 60fps - 480p / 576/480 / 576p / 720/1080 / 1080p / 2160p / 4320p; HDMI 2.1; HDCP 2.3
Distance between input cable and output cable: < 2m, AWG24 standard HDMI cable; Maximum working current: 5V / 1A

You can switch between the 2 input devices simply by pressing the toggle button.

Features
Compatible with HDMI V2.1 devices
Supports HD resolutions up to 8k @ 60Hz and backward compatible
Supports uncompressed audio, such as LPCM. It supports compressed audio, such as DTS Digital, Dolby Digital, DTS-HD and Dolby TrueHD

Technical specifications
HDMI resolution: 24/50 / 60fps - 480p / 576/480 / 576p / 720/1080 / 1080p / 2160p / 4320p
HDMI 2.1
HDCP 2.3
Supports 24-bit, 30-bit, 36-bit color video
Supports DTS HD / Dolby-true HD / LPCM7.1 / DTS / Dolby * - AC3 / DSD HD (HBR) audio
Maximum transmission speed: 48 Gbps
Distance between input cable and output cable: < 2m, AWG24 standard HDMI cable
Maximum working current: 5V / 1A
Environmental characteristics
Operating temperature: -15 / 55 ° C
Operating humidity: 5% to 90% RH

Package Contents
1x 2X1 HDMI Switch
1x USB power line
1x Remote control
1x Power supply
1x User Guide

Technical properties

Max. resolution: 7680 x 4320 (8K)
Suitable for 19 inch mounting: False
Video Inputs: HDMI
Video interface: HDMI
